◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11360 - FTR(MALAYSIA)W/B6000 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#55894) — 12 parça

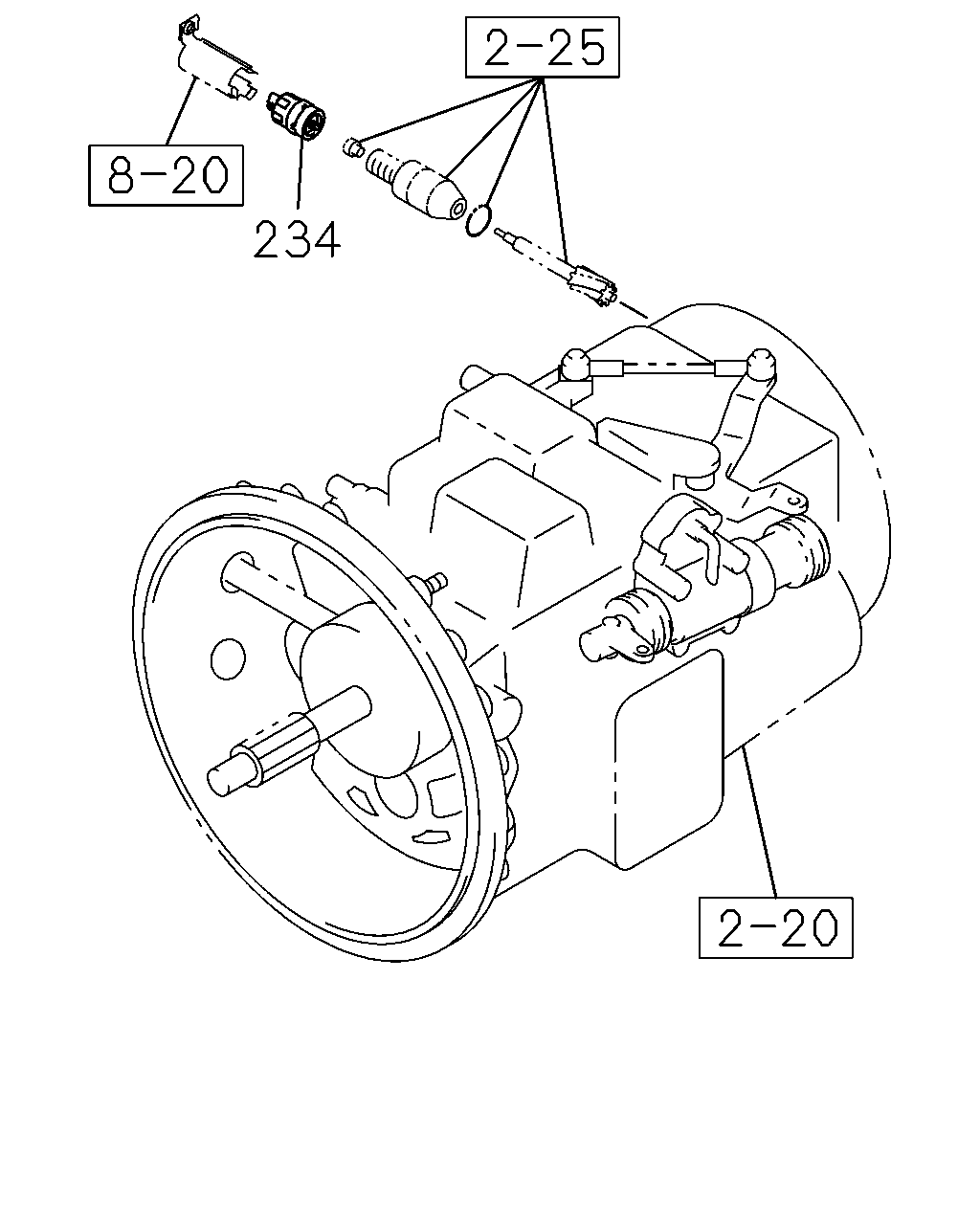

çizim 173466
234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 0110-0202
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203-

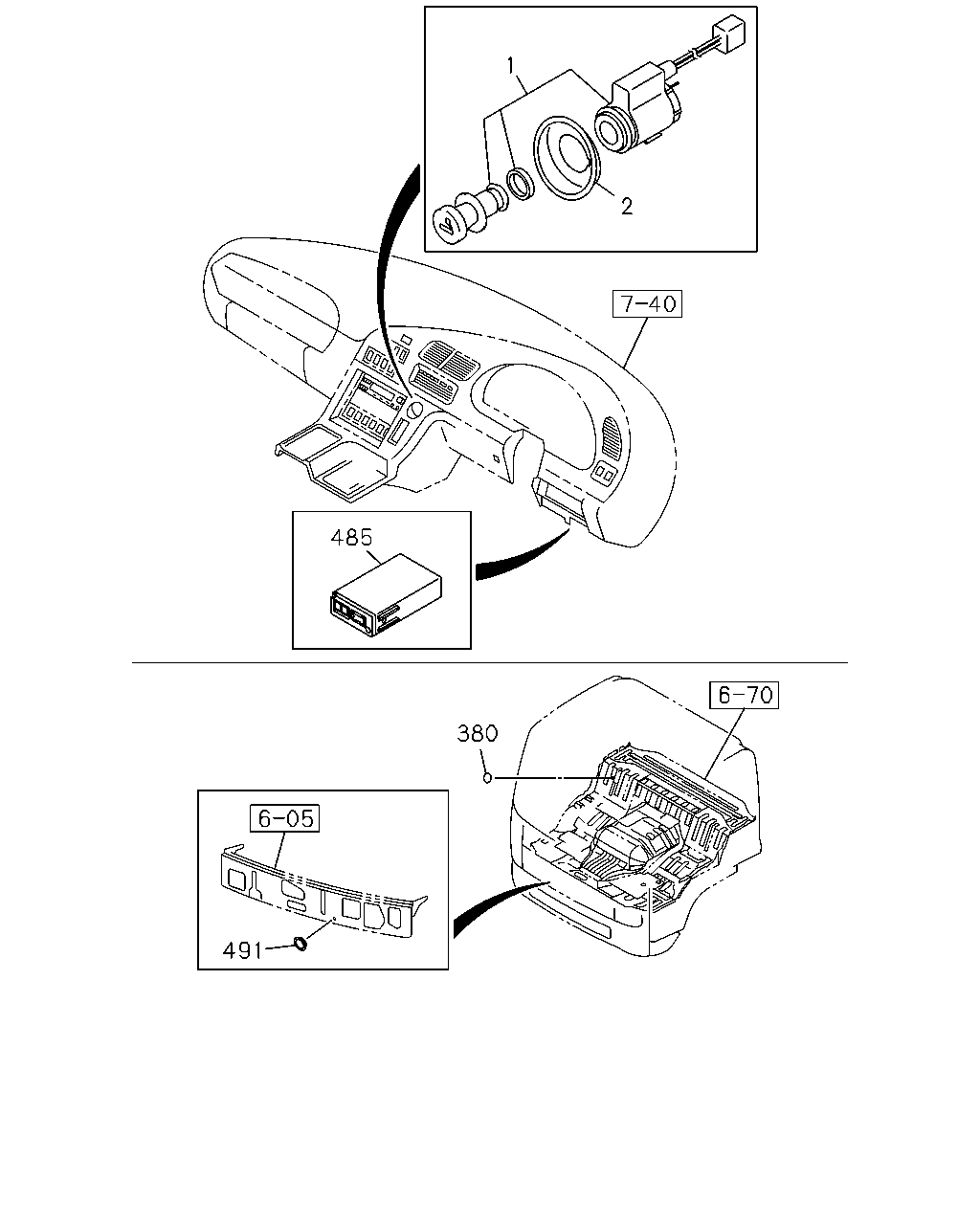

çizim 173468
1 2 485 380 491
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
MAL 		8-97320-325-0 01 1 0110-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0110-
380 SEAL
6HH1 STD ENG(65L) OD=25 BLACK MAL 		1-76798-019-0 02 1 0201-0510
380 SEAL
6HE1 TC ENG(57L),6HH1 STD ENG(65L) OD=25 BLACK MAL 		1-76798-019-0 02 1 0511-
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0110-0402
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0110-0112
491 PLUG; HOLE,CONT UNIT
6HH1 STD ENG(65L) OD=54.5 		1-73907-309-0 01 1 0201-0510
491 PLUG; HOLE,CONT UNIT
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
