8-15 — FIXING PARTS; WIRING HARNESS (#55890) — 260 parça

64 524 219 294 133 210 520 184 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SCREW; CLIP EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	0511-
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X12 W/LK&PL WASHER MAL	8-94279-200-0	01	1	0110-0210
133	SCREW; HARNESS CLIP,STRG COLUMN (C) M6X16 W/LK&PL WASHER MAL	8-94279-402-0	01	1	0110-0110
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0110-
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	0110-0603
209	WASHER; LK,GEN,EARTH ID=5.1	0-91510-505-0	01	1	0604-
210	WASHER; PL,GEN ID=8.4	1-09503-264-0	01	1	0110-
219	NUT M8 FLANGE	0-91150-108-0	04	1	0110-0510
219	NUT EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	04	1	0511-0602
219	NUT M8 FLANGE	0-91150-108-0	04	1	0511-0602
219	NUT EURO2 SPECIFICATION<THN> M8 FLANGE MAL	0-91180-108-0	04	1	0603-
219	NUT M8 FLANGE MAL	0-91180-108-0	04	1	0603-
219	NUT M8 FLANGE	0-91150-108-0	01	1	0110-0602
219	NUT M8 FLANGE MAL	0-91180-108-0	01	1	0603-
294	NUT M8 FLANGE	0-91150-108-0	01	1	0110-0602
294	NUT M8 FLANGE MAL	0-91180-108-0	01	1	0603-1006
294	NUT M8 FLANGE	0-91150-108-0	02	1	0110-0602
294	NUT M8 FLANGE MAL	0-91180-108-0	02	1	0603-
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	0110-
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	01	1	0110-0602
524	NUT; HARNESS M6 FLANGE MAL	0-91180-106-0	01	1	0603-

33 48 81 121 206 223 228 395 418 14 16 33 48 217 510 224 513 530 178 178 514 16 171 48 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS L=250	5-09707-030-1	01	1	0110-0510
14	CLIP; BAND,HARNESS 6HH1 STD ENG(65L) L=250	5-09707-030-1	01	1	0511-1205
14	CLIP; BAND,HARNESS 6HH1 STD ENG(65L) L=250	8-98216-430-0	01	1	1206-
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0110-
16	CLIP; HARNESS (C) ID=28 L=78	1-09700-858-0	01	1	0110-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0110-
16	CLIP; HARNESS (G) ID=19 H=21 L=50	1-09700-910-1	01	1	0110-
16	CLIP; HARNESS (B) L=300	1-09707-001-1	01	1	0110-
16	CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0110-
16	CLIP; HARNESS (D) ID=19 L=32	9-09525-866-0	01	1	0110-0606
16	CLIP; HARNESS (D) ID=19 L=32	0-95235-866-0	01	1	0607-
16	CLIP; HARNESS (J) ID=14 L=44	9-09917-427-0	03	1	0110-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (F) ID=23 L=32	1-09700-346-0	01	1	0511-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (E) ID=24 L=40	1-09701-139-0	01	1	0511-
33	CLIP; HARNESS,VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) L=140 MAL	5-09707-031-1	01	1	0511-0704
33	CLIP; HARNESS,VLV 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) L=250	5-09707-030-1	01	1	0705-
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	0110-
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	03	1	0110-
48	CLIP; FRAME HARNESS (L) ID=15 L=65	1-09700-466-0	02	1	0110-
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	01	1	0110-
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	03	1	0110-
48	CLIP; FRAME HARNESS (H) ID=28 L=78	1-09700-858-0	04	1	0110-
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	01	1	0110-0606
48	CLIP; FRAME HARNESS (D) ID=19 L=28	0-95235-856-0	01	1	0607-
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	0110-
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	0110-
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	18	1	0110-0204
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	19	1	0205-
48	CLIP; FRAME HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0110-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (F) ID=23 L=32	1-09700-346-0	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (E) ID=25 L=50	1-09700-976-0	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24	1-09701-243-1	01	1	0511-
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24	1-09701-243-1	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (C) L=350	1-09707-183-0	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (B) L=250	5-09707-030-1	01	1	0511-
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) L=250	5-09707-030-1	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (A) L=140 MAL	5-09707-031-1	03	1	0511-
81	CLIP; HARNESS L=140 MAL	5-09707-031-1	02	1	0110-
121	CLIP; FACIA HARNESS (A) L=140 MAL	5-09707-031-1	01	1	0110-
121	CLIP; FACIA HARNESS (B) OD=7 H=1.2	8-94364-750-0	02	1	0110-
171	CLIP; STARTER HARNESS (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0110-0510
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0511-
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0511-
171	CLIP; STARTER HARNESS (A) L=300	1-09707-001-1	01	1	0110-
171	CLIP; STARTER HARNESS (B) OD=9 H=6	1-09709-178-0	02	1	0110-
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	0110-0606
171	CLIP; STARTER HARNESS (C) ID=19 L=28	0-95235-856-0	04	1	0607-
178	GROMMET; HARNESS (A) ID=19 OD=23 T=24	1-09332-103-0	01	1	0110-
178	GROMMET; HARNESS WHEEL BASE 6000MM(60W) (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	0205-
206	CLIP; FUEL TANK HARNESS L=140 MAL	5-09707-031-1	02	1	0110-
217	CLIP; RR BODY HARNESS (B) ID=15 L=70	1-09700-980-0	02	1	0110-0208
217	CLIP; RR BODY HARNESS (A) L=250	5-09707-030-1	02	1	0110-
223	CLIP; AIR TANK HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0110-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0110-0204
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0205-
223	CLIP; AIR TANK HARNESS (C) L=140 MAL	5-09707-031-1	01	1	0110-
223	CLIP; AIR TANK HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	0110-
223	CLIP; AIR TANK HARNESS (E) ID=20 L=50	9-09917-430-0	04	1	0110-
224	SLEEVE; RUBBER,HARNESS EURO2 SPECIFICATION<THN> ID=32 OD=36 L=50	1-09337-023-0	01	1	0511-
228	CLIP; COOLER HARNESS L=140 MAL	5-09707-031-1	01	1	0110-
395	CLIP; WIPER HARNESS L=140 MAL	5-09707-031-1	01	1	0110-
418	CLIP; LAMP HARNESS RADIO CLARION(SK2) L=140 MAL	5-09707-031-1	01	1	0703-
503	CONNECTOR EXC. AIR DRYER<PS7>	1-82690-668-0	01	1	0110-
503	CONNECTOR	1-82690-668-0	01	1	0110-
510	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	01	1	0511-
513	TAPE; SOFT,HARNESS 100X40	1-72498-022-0	01	1	0110-0906
513	TAPE; SOFT,HARNESS EURO2 SPECIFICATION<THN> 100X40	1-72498-022-1	05	1	0511-
514	FINISHER; HARNESS EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) L=50	8-94270-377-1	01	1	0907-
530	SEAL; HARNESS 180X40	1-72498-019-1	06	1	0110-

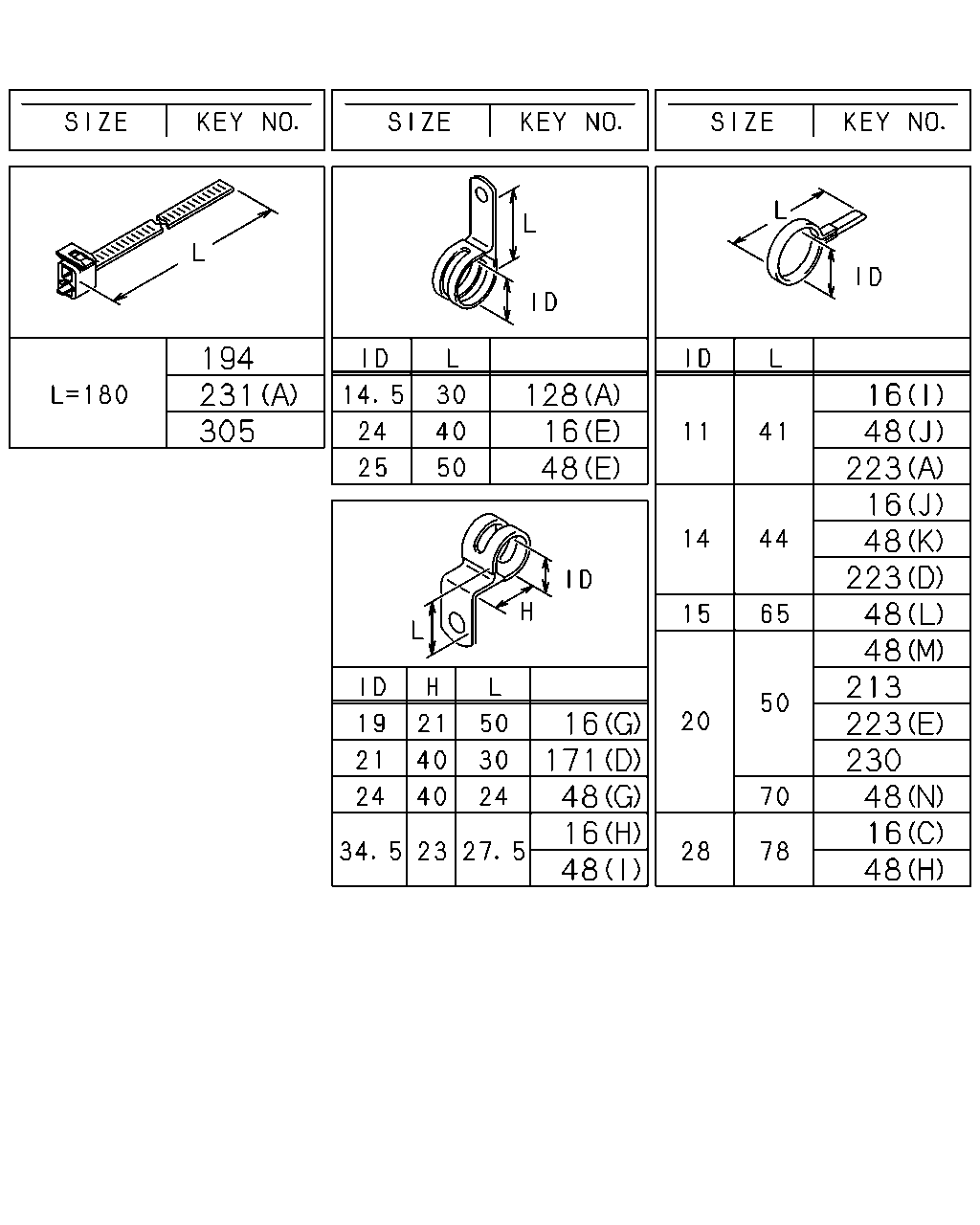

194 231 305 128 16 48 16 48 223 16 48 223 48 48 213 223 230 48 16 48 16 171 48 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0110-
16	CLIP; HARNESS (C) ID=28 L=78	1-09700-858-0	01	1	0110-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0110-
16	CLIP; HARNESS (G) ID=19 H=21 L=50	1-09700-910-1	01	1	0110-
16	CLIP; HARNESS (B) L=300	1-09707-001-1	01	1	0110-
16	CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0110-
16	CLIP; HARNESS (D) ID=19 L=32	9-09525-866-0	01	1	0110-0606
16	CLIP; HARNESS (D) ID=19 L=32	0-95235-866-0	01	1	0607-
16	CLIP; HARNESS (J) ID=14 L=44	9-09917-427-0	03	1	0110-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (F) ID=23 L=32	1-09700-346-0	01	1	0511-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (E) ID=24 L=40	1-09701-139-0	01	1	0511-
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	0110-
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	03	1	0110-
48	CLIP; FRAME HARNESS (L) ID=15 L=65	1-09700-466-0	02	1	0110-
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	01	1	0110-
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	03	1	0110-
48	CLIP; FRAME HARNESS (H) ID=28 L=78	1-09700-858-0	04	1	0110-
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	01	1	0110-0606
48	CLIP; FRAME HARNESS (D) ID=19 L=28	0-95235-856-0	01	1	0607-
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	0110-
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	0110-
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	18	1	0110-0204
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	19	1	0205-
48	CLIP; FRAME HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0110-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (F) ID=23 L=32	1-09700-346-0	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (E) ID=25 L=50	1-09700-976-0	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24	1-09701-243-1	01	1	0511-
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24	1-09701-243-1	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (C) L=350	1-09707-183-0	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (B) L=250	5-09707-030-1	01	1	0511-
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) L=250	5-09707-030-1	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (A) L=140 MAL	5-09707-031-1	03	1	0511-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	9-09525-535-0	01	1	0110-0606
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	0-95235-535-0	01	1	0607-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=14.5 L=30	9-09916-893-1	01	1	0110-
171	CLIP; STARTER HARNESS (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0110-0510
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0511-
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0511-
171	CLIP; STARTER HARNESS (A) L=300	1-09707-001-1	01	1	0110-
171	CLIP; STARTER HARNESS (B) OD=9 H=6	1-09709-178-0	02	1	0110-
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	0110-0606
171	CLIP; STARTER HARNESS (C) ID=19 L=28	0-95235-856-0	04	1	0607-
194	CLIP; BAND L=180	1-09707-162-1	01	1	0110-
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	0110-
223	CLIP; AIR TANK HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0110-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0110-0204
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0205-
223	CLIP; AIR TANK HARNESS (C) L=140 MAL	5-09707-031-1	01	1	0110-
223	CLIP; AIR TANK HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	0110-
223	CLIP; AIR TANK HARNESS (E) ID=20 L=50	9-09917-430-0	04	1	0110-
230	CLIP; C/MBR HARNESS ID=20 L=50	9-09917-430-0	02	1	0110-
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	01	1	0110-0510
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) L=180	1-09707-162-1	01	1	0511-
231	CLIP; BAND,OIL PRESS 6HH1 STD ENG(65L) (A) L=180	1-09707-162-1	01	1	0511-
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6	1-09709-178-0	01	1	0511-
305	CLIP; ENG HARNESS L=180	1-09707-162-1	01	1	0110-

154 53 59 312 335 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS EURO2 SPECIFICATION<THN>	1-47476-812-1	01	1	0511-
59	BRACKET; FRAME HARNESS L=95	1-82699-085-0	01	1	0110-
154	BRACKET; STARTER EARTH CABLE	1-47465-518-0	01	1	0110-0510
154	BRACKET; STARTER EARTH CABLE 6HH1 STD ENG(65L)	1-47465-518-0	01	1	0511-
312	BRACKET; CLIP HARNESS (A)	1-82699-588-0	01	1	0110-0302
312	BRACKET; CLIP HARNESS (B)	1-47478-981-0	01	1	0303-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	0110-

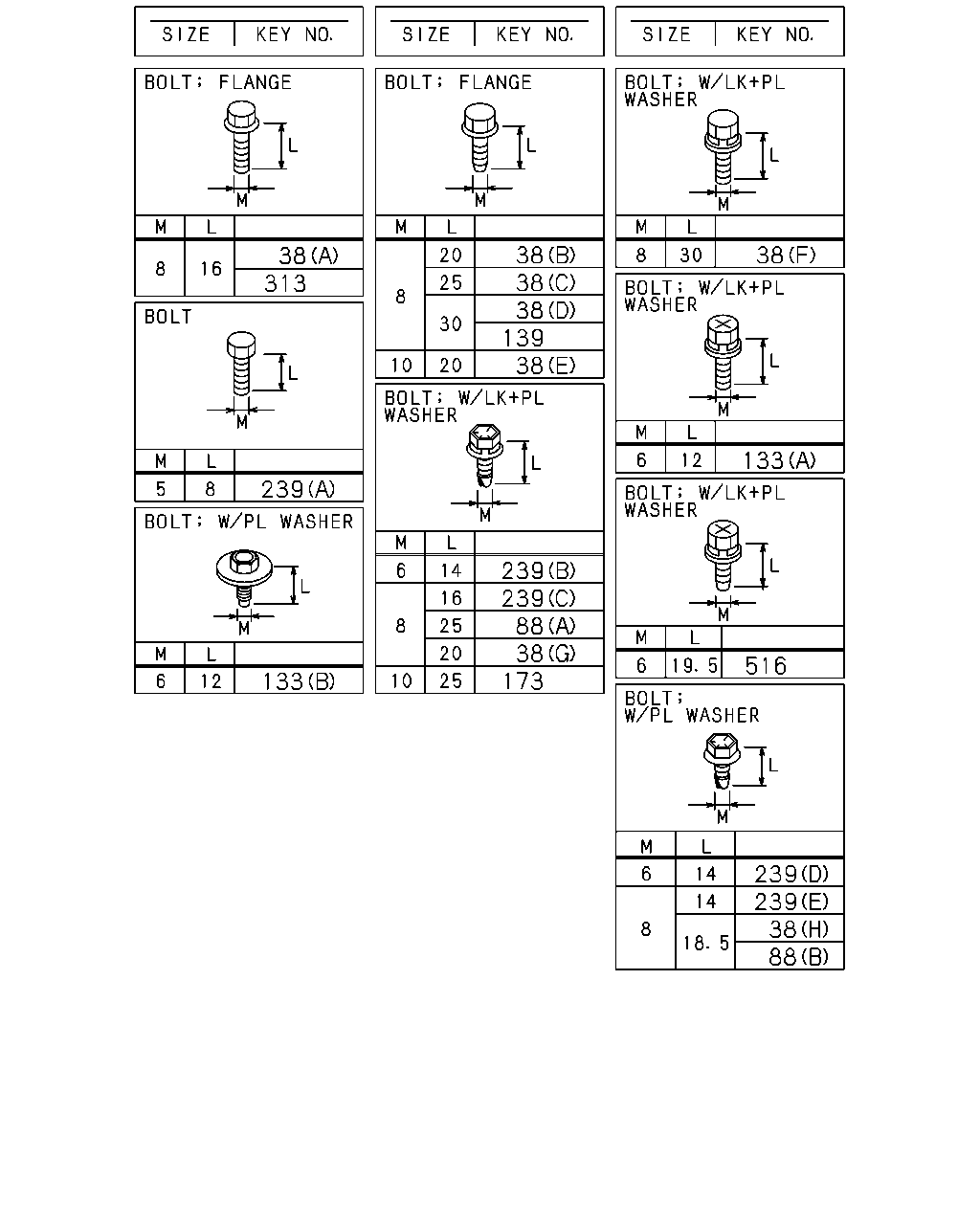

38 38 38 139 38 38 38 313 133 239 239 239 88 38 173 516 133 239 239 38 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	01	1	0110-0510
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	0511-0512
38	BOLT; CLIP,HARNESS 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	0511-0512
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE MAL	0-28050-816-0	01	1	0601-
38	BOLT; CLIP,HARNESS 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE MAL	0-28050-816-0	01	1	0601-
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	04	1	0110-0512
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE MAL	0-28050-816-0	04	1	0601-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE MAL	0-28680-820-0	02	1	0110-0512
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE MAL	0-28680-825-0	01	1	0110-0512
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	02	1	0110-0512
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0601-
38	BOLT; CLIP,HARNESS (E) M10X20 FLANGE	0-28781-020-0	01	1	0110-0512
38	BOLT; CLIP,HARNESS (E) M10X20 FLANGE	0-28751-020-0	01	1	0601-
38	BOLT; CLIP,HARNESS (G) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0110-0510
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (G) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0511-1201
38	BOLT; CLIP,HARNESS (G) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0511-1201
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (H) M8X18.5 W/PL WASHER MAL	8-98141-255-0	01	1	1202-
38	BOLT; CLIP,HARNESS (H) M8X18.5 W/PL WASHER MAL	8-98141-255-0	01	1	1202-
38	BOLT; CLIP,HARNESS (F) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0110-0512
38	BOLT; CLIP,HARNESS (F) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE MAL	0-28680-820-0	04	1	0511-0512
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE MAL	0-28650-820-0	04	1	0601-
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE MAL	0-28680-825-0	03	1	0511-0512
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE MAL	0-28650-825-0	03	1	0601-
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0110-1007
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER MAL	8-98141-255-0	01	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X12 W/LK&PL WASHER MAL	8-94279-200-0	01	1	0110-0210
133	SCREW; HARNESS CLIP,STRG COLUMN (C) M6X16 W/LK&PL WASHER MAL	8-94279-402-0	01	1	0110-0110
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-
139	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0110-0512
139	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
173	BOLT; STARTER EARTH M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0110-
239	BOLT; GRAND (A) M5X8	0-20800-508-0	01	1	0110-
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0110-1007
239	BOLT; GRAND (D) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
239	BOLT; GRAND (C) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0110-1201
239	BOLT; GRAND (E) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
313	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0110-0512
313	BOLT; BRKT M8X16 FLANGE MAL	0-28050-816-0	01	1	0601-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER MAL	8-94279-201-0	02	1	0110-

148 168 128 48 171 16 16 48 171 223 231 470 217 116 421 235 121 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (I) ID=11 L=41	1-09700-403-0	03	1	0110-
16	CLIP; HARNESS (C) ID=28 L=78	1-09700-858-0	01	1	0110-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0110-
16	CLIP; HARNESS (G) ID=19 H=21 L=50	1-09700-910-1	01	1	0110-
16	CLIP; HARNESS (B) L=300	1-09707-001-1	01	1	0110-
16	CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0110-
16	CLIP; HARNESS (D) ID=19 L=32	9-09525-866-0	01	1	0110-0606
16	CLIP; HARNESS (D) ID=19 L=32	0-95235-866-0	01	1	0607-
16	CLIP; HARNESS (J) ID=14 L=44	9-09917-427-0	03	1	0110-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (F) ID=23 L=32	1-09700-346-0	01	1	0511-
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (E) ID=24 L=40	1-09701-139-0	01	1	0511-
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	0110-
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	03	1	0110-
48	CLIP; FRAME HARNESS (L) ID=15 L=65	1-09700-466-0	02	1	0110-
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	01	1	0110-
48	CLIP; FRAME HARNESS (N) ID=20 L=70	1-09700-485-0	03	1	0110-
48	CLIP; FRAME HARNESS (H) ID=28 L=78	1-09700-858-0	04	1	0110-
48	CLIP; FRAME HARNESS (D) ID=19 L=28	9-09525-856-0	01	1	0110-0606
48	CLIP; FRAME HARNESS (D) ID=19 L=28	0-95235-856-0	01	1	0607-
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	0110-
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	0110-
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	18	1	0110-0204
48	CLIP; FRAME HARNESS (M) ID=20 L=50	9-09917-430-0	19	1	0205-
48	CLIP; FRAME HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0110-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (F) ID=23 L=32	1-09700-346-0	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (E) ID=25 L=50	1-09700-976-0	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24	1-09701-243-1	01	1	0511-
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (G) ID=24 H=40 L=24	1-09701-243-1	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (C) L=350	1-09707-183-0	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (B) L=250	5-09707-030-1	01	1	0511-
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) L=250	5-09707-030-1	01	1	0511-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (A) L=140 MAL	5-09707-031-1	03	1	0511-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0110-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1410-
121	CLIP; FACIA HARNESS (A) L=140 MAL	5-09707-031-1	01	1	0110-
121	CLIP; FACIA HARNESS (B) OD=7 H=1.2	8-94364-750-0	02	1	0110-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	9-09525-535-0	01	1	0110-0606
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=16 L=20	0-95235-535-0	01	1	0607-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=14.5 L=30	9-09916-893-1	01	1	0110-
148	CLIP; BAND,HEADLAMP HARNESS (A) L=85	8-94232-611-0	01	1	0110-
148	CLIP; BAND,HEADLAMP HARNESS (B) ID=6 & 10-13 MAL	8-97069-515-0	01	1	0110-
168	CLIP; DASH HARNESS ID=6 & 10-13 MAL	8-97069-515-0	05	1	0110-
171	CLIP; STARTER HARNESS (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0110-0510
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0511-
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (D) ID=21 L=30 H=40	1-09700-991-1	01	1	0511-
171	CLIP; STARTER HARNESS (A) L=300	1-09707-001-1	01	1	0110-
171	CLIP; STARTER HARNESS (B) OD=9 H=6	1-09709-178-0	02	1	0110-
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	0110-0606
171	CLIP; STARTER HARNESS (C) ID=19 L=28	0-95235-856-0	04	1	0607-
217	CLIP; RR BODY HARNESS (B) ID=15 L=70	1-09700-980-0	02	1	0110-0208
217	CLIP; RR BODY HARNESS (A) L=250	5-09707-030-1	02	1	0110-
223	CLIP; AIR TANK HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0110-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0110-0204
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0205-
223	CLIP; AIR TANK HARNESS (C) L=140 MAL	5-09707-031-1	01	1	0110-
223	CLIP; AIR TANK HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	0110-
223	CLIP; AIR TANK HARNESS (E) ID=20 L=50	9-09917-430-0	04	1	0110-
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	01	1	0110-0510
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) L=180	1-09707-162-1	01	1	0511-
231	CLIP; BAND,OIL PRESS 6HH1 STD ENG(65L) (A) L=180	1-09707-162-1	01	1	0511-
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6	1-09709-178-0	01	1	0511-
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=12 L=35	5-09700-206-0	01	1	0110-
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	01	1	0110-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0110-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
