◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11320 - EXR MIDDLE EAST WITH 2STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#55880) — 68 parça

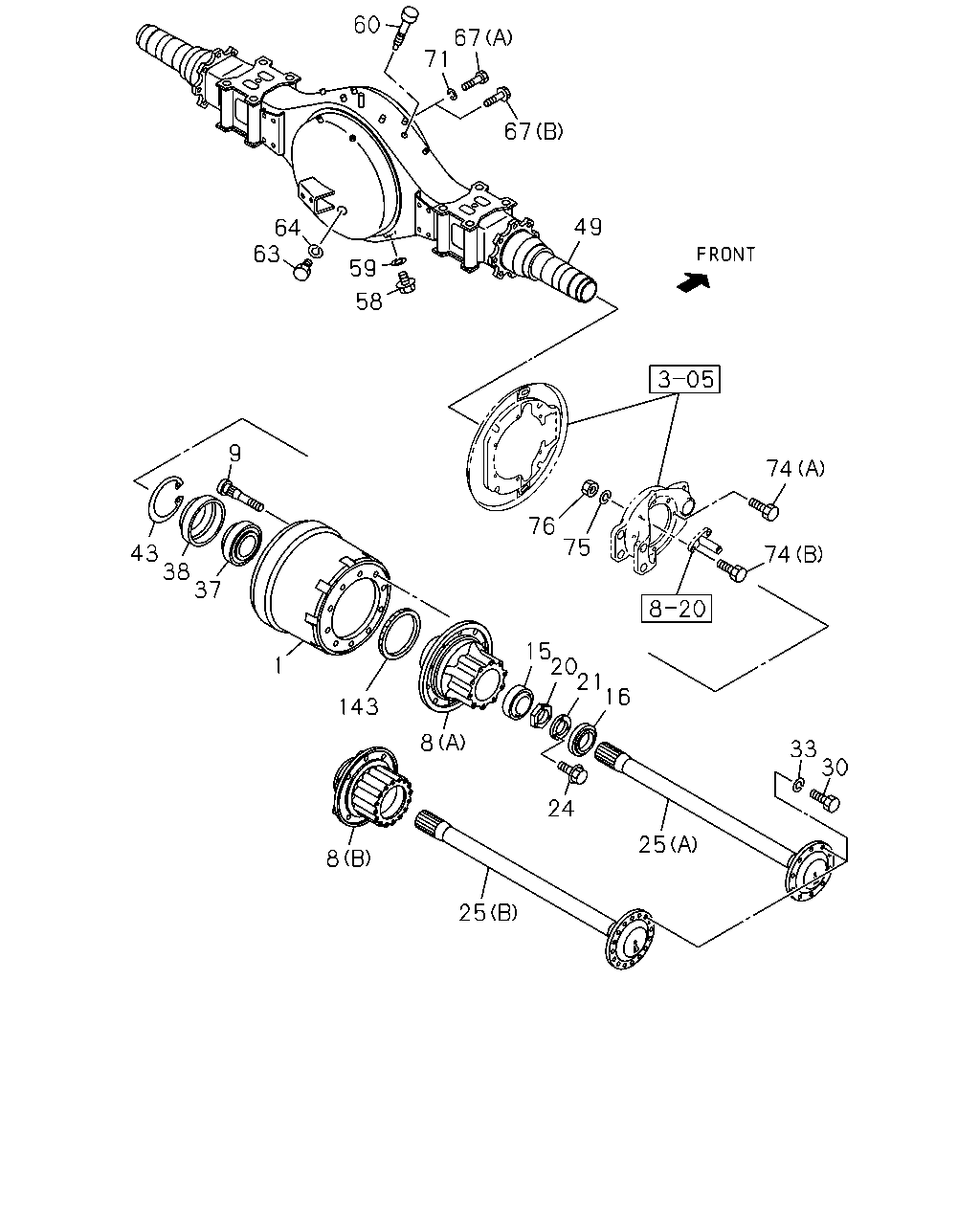

çizim 133524
60 67 71 67 49 64 63 59 58 9 74 76 75 43 38 37 74 15 20 21 16 1 143 8 33 30 24 25 8 25
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR 1-42315-377-2 02 1 0707-
8 HUB; RR AXLE
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) (B) 		1-42311-126-0 02 1 0902-0902
8 HUB; RR AXLE
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) (B) 		1-42311-126-0 02 1 0902-
8 HUB; RR AXLE
(A) 		1-42311-094-0 02 1 0707-0901
8 HUB; RR AXLE
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) (A) 		1-42311-094-0 02 1 0902-
9 PIN; WHEEL,RR AXLE
M22X93 RH THREAD 		1-42337-066-2 20 1 0707-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0707-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0707-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0707-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0707-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0707-
25 SHAFT; AXLE,RR
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) (B) L=1011 		1-42171-371-0 01 1 0902-0902
25 SHAFT; AXLE,RR
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) (B) L=1011 		1-42171-371-0 01 1 0902-
25 SHAFT; AXLE,RR
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) DIFF LOCK<C3N> (B) L=1064 		1-42171-396-0 01 1 0902-0902
25 SHAFT; AXLE,RR
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) DIFF LOCK<C3N> (B) L=1064 		1-42171-396-0 01 1 0902-
25 SHAFT; AXLE,RR
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) EXC. DIFF LOCK<C3N> (B) L=1064 		1-42171-370-0 01 1 0902-0902
25 SHAFT; AXLE,RR
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) EXC. DIFF LOCK<C3N> (B) L=1064 		1-42171-370-0 01 1 0902-
25 SHAFT; AXLE,RR
FINAL GEAR 41/8 18.5"(W3M) DIFF LOCK<C3N> (A) L=1054 		1-42171-542-0 01 1 0707-0810
25 SHAFT; AXLE,RR
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) DIFF LOCK<C3N> (A) L=1054 		1-42171-542-0 01 1 0811-0910
25 SHAFT; AXLE,RR
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) DIFF LOCK<C3N> (A) L=1050 		8-98146-169-0 01 1 0911-1003
25 SHAFT; AXLE,RR
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) DIFF LOCK<C3N> (A) L=1050 		8-98167-669-0 01 1 1004-
25 SHAFT; AXLE,RR
FINAL GEAR 41/8 18.5"(W3M) EXC. DIFF LOCK<C3N> (A) L=1054 		1-42171-355-0 01 1 0707-0810
25 SHAFT; AXLE,RR
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) EXC. DIFF LOCK<C3N> (A) L=1054 		1-42171-355-0 01 1 0811-0910
25 SHAFT; AXLE,RR
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) EXC. DIFF LOCK<C3N> (A) L=1050 		8-98146-168-0 01 1 0911-
25 SHAFT; AXLE,RR
FINAL GEAR 41/8 18.5"(W3M) (A) L=1054 		1-42171-355-0 01 1 0707-0810
25 SHAFT; AXLE,RR
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) (A) L=1054 		1-42171-355-0 01 1 0811-0910
25 SHAFT; AXLE,RR
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) (A) L=1050 		8-98146-168-0 01 1 0911-
30 BOLT; HUB TO AXLE SHAFT
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) M14X58 		1-09000-582-0 32 1 0902-0902
30 BOLT; HUB TO AXLE SHAFT
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) M14X58 		1-09000-582-0 32 1 0902-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0707-0901
30 BOLT; HUB TO AXLE SHAFT
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) M14X58 		1-09000-582-0 20 1 0902-
33 WASHER; AXLE SHAFT
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) ID=14.2 		0-91510-814-0 32 1 0902-0902
33 WASHER; AXLE SHAFT
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) ID=14.2 		0-91510-814-0 32 1 0902-
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0707-0901
33 WASHER; AXLE SHAFT
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) ID=14.2 		0-91510-814-0 20 1 0902-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0707-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0707-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0707-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0707-
49 CASE; RR AXLE
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) 		8-98139-285-0 01 1 0902-0902
49 CASE; RR AXLE
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) 		8-98139-285-0 01 1 0902-
49 CASE; RR AXLE 1-42190-479-2 01 1 0707-0901
49 CASE; RR AXLE
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) 		1-42190-479-2 01 1 0902-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0707-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0707-
60 BREATHER; RR AXLE CASE 1-09893-011-1 01 1 0707-1412
60 BREATHER; RR AXLE CASE 1-09893-003-0 01 1 1501-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0707-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0707-
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) (B) M16X110 		1-09044-089-1 06 1 0902-0902
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) (B) M16X110 		1-09044-089-1 06 1 0902-
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) (B) M16X50 		1-09044-090-1 08 1 0902-0902
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/8 19.5"(W5Q),FINAL GEAR 43/10 19.5"(W6F) (B) M16X50 		1-09044-090-1 08 1 0902-
67 BOLT; FINAL DRIVE SETTING
(A) M16X70 		0-10956-670-0 06 1 0707-0901
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) (A) M16X70 		0-10956-670-0 06 1 0902-
67 BOLT; FINAL DRIVE SETTING
(A) M16X40 		0-20951-640-0 06 1 0707-0901
67 BOLT; FINAL DRIVE SETTING
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) (A) M16X40 		0-20951-640-0 06 1 0902-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0707-0901
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 39/9 18.5"(W4T) ID=16.2 		0-91510-816-0 12 1 0902-
74 BOLT; RR BRK ASM SETTING
(A) M14X50 		1-09040-066-0 12 1 0707-
74 BOLT; RR BRK ASM SETTING
(B) M14X80 		9-92621-480-0 04 1 0707-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0707-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0707-
143 RING; EXCITER 1-42319-173-0 02 1 0707-
