3-77 — BRAKE PIPING; AIR,REAR (#55873) — 134 parça

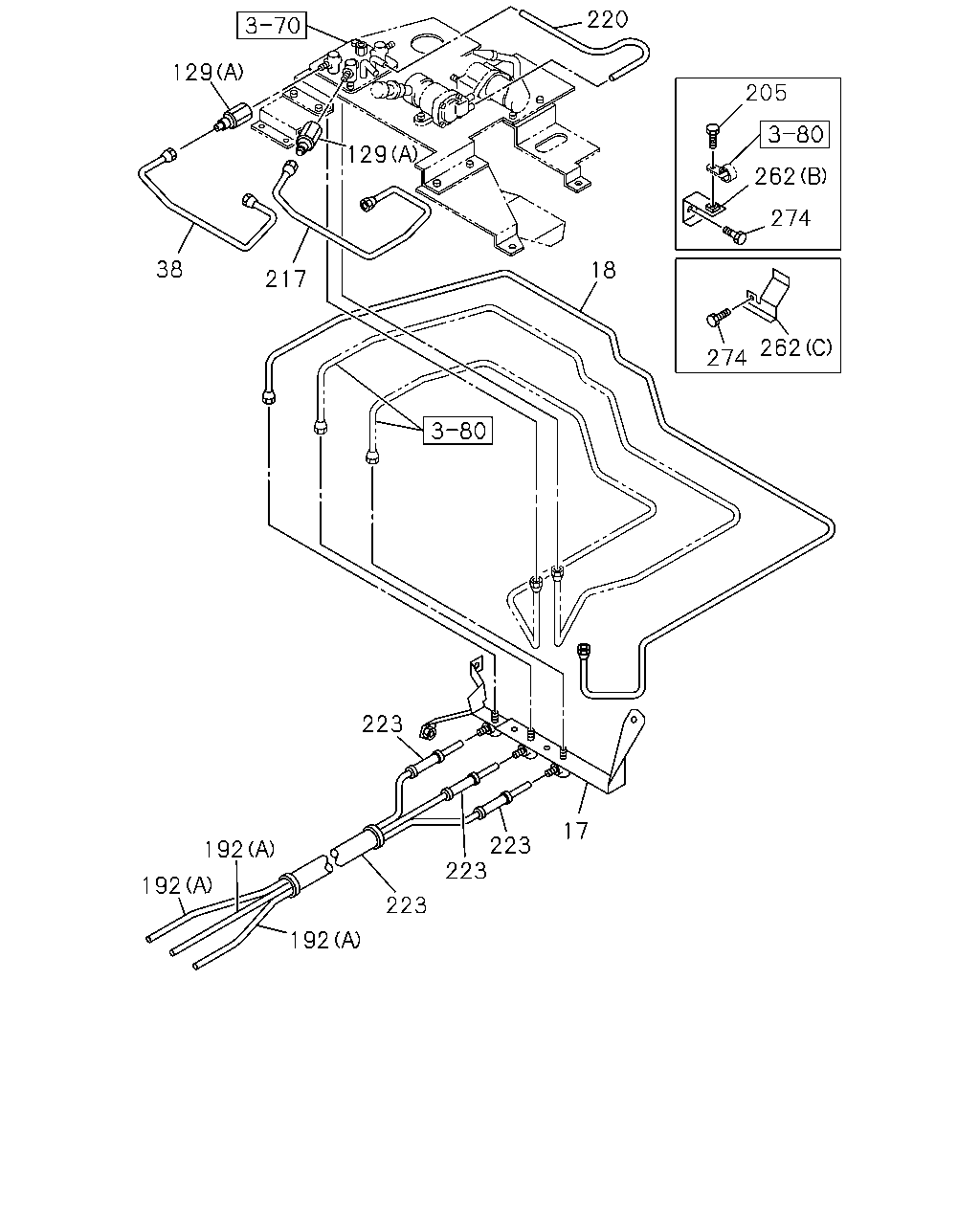

çizim 133484
220 129 205 129 262 274 38 18 217 262 274 223 17 223 223 192 192 223 192
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE 1-47470-558-0 01 1 0707-
18 PIPE; AIR,UNION TO UNION
L=2332 SERVICED BY L=2400 		1-47426-395-0 01 1 0707-
38 PIPE; AIR,UNION TO MAG VLV 1-49123-433-0 01 1 0707-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0707-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0707-
129 CONNECTOR; NYLON TUBE
(B) 		8-97618-539-0 02 1 0707-0803
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0707-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0707-
205 BOLT; TUBE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0707-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49123-172-0 01 1 0707-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 0707-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0707-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0707-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0707-
262 BRACKET
(A) 		1-47471-015-0 01 1 0707-
262 BRACKET
(B) 		1-79996-143-0 01 1 0707-
262 BRACKET
(C) 		1-79996-258-1 01 1 0707-
262 BRACKET
DIFF LOCK<C3N> (D) 		1-47471-386-0 01 1 0707-
274 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0707-
274 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0707-
çizim 133487
192 192 72 262 105 100 280 126 76 192
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0707-
72 NUT; BRKT
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 0707-
76 ADAPTER; NYLON TUBE
DIFF LOCK<C3N> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0707-
100 NUT; UNION
M14 FLANGE 		0-91150-114-0 01 1 0707-
100 NUT; UNION
DIFF LOCK<C3N> M12 		9-09840-280-0 01 1 0707-
105 HOSE; FLEX
FINAL GEAR 19.5"<BDC> DIFF LOCK<C3N> L=390 		1-09363-616-0 01 1 0902-
105 HOSE; FLEX
DIFF LOCK<C3N> L=320 		1-09363-625-0 01 1 0707-0901
105 HOSE; FLEX
FINAL GEAR 18.5 INCH<C1C> DIFF LOCK<C3N> L=320 		1-09363-625-0 01 1 0902-
126 UNION; NYLON TUBE
(A) 		1-09661-128-0 01 1 0707-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 0707-
126 UNION; NYLON TUBE
(D) DIN12 M22 STRAIGHT 		8-98107-103-0 02 1 0804-
126 UNION; NYLON TUBE
DIFF LOCK<C3N> (C) M12 ELBOW 		0-92125-206-0 01 1 0707-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0707-
262 BRACKET
(A) 		1-47471-015-0 01 1 0707-
262 BRACKET
(B) 		1-79996-143-0 01 1 0707-
262 BRACKET
(C) 		1-79996-258-1 01 1 0707-
262 BRACKET
DIFF LOCK<C3N> (D) 		1-47471-386-0 01 1 0707-
280 WASHER; LK
DIFF LOCK<C3N> ID=12.2 		0-91510-512-0 01 1 0707-

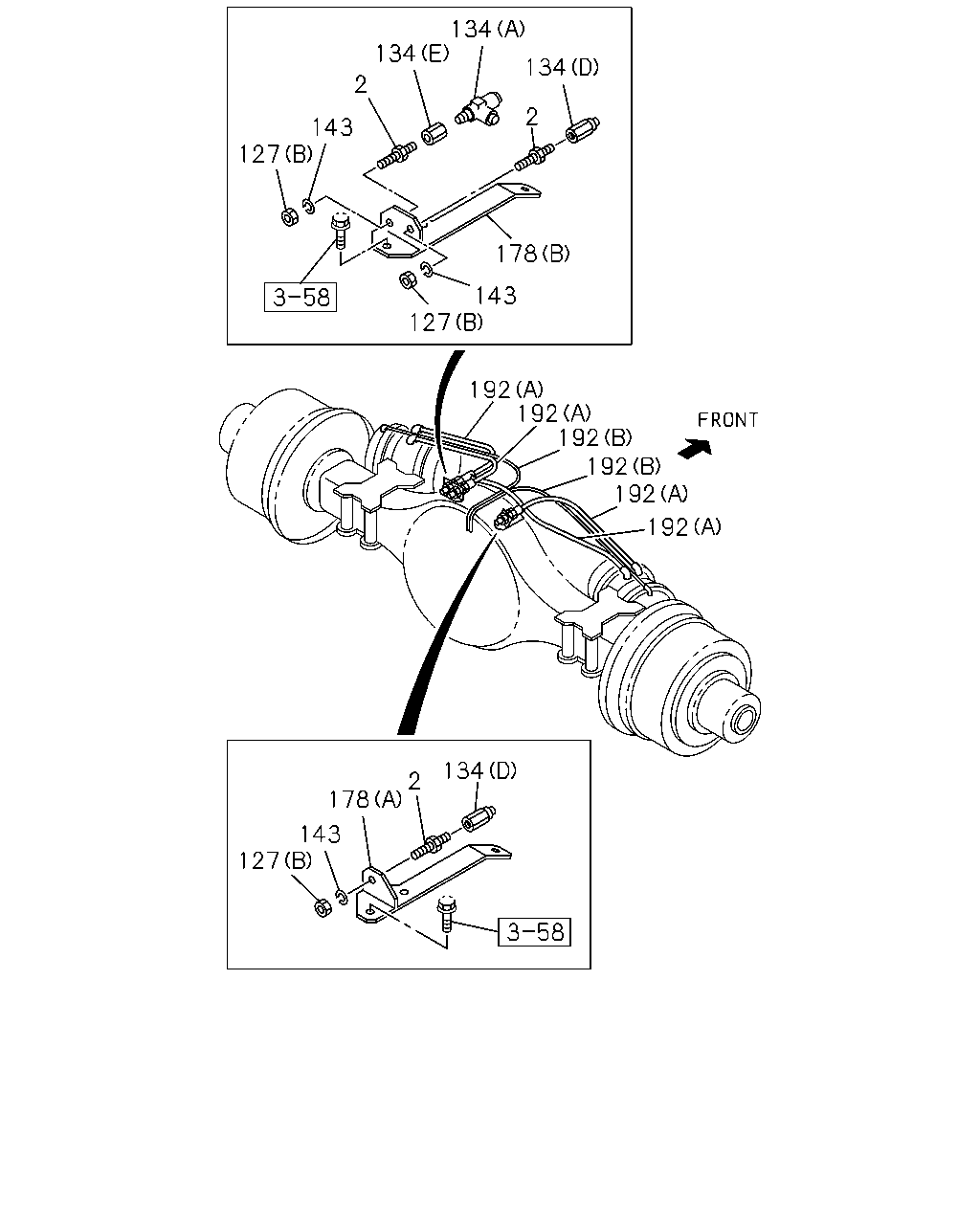

çizim 133489
134 134 134 2 2 143 127 178 143 127 192 192 192 192 192 192 134 2 178 143 127
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
M20 STRAIGHT 		1-09654-240-1 03 1 0707-
127 NUT; UNION
(B) M20 		0-91111-520-0 03 1 0707-
127 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 03 1 0707-
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0707-
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0707-
134 CONNECTOR
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0707-
134 CONNECTOR
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0707-
134 CONNECTOR
(A) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0707-
143 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 03 1 0707-1008
143 WASHER; LK,UNION
ID=20.2 		0-91510-620-0 03 1 1009-
178 BRACKET; UNION
(A) 		1-42119-186-0 01 1 0707-
178 BRACKET; UNION
(B) 		1-42119-187-0 01 1 0707-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0707-

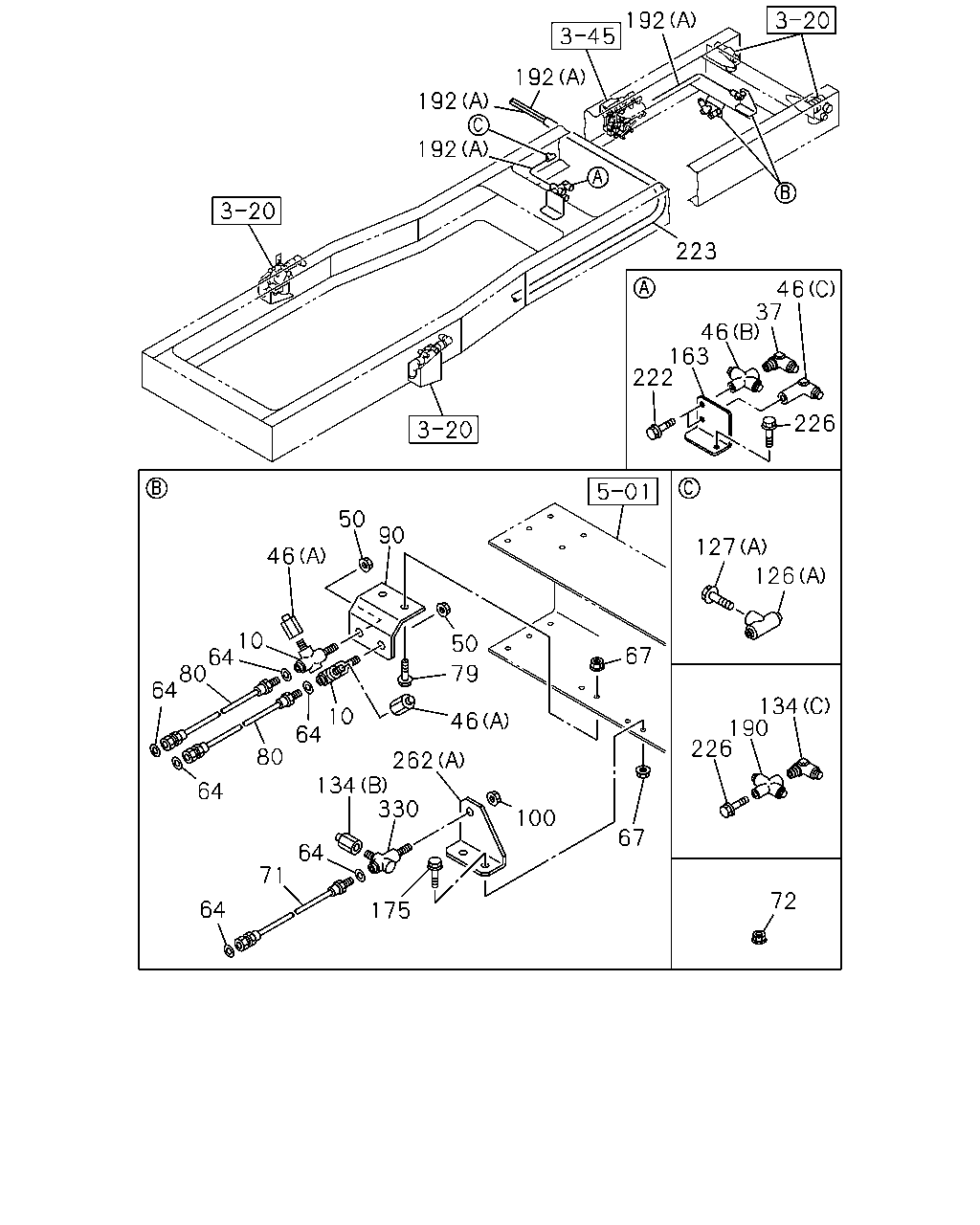

çizim 133507
192 192 192 192 223 46 37 46 163 222 226 50 90 127 46 126 10 64 80 64 50 67 79 134 190 226 10 64 46 80 262 134 330 64 100 67 64 71 72 64 175
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE 1-09650-360-1 02 1 0707-
37 UNION; AIR PIPE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0707-
46 NIPPLE; AIR PIPE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0707-
46 NIPPLE; AIR PIPE
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0707-
46 NIPPLE; AIR PIPE
(C) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0707-
50 NUT; UNION BRKT
M14 FLANGE 		0-91150-114-0 02 1 0707-
64 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 06 1 0707-
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 0707-
71 HOSE; FLEX,RWD RR
L=630 		0-07846-630-1 01 1 0707-0708
71 HOSE; FLEX,RWD RR
L=630 		0-57846-630-1 01 1 0709-
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0707-
72 NUT; BRKT
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 0707-
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0707-
80 HOSE; FLEX,POWER CHAMBER
L=630 		0-07846-630-1 02 1 0707-0708
80 HOSE; FLEX,POWER CHAMBER
L=630 		0-57846-630-1 02 1 0709-
90 BRACKET; PIPE UNION 1-47471-007-0 01 1 0707-
100 NUT; UNION
M14 FLANGE 		0-91150-114-0 01 1 0707-
100 NUT; UNION
DIFF LOCK<C3N> M12 		9-09840-280-0 01 1 0707-
126 UNION; NYLON TUBE
(A) 		1-09661-128-0 01 1 0707-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 0707-
126 UNION; NYLON TUBE
(D) DIN12 M22 STRAIGHT 		8-98107-103-0 02 1 0804-
126 UNION; NYLON TUBE
DIFF LOCK<C3N> (C) M12 ELBOW 		0-92125-206-0 01 1 0707-
127 NUT; UNION
(B) M20 		0-91111-520-0 03 1 0707-
127 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 03 1 0707-
134 CONNECTOR
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0707-
134 CONNECTOR
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0707-
134 CONNECTOR
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0707-
134 CONNECTOR
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0707-
134 CONNECTOR
(A) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0707-
163 BRACKET; FLEX HOSE 1-47471-145-0 01 1 0707-
175 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0707-
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0707-
192 TUBE; NYLON
(B) L=990 OD=8 		1-49218-618-1 02 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0707-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0707-
222 BOLT; CONNECTOR
M8X10 FLANGE 		0-28050-810-0 02 1 0707-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0707-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0707-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0707-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 0707-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 0707-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 02 1 0707-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0707-0904
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
262 BRACKET
(A) 		1-47471-015-0 01 1 0707-
262 BRACKET
(B) 		1-79996-143-0 01 1 0707-
262 BRACKET
(C) 		1-79996-258-1 01 1 0707-
262 BRACKET
DIFF LOCK<C3N> (D) 		1-47471-386-0 01 1 0707-
330 UNION; FLEX HOSE 1-09650-360-1 01 1 0707-

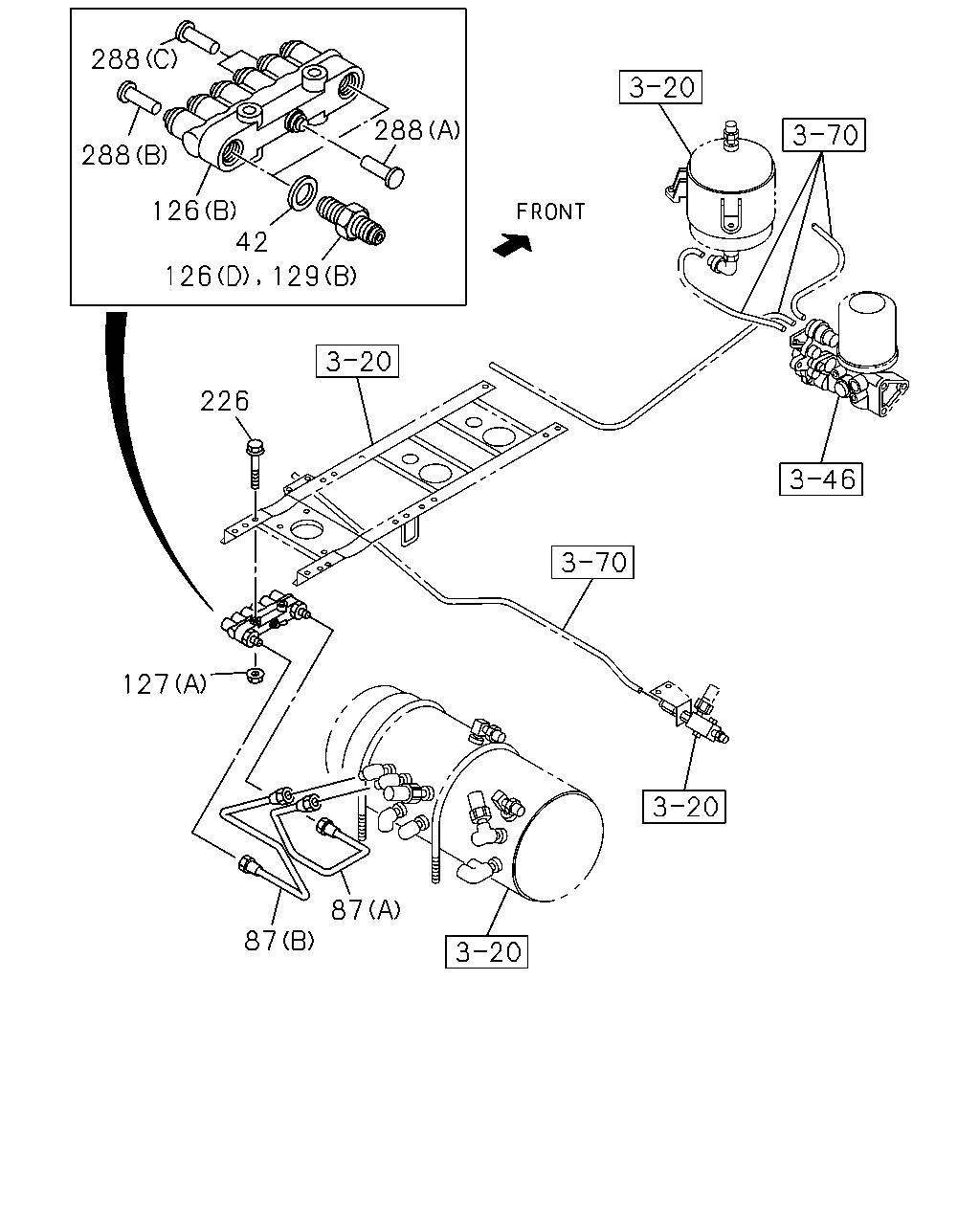

çizim 133526
288 288 288 126 42 126 129 226 127 87 87
BalonParca AdiParca NoAdetTipApplied Date
42 GASKET; CONNECTOR 9-09572-022-0 02 1 0707-0803
87 PIPE; AIR,AIR TANK TO UNION
(B) L=425 		1-49124-670-0 01 1 0707-
87 PIPE; AIR,AIR TANK TO UNION
(A) L=541 		1-49124-671-0 01 1 0707-
126 UNION; NYLON TUBE
(A) 		1-09661-128-0 01 1 0707-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 0707-
126 UNION; NYLON TUBE
(D) DIN12 M22 STRAIGHT 		8-98107-103-0 02 1 0804-
126 UNION; NYLON TUBE
DIFF LOCK<C3N> (C) M12 ELBOW 		0-92125-206-0 01 1 0707-
127 NUT; UNION
(B) M20 		0-91111-520-0 03 1 0707-
127 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 03 1 0707-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0707-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0707-
129 CONNECTOR; NYLON TUBE
(B) 		8-97618-539-0 02 1 0707-0803
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 0707-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 0707-
226 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 02 1 0707-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0707-0904
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0707-
288 PLUG
(B) OD=8 		1-09661-616-0 01 1 0707-
288 PLUG
(C) OD=12 		1-09661-617-0 02 1 0707-
