2-85B — POWER TAKE OFF CONTROL (#5587) — 31 parça

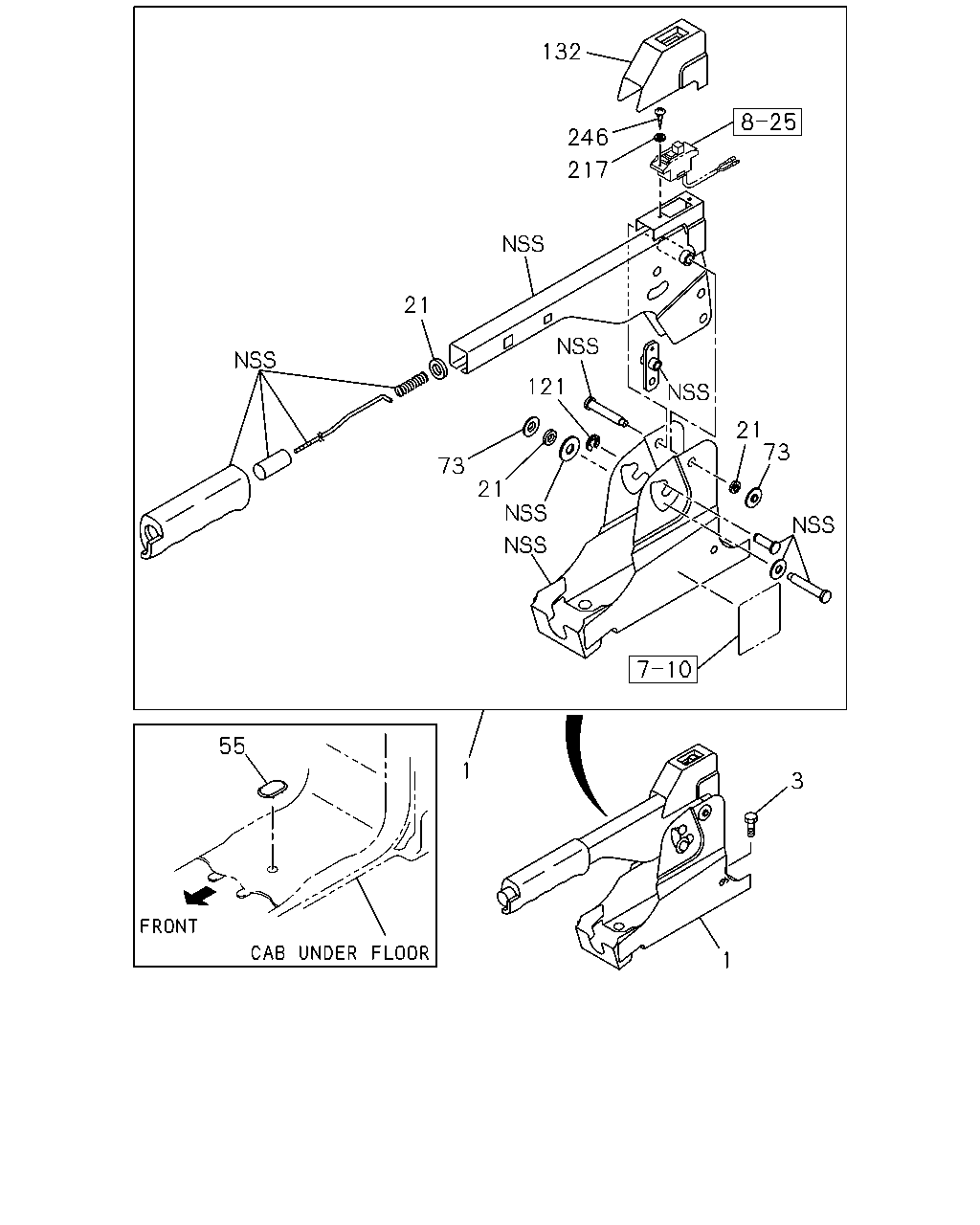

çizim 38949
132 246 217 21 121 21 73 73 21 55 1 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-244-0 01 1 9603- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9603- ● ●
21 WASHER; PL,CONT LEVER
DUMP CONTROL LEVER<RC4> ID=6.4 OD=14 		9-09160-606-0 03 1 9905- ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4> 		1-09983-068-0 01 1 9603- ● ●
73 NUT; LEVER
DUMP CONTROL LEVER<RC4> ID=5.9 PUSH NUT 		8-97015-036-0 02 1 9905- ● ●
121 RING; SNAP
DUMP CONTROL LEVER<RC4> ID=5 		9-09185-405-0 01 1 9905- ● ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 9603- ● ●
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 9905- ● ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 9905- ● ●

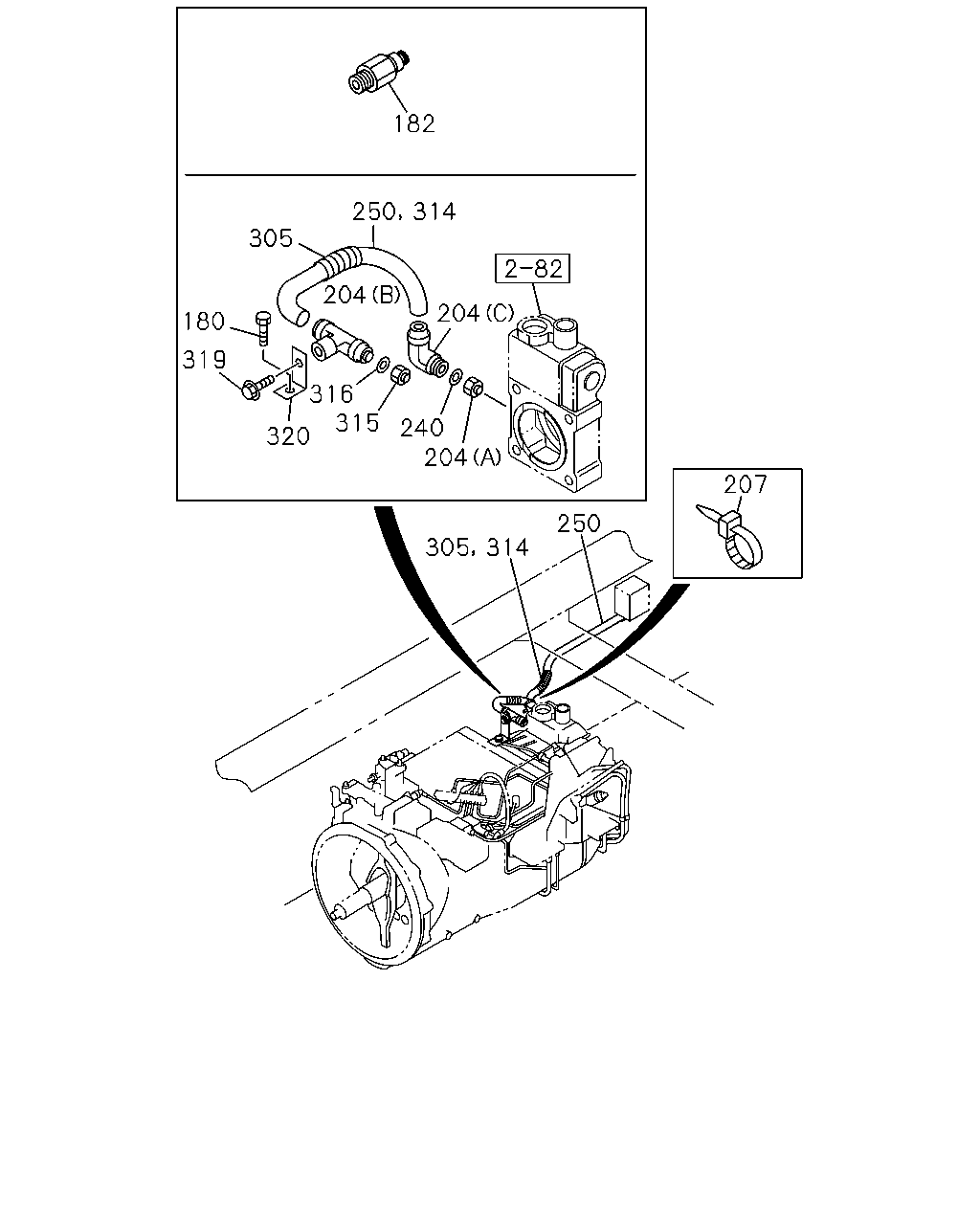

çizim 43119
182 305 204 204 180 319 316 315 240 204 320 207 250 250 314 305 314
BalonParca AdiParca NoAdetTipApplied Date A B
180 BOLT; BRKT
PTO ZF TRANS RR(BDM) M16X25 FLANGE 		0-28881-625-0 01 1 9905- ● ●
182 CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) DIN8 & M12 STRAIGHT 		1-09660-766-0 01 1 9603-9802 ●
182 CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) 		1-09660-880-0 01 1 9803-9904 ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (A) 		1-09654-396-0 01 1 9803-9904 ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (A) 		1-09654-396-0 01 1 9905- ● ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9803-9904 ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9905- ● ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (B) DIN8 & M14 STRAIGHT 		1-09660-726-2 01 1 9803-9904 ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (B) 		1-09660-788-0 01 1 9905- ● ●
207 CLIP; BAND
PTO ZF TRANS RR(BDM) L=140 		5-09707-031-1 02 1 9803-9904 ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		9-09571-412-0 01 1 9603-9802 ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 9803-9904 ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 9905- ● ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) L=480 SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9904 ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905- ● ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=800 ID=7 L=400 		1-83129-031-1 01 1 9803-9904 ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=800 ID=7 L=150 		1-83129-031-1 01 1 9905- ● ●
314 SLEEVE; RUBBER
PTO ZF TRANS RR(BDM) ID=14 OD=18 L=60 		1-09337-030-0 02 1 9803-9904 ●
315 NUT; CONNECTOR
PTO ZF TRANS RR(BDM) M14 		9-99110-414-0 01 1 9803-9904 ●
316 WASHER; CONNECTOR
PTO ZF TRANS RR(BDM) ID=14.2 		9-09150-514-0 01 1 9803-9904 ●
319 BOLT; CONNECTOR
PTO ZF TRANS RR(BDM) M8X16 FLANGE 		0-28080-816-0 01 1 9905- ● ●
320 BRACKET; UNION
PTO ZF TRANS RR(BDM) 		1-47478-250-0 01 1 9905- ● ●
