◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85A - POWER TAKE OFF CONTROL ▶
2-85A — POWER TAKE OFF CONTROL (#5586) — 12 parça
çizim 43982
55 47 47 48
BalonParca AdiParca NoAdetTipApplied Date A B
47 GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18 		9-09572-510-0 02 1 9603-9702 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430 		0-07150-430-0 01 1 9603-9702 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430 		1-09363-677-0 01 1 9703- ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4> 		1-09983-068-0 01 1 9603- ● ●

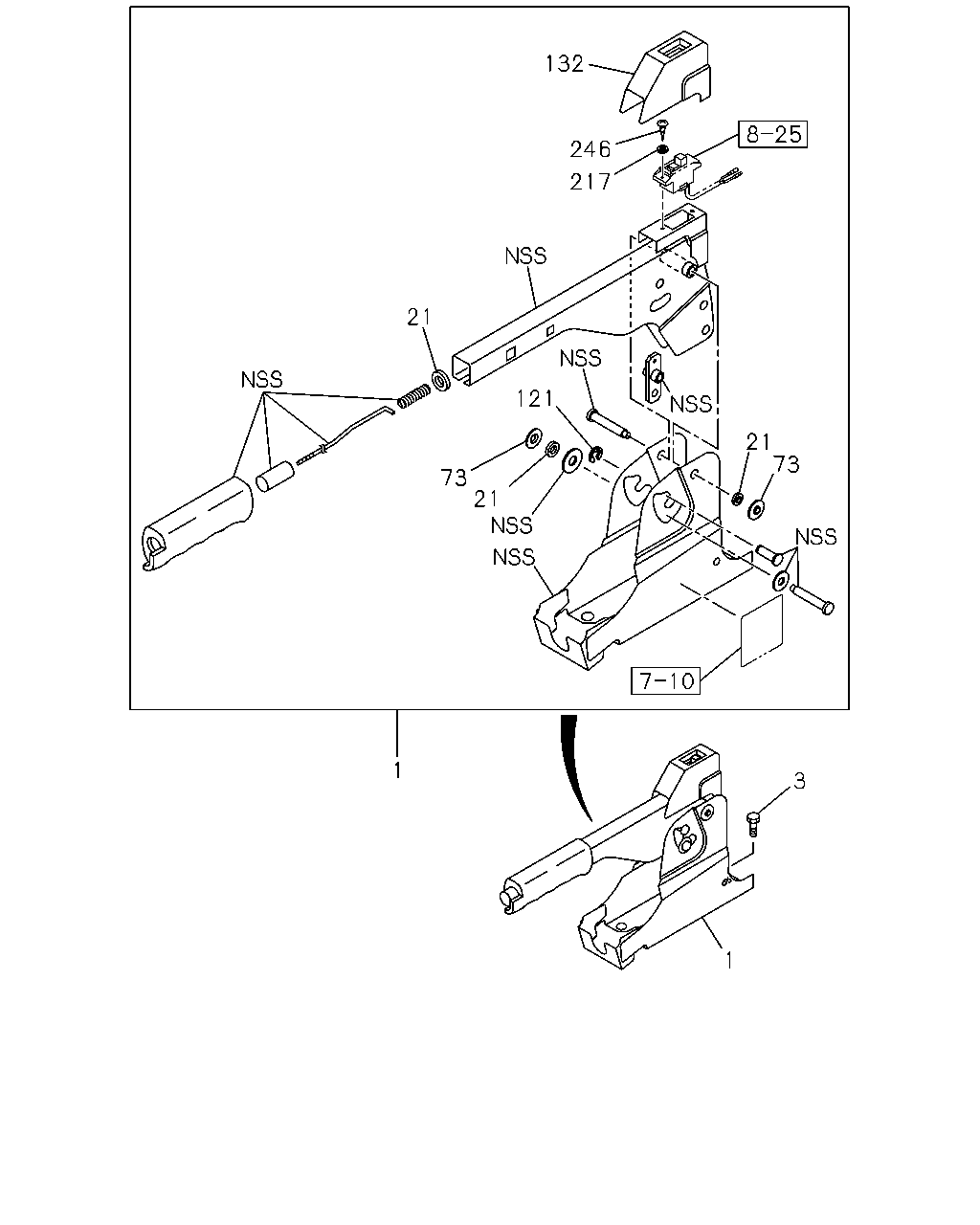

çizim 43984
132 246 217 21 121 21 73 73 21 1 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-244-0 01 1 9603- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9603- ● ●
21 WASHER; PL,CONT LEVER
DUMP CONTROL LEVER<RC4> ID=6.4 OD=14 		9-09160-606-0 03 1 9905- ● ●
73 NUT; LEVER
DUMP CONTROL LEVER<RC4> ID=5.9 PUSH NUT 		8-97015-036-0 02 1 9905- ● ●
121 RING; SNAP
DUMP CONTROL LEVER<RC4> ID=5 		9-09185-405-0 01 1 9905- ● ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 9603- ● ●
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 9905- ● ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 9905- ● ●
