Isuzu WW
▶
TRUCKS
▶
EXR
▶
11320 - EXR MIDDLE EAST WITH 2STEPS
▶
3 - Brakes, Brake System
▶

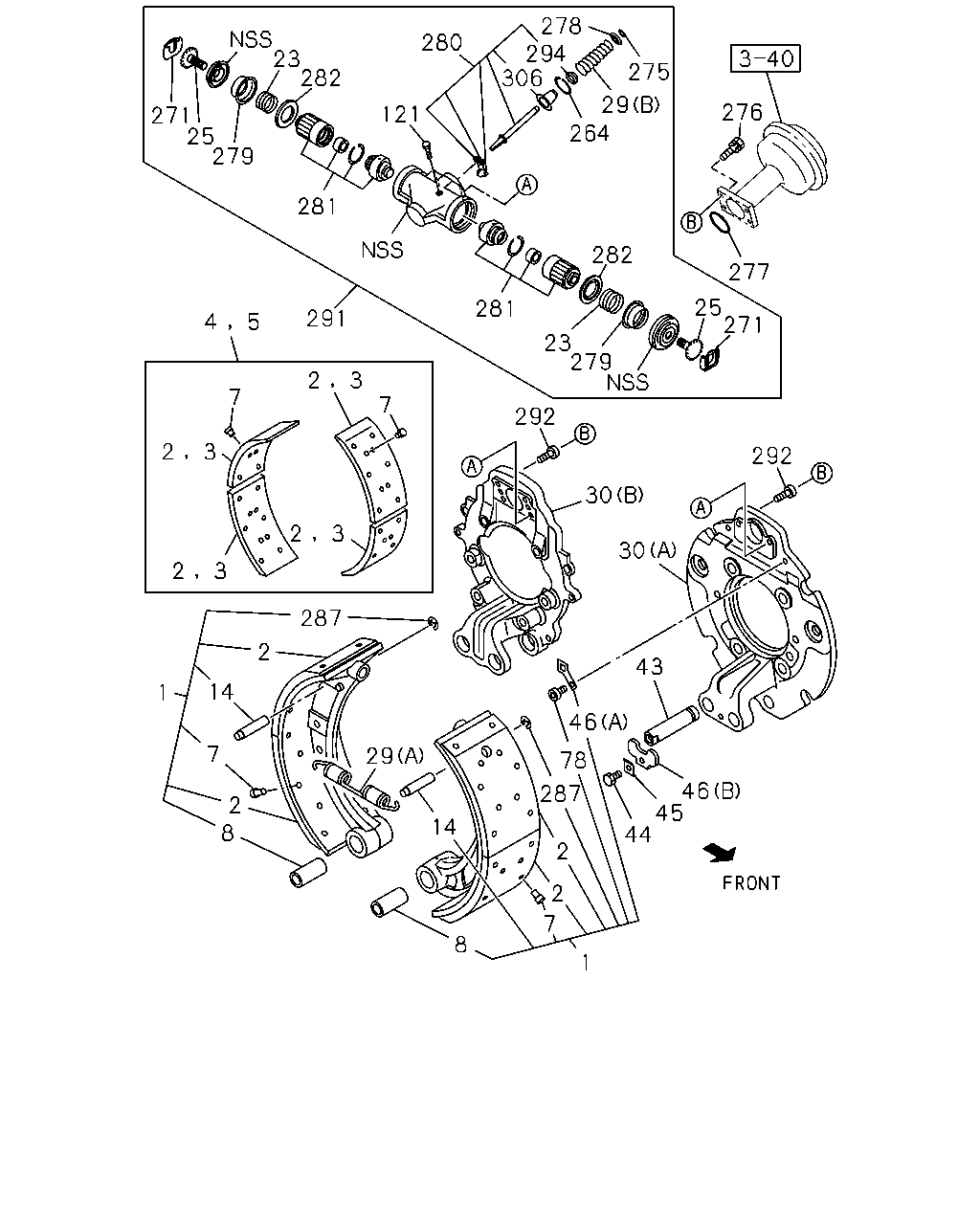

3-01 - FRONT WHEEL BRAKE
▶
3-01 — FRONT WHEEL BRAKE
(#55857) — 56 parça
◀
[301A] REPAIR KIT (14 parça)
[301A] COMPONENT (42 parça)
▶
304
278
294
306
23
282
275
29
121
271
264
279
282
271
23
279
305
271
271
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SPRING; COIL
1-47629-196-0
04
1
0707-
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-09583-365-1
04
1
0707-
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47649-041-0
02
1
0707-
121
SCREW; LK SPR FRT WHEEL CYL
1-47619-149-1
04
1
0707-
264
RING; SNAP,SPR PIN
1-47649-034-1
02
1
0707-
271
CLIP; ADJ
1-47621-017-0
04
1
0707-
275
RING; RETAINER
1-47649-031-0
02
1
0707-
278
RETAINER; SPRING
1-47649-020-0
02
1
0707-
279
CAGE; SPRING
1-47629-192-0
04
1
0707-
282
RING; DRIVE
1-47629-200-0
04
1
0707-
294
BOOT; WEDGE
1-47649-042-0
02
1
0707-
304
REPAIR KIT; EXPANDER
1-85576-403-0
02
1
0707-
305
REPAIR KIT; BOOT,EXPANDER
1-85576-404-0
02
1
0707-
306
CAP; EXPANDER
1-47649-044-0
02
1
0707-
278
294
306
23
282
280
275
29
276
121
271
25
279
264
281
282
277
25
271
281
291
5
4
23
279
2
3
7
7
292
2
3
292
30
2
3
30
2
3
287
2
43
14
1
46
7
29
78
46
45
44
287
2
8
14
2
2
7
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
LEADING
1-47170-316-0
01
1
0707-
1
SHOE; BRK,FRT
TRAILING
1-47170-317-0
01
1
0707-
1
SHOE; BRK,FRT
LEADING
1-47170-318-0
01
1
0707-
1
SHOE; BRK,FRT
TRAILING
1-47170-319-0
01
1
0707-
2
LINING; FRT BRK SHOE,STANDARD
1-47126-698-0
08
1
0707-
3
LINING; FRT BRK SHOE,OVER SIZE
1-47126-699-0
08
1
0707-
4
LINING SET; FRT BRK,STANDARD
1-88311-314-0
02
1
0707-
5
LINING SET; FRT BRK,OVER SIZE
1-88311-315-0
02
1
0707-
7
RIVET; LINING,FRT BRK
L=15.5
1-09732-053-0
80
1
0707-
8
BUSHING; BRK SHOE
1-47112-020-0
04
1
0707-
14
PIN; SHOE RETURN SPR
1-47119-177-1
04
1
0707-
23
SPRING; COIL
1-47629-196-0
04
1
0707-
25
SCREW; ADJ,FRT WHEEL CYL
1-47623-035-2
04
1
0707-
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-09583-365-1
04
1
0707-
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47649-041-0
02
1
0707-
30
BRACKET; ANCHOR,FRT
(A)
1-47137-512-0
02
1
0707-1005
30
BRACKET; ANCHOR,FRT
(B)
8-98091-252-0
02
1
1006-
43
PIN; ANCHOR
L=115.5
1-47131-044-0
04
1
0707-
44
BOLT; LOCK,ANCHOR PIN
M10X16
0-20851-016-0
02
1
0707-0910
44
BOLT; LOCK,ANCHOR PIN
M10X16
1-47139-173-0
02
1
0911-
45
WASHER; LK
1-47133-011-0
02
1
0707-
46
PLATE; LOCK
(A)
1-47119-152-0
04
1
0707-
46
PLATE; LOCK
(B)
1-47133-010-0
02
1
0707-
78
BOLT; LK,PLATE
1-47119-153-0
04
1
0707-
121
SCREW; LK SPR FRT WHEEL CYL
1-47619-149-1
04
1
0707-
264
RING; SNAP,SPR PIN
1-47649-034-1
02
1
0707-
271
CLIP; ADJ
1-47621-017-0
04
1
0707-
275
RING; RETAINER
1-47649-031-0
02
1
0707-
276
BOLT; CHAMBER
M10X45 W/LK WASHER
0-50051-045-0
08
1
0707-0906
276
BOLT; CHAMBER
M10X45 W/LK WASHER
0-50551-045-0
08
1
0907-0910
276
BOLT; CHAMBER
M10X45
1-47139-174-0
08
1
0911-
277
RING; CHAMBER
1-48259-231-0
02
1
0707-
278
RETAINER; SPRING
1-47649-020-0
02
1
0707-
279
CAGE; SPRING
1-47629-192-0
04
1
0707-
280
WEDGE; FRT WHEEL CYL
1-47640-012-0
02
1
0707-
281
SLEEVE
1-47629-247-1
04
1
0707-
282
RING; DRIVE
1-47629-200-0
04
1
0707-
287
RING; SNAP
ID=10
0-91805-510-0
08
1
0707-
291
EXPANDER
1-47601-087-0
02
1
0707-
292
BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET
1-47634-008-0
04
1
0707-
294
BOOT; WEDGE
1-47649-042-0
02
1
0707-
306
CAP; EXPANDER
1-47649-044-0
02
1
0707-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
