2-53 — TRANSMISSION OIL COOLER SYSTEM (#55854) — 199 parça
çizim 133425
11 50 29 178 12 50 12 11 95 1 48 117 116 114 8 109 73 179 77 76 91 19 50 11
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
MJX16P M/T(Y3Z) L=600 		1-09365-232-0 01 1 0811-
1 HOSE; ATF
L=430 		1-09364-872-0 01 1 0707-0810
1 HOSE; ATF
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0811-
8 UNION
MJX16P M/T(Y3Z) M22 		0-92123-015-0 01 1 0811-
8 UNION
M16 L=42 		0-92123-010-0 01 1 0707-0810
8 UNION
MJT7 M/T<Y9E> M16 L=42 		0-92123-010-0 01 1 0811-
11 CLIP; PIPE
MJX16P M/T(Y3Z) (F) ID=16X2 L=20 		0-95325-535-0 05 1 0811-
11 CLIP; PIPE
MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0811-
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0707-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0811-
11 CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0707-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0811-
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		5-09700-351-0 01 1 0707-0707
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (C) ID=11 H=20 L=20 		8-98033-780-0 01 1 0811-0811
11 CLIP; PIPE
(D) ID=11X2 L=20 		9-09535-036-0 05 1 0707-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (D) ID=11X2 L=20 		9-09535-036-0 05 1 0811-
12 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 04 1 0811-
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0707-
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0707-0810
12 NUT; BRKT
MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 06 1 0811-
19 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) 		1-47479-561-1 01 1 0811-
19 BRACKET; FLEX HOSE 1-47479-559-0 01 1 0707-0810
19 BRACKET; FLEX HOSE
MJT7 M/T<Y9E> 		1-47479-559-0 01 1 0811-
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0707-
29 BOLT; FILTER TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0707-0810
29 BOLT; FILTER TO BRKT
MJT7 M/T<Y9E> M10X30 FLANGE 		0-28651-030-0 02 1 0811-
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0707-0810
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0811-
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0707-0810
48 NUT; BRKT
MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 01 1 0811-
50 BOLT; CLIP
MJT7 M/T<Y9E> (A) M8X25 FLANGE 		0-28650-825-0 01 1 0811-
50 BOLT; CLIP
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0707-0810
50 BOLT; CLIP
MJT7 M/T<Y9E> (C) M8X20 FLANGE 		0-28050-820-0 01 1 0811-0811
50 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0707-0810
50 BOLT; CLIP
MJT7 M/T<Y9E> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0811-
50 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0707-0810
50 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 05 1 0811-
50 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 05 1 0707-0810
50 BOLT; CLIP
MJX16P M/T(Y3Z) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0811-
73 HOSE; FLEX,TRANS
MJX16P M/T(Y3Z) L=570 		1-09365-236-0 01 1 0811-
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0707-0810
73 HOSE; FLEX,TRANS
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0811-
76 NUT; FLEX HOSE
M16 		0-91111-516-0 01 1 0707-0810
76 NUT; FLEX HOSE
MJT7 M/T<Y9E> M16 		0-91111-516-0 01 1 0811-
77 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 0707-0810
77 WASHER; LK
MJT7 M/T<Y9E> ID=16.2 		0-91510-516-0 01 1 0811-
91 PIPE; OIL,FLEX HOSE TO UNION
MJX16P M/T(Y3Z) L=840 		1-49167-560-0 01 1 0811-
91 PIPE; OIL,FLEX HOSE TO UNION
L=775 SERVICED BY L=800 		1-47428-872-0 01 1 0707-0810
91 PIPE; OIL,FLEX HOSE TO UNION
MJT7 M/T<Y9E> L=775 SERVICED BY L=800 		1-47428-872-0 01 1 0811-
95 BRACKET; CLIP 1-47479-482-0 05 1 0707-
109 UNION
MJX16P M/T(Y3Z) M22 		0-92123-015-0 01 1 0811-
109 UNION
M16 L=42 		0-92123-010-0 02 1 0707-0810
109 UNION
MJT7 M/T<Y9E> M16 L=42 		0-92123-010-0 02 1 0811-
114 PIPE; OIL,UNION TO FLEX HOSE
MJX16P M/T(Y3Z) L=908 		1-49167-563-0 01 1 0811-
114 PIPE; OIL,UNION TO FLEX HOSE
L=835 SERVICED BY L=900 		1-47428-873-0 01 1 0707-0810
114 PIPE; OIL,UNION TO FLEX HOSE
MJT7 M/T<Y9E> L=835 SERVICED BY L=900 		1-47428-873-0 01 1 0811-
116 NUT; BRKT,FLEX HOSE
M16 		0-91111-516-0 01 1 0707-0810
116 NUT; BRKT,FLEX HOSE
MJT7 M/T<Y9E> M16 		0-91111-516-0 01 1 0811-
117 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 01 1 0707-0810
117 WASHER; LK,FLEX HOSE
MJT7 M/T<Y9E> ID=16.2 		0-91510-516-0 01 1 0811-
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0707-
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0707-

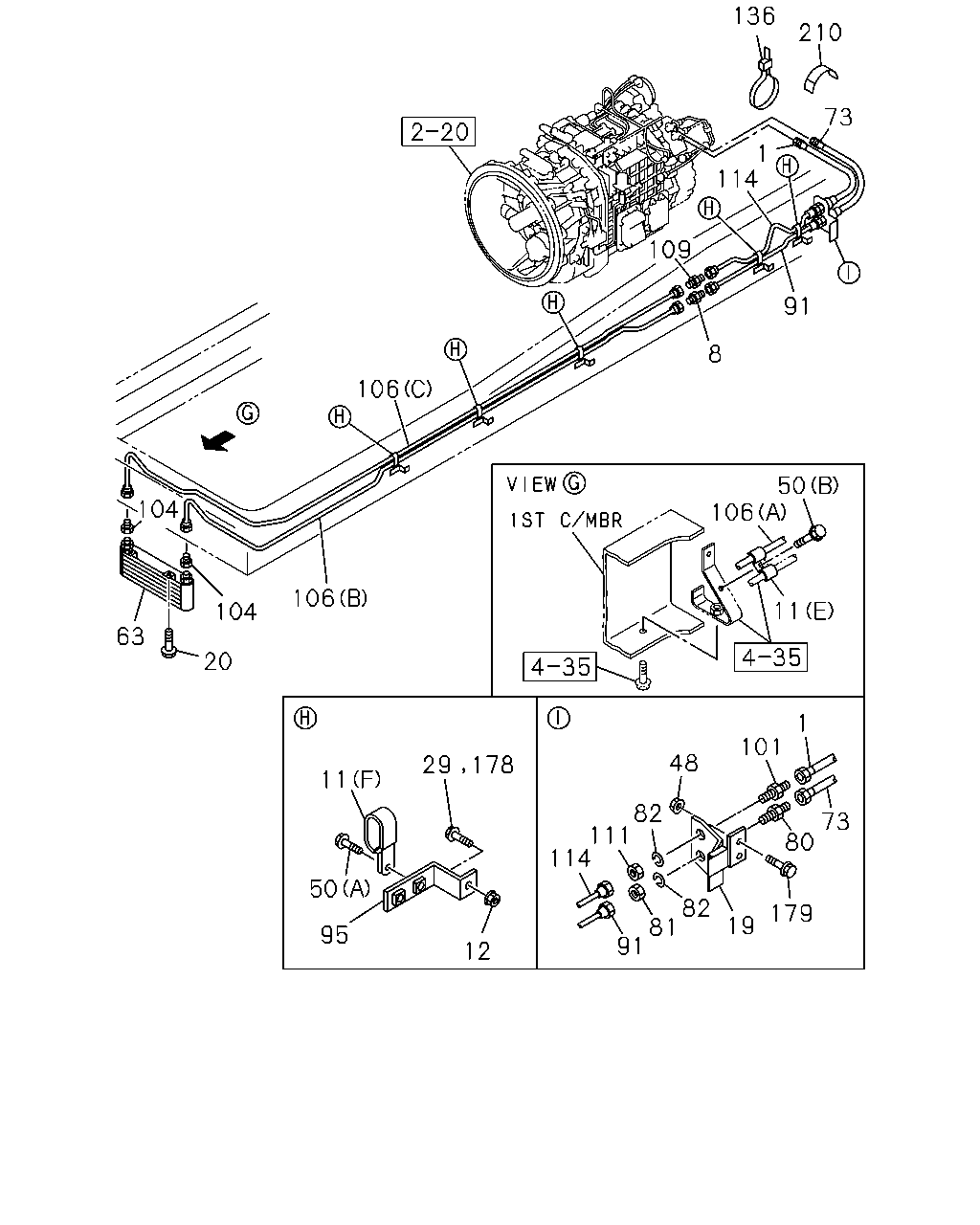

çizim 133440
136 210 73 1 114 109 91 8 106 50 104 106 106 11 104 63 20 1 101 48 29 178 11 82 111 114 73 80 50 82 81 91 179 19 95 12
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
MJX16P M/T(Y3Z) L=600 		1-09365-232-0 01 1 0811-
1 HOSE; ATF
L=430 		1-09364-872-0 01 1 0707-0810
1 HOSE; ATF
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0811-
8 UNION
MJX16P M/T(Y3Z) M22 		0-92123-015-0 01 1 0811-
8 UNION
M16 L=42 		0-92123-010-0 01 1 0707-0810
8 UNION
MJT7 M/T<Y9E> M16 L=42 		0-92123-010-0 01 1 0811-
11 CLIP; PIPE
MJX16P M/T(Y3Z) (F) ID=16X2 L=20 		0-95325-535-0 05 1 0811-
11 CLIP; PIPE
MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0811-
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0707-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0811-
11 CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0707-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0811-
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		5-09700-351-0 01 1 0707-0707
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (C) ID=11 H=20 L=20 		8-98033-780-0 01 1 0811-0811
11 CLIP; PIPE
(D) ID=11X2 L=20 		9-09535-036-0 05 1 0707-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (D) ID=11X2 L=20 		9-09535-036-0 05 1 0811-
12 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 04 1 0811-
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0707-
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0707-0810
12 NUT; BRKT
MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 06 1 0811-
19 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) 		1-47479-561-1 01 1 0811-
19 BRACKET; FLEX HOSE 1-47479-559-0 01 1 0707-0810
19 BRACKET; FLEX HOSE
MJT7 M/T<Y9E> 		1-47479-559-0 01 1 0811-
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0707-
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0707-
29 BOLT; FILTER TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0707-0810
29 BOLT; FILTER TO BRKT
MJT7 M/T<Y9E> M10X30 FLANGE 		0-28651-030-0 02 1 0811-
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0707-0810
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0811-
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0707-0810
48 NUT; BRKT
MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 01 1 0811-
50 BOLT; CLIP
MJT7 M/T<Y9E> (A) M8X25 FLANGE 		0-28650-825-0 01 1 0811-
50 BOLT; CLIP
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0707-0810
50 BOLT; CLIP
MJT7 M/T<Y9E> (C) M8X20 FLANGE 		0-28050-820-0 01 1 0811-0811
50 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0707-0810
50 BOLT; CLIP
MJT7 M/T<Y9E> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0811-
50 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0707-0810
50 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 05 1 0811-
50 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 05 1 0707-0810
50 BOLT; CLIP
MJX16P M/T(Y3Z) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0811-
63 COOLER; OIL 1-21700-394-0 01 1 0707-1405
63 COOLER; OIL 8-98269-766-0 01 1 1406-
73 HOSE; FLEX,TRANS
MJX16P M/T(Y3Z) L=570 		1-09365-236-0 01 1 0811-
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0707-0810
73 HOSE; FLEX,TRANS
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0811-
80 UNION; FLEX HOSE
MJX16P M/T(Y3Z) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0811-
81 NUT; UNION
MJX16P M/T(Y3Z) M22 		0-91111-522-0 01 1 0811-
82 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=22.5 		0-91510-522-0 02 1 0811-
91 PIPE; OIL,FLEX HOSE TO UNION
MJX16P M/T(Y3Z) L=840 		1-49167-560-0 01 1 0811-
91 PIPE; OIL,FLEX HOSE TO UNION
L=775 SERVICED BY L=800 		1-47428-872-0 01 1 0707-0810
91 PIPE; OIL,FLEX HOSE TO UNION
MJT7 M/T<Y9E> L=775 SERVICED BY L=800 		1-47428-872-0 01 1 0811-
95 BRACKET; CLIP 1-47479-482-0 05 1 0707-
101 UNION; FLEX HOSE
MJX16P M/T(Y3Z) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0811-
104 CONNECTOR; COOLER
MJX16P M/T(Y3Z) 		1-09654-398-0 02 1 0811-
106 PIPE ASM; OIL,COOLER TO UNION
MJX16P M/T(Y3Z) (B) L=1836 		1-49167-761-0 01 1 0811-
106 PIPE ASM; OIL,COOLER TO UNION
MJX16P M/T(Y3Z) (C) L=2254 		1-49167-762-0 01 1 0811-
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=1747 SERVICED BY L=1900 		1-47428-881-0 01 1 0707-0810
106 PIPE ASM; OIL,COOLER TO UNION
MJT7 M/T<Y9E> (A) L=1747 SERVICED BY L=1900 		1-47428-881-0 01 1 0811-
109 UNION
MJX16P M/T(Y3Z) M22 		0-92123-015-0 01 1 0811-
109 UNION
M16 L=42 		0-92123-010-0 02 1 0707-0810
109 UNION
MJT7 M/T<Y9E> M16 L=42 		0-92123-010-0 02 1 0811-
111 NUT; UNION
MJX16P M/T(Y3Z) M22 		0-91111-522-0 01 1 0811-
114 PIPE; OIL,UNION TO FLEX HOSE
MJX16P M/T(Y3Z) L=908 		1-49167-563-0 01 1 0811-
114 PIPE; OIL,UNION TO FLEX HOSE
L=835 SERVICED BY L=900 		1-47428-873-0 01 1 0707-0810
114 PIPE; OIL,UNION TO FLEX HOSE
MJT7 M/T<Y9E> L=835 SERVICED BY L=900 		1-47428-873-0 01 1 0811-
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0707-
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0707-
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0707-
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0707-

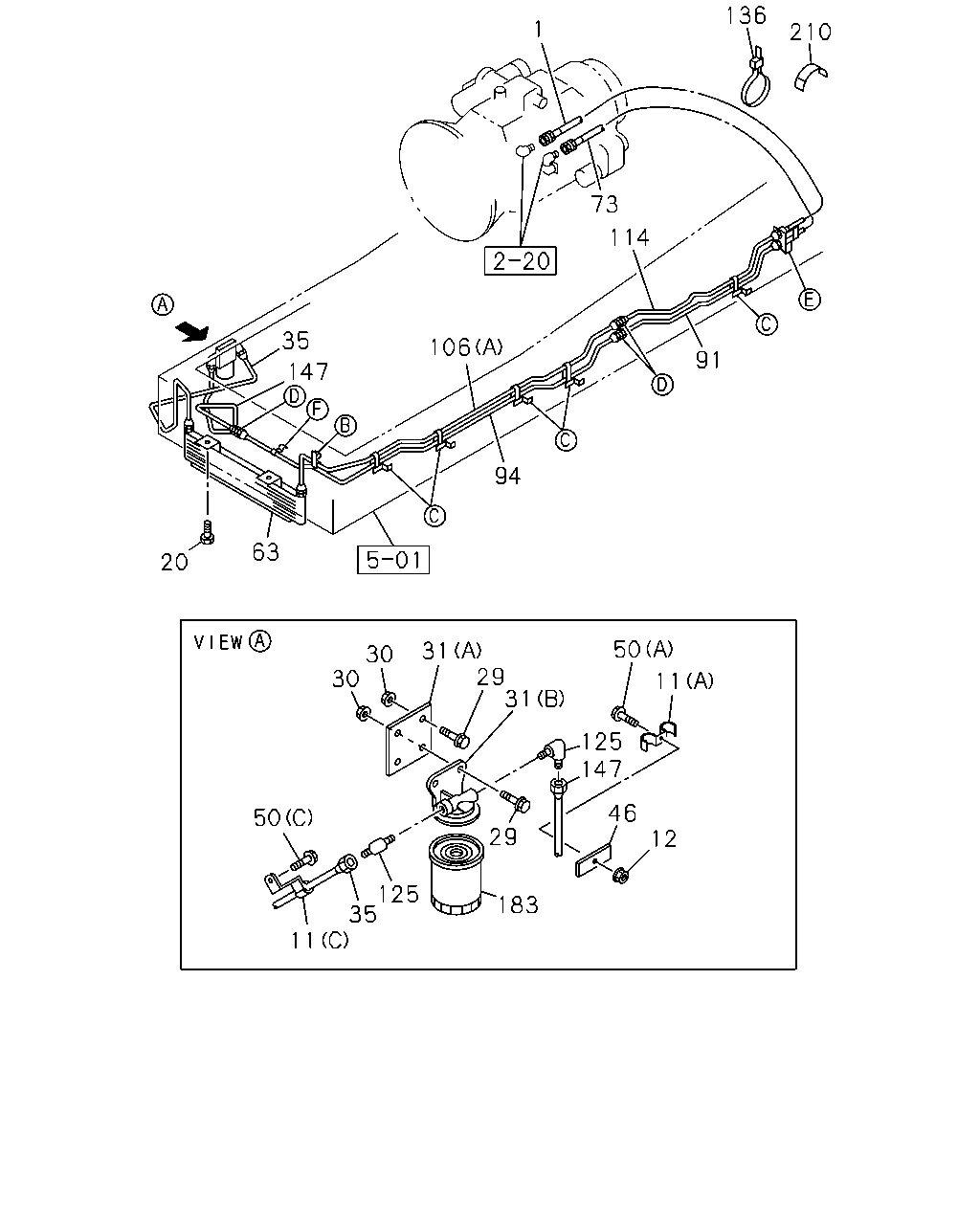

çizim 133465
136 1 210 73 114 35 106 91 147 94 63 20 50 31 29 31 30 30 11 125 147 46 50 29 12 125 35 11 183
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
MJX16P M/T(Y3Z) L=600 		1-09365-232-0 01 1 0811-
1 HOSE; ATF
L=430 		1-09364-872-0 01 1 0707-0810
1 HOSE; ATF
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0811-
11 CLIP; PIPE
MJX16P M/T(Y3Z) (F) ID=16X2 L=20 		0-95325-535-0 05 1 0811-
11 CLIP; PIPE
MJX16P M/T(Y3Z) (E) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0811-
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0707-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0811-
11 CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0707-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0811-
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		5-09700-351-0 01 1 0707-0707
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (C) ID=11 H=20 L=20 		8-98033-780-0 01 1 0811-0811
11 CLIP; PIPE
(D) ID=11X2 L=20 		9-09535-036-0 05 1 0707-0810
11 CLIP; PIPE
MJT7 M/T<Y9E> (D) ID=11X2 L=20 		9-09535-036-0 05 1 0811-
12 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 04 1 0811-
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0707-
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0707-0810
12 NUT; BRKT
MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 06 1 0811-
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0707-
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0707-
29 BOLT; FILTER TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0707-0810
29 BOLT; FILTER TO BRKT
MJT7 M/T<Y9E> M10X30 FLANGE 		0-28651-030-0 02 1 0811-
30 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0707-0810
30 NUT; BRKT
MJT7 M/T<Y9E> M10 FLANGE 		0-91180-210-0 02 1 0811-
31 BRACKET; OIL FILTER
(B) 		1-33119-222-0 01 1 0707-0810
31 BRACKET; OIL FILTER
MJT7S M/T(Y3E) (B) 		1-33119-222-0 01 1 0811-
31 BRACKET; OIL FILTER
(A) 		1-47471-155-0 01 1 0707-0810
31 BRACKET; OIL FILTER
MJT7 M/T<Y9E> (A) 		1-47471-155-0 01 1 0811-
35 PIPE; OIL,OIL COOLER TO FILTER
L=787 		1-49167-386-0 01 1 0707-0810
35 PIPE; OIL,OIL COOLER TO FILTER
MJT7 M/T<Y9E> L=787 		1-49167-386-0 01 1 0811-
46 BRACKET; OIL PIPE
L=50 		1-47475-299-2 01 1 0707-0810
46 BRACKET; OIL PIPE
MJT7 M/T<Y9E> L=50 		1-47475-299-2 01 1 0811-
50 BOLT; CLIP
MJT7 M/T<Y9E> (A) M8X25 FLANGE 		0-28650-825-0 01 1 0811-
50 BOLT; CLIP
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0707-0810
50 BOLT; CLIP
MJT7 M/T<Y9E> (C) M8X20 FLANGE 		0-28050-820-0 01 1 0811-0811
50 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0707-0810
50 BOLT; CLIP
MJT7 M/T<Y9E> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0811-
50 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0707-0810
50 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 05 1 0811-
50 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 05 1 0707-0810
50 BOLT; CLIP
MJX16P M/T(Y3Z) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0811-
63 COOLER; OIL 1-21700-394-0 01 1 0707-1405
63 COOLER; OIL 8-98269-766-0 01 1 1406-
73 HOSE; FLEX,TRANS
MJX16P M/T(Y3Z) L=570 		1-09365-236-0 01 1 0811-
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0707-0810
73 HOSE; FLEX,TRANS
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0811-
91 PIPE; OIL,FLEX HOSE TO UNION
MJX16P M/T(Y3Z) L=840 		1-49167-560-0 01 1 0811-
91 PIPE; OIL,FLEX HOSE TO UNION
L=775 SERVICED BY L=800 		1-47428-872-0 01 1 0707-0810
91 PIPE; OIL,FLEX HOSE TO UNION
MJT7 M/T<Y9E> L=775 SERVICED BY L=800 		1-47428-872-0 01 1 0811-
94 PIPE; OIL,UNION TO UNION
L=2298 SERVICED BY L=2500 		1-47428-883-0 01 1 0707-0810
94 PIPE; OIL,UNION TO UNION
MJT7 M/T<Y9E> L=2298 SERVICED BY L=2500 		1-47428-883-0 01 1 0811-
106 PIPE ASM; OIL,COOLER TO UNION
MJX16P M/T(Y3Z) (B) L=1836 		1-49167-761-0 01 1 0811-
106 PIPE ASM; OIL,COOLER TO UNION
MJX16P M/T(Y3Z) (C) L=2254 		1-49167-762-0 01 1 0811-
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=1747 SERVICED BY L=1900 		1-47428-881-0 01 1 0707-0810
106 PIPE ASM; OIL,COOLER TO UNION
MJT7 M/T<Y9E> (A) L=1747 SERVICED BY L=1900 		1-47428-881-0 01 1 0811-
114 PIPE; OIL,UNION TO FLEX HOSE
MJX16P M/T(Y3Z) L=908 		1-49167-563-0 01 1 0811-
114 PIPE; OIL,UNION TO FLEX HOSE
L=835 SERVICED BY L=900 		1-47428-873-0 01 1 0707-0810
114 PIPE; OIL,UNION TO FLEX HOSE
MJT7 M/T<Y9E> L=835 SERVICED BY L=900 		1-47428-873-0 01 1 0811-
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0707-0810
125 CONNECTOR; OIL FILTER
MJT7S M/T(Y3E) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0811-
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0707-
147 PIPE; OIL,UNION TO FILTER
L=739 SERVICED BY L=800 		1-47428-872-0 01 1 0707-0810
147 PIPE; OIL,UNION TO FILTER
MJT7 M/T<Y9E> L=739 SERVICED BY L=800 		1-47428-872-0 01 1 0811-
183 CARTRIDGE; OIL FILTER 8-94459-700-1 01 1 0707-0810
183 CARTRIDGE; OIL FILTER
MJT7S M/T(Y3E) 		8-94459-700-1 01 1 0811-
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0707-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
