Isuzu WW
▶
TRUCKS
▶
EXR
▶
11320 - EXR MIDDLE EAST WITH 2STEPS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶
2-25 — SPEEDOMETER DRIVEN GEAR
(#55846) — 48 parça
Tümü
A - MJX16P M/T
B - MJT7S M/T
◀

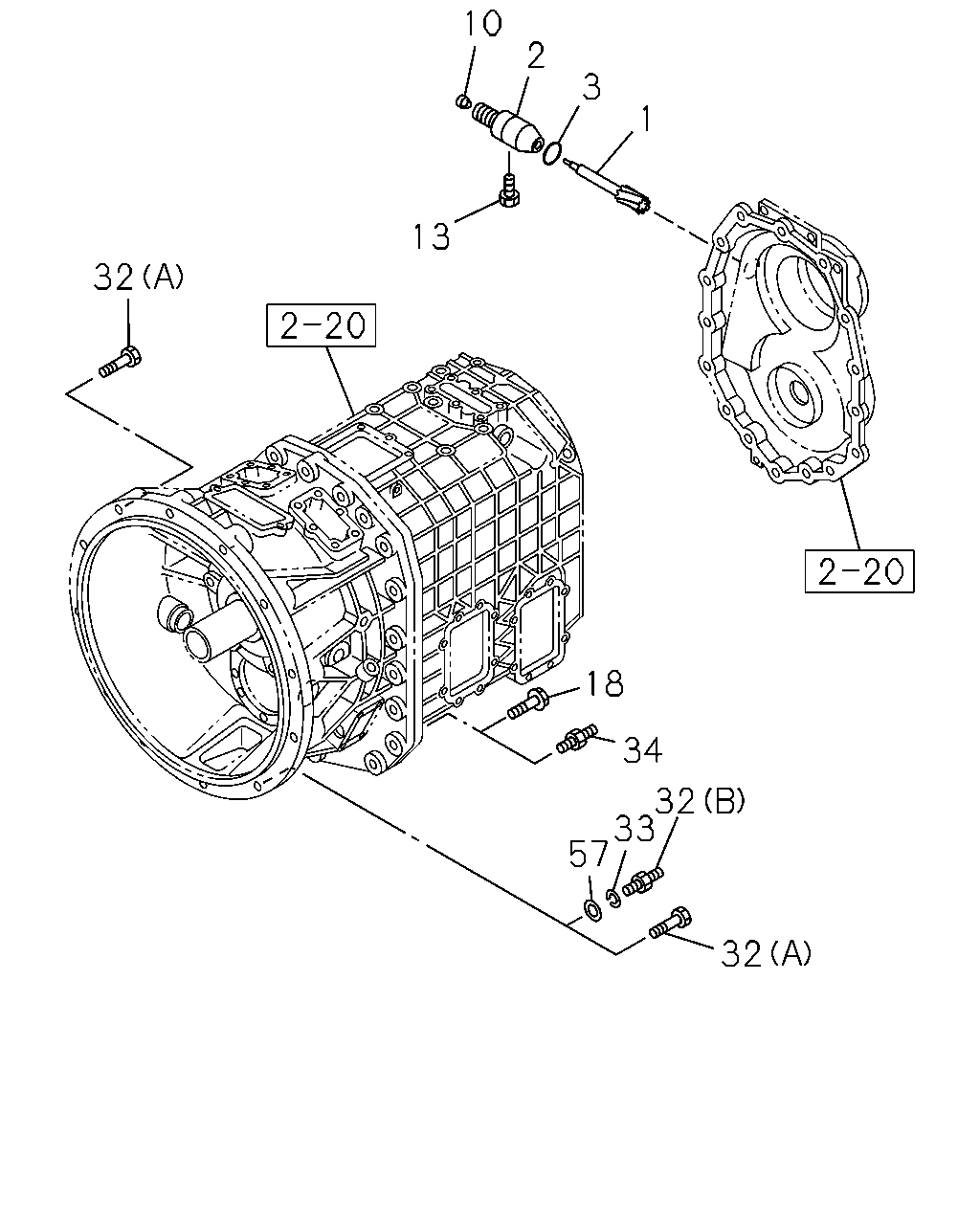

[225A] MJT (24 parça)

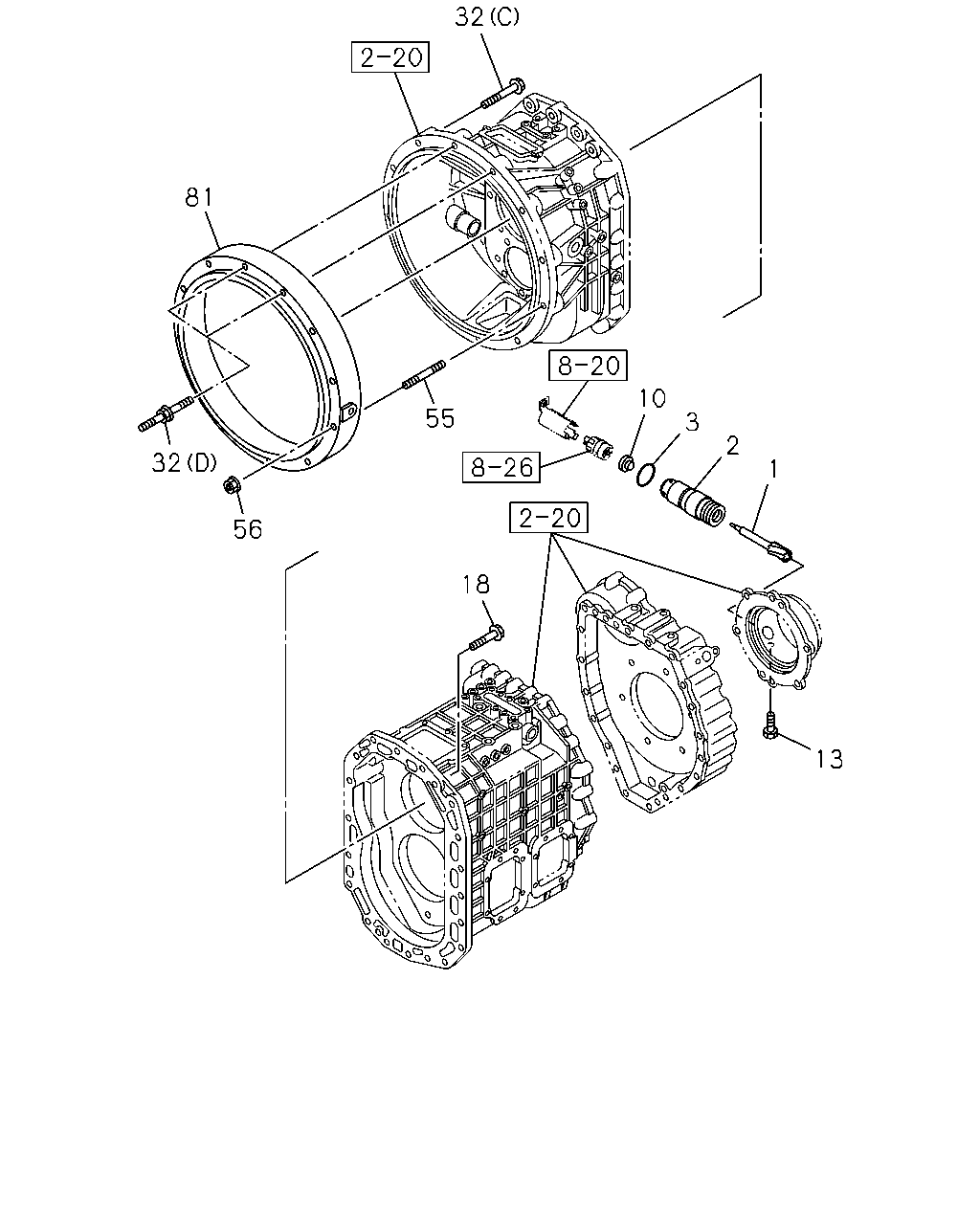

[225A] MJX (24 parça)
▶
10
2
3
1
13
32
18
34
32
33
57
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=17
1-33372-120-4
01
1
0811-
●
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
0707-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-084-0
01
1
0811-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
0707-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-069-0
01
1
0811-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
0707-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0707-0810
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0811-
●
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
1-09044-063-0
01
1
0707-0805
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
0806-0810
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
0811-
●
●
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
19
1
0811-
●
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
17
1
0707-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(C) M12X100 FLANGE
0-28151-200-0
06
1
0811-1207
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(C) M12X110 FLANGE
0-28156-211-0
06
1
1208-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(D) M10X16,M12X100 L=129.5
1-09049-039-1
02
1
0811-1207
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(D) M10X18,M12X110 L=139.5
1-09049-033-1
02
1
1208-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X60 FLANGE
0-28151-260-0
10
1
0707-1103
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X70 FLANGE
0-28151-270-0
10
1
1104-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X67 L=91
1-09029-043-1
02
1
0707-1103
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X70 L=97.7
1-09049-038-1
02
1
1104-
●
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
02
1
0707-1103
●
34
STUD; CLU HSG
M10X28,M12X50 L=89.7
1-09049-037-0
02
1
0707-
●
57
WASHER; PL,CLU HSG
ID=12.5
9-09164-512-0
02
1
0707-1103
●
32
81
10
55
3
2
32
1
56
18
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=17
1-33372-120-4
01
1
0811-
●
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
0707-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-084-0
01
1
0811-
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
0707-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-069-0
01
1
0811-
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
0707-
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0707-0810
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0811-
●
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
1-09044-063-0
01
1
0707-0805
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
0806-0810
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
0811-
●
●
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
19
1
0811-
●
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
17
1
0707-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(C) M12X100 FLANGE
0-28151-200-0
06
1
0811-1207
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(C) M12X110 FLANGE
0-28156-211-0
06
1
1208-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(D) M10X16,M12X100 L=129.5
1-09049-039-1
02
1
0811-1207
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(D) M10X18,M12X110 L=139.5
1-09049-033-1
02
1
1208-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X60 FLANGE
0-28151-260-0
10
1
0707-1103
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X70 FLANGE
0-28151-270-0
10
1
1104-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X67 L=91
1-09029-043-1
02
1
0707-1103
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X70 L=97.7
1-09049-038-1
02
1
1104-
●
55
STUD; FLYWHEEL HSG
M12X105 L=123
1-09302-166-0
04
1
0811-
●
56
NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE
0-91180-212-0
04
1
0811-
●
81
SPACER
1-31119-017-0
01
1
0811-
●
