Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#55845) — 322 parça

511 265 439 353 303 290 150 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
150	NUT M8 FLANGE	0-91180-108-0	01	1	0811-	●
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0811-	●
290	BRACKET; CLIP	1-47479-779-0	01	1	0811-	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0811-	●
353	CLIP; NYLON TUBE ID=18 L=28	1-09701-067-0	01	1	0811-	●
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0811-	●
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0811-	●
439	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0811-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0811-	●

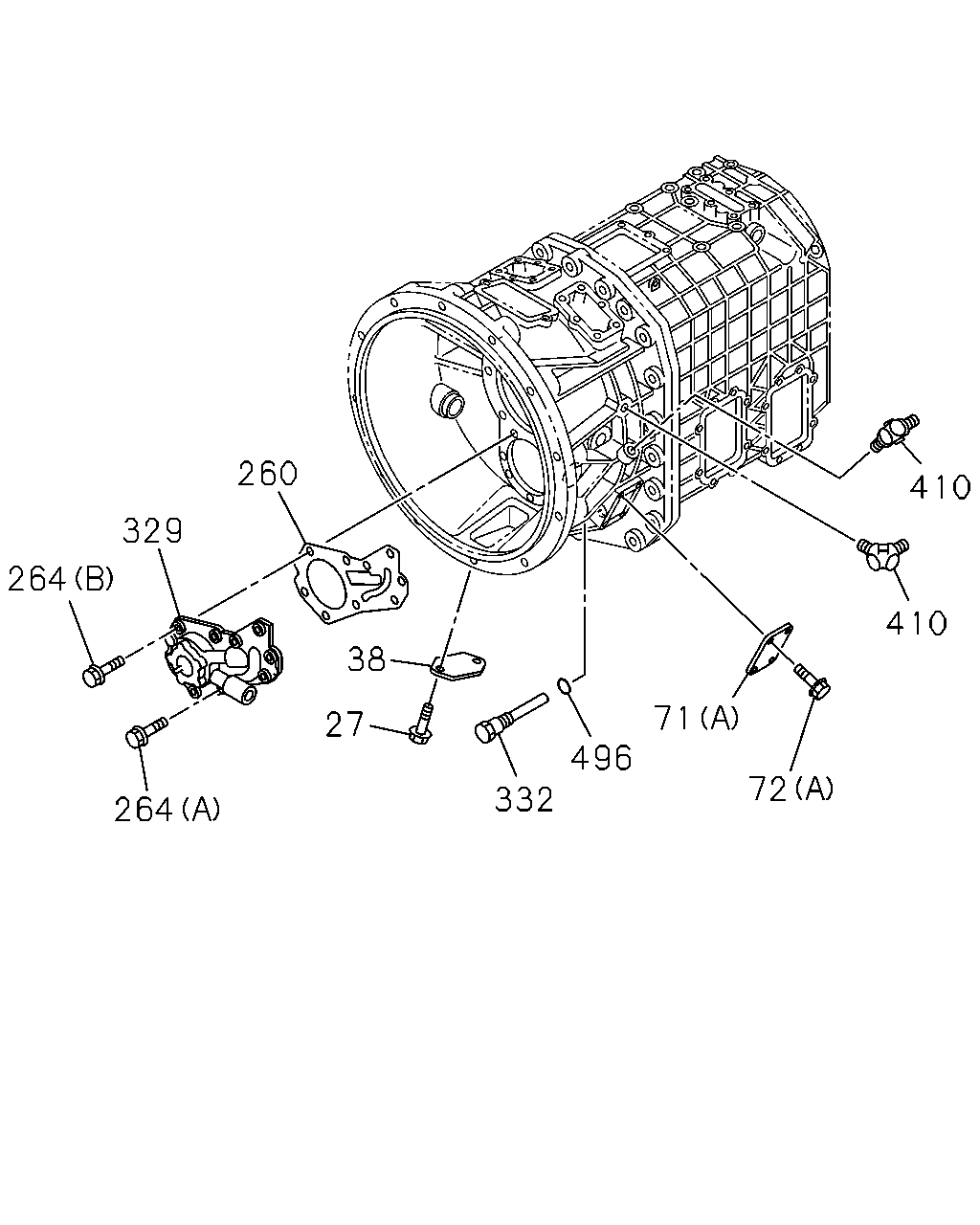

260 410 329 264 410 38 71 27 496 72 332 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0707-0810		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0811-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0707-0810		●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0811-	●	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-066-0	01	1	0811-	●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	0707-0809		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0810-0810		●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	0811-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0902-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	0707-0809		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	0810-0810		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	0811-0901	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	0902-	●	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	0707-		●
72	BOLT; SIDE COVER (E) M10X35 FLANGE	0-28751-035-0	08	1	0811-	●
72	BOLT; SIDE COVER (F) M12X30 FLANGE	1-09044-086-0	08	1	0811-0901	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (F) M12X30 FLANGE	1-09044-086-0	08	1	0902-	●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	0707-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28181-240-0	07	1	0707-0804		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	0805-0809		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	0810-0810		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	0811-0901		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	0902-		●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	0707-0809		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	0810-0810		●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	0811-0901		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	0902-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0707-0809		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0810-0810		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0811-0901		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0902-		●
260	GASKET; OIL PUMP	1-34142-031-0	01	1	0707-		●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	0811-	●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	0811-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	09	1	0707-1211		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1212-		●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	0707-		●
329	PUMP ASM; OIL	1-34150-117-0	01	1	0811-1408	●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-	●
329	PUMP ASM; OIL	1-34150-112-0	01	1	0707-		●
332	FILTER; OIL	1-34159-050-1	01	1	0707-		●
410	UNION; OIL PIPE R1/4 & M16 ELBOW	1-09660-800-1	02	1	0707-		●
496	GASKET; OIL FILTER ID=24.2	1-09630-090-0	01	1	0707-		●

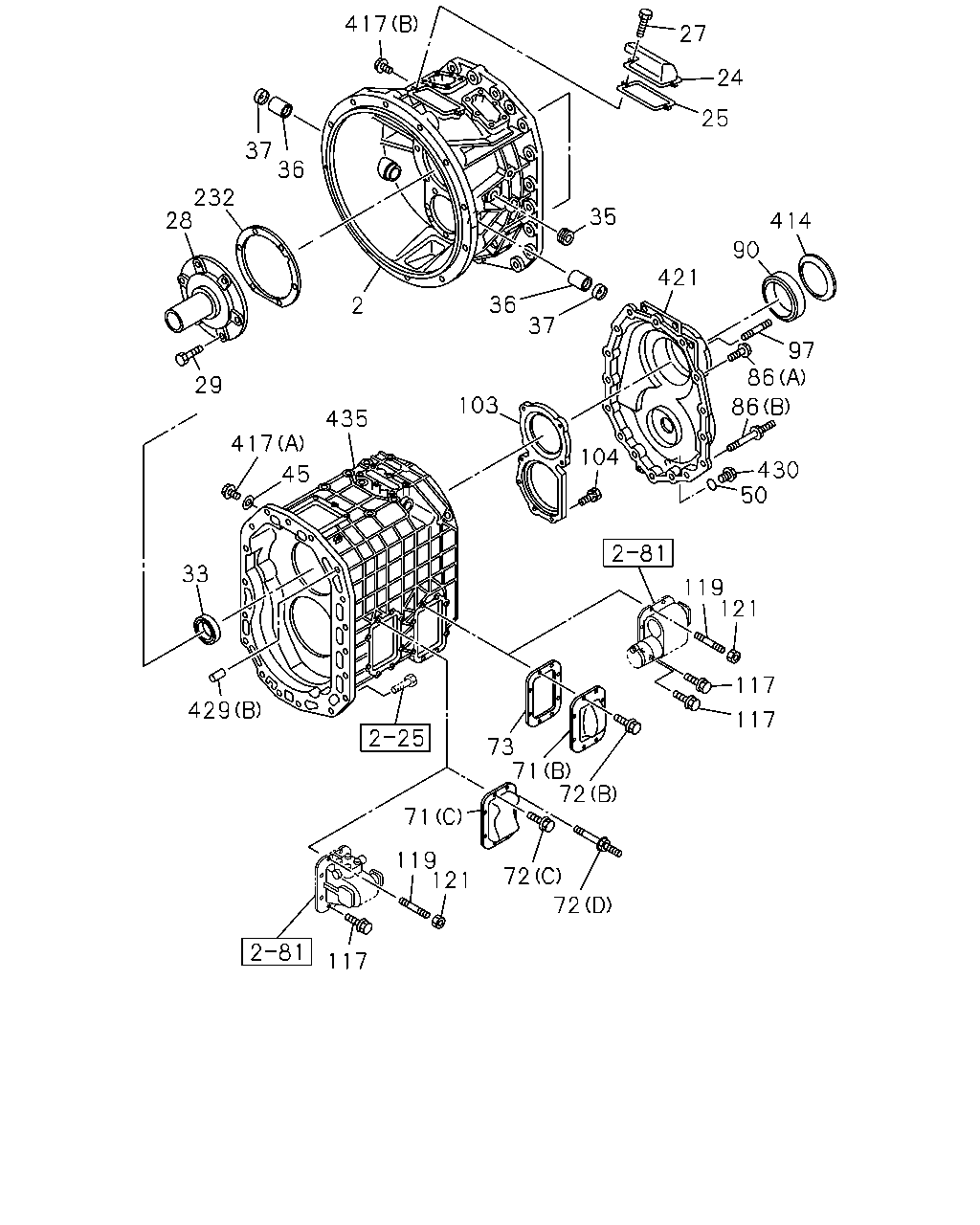

417 27 24 25 37 36 232 28 35 414 90 421 36 2 37 97 86 29 103 86 435 104 417 430 50 45 33 119 121 117 429 117 73 71 72 71 119 121 72 72 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	8-98052-280-0	01	1	0811-1003	●
2	HOUSING; CLU	8-98168-737-0	01	1	1004-	●
2	HOUSING; CLU	1-31111-201-0	01	1	0707-0902		●
2	HOUSING; CLU	8-98077-167-1	01	1	0903-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0707-0810		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0811-	●	●
25	GASKET; COVER	1-31139-008-0	01	1	0707-0810		●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0811-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0707-0810		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0811-	●	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0811-	●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	0707-		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28151-040-0	06	1	0707-0803		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0804-0810		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0811-1211	●	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0811-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0707-		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0707-0810		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0811-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0707-0810		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0811-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0707-0810		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0811-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0707-0810		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0811-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0707-		●
71	COVER; SIDE,TRANS CASE (D)	1-33141-066-0	01	1	0811-	●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	0707-0809		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0810-0810		●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	0811-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0902-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	0707-0809		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	0810-0810		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	0811-0901	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	0902-	●	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	0707-		●
72	BOLT; SIDE COVER (E) M10X35 FLANGE	0-28751-035-0	08	1	0811-	●
72	BOLT; SIDE COVER (F) M12X30 FLANGE	1-09044-086-0	08	1	0811-0901	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (F) M12X30 FLANGE	1-09044-086-0	08	1	0902-	●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	0707-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28181-240-0	07	1	0707-0804		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	0805-0809		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	0810-0810		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	0811-0901		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	0902-		●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	0707-0809		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	0810-0810		●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	0811-0901		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	0902-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0707-0809		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0810-0810		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0811-0901		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0902-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-041-0	01	1	0707-0809		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0810-0810		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-041-0	01	1	0811-0901		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0902-		●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	0811-	●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28181-240-0	14	1	0707-0804		●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	0805-		●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	0707-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	0811-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0707-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0707-		●
103	RETAINER; BRG	1-33151-063-0	01	1	0811-0910	●
103	RETAINER; BRG	1-33151-061-0	01	1	0911-	●
103	RETAINER; BRG	1-33151-059-0	01	1	0707-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0707-0810		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0811-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	0902-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X40 FLANGE	0-28151-240-0	04	1	0810-0810		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X40 FLANGE	0-28151-240-0	04	1	0902-1111		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X45 FLANGE	0-28151-245-0	04	1	1112-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	0810-0810		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	0810-0810		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	0902-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	0902-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	0902-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 L=63	1-09302-178-0	04	1	0810-0810		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 L=63	1-09302-178-0	04	1	0902-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0810-0810		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0902-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0810-0810		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0902-	●	●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0707-0810		●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0811-	●	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	0707-1211		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0707-0810		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0811-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0707-0810		●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0811-	●	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	0811-	●
421	COVER; RR,TRANS	1-33131-243-1	01	1	0707-0910		●
421	COVER; RR,TRANS	8-98077-636-0	01	1	0911-1110		●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1111-1502		●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-		●
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	0811-	●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	0707-0810		●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	0811-	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0707-		●
435	CASE; TRANS	1-33111-361-1	01	1	0811-	●
435	CASE; TRANS	1-33111-359-0	01	1	0707-0902		●
435	CASE; TRANS	8-98132-970-0	01	1	0903-		●

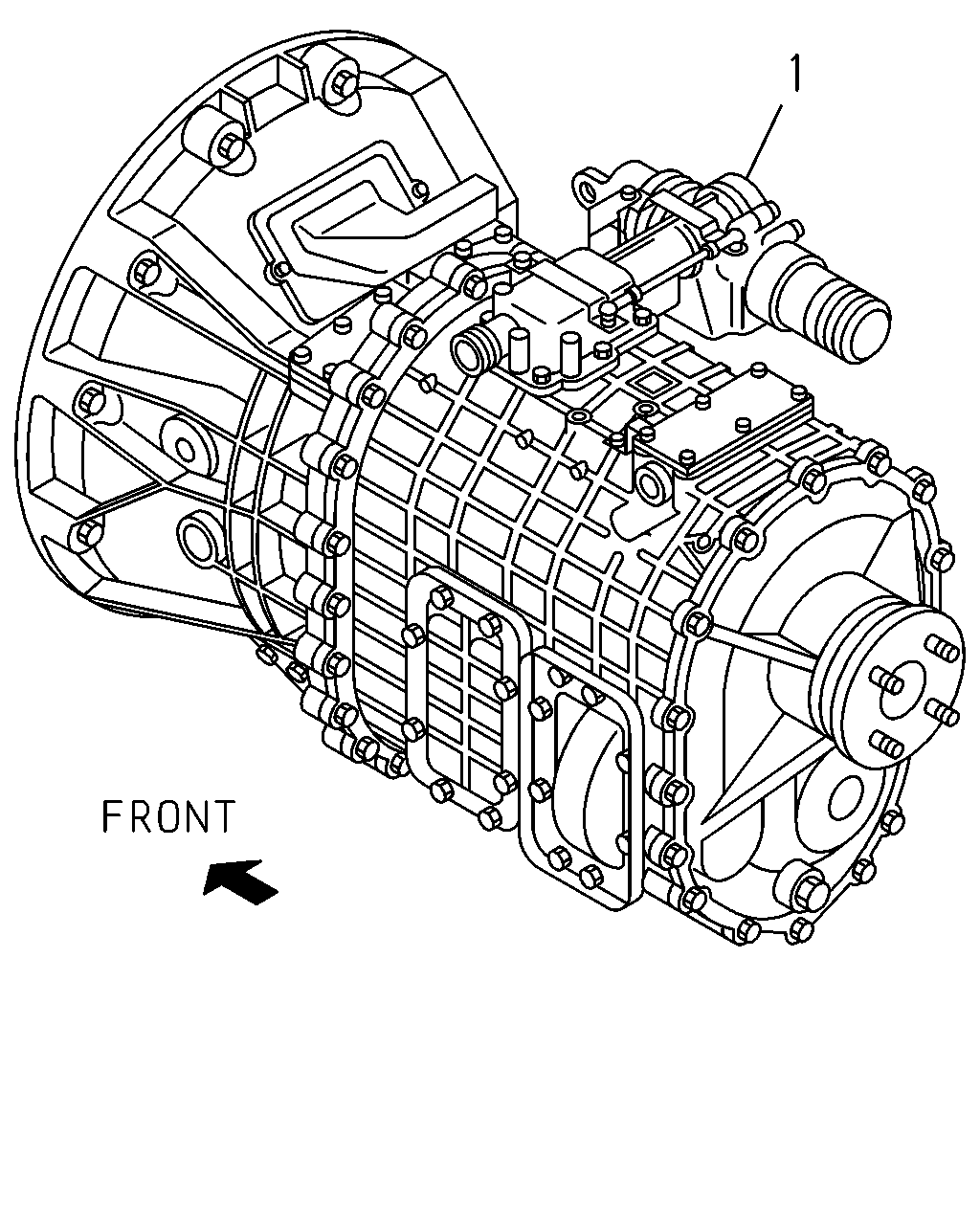

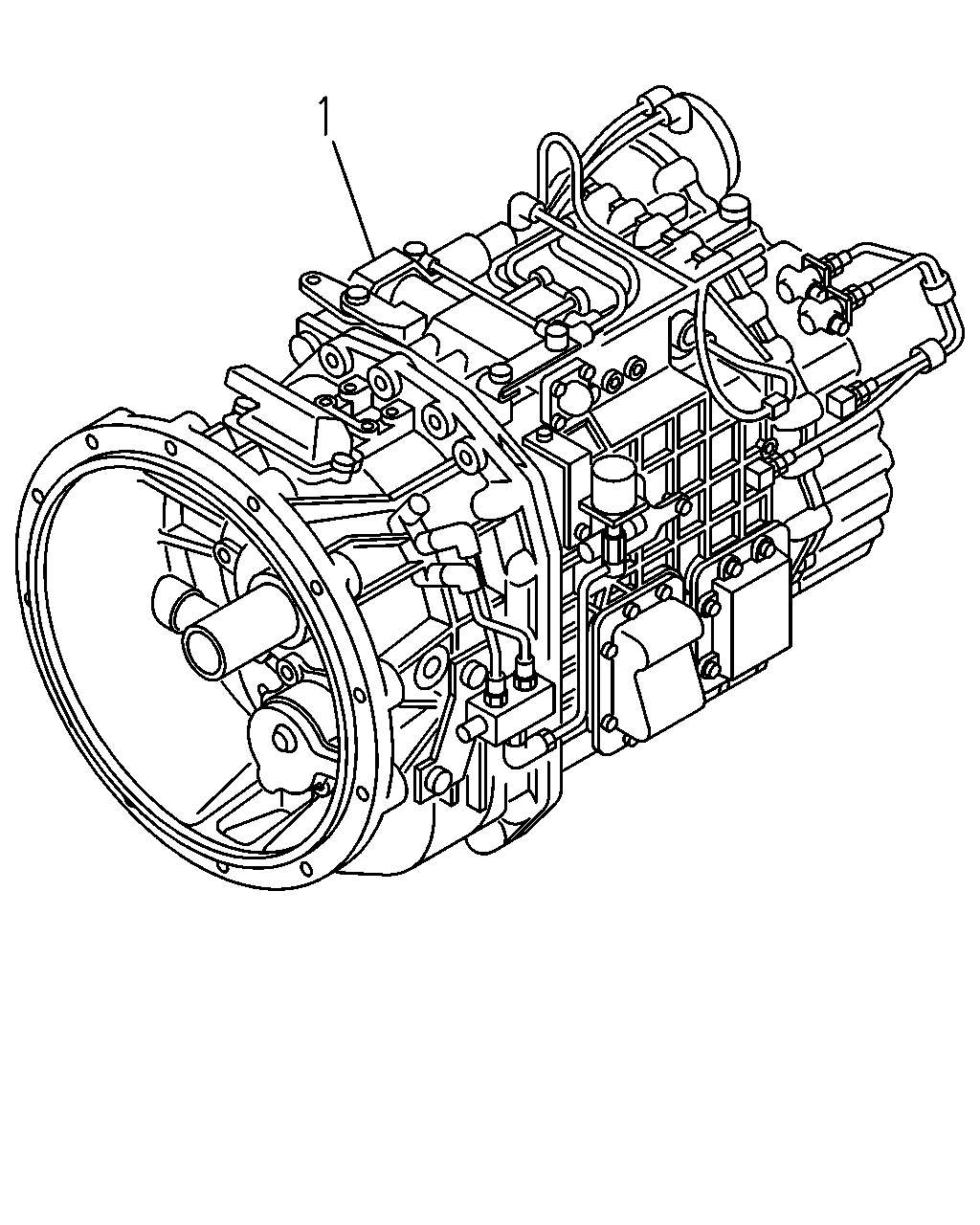

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-196-0	01	1	0902-	●
1	TRANSMISSION ASM; MANUAL	1-33043-965-0	01	1	0707-0810		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-965-0	01	1	0810-0810		●
1	TRANSMISSION ASM; MANUAL	1-33043-965-0	01	1	0811-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-965-0	01	1	0902-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-965-0	01	1	0810-0810		●
1	TRANSMISSION ASM; MANUAL	1-33043-196-0	01	1	0811-0901	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-196-0	01	1	0902-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-965-0	01	1	0902-		●

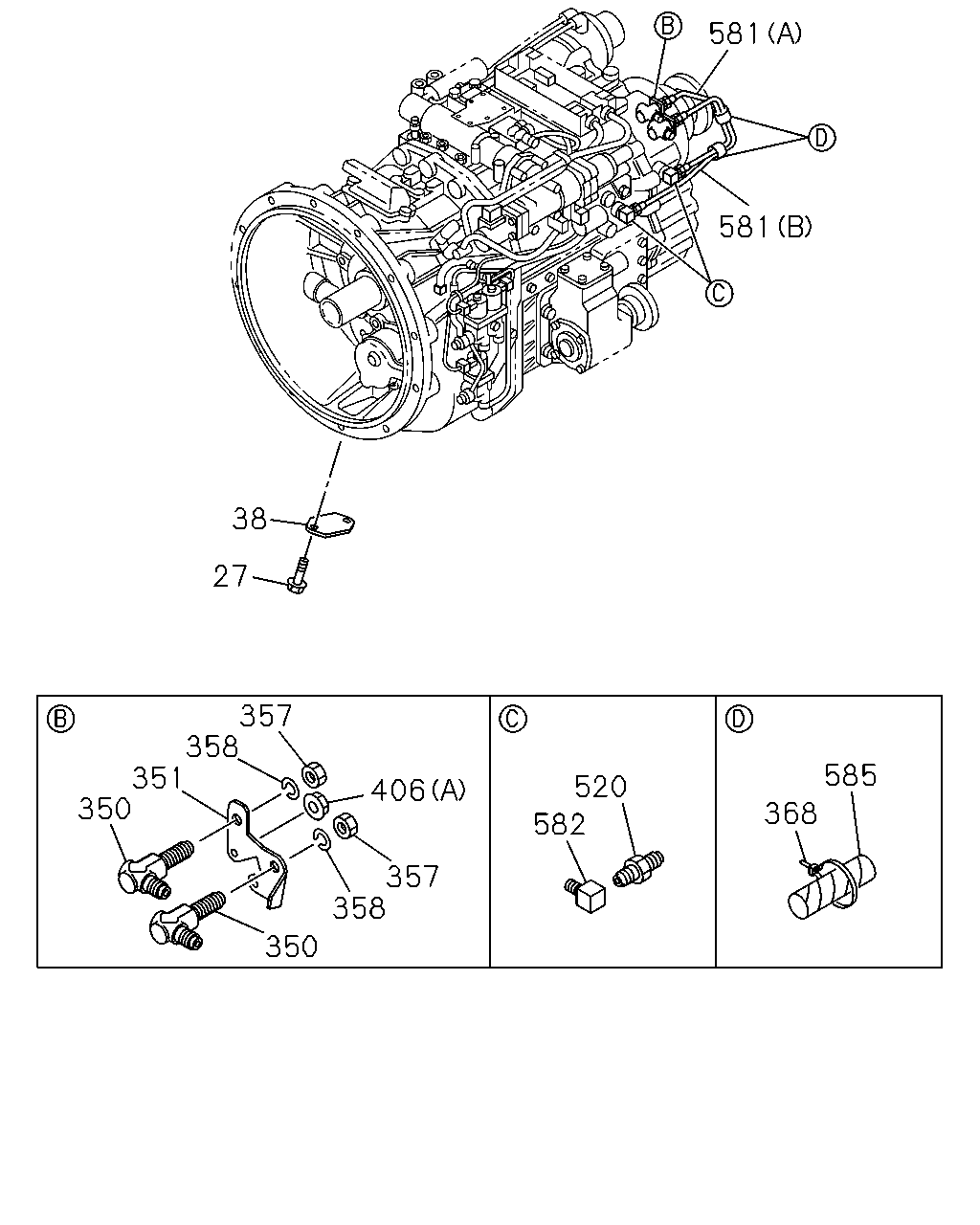

581 581 38 27 357 358 351 350 585 520 406 368 582 357 358 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0707-0810		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0811-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0707-0810		●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0811-	●	●
350	UNION; FLEX HOSE,BRKT	1-09664-257-0	02	1	0811-	●
351	BRACKET; UNION,FLEX HOSE	1-46147-302-0	01	1	0811-	●
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0811-	●
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0811-	●
368	CLIP; BAND,CABLE L=250	1-09707-126-0	02	1	0811-	●
406	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	0811-	●
406	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	0811-	●
520	CONNECTOR R1/4 & M20	0-92306-010-0	02	1	0811-	●
581	HOSE; OIL COOLER (A) L=520	1-09365-144-0	01	1	0811-	●
581	HOSE; OIL COOLER (B) L=650	1-09365-145-0	01	1	0811-	●
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0811-	●
585	BAND; FLEX HOSE L=175	1-09707-178-0	02	1	0811-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-196-0	01	1	0902-	●
1	TRANSMISSION ASM; MANUAL	1-33043-965-0	01	1	0707-0810		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-965-0	01	1	0810-0810		●
1	TRANSMISSION ASM; MANUAL	1-33043-965-0	01	1	0811-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-965-0	01	1	0902-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-965-0	01	1	0810-0810		●
1	TRANSMISSION ASM; MANUAL	1-33043-196-0	01	1	0811-0901	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33043-196-0	01	1	0902-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-965-0	01	1	0902-		●

27 329 502 328 503 527 477 24 2 25 429 465 37 36 473 476 35 232 28 315 90 86 421 36 37 580 111 261 318 51 112 429 104 103 29 429 429 326 546 324 417 202 45 417 262 264 254 255 254 255 503 266 429 71 72 33 435 429 119 71 121 72 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	8-98052-280-0	01	1	0811-1003	●
2	HOUSING; CLU	8-98168-737-0	01	1	1004-	●
2	HOUSING; CLU	1-31111-201-0	01	1	0707-0902		●
2	HOUSING; CLU	8-98077-167-1	01	1	0903-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0707-0810		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0811-	●	●
25	GASKET; COVER	1-31139-008-0	01	1	0707-0810		●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0811-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0707-0810		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0811-	●	●
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0811-	●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	0707-		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28151-040-0	06	1	0707-0803		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0804-0810		●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0811-1211	●	●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0811-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0707-		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0707-0810		●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0811-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0707-0810		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0811-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0707-0810		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0811-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0707-0810		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0811-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-200-1	01	1	0811-	●
71	COVER; SIDE,TRANS CASE (D)	1-33141-066-0	01	1	0811-	●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	0707-0809		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0810-0810		●
71	COVER; SIDE,TRANS CASE (B)	1-33141-044-1	01	1	0811-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0902-		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	0707-0809		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	0810-0810		●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	0811-0901	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	1-33141-057-1	01	1	0902-	●	●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	0707-		●
72	BOLT; SIDE COVER (E) M10X35 FLANGE	0-28751-035-0	08	1	0811-	●
72	BOLT; SIDE COVER (F) M12X30 FLANGE	1-09044-086-0	08	1	0811-0901	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (F) M12X30 FLANGE	1-09044-086-0	08	1	0902-	●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	0707-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28181-240-0	07	1	0707-0804		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	0805-0809		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	0810-0810		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	0811-0901		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M12X40 FLANGE	0-28151-240-0	07	1	0902-		●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	0707-0809		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	0810-0810		●
72	BOLT; SIDE COVER (B) M12X30 FLANGE	0-28751-230-0	08	1	0811-0901		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	0902-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0707-0809		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0810-0810		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0811-0901		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0902-		●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	06	1	0811-	●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28181-240-0	14	1	0707-0804		●
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28151-240-0	14	1	0805-		●
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	0707-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	0811-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0707-		●
103	RETAINER; BRG	1-33151-063-0	01	1	0811-0910	●
103	RETAINER; BRG	1-33151-061-0	01	1	0911-	●
103	RETAINER; BRG	1-33151-059-0	01	1	0707-		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0707-0810		●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0811-	●	●
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	0811-	●
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0811-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	0902-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X40 FLANGE	0-28151-240-0	04	1	0810-0810		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X40 FLANGE	0-28151-240-0	04	1	0902-1111		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X45 FLANGE	0-28151-245-0	04	1	1112-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	0810-0810		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	0810-0810		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	0902-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	0902-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	0902-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 L=63	1-09302-178-0	04	1	0810-0810		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 L=63	1-09302-178-0	04	1	0902-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0810-0810		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0902-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0810-0810		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0902-	●	●
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	0811-	●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0707-0810		●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0811-	●	●
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	0811-	●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0811-	●
261	BOLT; COVER M10X30 FLANGE	0-28151-030-0	07	1	0811-	●
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	0811-	●
264	BOLT; OIL PUMP (C) M8X65	0-10805-865-0	02	1	0811-	●
264	BOLT; OIL PUMP (C) M8X50	0-10855-850-0	02	1	0811-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	09	1	0707-1211		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1212-		●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	0707-		●
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	0811-	●
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	0811-	●
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	0811-	●
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	0811-	●
318	GASKET; COVER	1-34142-034-0	01	1	0811-	●
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	0811-	●
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	0811-	●
328	GASKET; PLUG	1-34159-100-0	01	1	0811-	●
329	PUMP ASM; OIL	1-34150-117-0	01	1	0811-1408	●
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-	●
329	PUMP ASM; OIL	1-34150-112-0	01	1	0707-		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0707-0810		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0811-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0707-0810		●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0811-	●	●
421	COVER; RR,TRANS	1-33131-238-0	01	1	0811-	●
421	COVER; RR,TRANS	1-33131-243-1	01	1	0707-0910		●
421	COVER; RR,TRANS	8-98077-636-0	01	1	0911-1110		●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1111-1502		●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-		●
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	0811-	●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	0707-0810		●
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	0811-	●	●
435	CASE; TRANS	1-33111-361-1	01	1	0811-	●
435	CASE; TRANS	1-33111-359-0	01	1	0707-0902		●
435	CASE; TRANS	8-98132-970-0	01	1	0903-		●
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	0811-1408	●
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	0811-1408	●
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	0811-	●
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	0811-1408	●
502	PLUG; OIL PUMP	1-34159-101-0	01	1	0811-	●
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	0811-	●
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	0811-	●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0811-	●
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	0811-	●
580	CASE; RANGE	1-33115-051-2	01	1	0811-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
