Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#55841) — 86 parça

22 167 153 103 102 30 27 50 133 25 184 10 175 27 56 180 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0707-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0707-
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0707-
25	BRACKET; OIL PIPE (B)	1-47471-021-0	01	1	0707-
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	0707-
25	BRACKET; OIL PIPE (A)	1-71907-726-0	01	1	0707-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0707-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0707-
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0905-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0707-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0707-0904
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
50	NUT; UNION M14	0-91111-514-0	01	1	0707-
56	BRACKET; FLEX HOSE	1-47471-366-0	01	1	0707-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0707-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0707-
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0707-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0707-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2006 SERVICED BY L=2150	1-47426-394-0	01	1	0707-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0707-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0707-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0707-
180	PLUG; PIPE	9-09204-510-0	01	1	0707-0804
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0707-0804
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-

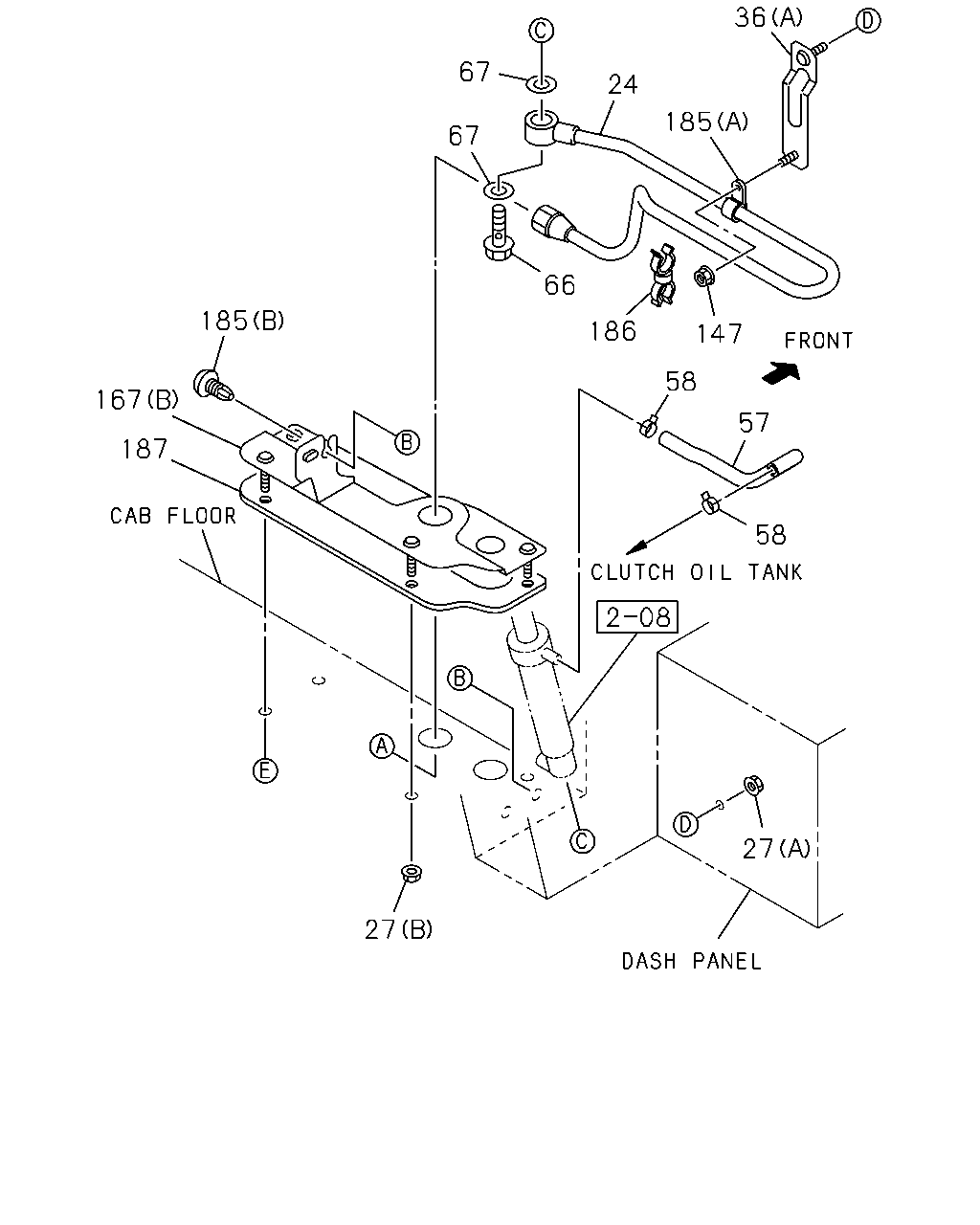

36 67 24 185 67 66 185 186 147 58 167 57 187 58 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	0707-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0707-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0707-
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0905-
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0707-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0707-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0707-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0707-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0707-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0707-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0707-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0707-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0707-
185	CLIP; BRKT (A) ID=11 L=16	0-95235-025-0	01	1	0707-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0707-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0707-
187	SEAL; BRKT	1-71117-209-2	01	1	0707-

25 29 28 30 29 28 25 26 34 106 33 35 117 44 4 45 46 42 36 115 116 37 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	0707-
25	BRACKET; OIL PIPE (B)	1-47471-021-0	01	1	0707-
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	0707-
25	BRACKET; OIL PIPE (A)	1-71907-726-0	01	1	0707-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0707-
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0707-
28	CLIP; OIL PIPE (A) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0707-
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28050-816-0	03	1	0707-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0707-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0707-0904
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	07	1	0707-
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0707-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0707-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	07	1	0707-
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0707-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0707-
37	BOLT; CLIP BRKT M10X20 FLANGE	0-28151-020-0	01	1	0707-
42	BRACKET; FLEX HOSE,CLU CONT	1-47471-203-0	01	1	0707-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0707-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0707-
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0707-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0707-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	02	1	0707-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0707-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0707-
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	0707-

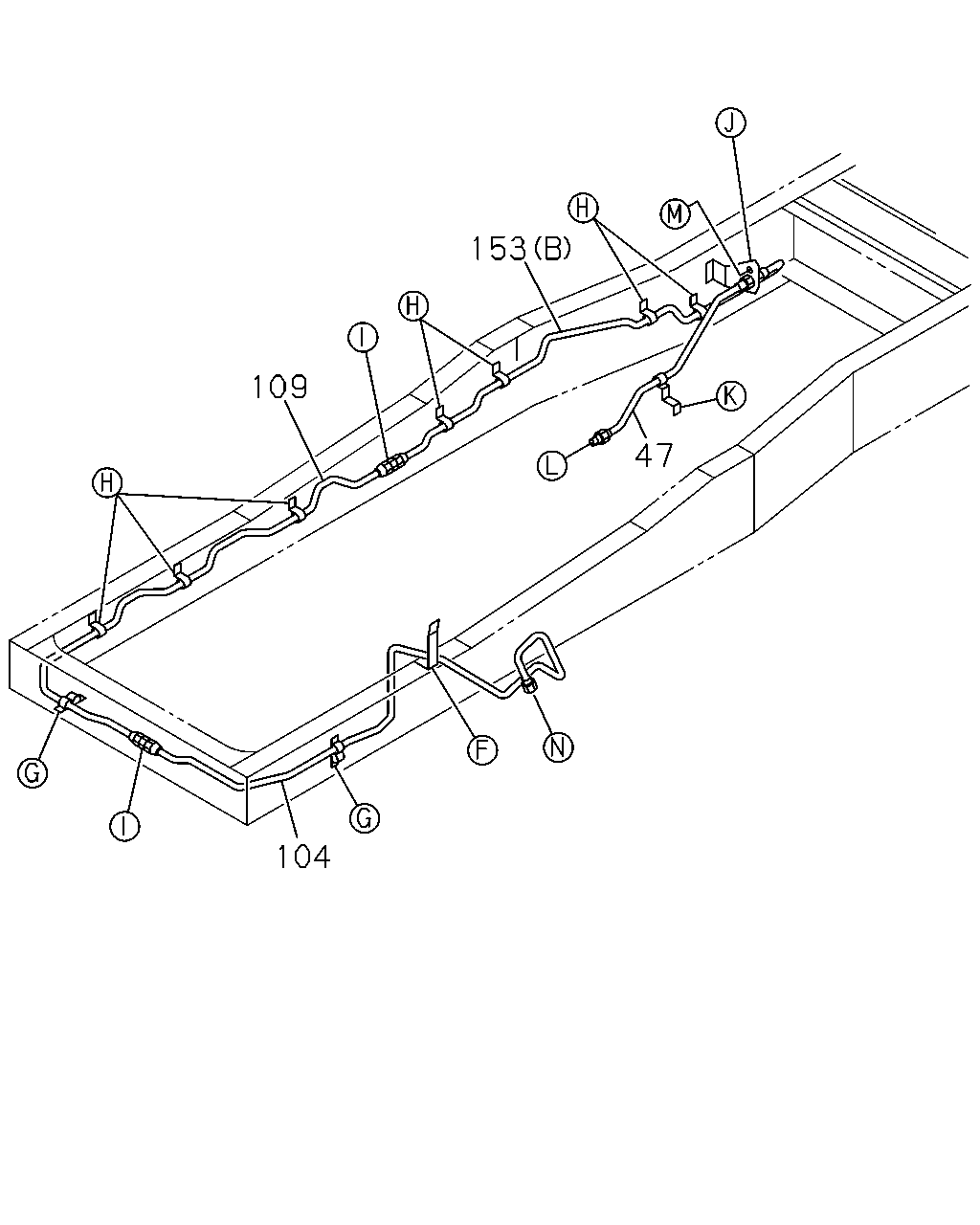

153 109 47 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=650	1-09364-694-0	01	1	0811-
47	HOSE; FLEX,CLU CONT L=700	1-09364-456-0	01	1	0707-0810
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> L=700	1-09364-456-0	01	1	0811-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1396 SERVICED BY L=1400	1-47428-765-0	01	1	0707-
109	PIPE; AIR,UNION TO UNION L=1703 SERVICED BY L=1800	1-47426-392-0	01	1	0707-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0707-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2006 SERVICED BY L=2150	1-47426-394-0	01	1	0707-

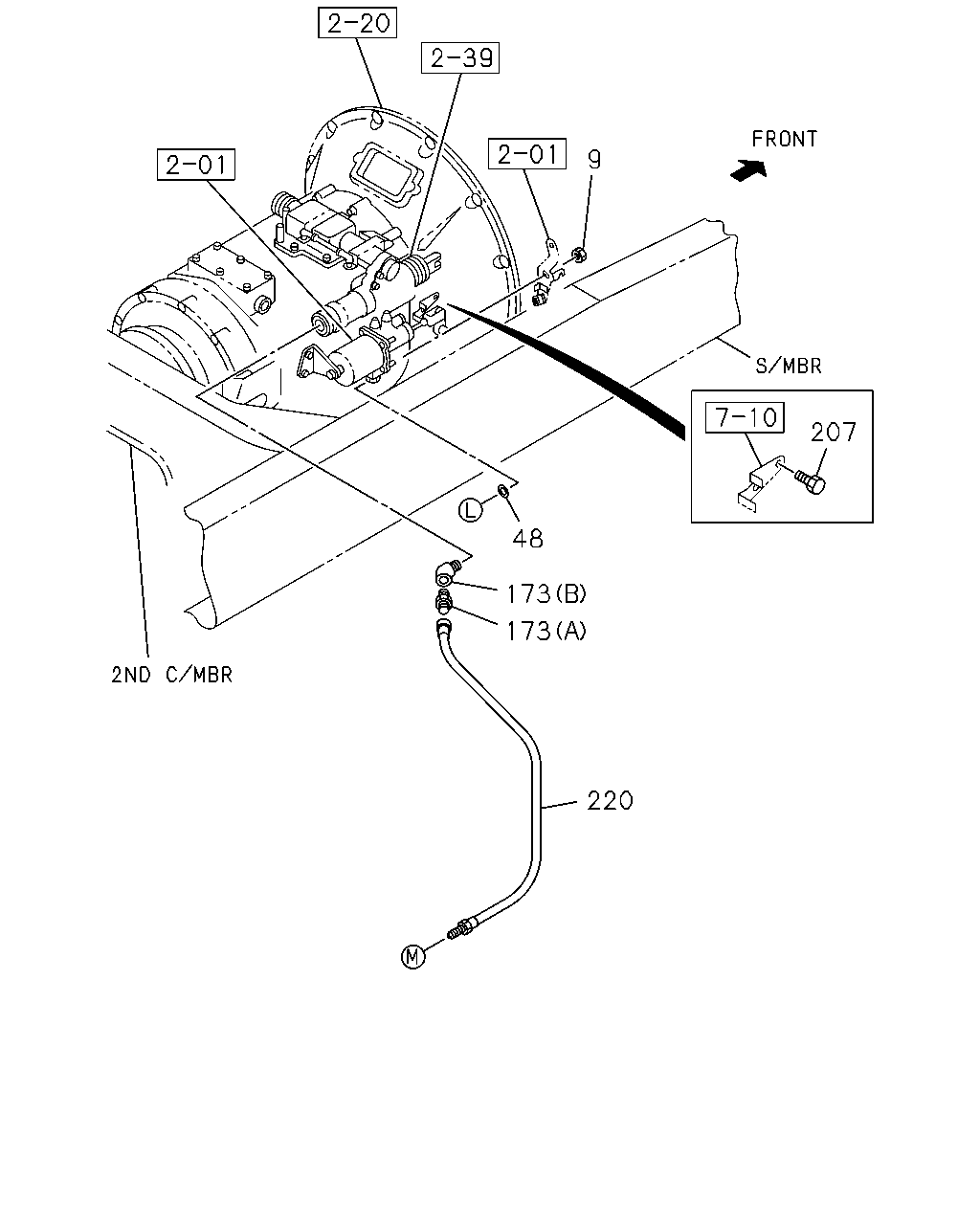

9 207 48 173 173 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	0707-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0707-
173	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0707-
173	CONNECTOR (B) R1/4 & RC1/4	1-09664-211-0	01	1	0707-
207	BOLT; CLIP MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	02	1	0811-
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) L=340	1-09363-622-0	01	1	0811-
220	HOSE; FLEX,POWER ASSIST L=360	1-09363-823-0	01	1	0707-0810
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> L=360	1-09363-823-0	01	1	0811-
