2-01 — CLUTCH (#55839) — 125 parça

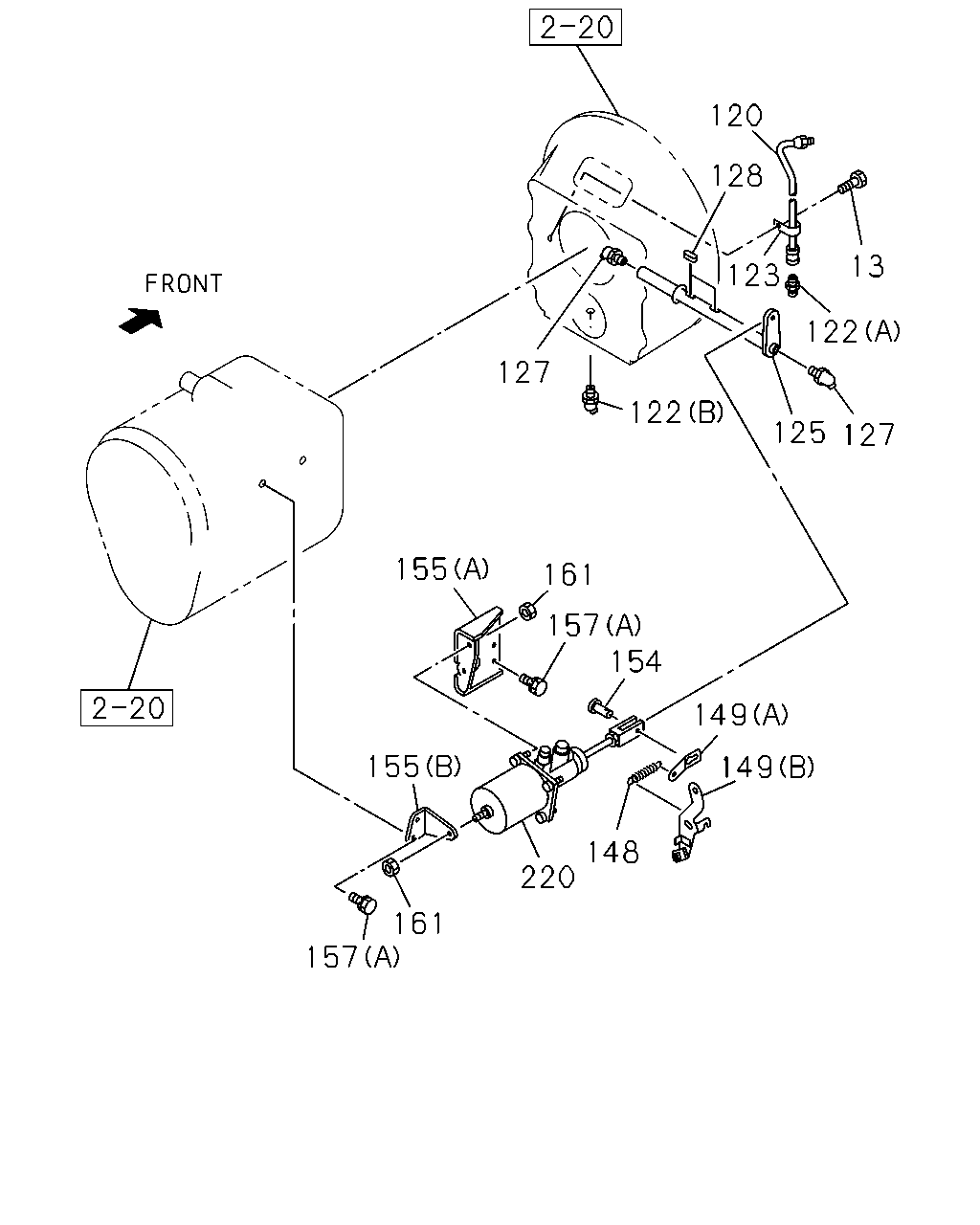

120 128 13 123 122 127 122 125 127 155 161 157 154 149 155 149 148 220 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0707-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0707-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0707-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0707-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0707-	●
125	SHAFT; CLU	1-31342-324-0	01	1	0811-		●
125	SHAFT; CLU	1-31342-262-0	01	1	0707-	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0707-0810	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0811-	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0707-0810	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0811-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0707-	●
149	EYE; SPRING,RETURN SPRING (A)	1-31426-048-0	01	1	0707-	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-056-0	01	1	0707-	●
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0811-		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0707-	●
155	BRACKET; MINIPACK (C)	1-31429-456-0	01	1	0811-		●
155	BRACKET; MINIPACK (D)	1-31429-457-0	01	1	0811-		●
155	BRACKET; MINIPACK (A)	1-31429-323-1	01	1	0707-	●
155	BRACKET; MINIPACK (B)	1-31429-350-0	01	1	0707-	●
157	BOLT; BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0811-		●
157	BOLT; BRKT (C) M10X30 FLANGE	0-28751-030-0	02	1	0811-		●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28151-025-0	03	1	0707-	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0707-0810	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0811-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-500-0	01	1	0811-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-424-2	01	1	0707-0910	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-556-0	01	1	0911-	●

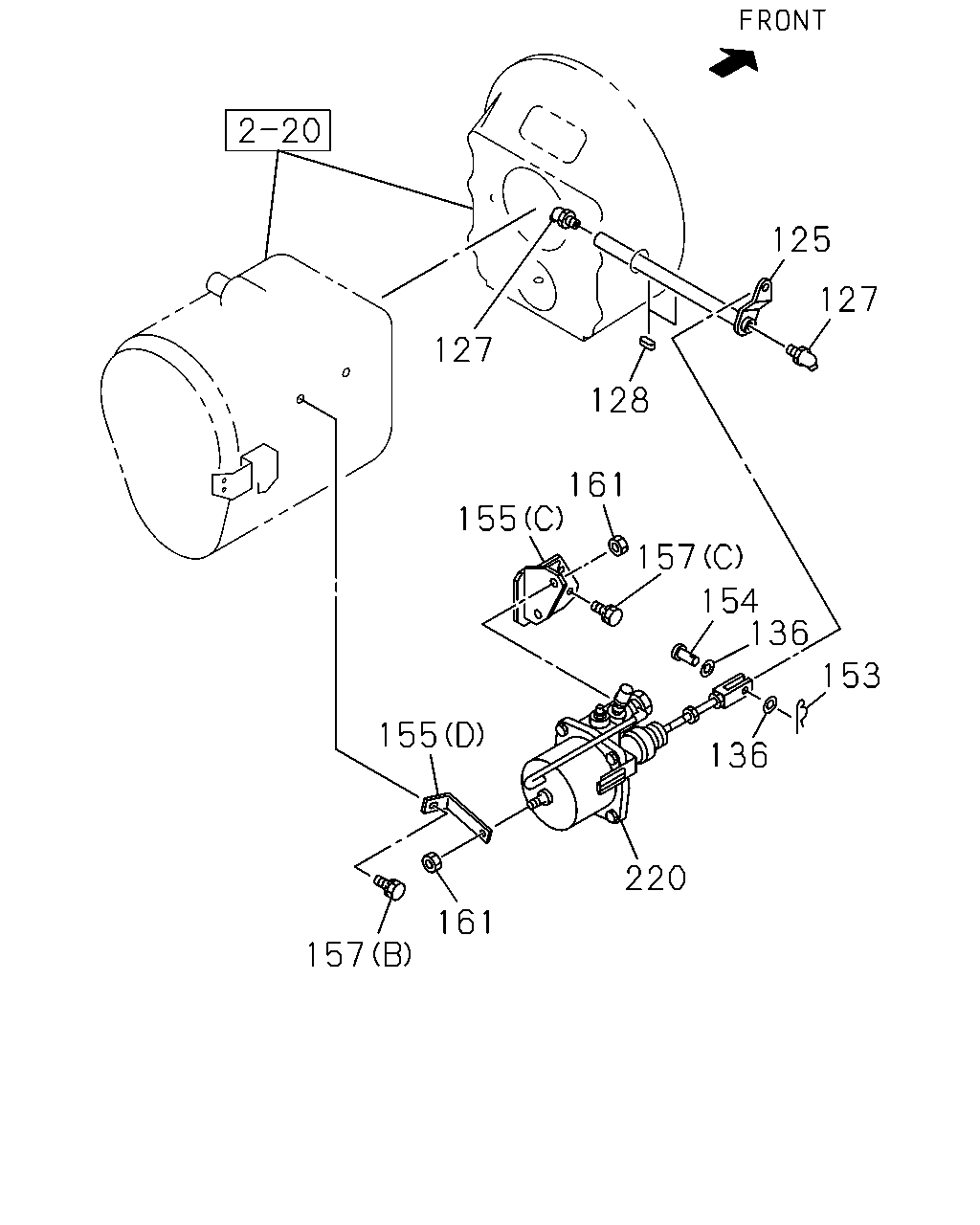

125 127 127 128 161 155 157 154 136 153 155 136 220 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
125	SHAFT; CLU	1-31342-324-0	01	1	0811-		●
125	SHAFT; CLU	1-31342-262-0	01	1	0707-	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0707-0810	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0811-	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0707-0810	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0811-	●	●
136	WASHER; PL ID=15	0-91610-514-0	02	1	0811-		●
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0811-		●
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0811-		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0707-	●
155	BRACKET; MINIPACK (C)	1-31429-456-0	01	1	0811-		●
155	BRACKET; MINIPACK (D)	1-31429-457-0	01	1	0811-		●
155	BRACKET; MINIPACK (A)	1-31429-323-1	01	1	0707-	●
155	BRACKET; MINIPACK (B)	1-31429-350-0	01	1	0707-	●
157	BOLT; BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0811-		●
157	BOLT; BRKT (C) M10X30 FLANGE	0-28751-030-0	02	1	0811-		●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28151-025-0	03	1	0707-	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0707-0810	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0811-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-500-0	01	1	0811-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-424-2	01	1	0707-0910	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-556-0	01	1	0911-	●

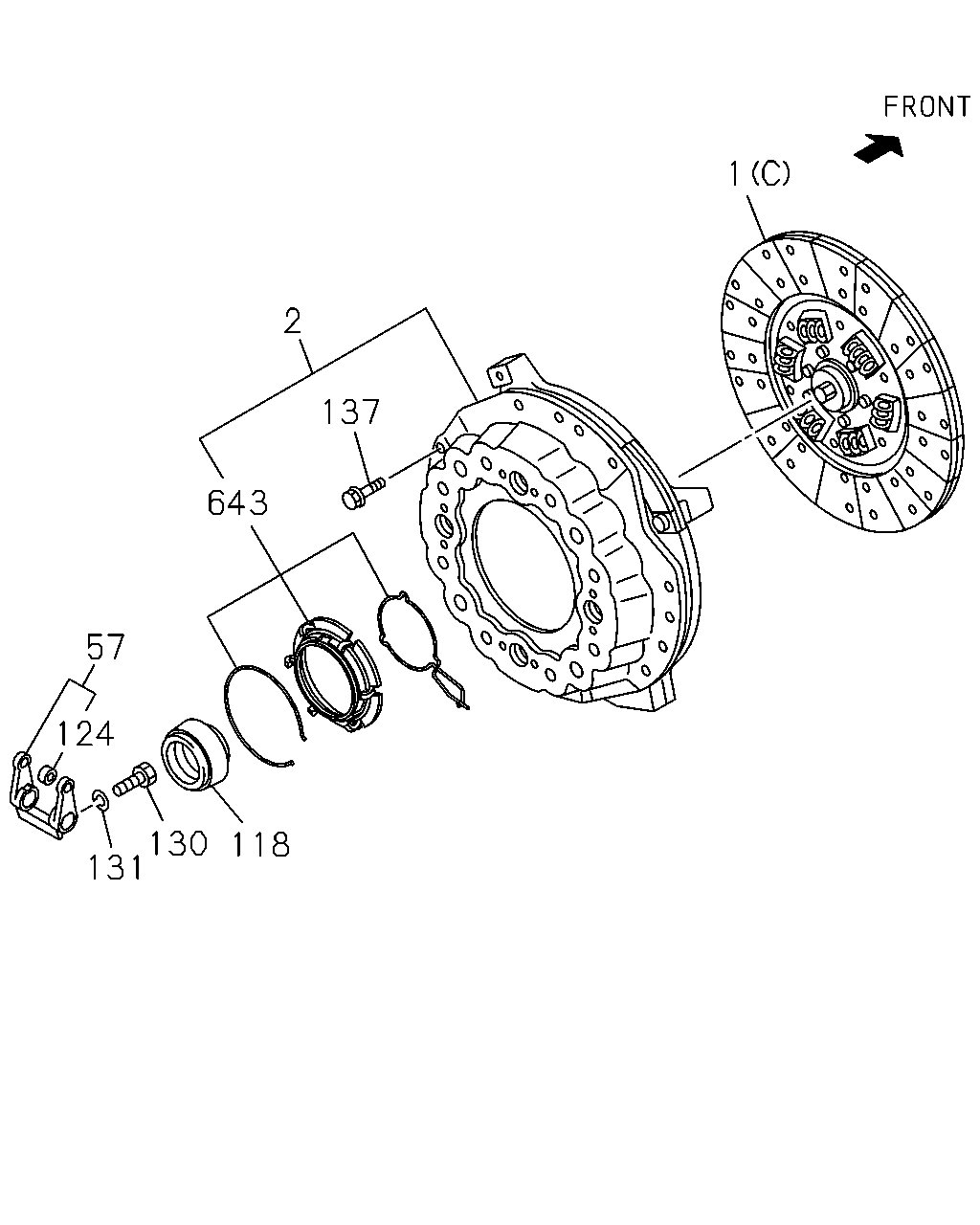

1 2 137 643 57 124 131 118 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH (C) 15.5"	1-31240-976-0	01	1	0811-		●
1	DISC; CLUTCH (A) 15.5"	1-31240-981-0	01	1	0707-1306	●
1	DISC; CLUTCH (A) 15.5"	1-31260-038-0	01	1	1307-	●
1	DISC; CLUTCH (B) 15.5"	1-31240-982-0	01	1	0707-1306	●
1	DISC; CLUTCH (B) 15.5"	1-31260-039-1	01	1	1307-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-415-0	01	1	0811-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-329-2	01	1	0707-	●
57	FORK; SHIFT,CLU	1-31340-066-1	01	1	0811-		●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0707-	●
118	BEARING; CLU RELEASE	1-31310-021-0	01	1	0811-1306		●
118	BEARING; CLU RELEASE	1-31310-028-0	01	1	1307-		●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0707-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-149-0	01	1	0707-	●
124	BEARING; CAM,SHIFT FORK	1-31349-060-1	02	1	0811-		●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0707-	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0707-0810	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0811-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0707-0810	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0811-	●	●
137	BOLT; CLU COVER M10X110 FLANGE	0-28156-011-0	12	1	0811-		●
137	BOLT; CLU COVER M12X80	0-28151-280-0	02	1	0707-	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28151-290-0	10	1	0707-	●
137	BOLT; CLU COVER M12X30 FLANGE	0-28751-230-0	04	1	0707-	●
643	REPAIR KIT; CLUTCH	8-98207-785-0	01	1	0811-		●

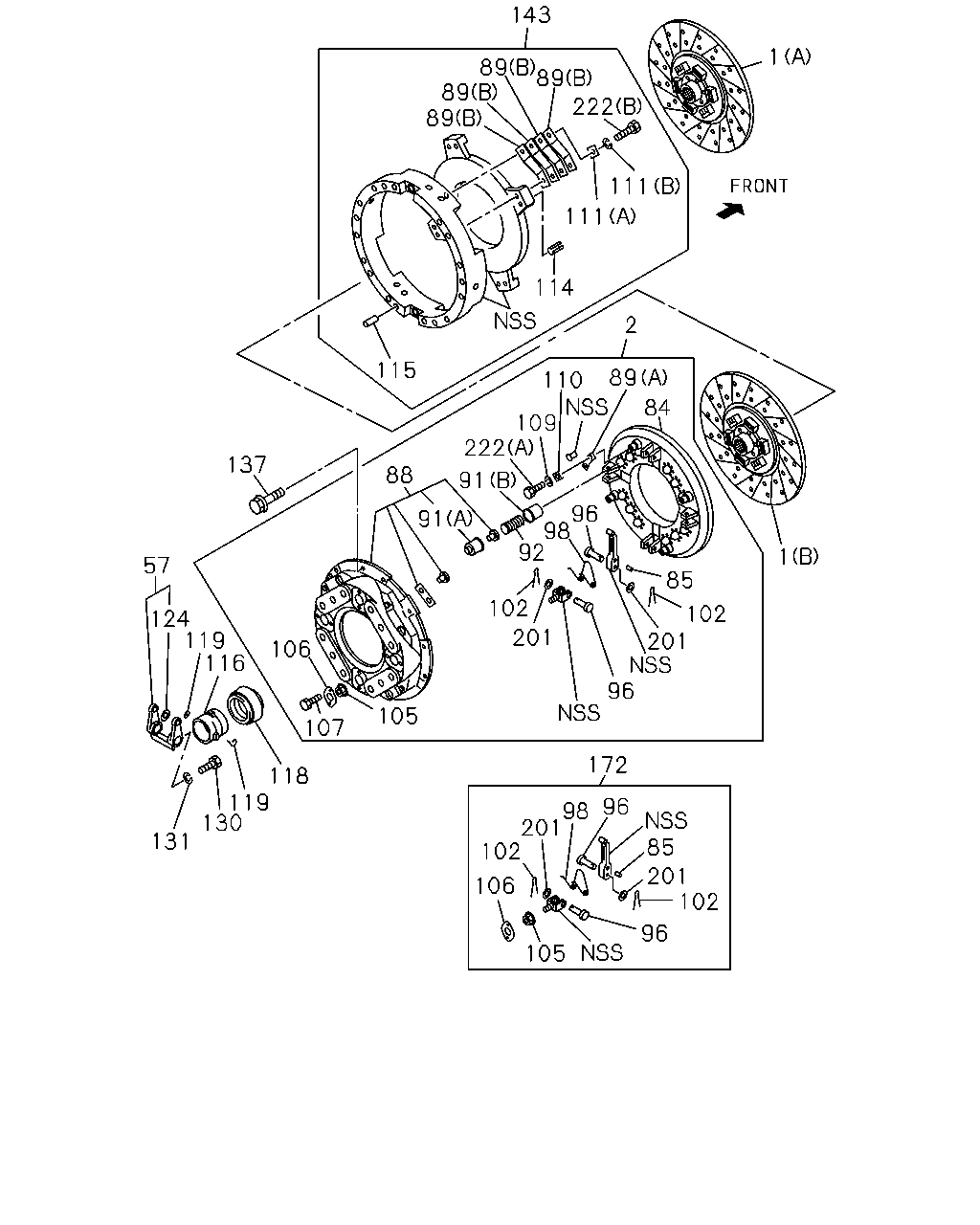

143 1 89 89 89 222 89 111 111 114 2 115 89 110 84 109 222 137 88 91 96 98 92 91 1 57 85 106 102 102 201 96 124 119 116 201 105 107 172 118 119 130 96 98 201 102 85 131 201 102 106 96 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH (C) 15.5"	1-31240-976-0	01	1	0811-		●
1	DISC; CLUTCH (A) 15.5"	1-31240-981-0	01	1	0707-1306	●
1	DISC; CLUTCH (A) 15.5"	1-31260-038-0	01	1	1307-	●
1	DISC; CLUTCH (B) 15.5"	1-31240-982-0	01	1	0707-1306	●
1	DISC; CLUTCH (B) 15.5"	1-31260-039-1	01	1	1307-	●
2	PLATE ASM; PRESSURE,CLU	1-31220-415-0	01	1	0811-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-329-2	01	1	0707-	●
57	FORK; SHIFT,CLU	1-31340-066-1	01	1	0811-		●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0707-	●
84	PLATE; PRESSURE	1-31221-087-0	01	1	0707-	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	0707-	●
88	COVER SUB ASM; CLU	1-31210-020-1	01	1	0707-	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	0707-	●
89	PLATE; STRAP (B)	1-31229-048-0	20	1	0707-	●
91	SEAT; SPR (A)	1-31219-045-0	12	1	0707-	●
91	SEAT; SPR (B)	1-31219-046-0	12	1	0707-	●
92	SPRING; CLU	1-31214-062-0	12	1	0707-	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	0707-	●
98	SPRING; RETURN	1-31233-007-0	04	1	0707-	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0707-	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0707-	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0707-	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0707-	●
109	WASHER; LK,STRAP ID=12.2	0-91510-512-0	04	1	0707-	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0707-	●
111	WASHER; PL,STRAP (B) ID=12.2	0-91510-512-0	08	1	0707-	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	0707-	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-037-0	04	1	0707-	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	0707-	●
116	BLOCK; SHIFT,CLU	1-31321-093-1	01	1	0707-	●
118	BEARING; CLU RELEASE	1-31310-021-0	01	1	0811-1306		●
118	BEARING; CLU RELEASE	1-31310-028-0	01	1	1307-		●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0707-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-149-0	01	1	0707-	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0707-	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0707-	●
124	BEARING; CAM,SHIFT FORK	1-31349-060-1	02	1	0811-		●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0707-	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0707-0810	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0811-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0707-0810	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0811-	●	●
137	BOLT; CLU COVER M10X110 FLANGE	0-28156-011-0	12	1	0811-		●
137	BOLT; CLU COVER M12X80	0-28151-280-0	02	1	0707-	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28151-290-0	10	1	0707-	●
137	BOLT; CLU COVER M12X30 FLANGE	0-28751-230-0	04	1	0707-	●
143	PLATE; INTERMEDIATE	1-31221-133-0	01	1	0707-	●
172	LEVER KIT; RELEASE,CLU	1-87831-164-1	01	1	0707-	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	0707-	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0707-	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	0707-	●
