◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11320 - EXR MIDDLE EAST WITH 2STEPS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#55834) — 34 parça

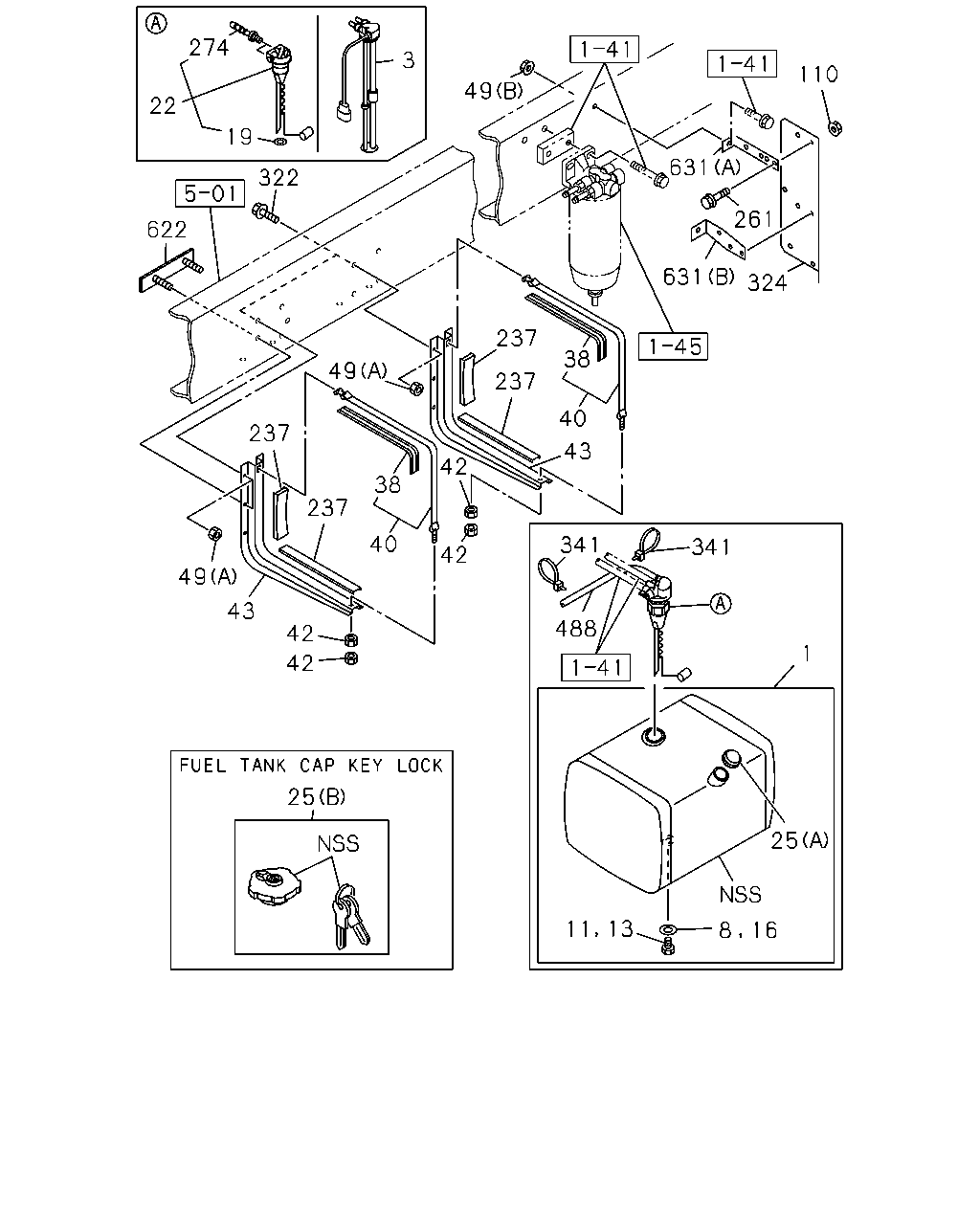

çizim 133392
274 3 19 22 322 622 237 49 38 237 49 43 42 42 25 40 42 42 237 237 40 341 488 341 1 25 8 16 13 11 38 631 324 261 631 110 49 43
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
1050X680X625 400L 		1-87411-173-1 01 1 0707-0810
1 TANK; FUEL
1050X680X625 400L 		1-87411-699-1 01 1 0811-1109
1 TANK; FUEL
1050X680X625 400L 		1-87411-788-3 01 1 1110-
3 UNIT; FUEL TANK,SUB 8-98217-749-0 01 1 1211-
8 GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6 		8-98030-453-0 01 1 1211-
11 PLUG; DRAIN,FUEL TANK
M18X12 		0-92002-418-0 01 1 1211-
13 PLUG; SCREW,SUB TANK JOINT
M18X12 		0-92002-418-0 01 1 0707-1210
16 GASKET; PLUG
ID=18.2 T=1.6 		8-98030-453-0 01 1 0707-1210
19 GASKET; FUEL TANK UNIT
ID=58 		1-83149-005-0 01 1 0707-1210
19 GASKET; FUEL TANK UNIT
ID=54.5 		8-98299-580-0 01 1 1211-
22 UNIT; FUEL TANK 1-83141-132-0 01 1 0707-1210
25 CAP; FILLER,FUEL TANK
(A) 		1-22440-063-1 01 1 0707-0810
25 CAP; FILLER,FUEL TANK
(A) 		8-98115-780-0 01 1 0811-1109
25 CAP; FILLER,FUEL TANK
(A) 		8-98182-306-0 01 1 1110-
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> (B) 		8-98108-595-0 01 1 0808-
38 INSULATION; SUPPORT BELT
L=1156 		1-22553-039-1 02 1 0707-
40 BELT; SUPPORT,FUEL TANK
L=1210 		1-22550-261-0 02 1 0707-1110
40 BELT; SUPPORT,FUEL TANK
L=1210 		8-98202-448-0 02 1 1111-
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 0707-
43 BRACKET; FUEL TANK 1-53461-525-1 02 1 0707-
49 NUT; BRKT
(A) M12 		0-91110-512-0 08 1 0707-
49 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0707-
110 NUT; PROTECTOR
M8 FLANGE 		0-91180-108-0 04 1 0707-
237 GASKET; BRKT TO FUEL TANK 1-22553-037-1 04 1 0707-
261 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 04 1 0707-
274 CONNECTOR; ELBOW,FUEL TANK PIPE 1-83149-006-0 02 1 0707-1210
322 BOLT; BRKT FIX
M12X40 FLANGE 		0-28051-240-0 10 1 0707-
324 PROTECTOR; FUEL SEDIMENTER 1-47471-216-0 01 1 0707-
341 CLIP; BAND,RUBBER HOSE
L=350 		1-09707-183-0 02 1 0707-
488 HOSE; RUBBER 8-98049-832-0 01 1 0707-0811
488 HOSE; RUBBER 8-98134-936-0 01 1 0812-
622 STUD; BRACKET 1-53461-534-0 01 1 0707-
631 BRACKET; PROTECTOR
(A) 		1-82698-358-0 01 1 0707-
631 BRACKET; PROTECTOR
(B) 		1-82698-625-0 01 1 0707-
