Isuzu WW
▶
TRUCKS
▶
EXR
▶
11320 - EXR MIDDLE EAST WITH 2STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

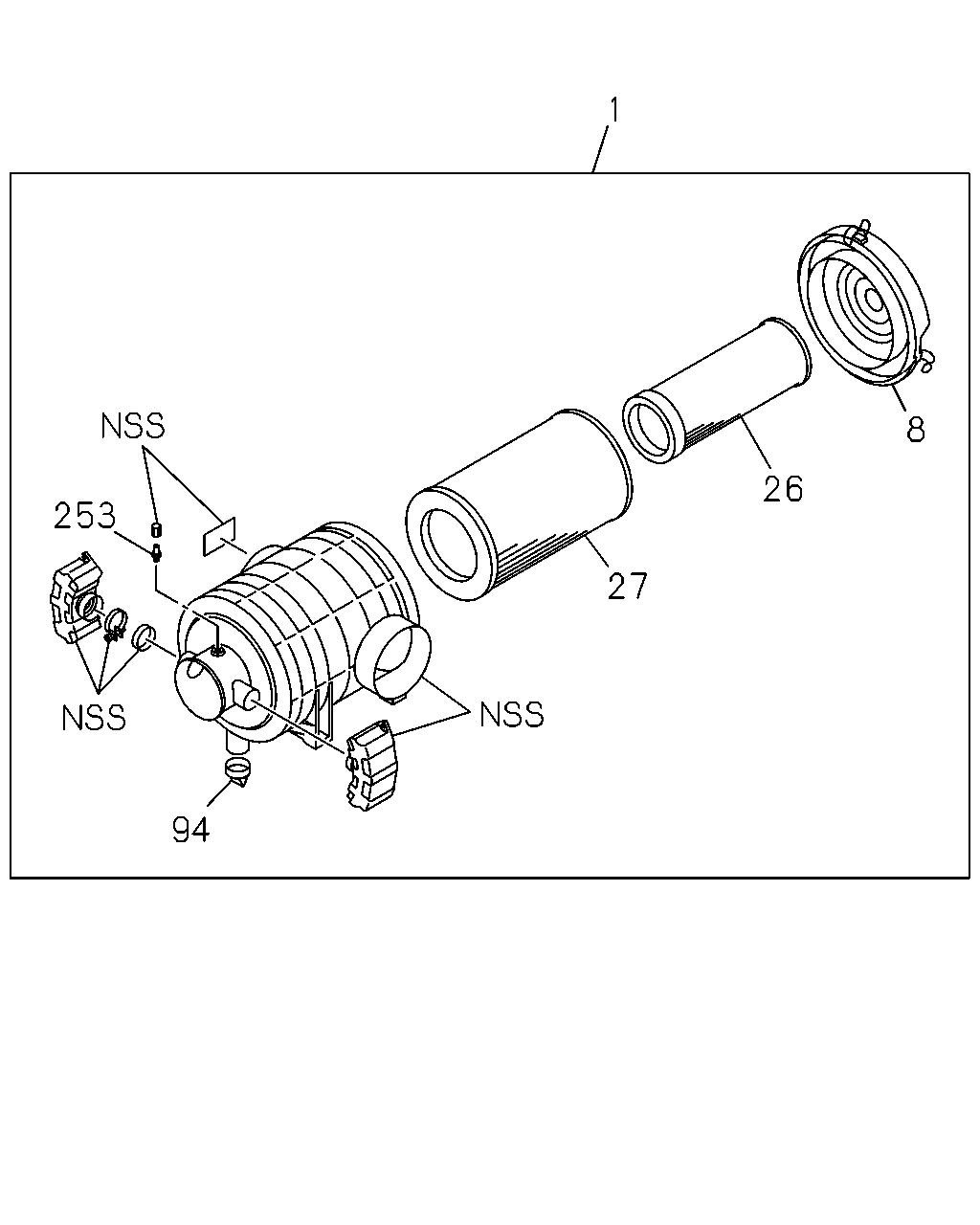

1-30 — AIR CLEANER
(#55831) — 15 parça
◀
[130A] COMPONENT (8 parça)
[130A] FIXING (7 parça)
▶
1
8
26
253
27
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
1-14210-832-0
01
1
0707-
8
COVER ASM; ACL
1-14212-129-0
01
1
0707-
26
FILTER; ACL,INNER
1-14215-217-0
01
1
0707-
26
FILTER; ACL,INNER
BEST VALUE PARTS
1-87610-112-0
01
1
0707-
27
FILTER; ACL,OUTER
1-14215-203-0
01
1
0707-
27
FILTER; ACL,OUTER
BEST VALUE PARTS
1-87610-111-0
01
1
0707-
94
VALVE; VACUATOR
1-14219-251-0
01
1
0707-
253
NIPPLE
1-14219-252-0
01
1
0707-
68
1
67
212
65
212
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
1-14210-832-0
01
1
0707-
64
NUT; BAND BRKT
M10 FLANGE
0-91180-210-0
04
1
0707-
65
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
04
1
0707-1204
65
WASHER; PL
ID=10.5
0-91610-710-0
04
1
1205-
67
COVER; ACL
1-53490-073-0
01
1
0707-
68
INDICATOR; SERVICE
1-14219-212-0
01
1
0707-
212
BOLT; MUD COVER
M10X25 FLANGE
0-28651-025-0
04
1
0707-
