Sayfa 2-53B - Isuzu EPC

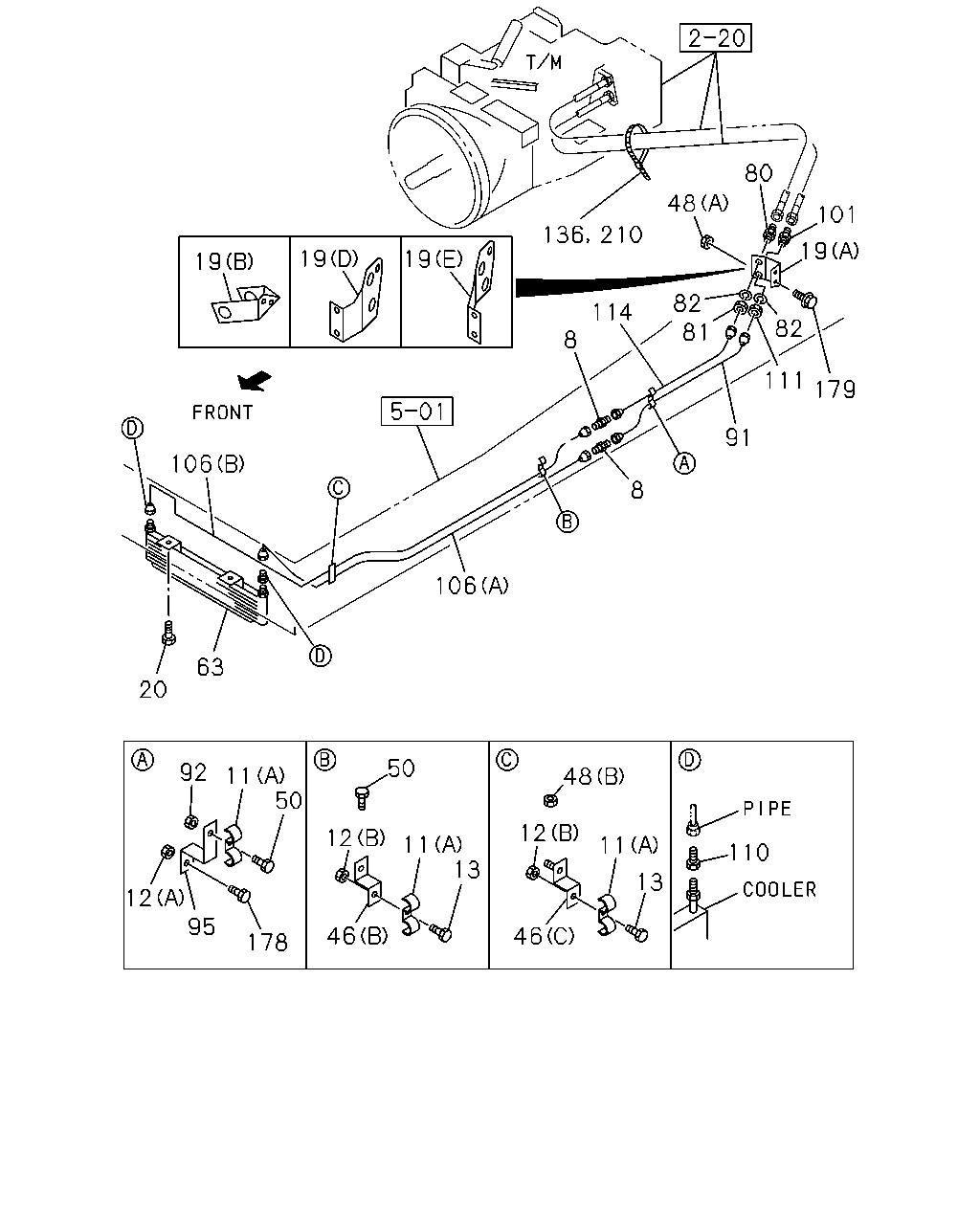

2-53B — TRANSMISSION OIL COOLER SYSTEM (#5582) — 213 parça

80 48 101 19 19 19 19 82 81 114 82 8 111 179 91 106 8 106 63 20 50 92 11 50 48 12 12 11 13 11 110 13 12 95 46 46 178 136 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	UNION TRANSMISSION OIL COOLER<C2C> M22	9-09233-015-1	02	1	9603-9904	●
8	UNION TRANSMISSION OIL COOLER<C2C> M22	9-09233-015-1	02	1	9905-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	9603-9904	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	9905-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (B) ID=16 L=20	9-09525-536-0	01	1	9603-9702	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (B) ID=16 L=20	9-09525-535-0	01	1	9703-9904	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8	9-09110-508-0	01	1	9603-9606	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8	9-09110-508-0	02	1	9603-9606	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A)	1-47477-355-0	01	1	9603-9603	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A)	1-47477-355-0	01	1	9604-9904	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (C)	1-47478-235-0	01	1	9905-9905	●	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (C)	1-47478-566-0	01	1	9906-	●	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (A)	1-47477-761-0	01	1	9604-9609	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-47477-886-1	01	1	9610-9904	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (D)	1-47478-523-0	01	1	9905-9907	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (E)	1-47478-648-0	01	1	9908-	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28081-020-0	02	1	9603-9606	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28681-025-0	02	1	9607-9904	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28681-025-0	02	1	9905-0006	●	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28081-020-0	02	1	0007-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) L=50	1-47475-299-2	02	1	9603-9904	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) L=50	1-47475-299-2	02	1	9905-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-47475-881-0	01	1	9603-9904	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-47475-881-0	01	1	9905-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (C)	1-47477-235-0	01	1	9603-9904	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (C)	1-47477-235-0	01	1	9905-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) M8	9-09110-508-0	02	1	9603-9606	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8	9-09110-508-0	01	1	9603-9606	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> M8X16 FLANGE	0-28080-816-0	03	1	9603-9606	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	03	1	9607-9904	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	9603-9904	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	9905-	●	●
80	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9603-9904	●
80	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9905-	●	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9603-9904	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9905-	●	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	9-09150-522-0	02	1	9603-9904	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	9-09150-522-0	02	1	9905-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L>	1-47429-062-0	01	1	9603-9603	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L>	1-47429-789-0	01	1	9603-9904	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> L=911	1-49163-072-0	01	1	9905-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-47429-068-0	01	1	9603-9603	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-47429-808-0	01	1	9604-9609	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-49161-157-0	01	1	9610-9611	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-49161-330-0	01	1	9612-9904	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-49164-395-0	01	1	9905-9907	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-49164-672-0	01	1	9908-	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8	9-09110-508-0	01	1	9603-9606	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	02	1	9603-9904	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	02	1	9905-9908	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	01	1	9909-	●	●
101	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9603-9904	●
101	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9905-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (B)	1-47429-326-0	01	1	9603-9904	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (B) L=2317	1-49164-311-0	01	1	9905-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A)	1-47429-502-0	01	1	9603-9904	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) L=1703	1-49164-312-0	01	1	9905-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-47429-503-0	01	1	9603-9904	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-47429-503-0	01	1	9905-9905	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-49164-613-0	01	1	9906-	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (A)	1-47429-504-0	01	1	9603-9904	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (A)	1-47429-504-0	01	1	9905-	●	●
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-365-0	02	1	9603-9805	●
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-398-0	02	1	9806-9904	●
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-398-0	02	1	9905-	●	●
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9603-9904	●
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9905-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L>	1-47429-067-0	01	1	9603-9603	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> L=1013	1-47429-790-0	01	1	9603-9904	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> L=1071	1-49163-073-0	01	1	9905-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=1142	1-47429-071-0	01	1	9603-9603	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=1140	1-47429-809-0	01	1	9604-9609	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=1089	1-49161-158-0	01	1	9610-9904	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=1332	1-49164-396-0	01	1	9905-9907	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=1324	1-49164-673-0	01	1	9908-	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=250	1-09707-126-0	01	1	9702-9705	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=250	1-09707-126-0	01	1	9706-9904	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=250	1-09707-126-0	01	1	9905-9907	●	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> L=250	1-09707-126-0	01	1	9908-	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=175	1-09707-178-0	01	1	9702-9705	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=175	1-09707-178-0	01	1	9706-9904	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=175	1-09707-178-0	01	1	9905-9907	●	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> L=175	1-09707-178-0	01	1	9908-	●

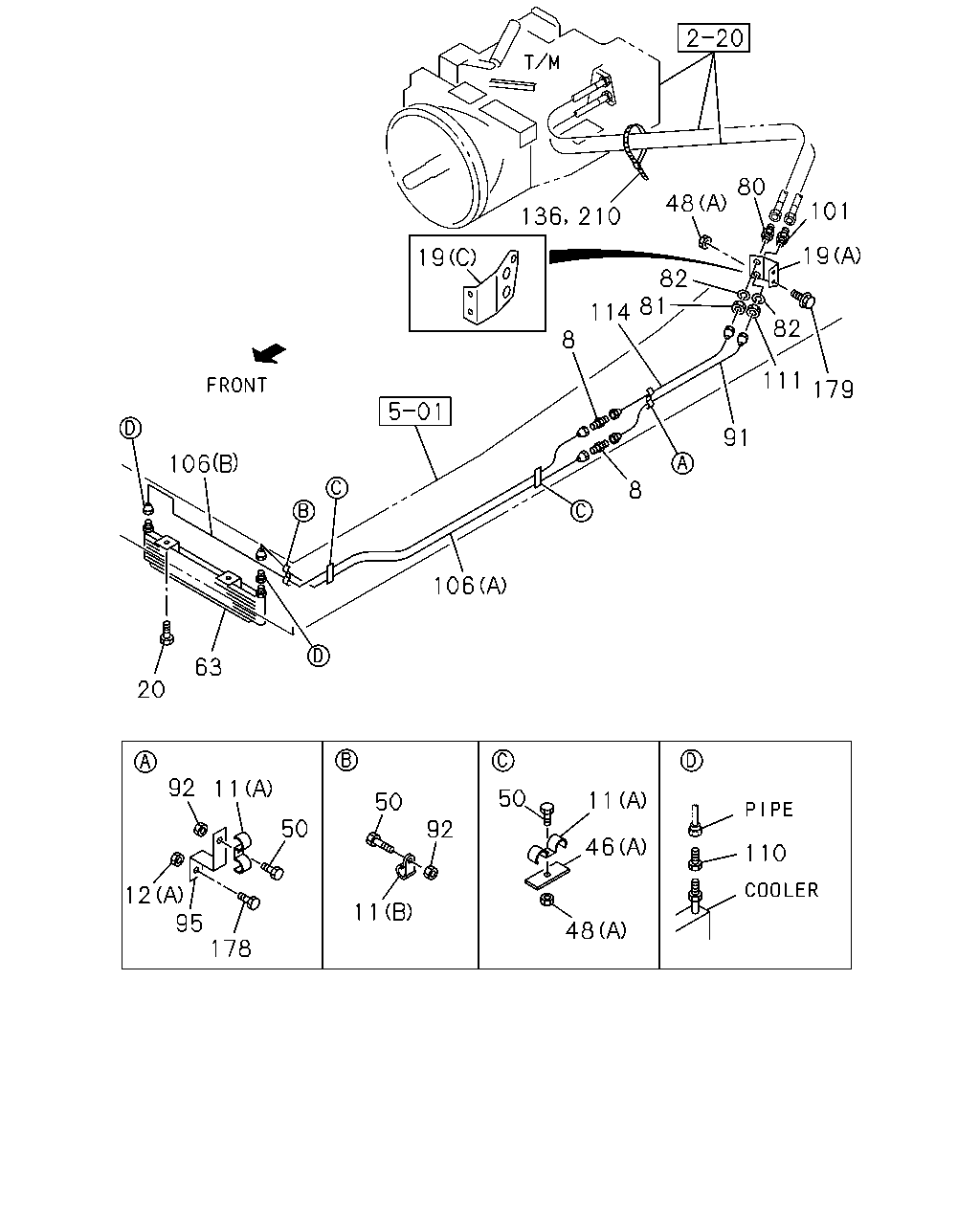

80 48 101 19 19 82 81 114 82 8 111 179 91 106 8 106 63 20 92 11 50 11 50 50 92 46 110 12 95 178 11 48 136 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	UNION TRANSMISSION OIL COOLER<C2C> M22	9-09233-015-1	02	1	9603-9904	●
8	UNION TRANSMISSION OIL COOLER<C2C> M22	9-09233-015-1	02	1	9905-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	9603-9904	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	9905-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (B) ID=16 L=20	9-09525-536-0	01	1	9603-9702	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (B) ID=16 L=20	9-09525-535-0	01	1	9703-9904	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8	9-09110-508-0	01	1	9603-9606	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8	9-09110-508-0	02	1	9603-9606	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A)	1-47477-355-0	01	1	9603-9603	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A)	1-47477-355-0	01	1	9604-9904	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (C)	1-47478-235-0	01	1	9905-9905	●	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (C)	1-47478-566-0	01	1	9906-	●	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (A)	1-47477-761-0	01	1	9604-9609	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-47477-886-1	01	1	9610-9904	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (D)	1-47478-523-0	01	1	9905-9907	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (E)	1-47478-648-0	01	1	9908-	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28081-020-0	02	1	9603-9606	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28681-025-0	02	1	9607-9904	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28681-025-0	02	1	9905-0006	●	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28081-020-0	02	1	0007-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) L=50	1-47475-299-2	02	1	9603-9904	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) L=50	1-47475-299-2	02	1	9905-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-47475-881-0	01	1	9603-9904	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-47475-881-0	01	1	9905-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (C)	1-47477-235-0	01	1	9603-9904	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (C)	1-47477-235-0	01	1	9905-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) M8	9-09110-508-0	02	1	9603-9606	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8	9-09110-508-0	01	1	9603-9606	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> M8X16 FLANGE	0-28080-816-0	03	1	9603-9606	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	03	1	9607-9904	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	9603-9904	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	9905-	●	●
80	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9603-9904	●
80	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9905-	●	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9603-9904	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9905-	●	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	9-09150-522-0	02	1	9603-9904	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	9-09150-522-0	02	1	9905-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L>	1-47429-062-0	01	1	9603-9603	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L>	1-47429-789-0	01	1	9603-9904	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> L=911	1-49163-072-0	01	1	9905-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-47429-068-0	01	1	9603-9603	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-47429-808-0	01	1	9604-9609	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-49161-157-0	01	1	9610-9611	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-49161-330-0	01	1	9612-9904	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-49164-395-0	01	1	9905-9907	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L>	1-49164-672-0	01	1	9908-	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8	9-09110-508-0	01	1	9603-9606	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	02	1	9603-9904	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	02	1	9905-9908	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	01	1	9909-	●	●
101	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9603-9904	●
101	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9905-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (B)	1-47429-326-0	01	1	9603-9904	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (B) L=2317	1-49164-311-0	01	1	9905-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A)	1-47429-502-0	01	1	9603-9904	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (A) L=1703	1-49164-312-0	01	1	9905-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-47429-503-0	01	1	9603-9904	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-47429-503-0	01	1	9905-9905	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (B)	1-49164-613-0	01	1	9906-	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (A)	1-47429-504-0	01	1	9603-9904	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> (A)	1-47429-504-0	01	1	9905-	●	●
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-365-0	02	1	9603-9805	●
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-398-0	02	1	9806-9904	●
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-398-0	02	1	9905-	●	●
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9603-9904	●
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9905-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L>	1-47429-067-0	01	1	9603-9603	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> L=1013	1-47429-790-0	01	1	9603-9904	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> L=1071	1-49163-073-0	01	1	9905-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=1142	1-47429-071-0	01	1	9603-9603	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=1140	1-47429-809-0	01	1	9604-9609	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=1089	1-49161-158-0	01	1	9610-9904	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=1332	1-49164-396-0	01	1	9905-9907	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=1324	1-49164-673-0	01	1	9908-	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=250	1-09707-126-0	01	1	9702-9705	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=250	1-09707-126-0	01	1	9706-9904	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=250	1-09707-126-0	01	1	9905-9907	●	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> L=250	1-09707-126-0	01	1	9908-	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> V TYPE ENG<91L> L=175	1-09707-178-0	01	1	9702-9705	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=175	1-09707-178-0	01	1	9706-9904	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=175	1-09707-178-0	01	1	9905-9907	●	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> L=175	1-09707-178-0	01	1	9908-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
