◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11320 - EXR MIDDLE EAST WITH 2STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶
0-37 — TURBOCHARGER (#55813) — 24 parça

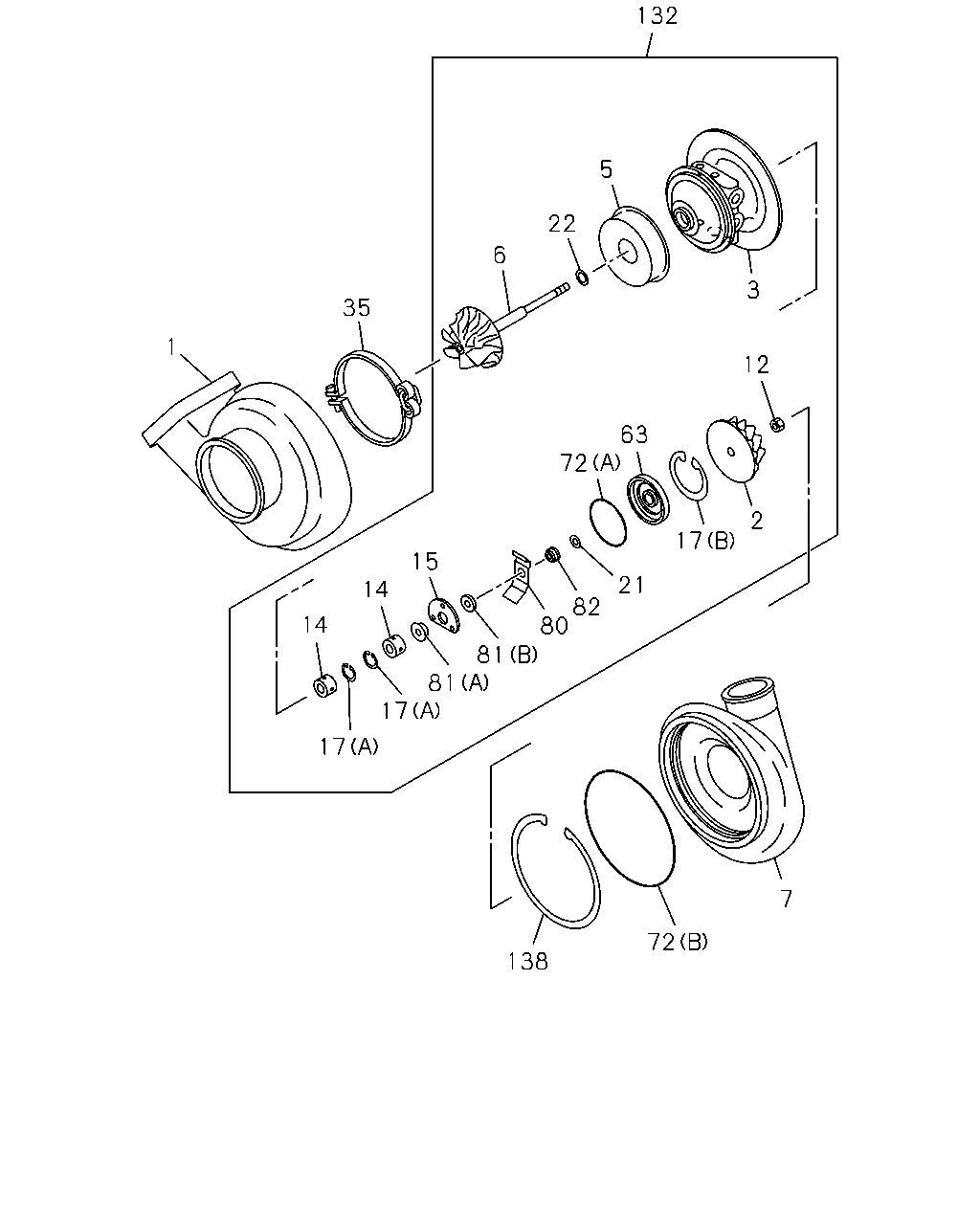

çizim 133336
132 5 22 6 3 35 1 12 63 72 2 17 15 21 14 82 80 81 81 17 14 17 7 72 138
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14415-114-0 01 1 -
2 IMPELLER; TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14451-068-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14411-066-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14425-035-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14450-063-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14414-113-1 01 1 -1201
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		8-98231-982-0 01 1 1202-
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 1-14400-374-3 		1-09400-133-0 01 1 -
14 BEARING; JOURNAL,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14411-065-0 02 1 -
15 BEARING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14453-088-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
(A) ASM PART: A = 1-14400-374-3 		1-14453-090-0 02 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
(B) ASM PART: A = 1-14400-374-3 		1-14453-091-0 01 1 -
21 THROWER; OIL,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14453-096-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14453-089-0 01 1 -
35 CLAMP; TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14421-027-0 01 1 -
63 INSERT; IMPELLER,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14425-037-0 01 1 -
72 GASKET; BRG HSG,TURBOCHARGER
(A) ASM PART: A = 1-14400-374-3 		1-14453-094-0 01 1 -
72 GASKET; BRG HSG,TURBOCHARGER
(B) ASM PART: A = 1-14400-374-3 		1-14453-095-0 01 1 -
80 DEFLECTOR; OIL,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14425-036-0 01 1 -
81 RING; THRUST,TURBOCHARGER
(A) ASM PART: A = 1-14400-374-3 		1-14453-092-0 01 1 -
81 RING; THRUST,TURBOCHARGER
(B) ASM PART: A = 1-14400-374-3 		1-14453-093-0 01 1 -
82 SLEEVE; SPACER,TURBOCHARGER
ASM PART: A = 1-14400-374-3 		1-14455-044-0 01 1 -
132 CARTRIDGE; TURBO
ASM PART: A = 1-14400-374-3 		1-14425-031-0 01 1 -
138 RING; SNAP,BLOWER HSG
ASM PART: A = 1-14400-374-3 		1-14455-046-0 01 1 -
