Isuzu WW
▶
TRUCKS
▶
EXR
▶
11320 - EXR MIDDLE EAST WITH 2STEPS
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶

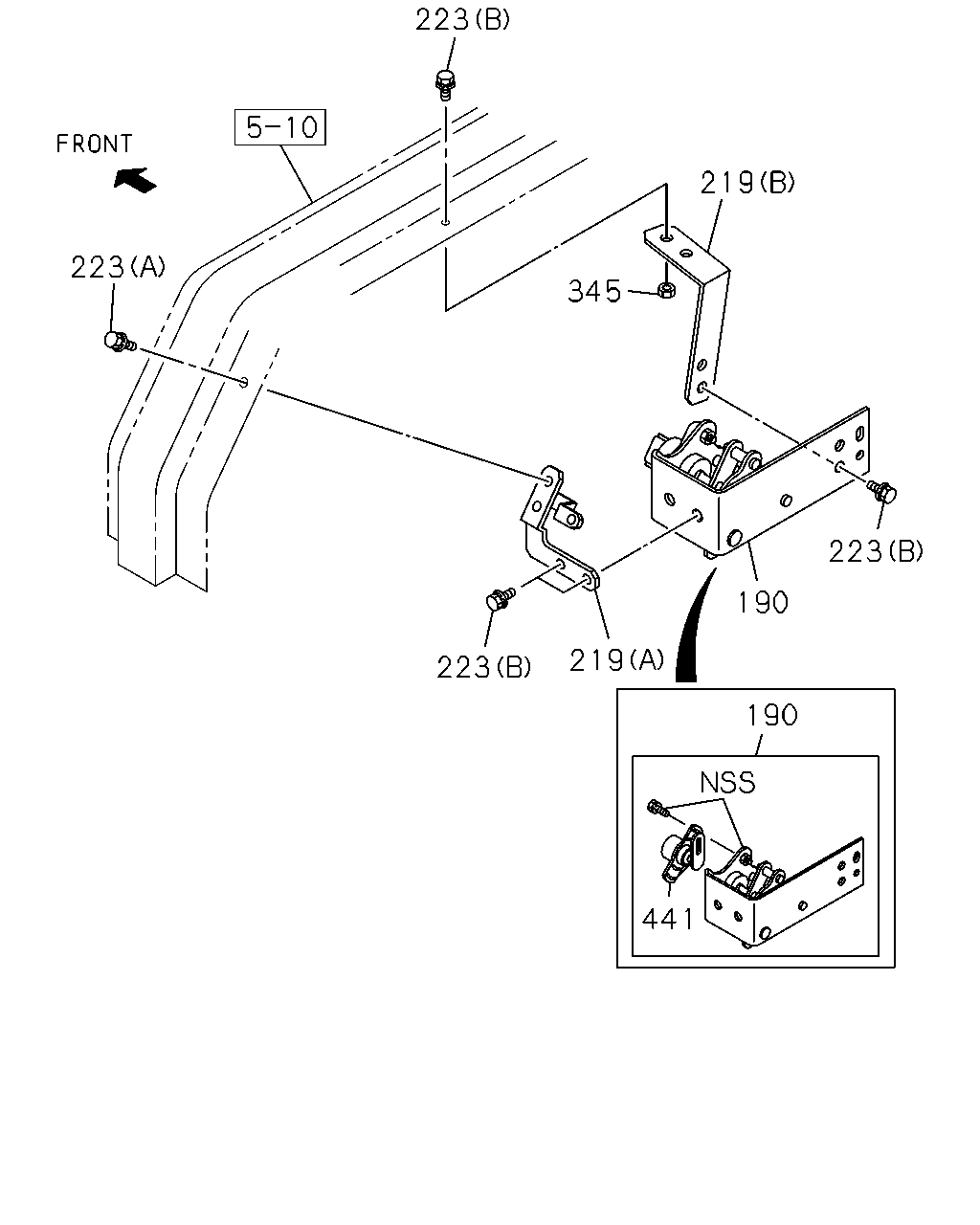

0-35 — ENGINE CONTROL VALVE AND LEVER
(#55811) — 14 parça
223
219
223
345
223
190
219
223
190
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
190
LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ>
8-97219-466-3
01
1
0810-0810
190
LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ>
8-97219-466-4
01
1
0902-
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-23335-580-0
01
1
0810-0810
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
1-23335-581-0
01
1
0810-0810
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-23335-580-0
01
1
0902-0904
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
1-23335-581-0
01
1
0902-0904
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE
0-28650-820-0
05
1
0810-0810
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE
0-28650-825-0
02
1
0810-0810
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE
0-28650-820-0
05
1
0902-0904
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE
0-28650-825-0
02
1
0902-0904
345
NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE
0-91180-108-0
01
1
0810-0810
345
NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE
0-91180-108-0
01
1
0902-0904
441
SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ>
8-97200-308-0
01
1
0810-0810
441
SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ>
8-97200-308-0
01
1
0902-
