Isuzu WW
▶
TRUCKS
▶
EXR
▶
11320 - EXR MIDDLE EAST WITH 2STEPS
▶
0 - Engine, Emission, Engine Electrical
▶

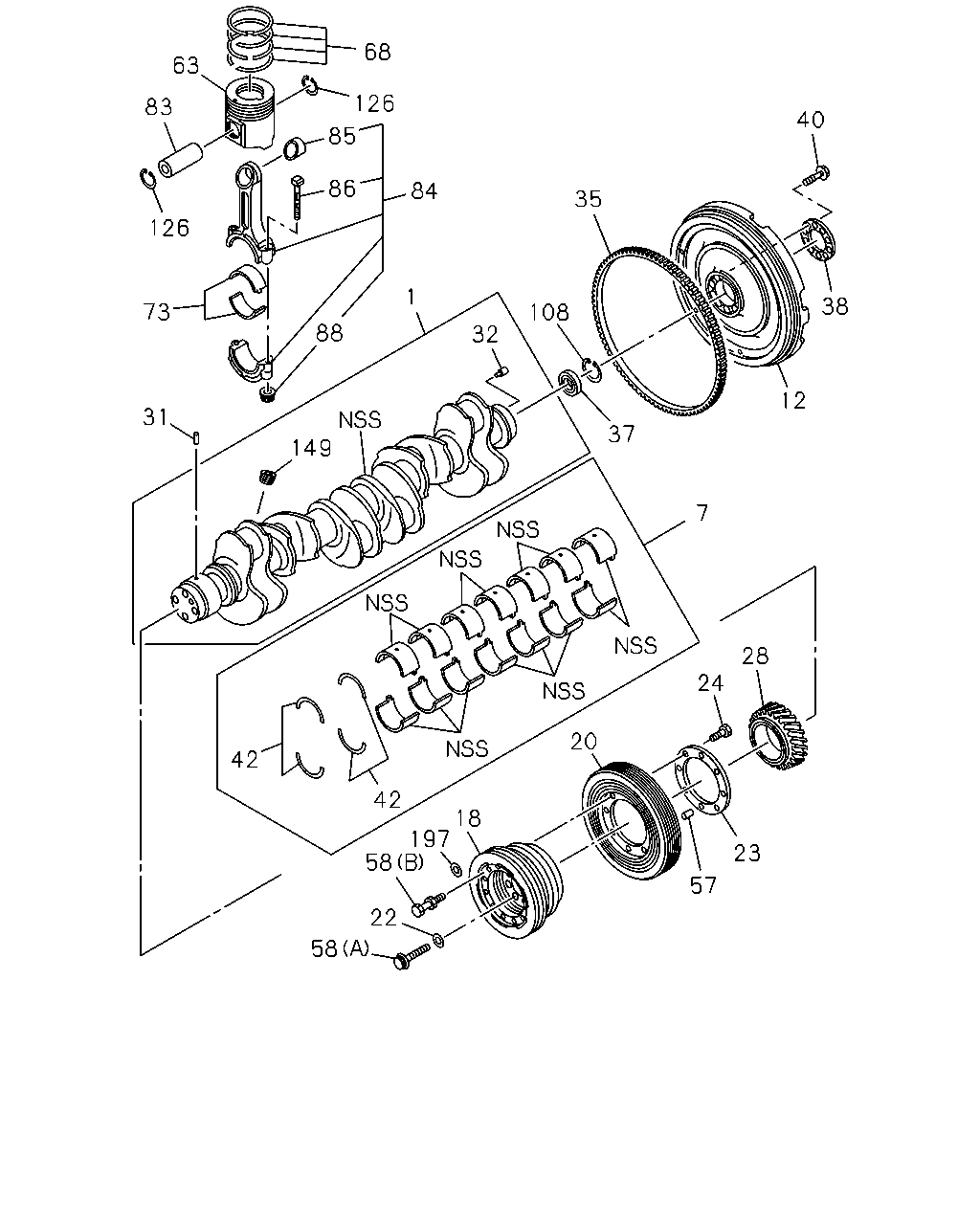

0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#55801) — 37 parça
63
83
126
73
31
88
1
84
86
85
126
68
35
40
38
12
37
7
108
32
149
28
24
23
57
20
18
197
58
42
42
22
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-682-2
01
1
0707-
7
METAL KIT; CRANKSHAFT,STANDARD
8-97606-709-0
01
1
0707-1006
7
METAL KIT; CRANKSHAFT,STANDARD
8-98151-849-1
01
1
1007-
12
FLYWHEEL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)
1-12331-410-0
01
1
0812-
12
FLYWHEEL
1-12331-426-0
01
1
0707-0810
12
FLYWHEEL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)
1-12331-426-0
01
1
0811-
18
PULLEY; CR/SHF
3-GROOVE
1-12371-444-3
01
1
0707-0910
18
PULLEY; CR/SHF
3-GROOVE
8-97606-321-0
01
1
0911-
20
DAMPER; CR/SHF
1-12375-214-2
01
1
0707-
22
PLATE; PULLEY
ID=18
9-09851-862-0
08
1
0707-
23
WASHER; DAMPER
1-12379-039-1
01
1
0707-
24
BOLT; DAMPER
M12X30 FLANGE
0-28761-230-0
08
1
0707-
28
GEAR; CR/SHF
Z=48
1-12521-061-2
01
1
0707-
31
KEY; FEATHER,CR/SHF
OD=5 L=6
9-09878-626-0
01
1
0707-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
0707-
35
GEAR; RING
Z=139
1-12333-013-1
01
1
0707-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
0707-
38
WASHER; FLYWHEEL
1-12336-011-0
01
1
0707-
40
BOLT; FLYWHEEL
1-09070-017-1
10
1
0707-
42
WASHER; THRUST,CR/SHF
8-97606-710-0
02
1
0707-1006
42
WASHER; THRUST,CR/SHF
8-98151-850-0
02
1
1007-
57
PIN; PULLEY
OD=8 L=20
9-08160-820-0
01
1
0707-
58
BOLT; CR/SHF PULLEY
(A)
1-09070-017-1
08
1
0707-
58
BOLT; CR/SHF PULLEY
(B) M10X24 FLANGE
8-97603-593-0
06
1
0707-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
1-12112-009-1
06
1
0707-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-154-1
06
1
0707-
73
METAL SET; CONN ROD,STANDARD
1-12271-096-0
06
1
0707-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-029-1
06
1
0707-
84
ROD ASM; CONN
1-12230-185-2
06
1
0707-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-037-4
06
1
0707-1004
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-98115-959-0
06
1
1005-
86
BOLT; CONNROD
1-12235-036-3
12
1
0707-
88
NUT; CONNROD
1-12239-005-1
12
1
0707-
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
0707-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-082-0
12
1
0707-
149
PLUG
PT1
1-09605-021-1
06
1
0707-
197
WASHER; PL,FAN DRIVE
ID=10.5
9-09164-510-0
06
1
0707-
