◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37B - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#5579) — 132 parça

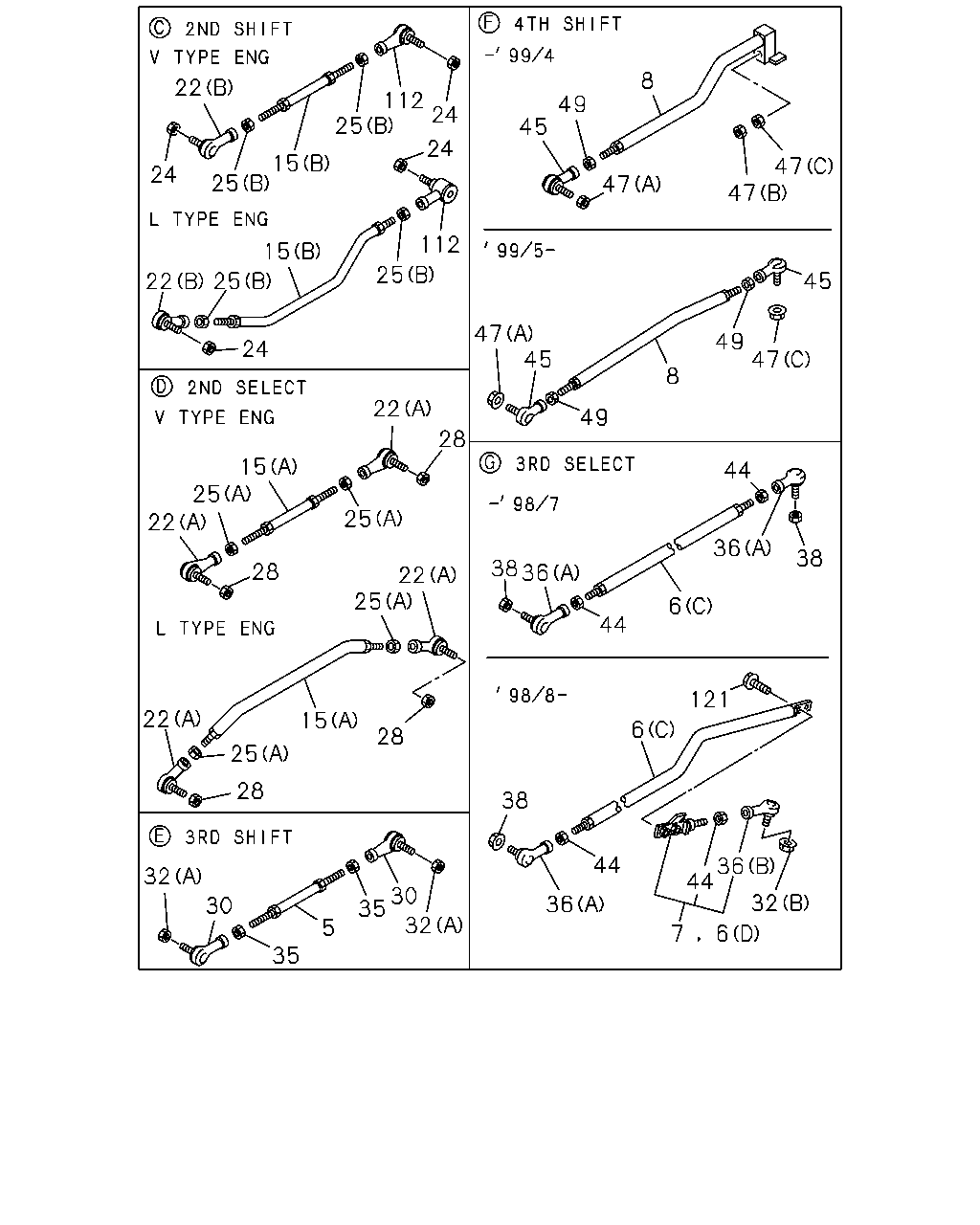

çizim 5733
8 22 112 24 25 49 45 24 15 25 47 47 24 47 112 15 25 45 47 45 49 47 24 8 22 49 28 30 15 44 25 25 22 36 38 38 36 28 22 25 6 44 121 22 15 6 28 25 28 38 44 36 44 32 30 35 32 36 30 32 5 6 7 35
BalonParca AdiParca NoAdetTipApplied Date A B
5 ROD; LINK,3RD SHIFT
V TYPE ENG<91L> L=855 		1-33652-321-0 01 1 9603-9904 ●
5 ROD; LINK,3RD SHIFT
V TYPE ENG<91L> L=855 		1-33652-321-0 01 1 9905- ● ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> L=1110 		1-33652-623-0 01 1 9603-9904 ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> L=1110 		1-33652-623-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> (C) L=1454 		1-33652-745-0 01 1 9603-9807 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> (C) L=1412 		1-33652-860-0 01 1 9808-9904 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> (C) L=1412 		1-33652-860-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
10PE1S(60L) (C) L=1266 		1-33652-741-0 01 1 9603-9807 ●
6 ROD; LINK,3RD SELECT
10PE1S(60L) (C) L=1189 		1-33652-861-0 01 1 9808-9904 ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> (C) L=1189 		1-33652-861-0 01 1 9905- ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> (D) L=125 		1-33671-333-0 01 1 0001- ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> (D) L=125 		1-33671-454-0 01 1 0001- ● ●
7 ROD ASM; CONT,SELECT
L=125 		1-33671-333-0 01 1 9808-9904 ●
7 ROD ASM; CONT,SELECT
L TYPE ENG<90L> L=125 		1-33671-333-0 01 1 9905-9912 ●
7 ROD ASM; CONT,SELECT
V TYPE ENG<91L> L=125 		1-33671-454-0 01 1 9905-9912 ● ●
8 ROD; LINK,4TH SHIFT
L TYPE ENG<90L> L=477 		1-33652-718-0 01 1 9603-9904 ●
8 ROD; LINK,4TH SHIFT
L TYPE ENG<90L> L=485 		1-33652-859-0 01 1 9905- ● ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> L=492 		1-33652-702-1 01 1 9603-9904 ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> L=523 		1-33652-858-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) L=440 		1-33652-672-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) L=440 		1-33652-672-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (B) L=490 		1-33652-700-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (B) L=490 		1-33652-700-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=438 		1-33652-682-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=428 		1-33652-781-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=428 		1-33652-781-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=497 		1-33652-716-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=490 		1-33652-780-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=490 		1-33652-780-0 01 1 9905- ● ●
22 JOINT; BALL,SCREW,LINK ROD
(B) L=64.5 		1-09760-111-0 01 1 9603-9710 ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-125-0 01 1 9711-9904 ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-125-0 01 1 9905- ● ●
22 JOINT; BALL,SCREW,LINK ROD
V TYPE ENG<91L> (A) 		1-09760-108-0 02 1 9603-9904 ●
22 JOINT; BALL,SCREW,LINK ROD
V TYPE ENG<91L> (A) 		1-09760-108-0 02 1 9905- ● ●
22 JOINT; BALL,SCREW,LINK ROD
L TYPE ENG<90L> (A) 		1-09760-109-0 02 1 9603-9904 ●
22 JOINT; BALL,SCREW,LINK ROD
L TYPE ENG<90L> (A) 		1-09760-109-0 02 1 9905- ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9603-9708 ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9709-9802 ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M12 		9-99111-412-0 02 1 9603-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M12 		9-99111-412-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A) M8 		9-09111-408-0 02 1 9603-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A) M8 		9-09111-408-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) M10 		9-09111-410-0 02 1 9603-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) M10 		9-09111-410-0 02 1 9905- ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905- ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9603-9710 ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9711-9904 ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9905- ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-050-0 02 1 9603-9710 ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9905- ● ●
32 NUT; 3RD LINK ROD
(B) M8 FLANGE 		1-09440-062-1 01 1 9808-9906 ●
32 NUT; 3RD LINK ROD
(B) M8 FLANGE 		1-09440-062-1 01 1 9907-9912 ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9603-9904 ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9905- ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
10PE1S(60L) (A) 		1-09760-108-0 02 1 9603-9904 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) (A) 		1-09760-109-0 02 1 9603-9904 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (B) 		1-09760-109-0 01 1 0001- ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
10PE1S(60L) (A) 		1-09760-108-0 01 1 9808-9904 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A) 		1-09760-108-0 01 1 9905- ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
10PE1S(60L) (B) 		1-09760-109-0 01 1 9811-9904 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
(B) 		1-09760-109-0 01 1 9905-9912 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (B) 		1-09760-109-0 02 1 0001- ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 01 1 9808-9904 ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 01 1 9905-9912 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0001- ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
10PE1S(60L) M8 		9-09111-408-0 02 1 9603-9904 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> M10 		9-09111-410-0 01 1 0001- ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) M10 		9-09111-410-0 02 1 9603-9810 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 01 1 9808-9904 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 01 1 9905-9906 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 01 1 9907-9912 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 0001- ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
10PE1S(60L) M8 		9-09111-408-0 01 1 9808-9904 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> M8 		9-09111-408-0 01 1 9905- ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-117-0 01 1 9603-9710 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 01 1 9711-9904 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9905- ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-050-0 01 1 9603-9710 ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-056-0 01 1 9711-9802 ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-061-0 01 1 9803-9904 ●
47 NUT; 4TH LINK ROD
(B) M14 		9-99110-414-0 01 1 9603-9904 ●
47 NUT; 4TH LINK ROD
(C) M14 		9-99111-414-0 01 1 9603-9904 ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 01 1 9603-9904 ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905- ● ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9603-9904 ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ●
121 BOLT; LINK ROD 1-09044-103-0 02 1 9808-9904 ●
121 BOLT; LINK ROD 1-09044-103-0 02 1 9905- ● ●

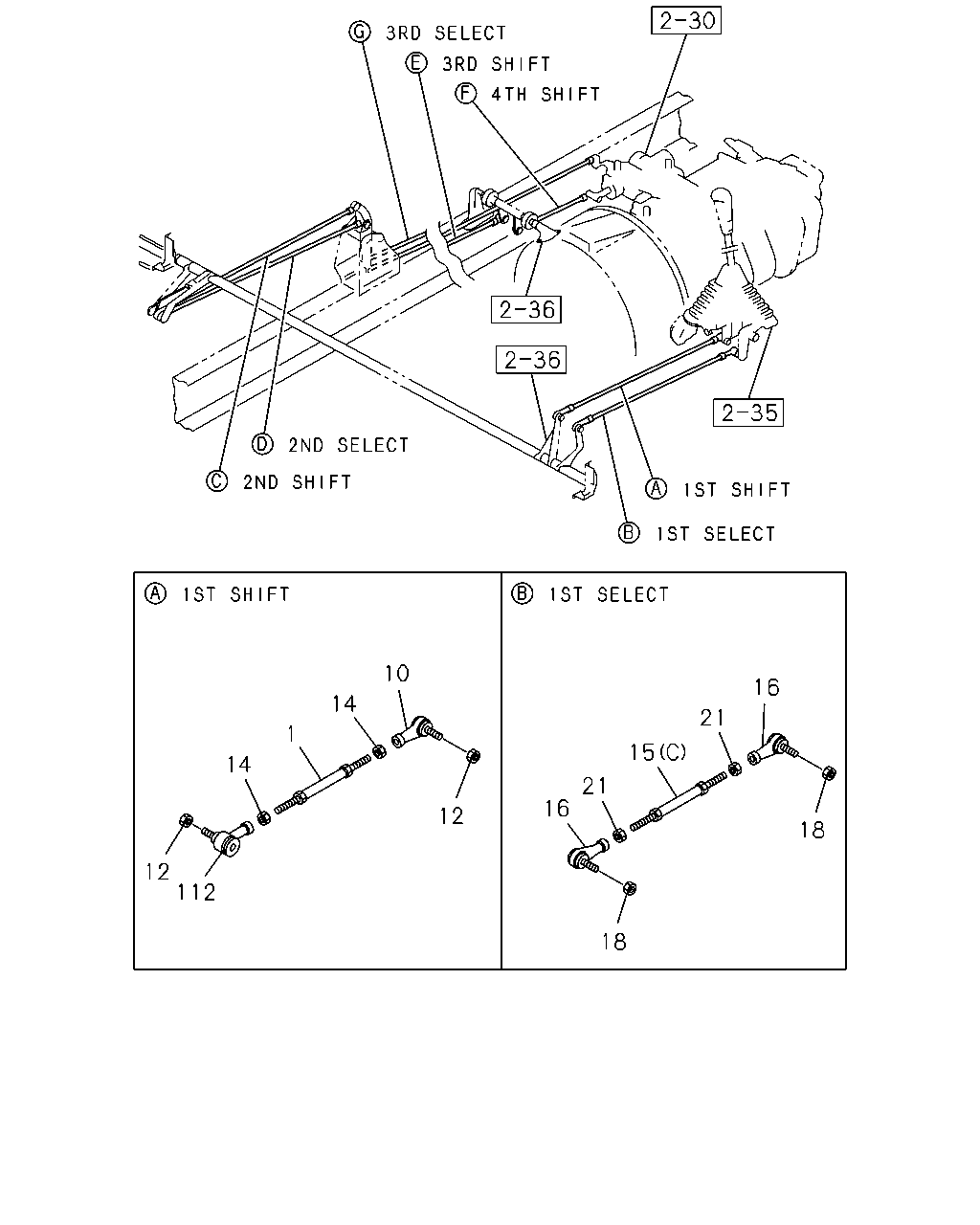

çizim 43118
10 16 14 21 1 15 14 21 16 12 18 12 112 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9603-9904 ●
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9905- ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-117-0 01 1 9603-9710 ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9711-9904 ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9905- ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9603-9708 ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9709-9802 ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9603-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) L=440 		1-33652-672-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) L=440 		1-33652-672-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (B) L=490 		1-33652-700-0 01 1 9603-9904 ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (B) L=490 		1-33652-700-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=438 		1-33652-682-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=428 		1-33652-781-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=428 		1-33652-781-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=497 		1-33652-716-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=490 		1-33652-780-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=490 		1-33652-780-0 01 1 9905- ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9603-9904 ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9905- ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905- ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9603-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9905- ● ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9603-9904 ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
