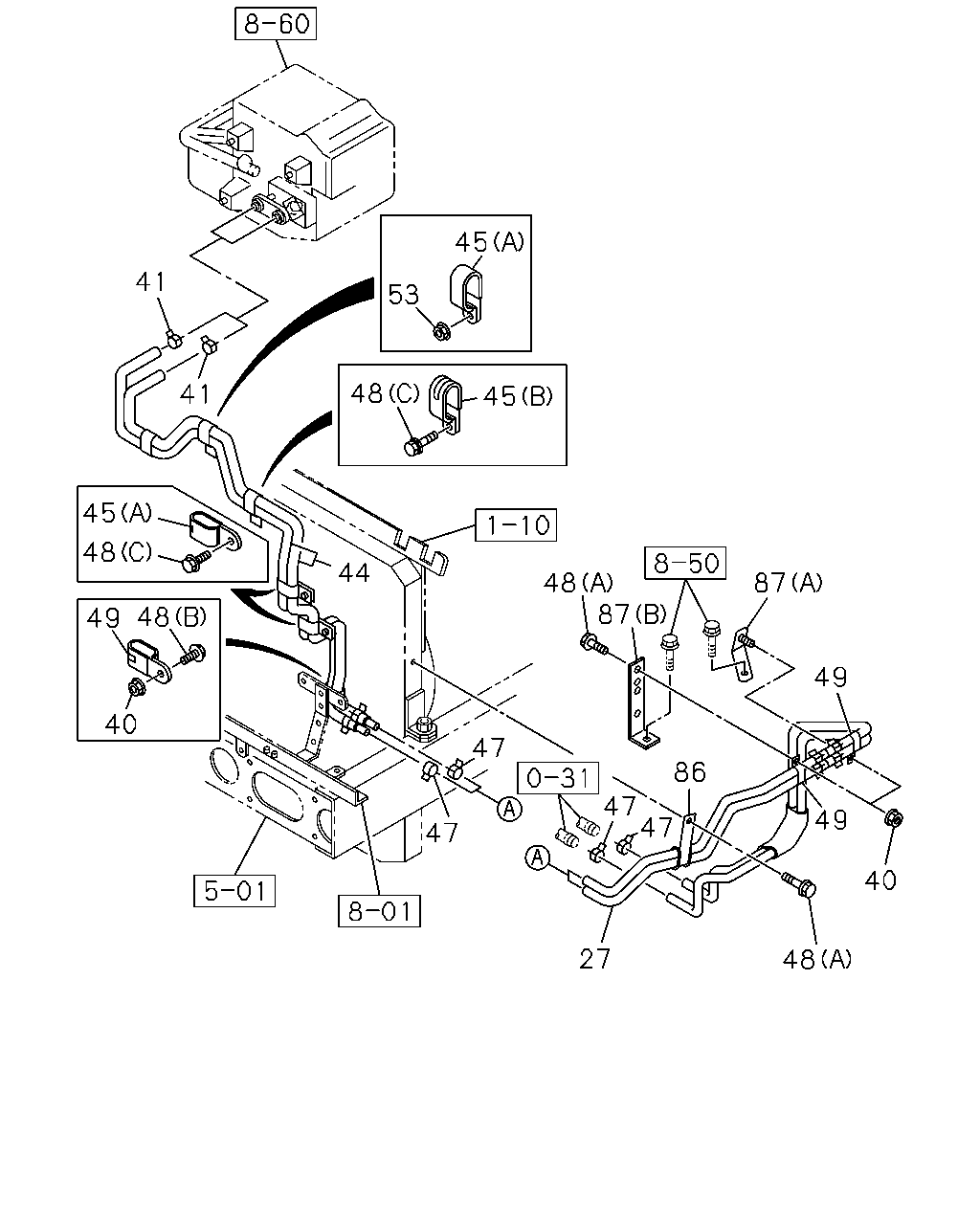

8-45 — HEATER PIPING (#55783) — 16 parça

45 41 53 48 41 45 45 48 44 87 48 87 48 49 49 40 47 86 47 47 49 47 40 27 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE	1-83565-802-3	01	1	0811-
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0811-
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	0811-
44	HOSE; WATER,HTR,INL	8-98052-676-2	01	1	0811-
45	CLIP; WATER PIPE (B) WO/SCREW	1-09701-143-1	01	1	0811-
45	CLIP; WATER PIPE (A)	1-09701-238-0	02	1	0811-
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	0811-
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0811-
48	BOLT; CLIP FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	0811-
48	BOLT; CLIP FIX (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0811-
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	0811-
53	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	0811-
86	CLIP; HTR HOSE	1-83573-076-0	01	1	0811-
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	01	1	0811-
87	BRACKET; HTR HOSE CLIP (B)	1-82699-208-1	01	1	0811-0905
87	BRACKET; HTR HOSE CLIP (B)	1-82698-358-0	01	1	0906-
