Isuzu WW
▶
TRUCKS
▶
CYH
▶
11318 - CYH MIDDLE EAST WITH 2STEPS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#55781) — 73 parça
◀
[828A] FRAME SIDE NO.1 (8 parça)
[828A] INST PANEL SIDE NO.1 (14 parça)
[828A] INST PANEL SIDE NO.2 (10 parça)
[828A] FRAME SIDE NO.2 (19 parça)
[828A] FRAME SIDE NO.3 (21 parça)
[828A] CAB SIDE (1 parça)
▶
86
117
116
115
85
84
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
BUZZER; BACK
REVERSING WARNING BUZZER<YM9> METRO DENSO
8-98069-861-0
01
1
0811-0811
84
BUZZER; POWER CAB TILT
METRO DENSO
8-98069-860-0
01
1
0811-
85
BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE
0-28650-820-0
01
1
0811-
86
NUT; BUZZER
(A) M6 FLANGE
0-91180-106-0
01
1
0811-
86
NUT; BUZZER
(B) M8 FLANGE
0-91180-108-0
01
1
0811-
115
RELAY; POWER CAB TILT UNIT
NIKKO
1-81171-075-1
01
1
0811-
116
BOLT; RELAY FIX
M8X16 FLANGE
0-28050-816-0
02
1
0811-
117
NUT; RELAY FIX
M8 FLANGE
0-91180-108-0
02
1
0811-

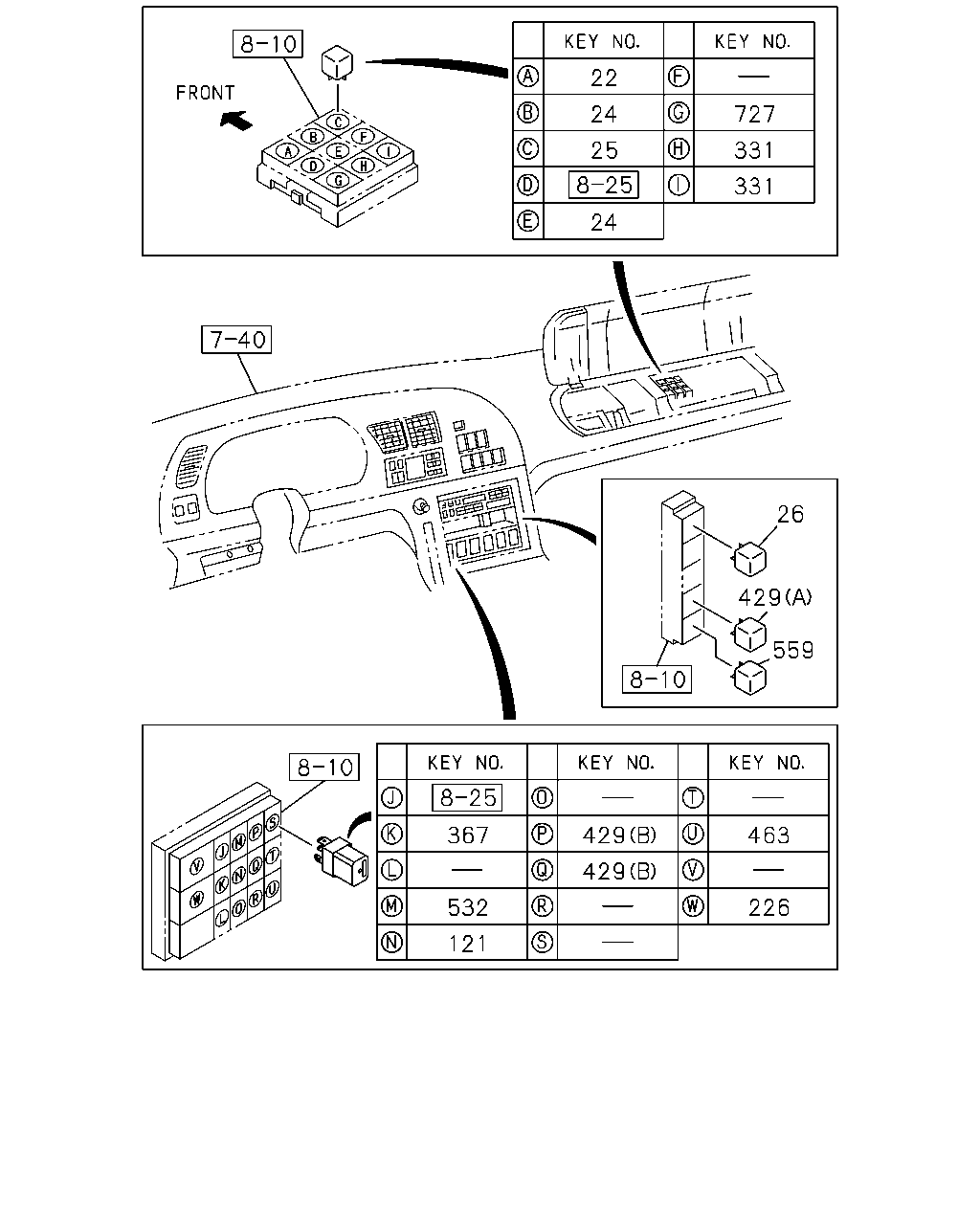

22
24
727
25
331
331
24
26
429
559
367
463
429
429
532
226
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-
24
RELAY; LIGHTING
24V 12.5A PANASONIC
8-97262-933-0
02
1
0811-
25
RELAY; TAIL LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-
26
RELAY; CONSENT
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-
121
RELAY; PARKING BRK
24V 10A PANASONIC
8-97173-035-1
01
1
0811-
226
RELAY; EXH BRK
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-
331
RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC
8-97262-933-0
02
1
0811-
367
RELAY; NEUTRAL
24V 10A PANASONIC
8-97173-035-1
01
1
0811-
429
RELAY; POWER CUT
(A) 24V 12.5A MITUBA
1-82550-326-0
01
1
0811-0811
429
RELAY; POWER CUT
(B) 24V 10A PANASONIC
8-97173-035-1
02
1
0811-0811
463
RELAY; ABS SIGNAL
24V 10A PANASONIC
8-97173-035-1
01
1
0811-
532
RELAY; SEAT BELT WARNING
24V 10A PANASONIC
8-97173-035-1
01
1
0812-
559
RELAY; MAG VLV
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-
727
RELAY; START CUT
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-

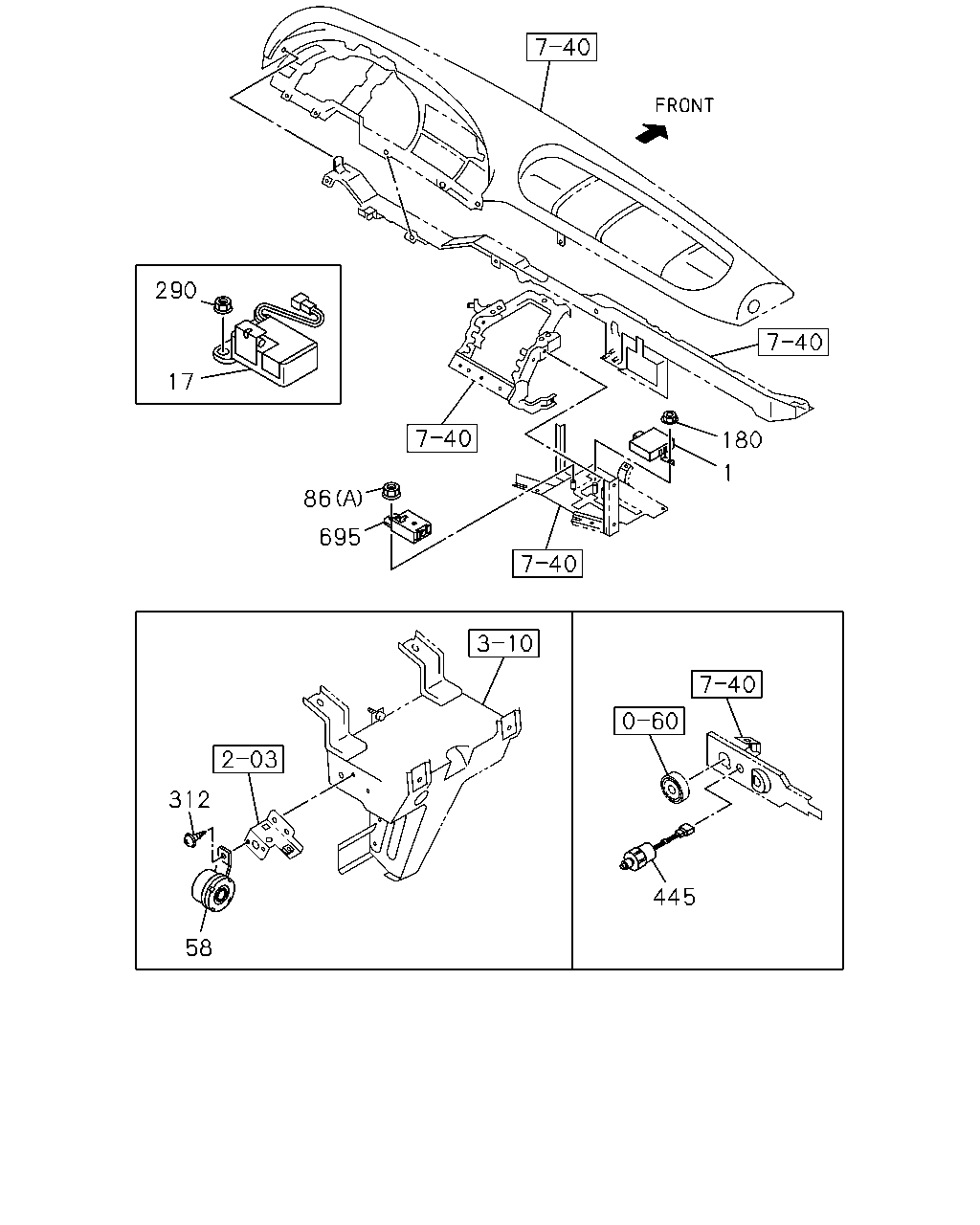

290
17
180
1
86
695
312
445
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
1-83470-060-1
01
1
0811-
17
TIMER; SEAT BELT
1-82550-183-1
01
1
0812-
58
BUZZER; AIR PRESSURE WARNING
METRO DENSO
8-98069-859-0
01
1
0811-
86
NUT; BUZZER
(A) M6 FLANGE
0-91180-106-0
01
1
0811-
86
NUT; BUZZER
(B) M8 FLANGE
0-91180-108-0
01
1
0811-
180
NUT; FLASHER UNIT
M6 FLANGE
0-91180-106-0
01
1
0811-
290
NUT
M6 FLANGE
0-91180-106-0
01
1
0812-
312
BOLT; BUZZER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0811-
445
SWITCH; ENG STOP
8-98106-482-0
01
1
0811-0811
695
ALARM; OVER HEAT
1-83460-051-1
01
1
0811-

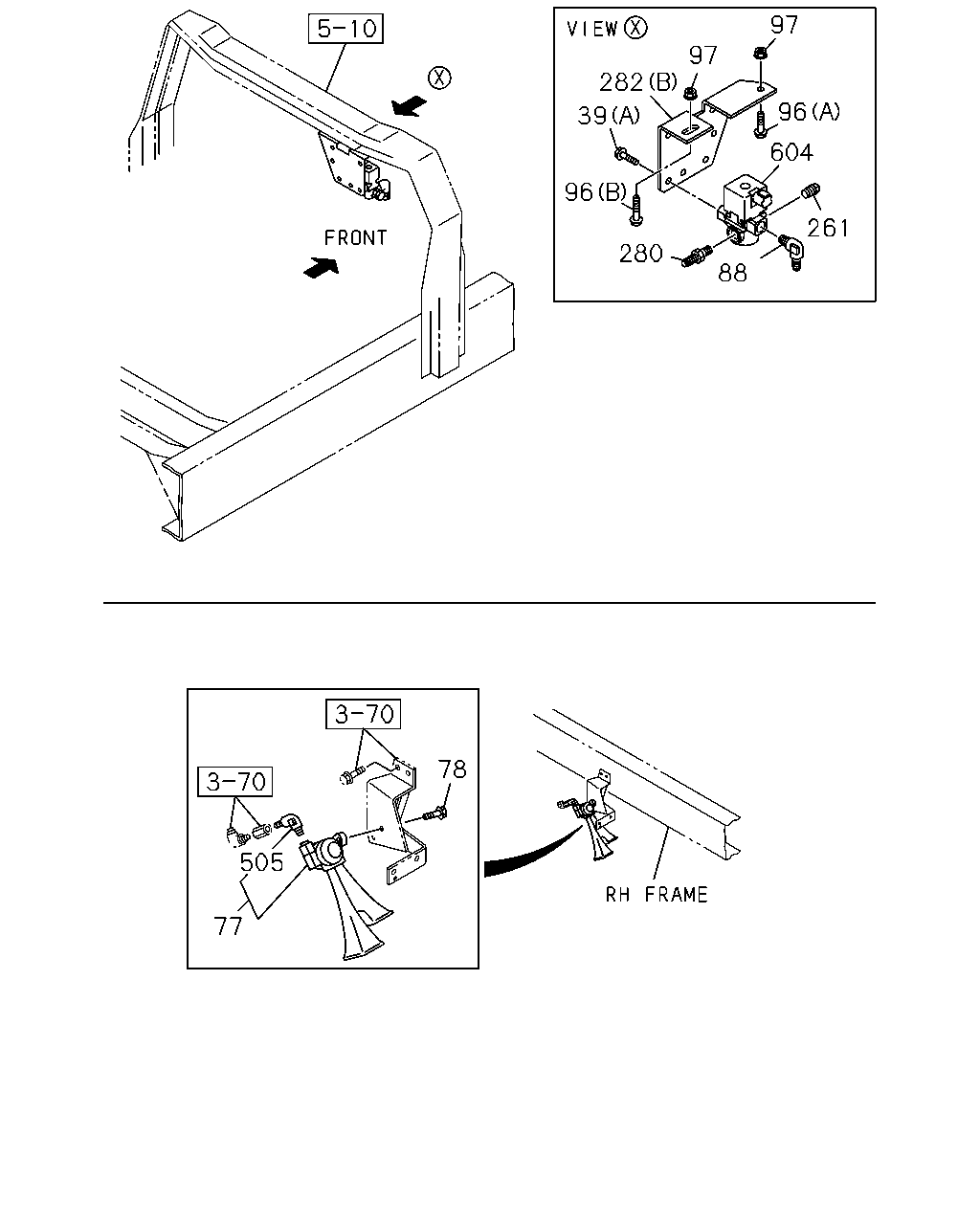

97
97
282
96
39
604
96
261
280
88
78
505
77
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE
0-28650-825-0
04
1
0811-
39
BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE
0-28650-820-0
02
1
0811-
77
HORN ASM
1-83430-041-2
01
1
0811-
78
BOLT; AIR HORN
M8X20 FLANGE
0-28650-820-0
02
1
0811-
88
CONNECTOR; MAG VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0811-
96
BOLT; BRKT FIX
MIXER TRUCK<RA2> (A) M8X20 FLANGE
0-28650-820-0
04
1
0811-
96
BOLT; BRKT FIX
MIXER TRUCK<RA2> (A) M8X25 FLANGE
0-28650-825-0
01
1
0811-
96
BOLT; BRKT FIX
(B) M10X25 FLANGE
0-28651-025-0
01
1
0811-
96
BOLT; BRKT FIX
EXC. MIXER TRUCK<RA2> (A) M8X20 FLANGE
0-28650-820-0
05
1
0811-
97
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
05
1
0811-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
0811-
261
PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4
9-99204-513-0
01
1
0811-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
0811-
280
CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0811-
282
BRACKET; MAG VLV
(B)
1-82569-277-2
01
1
0811-
282
BRACKET; MAG VLV
(A)
1-82569-421-0
01
1
0811-
282
BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
1-47471-175-0
01
1
0811-
505
JOINT; AIR HORN
1-83439-006-0
01
1
0811-
604
VALVE; MAG,ENG CONT
1-82563-871-2
01
1
0811-

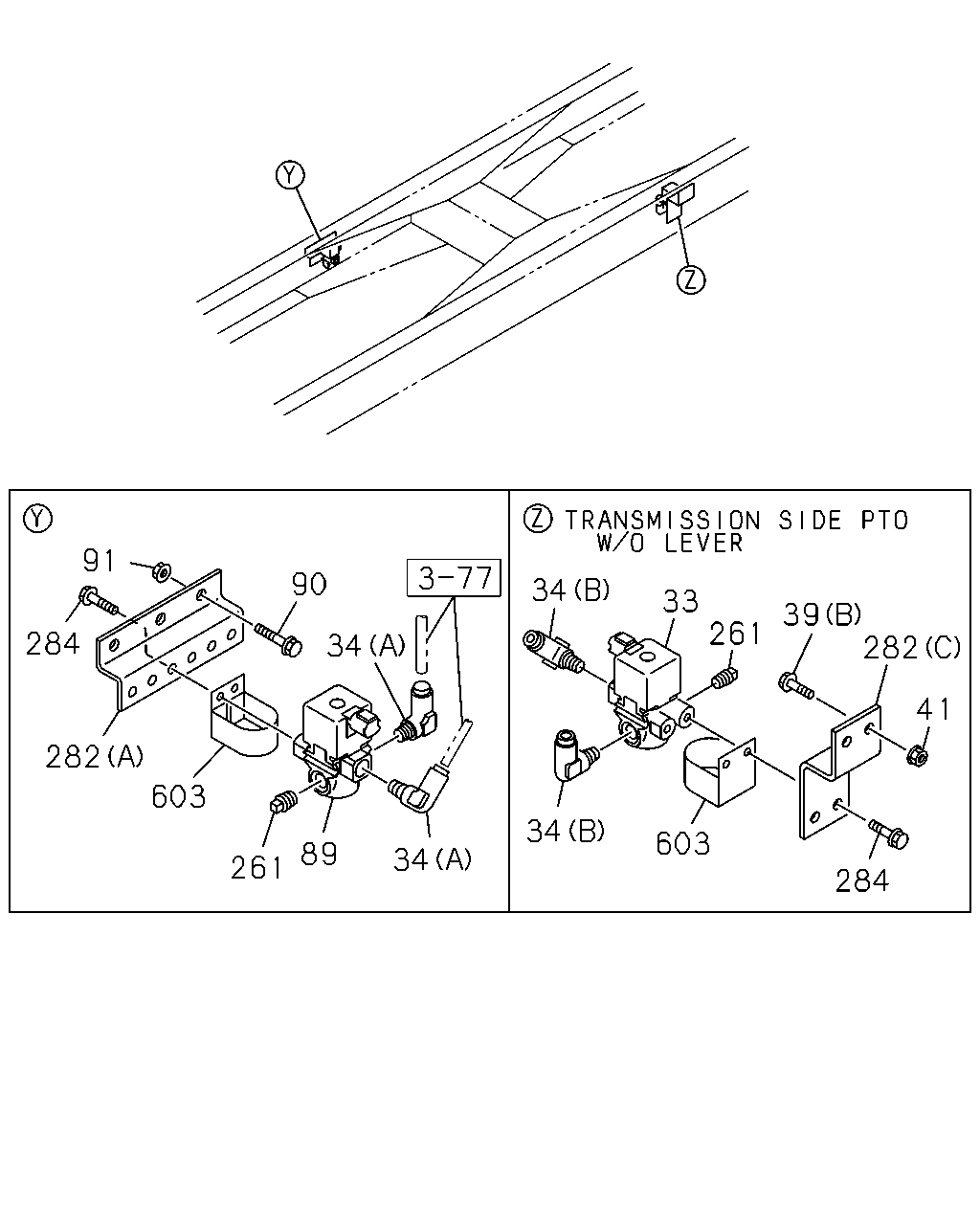

91
90
34
33
261
39
282
284
34
41
282
603
34
603
89
34
261
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-82563-871-2
01
1
0811-
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW
1-09661-067-0
02
1
0811-
34
CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0811-
39
BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE
0-28650-825-0
04
1
0811-
39
BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE
0-28650-820-0
02
1
0811-
41
NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE
0-91180-108-0
04
1
0811-
89
VALVE; MAG,DIFF LOCK
1-82563-871-2
01
1
0811-1205
89
VALVE; MAG,DIFF LOCK
8-97641-594-0
01
1
1206-
90
BOLT; MAG VLV
M8X25 FLANGE
0-28650-825-0
02
1
0811-
90
BOLT; MAG VLV
M8X40 FLANGE
0-28650-840-0
02
1
0811-
91
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
0811-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
0811-
261
PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4
9-99204-513-0
01
1
0811-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
0811-
282
BRACKET; MAG VLV
(B)
1-82569-277-2
01
1
0811-
282
BRACKET; MAG VLV
(A)
1-82569-421-0
01
1
0811-
282
BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
1-47471-175-0
01
1
0811-
284
BOLT; MAG VLV
M8X20 FLANGE
0-28650-820-0
02
1
0811-
284
BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE
0-28650-820-0
02
1
0811-
603
PROTECTOR; MAG VLV
1-47471-046-0
01
1
0811-
603
PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-47471-046-0
01
1
0811-

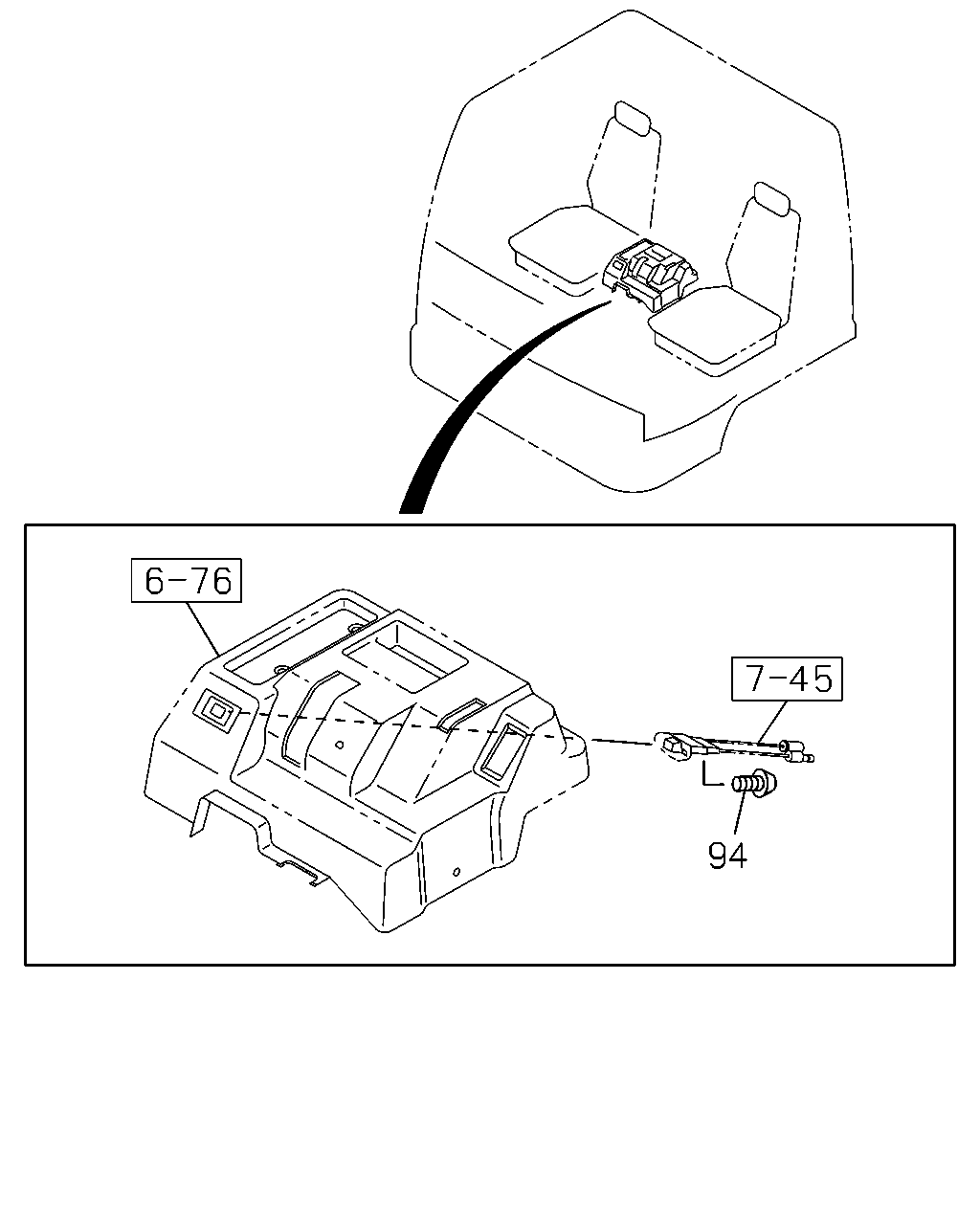

94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
94
SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER
0-74160-510-0
02
1
0811-0811
