◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11318 - CYH MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#55780) — 41 parça

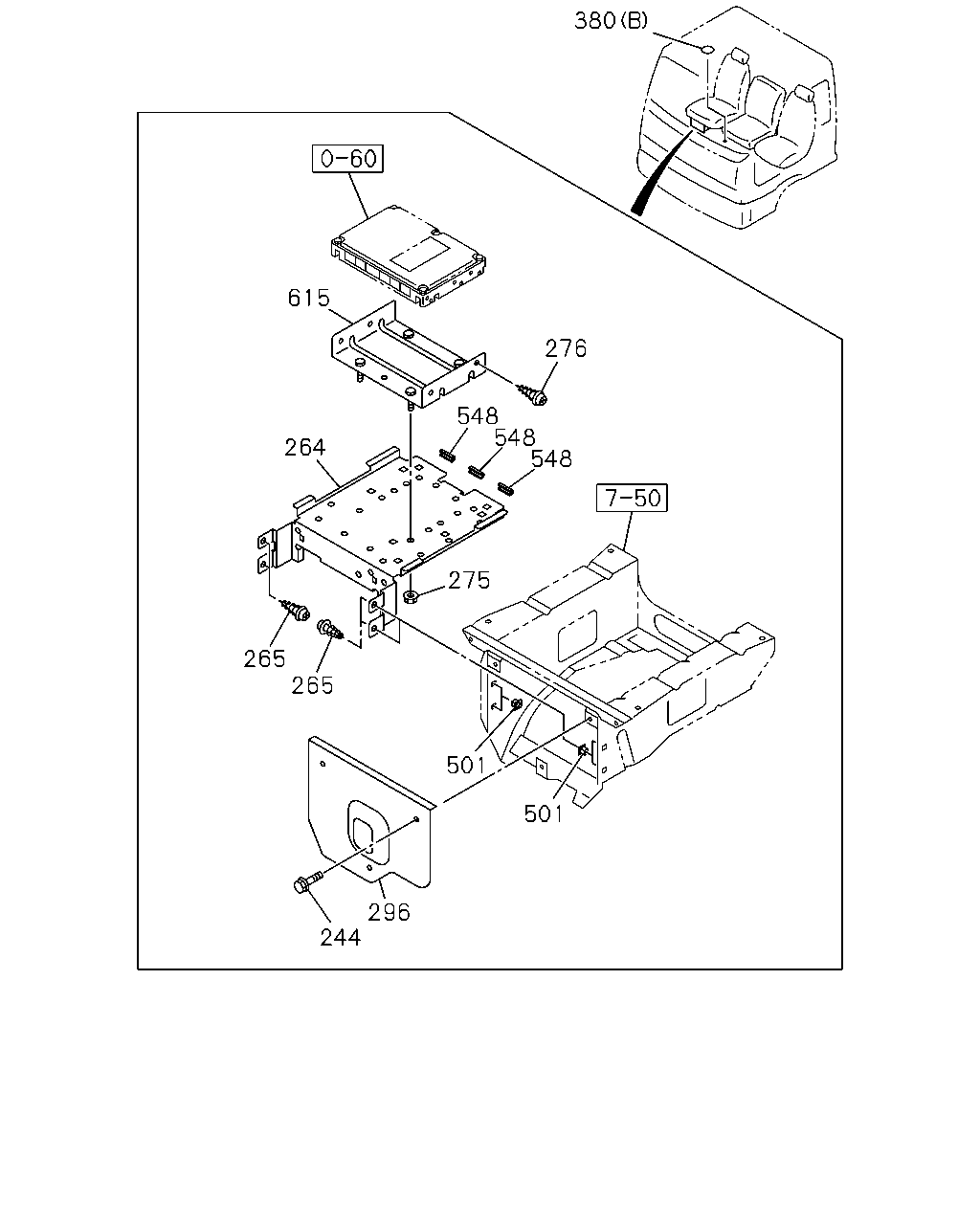

çizim 169638
380 615 276 548 548 548 264 275 265 265 501 501 296 244
BalonParca AdiParca NoAdetTipApplied Date
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0811-
264 BRACKET; CONT UNIT 8-97589-038-5 01 1 0811-
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0811-
275 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0811-
276 SCREW; BRKT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0811-
296 COVER; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION,WO/ECU<EAG>,MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-97589-674-1 01 1 0811-1112
296 COVER; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION,WO/ECU<EAG>,MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98151-570-0 01 1 1201-
296 COVER; CONT UNIT
EXC. MEMORY SYSTEM RUNNING CONDITION,WO/ECU<EAG>, MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-75558-535-3 01 1 0811-
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 0811-
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0811-1210
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 1211-
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0811-
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0811-0908
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306-
615 BRACKET; ECU,SEAT STAND 8-97375-194-2 01 1 0811-
çizim 169656
25 24 328 328 497 497
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 0811-
25 BOLT; SW BOX
M6X16 FLANGE 		0-28050-616-0 02 1 0811-
328 NUT
M16 		0-91111-516-0 02 1 0811-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0811-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0811-

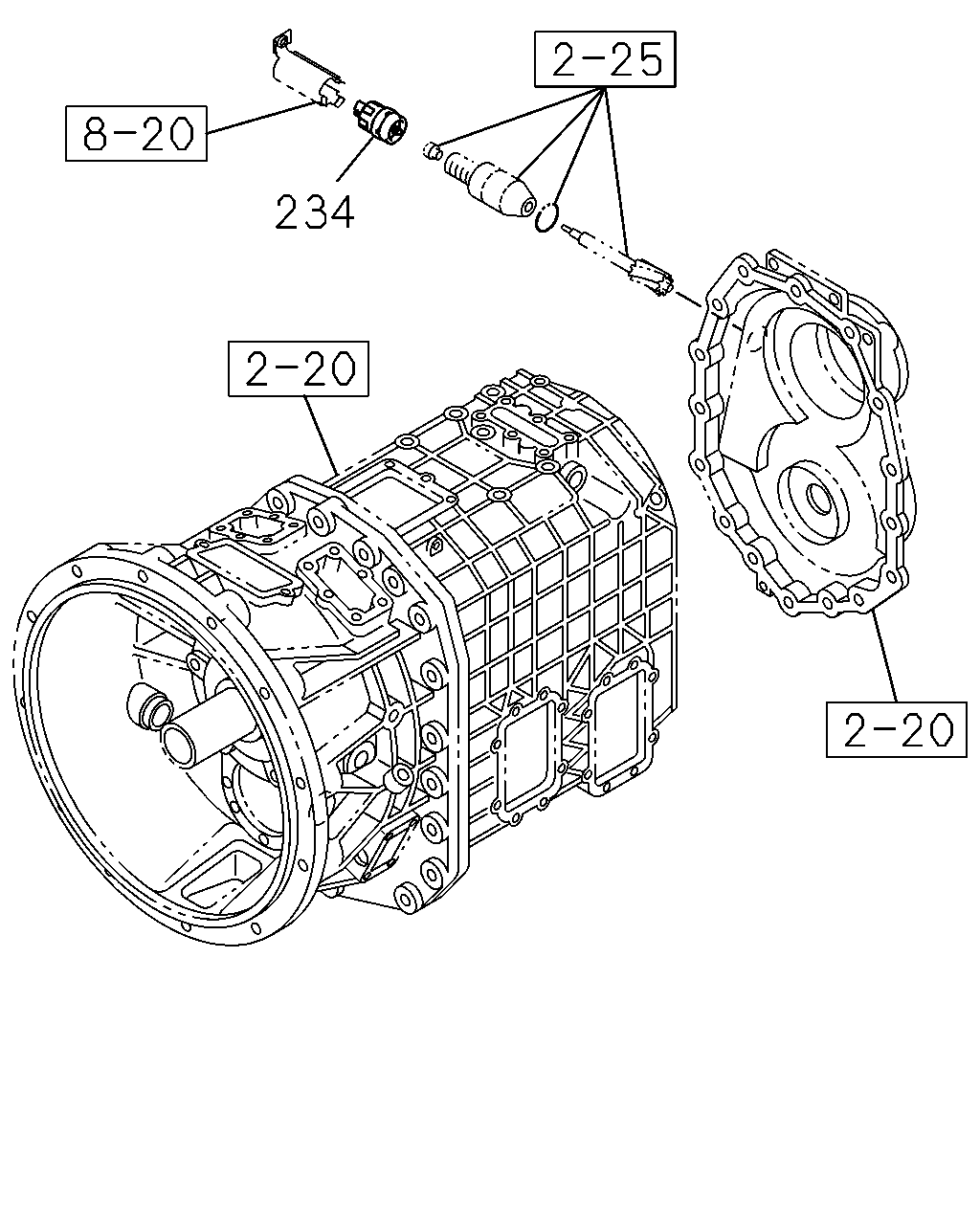

çizim 169666
234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0811-

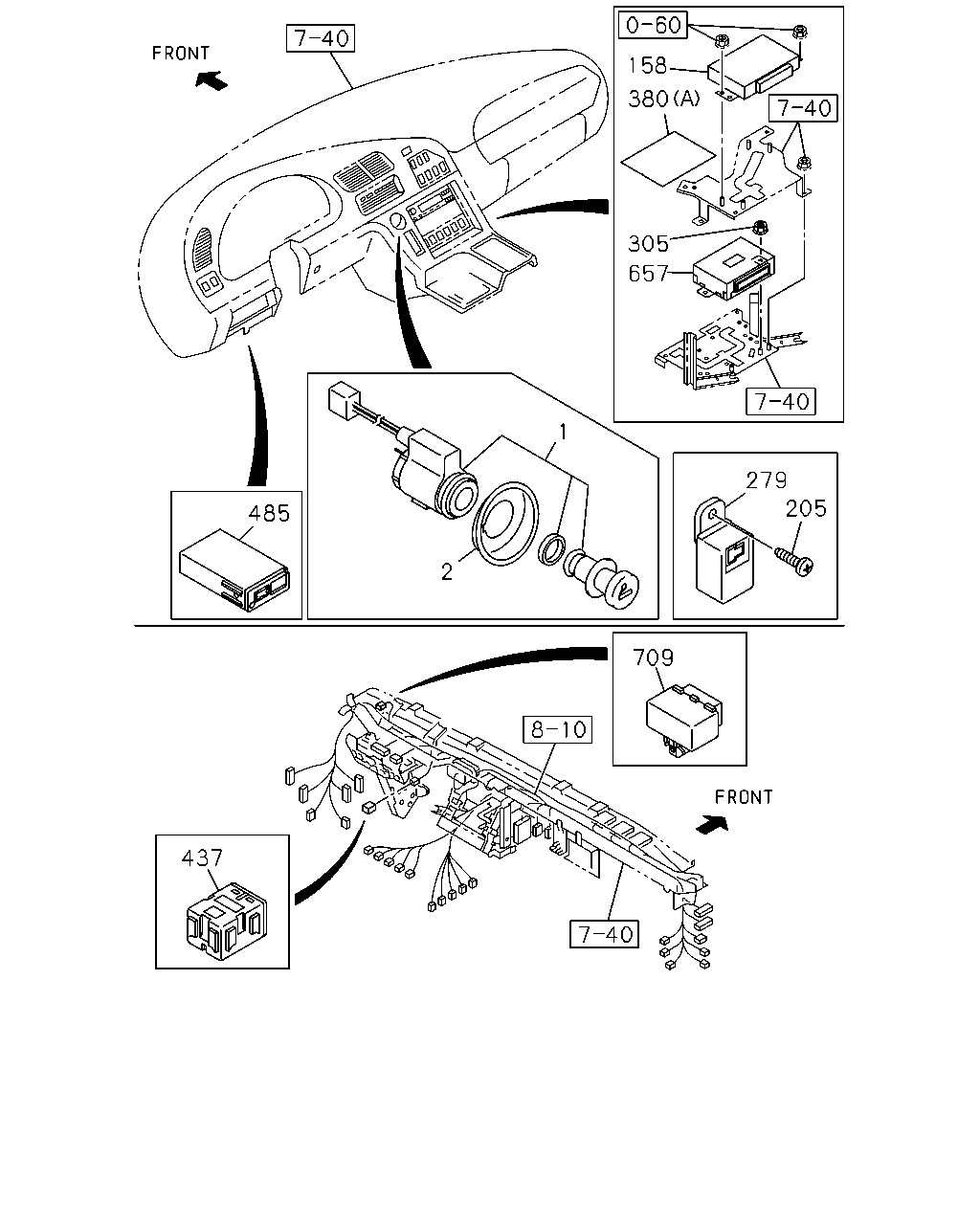

çizim 169668
158 380 305 657 1 279 205 485 2 709 437
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0811-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0811-
158 CONTROLLER; ABS 1-80119-244-1 01 1 0811-0911
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) 		1-80119-244-1 01 1 0912-1201
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) 		8-98196-720-0 01 1 1202-
158 CONTROLLER; ABS
TIRE 285/60R22.5-148/145J RIB(57P) 		1-80119-251-0 01 1 0912-1201
158 CONTROLLER; ABS
TIRE 285/60R22.5-148/145J RIB(57P) 		8-98196-719-0 01 1 1202-
205 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 0812-
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 0812-
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0811-
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 0811-
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0811-1210
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 1211-
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0811-
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0811-
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-179-0 01 1 0811-1112
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-175-0 01 1 1201-
709 RESISTOR; HD LAMP LEVELING 8-97359-130-1 01 1 0811-
