◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37A - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#5578) — 113 parça
çizim 6117
57 39 58 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 GASKET; FLEX HOSE
ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9603- ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9603- ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTER SHIFT CONTROL<WX8> L=360 		0-07150-360-0 01 1 9603- ● ●

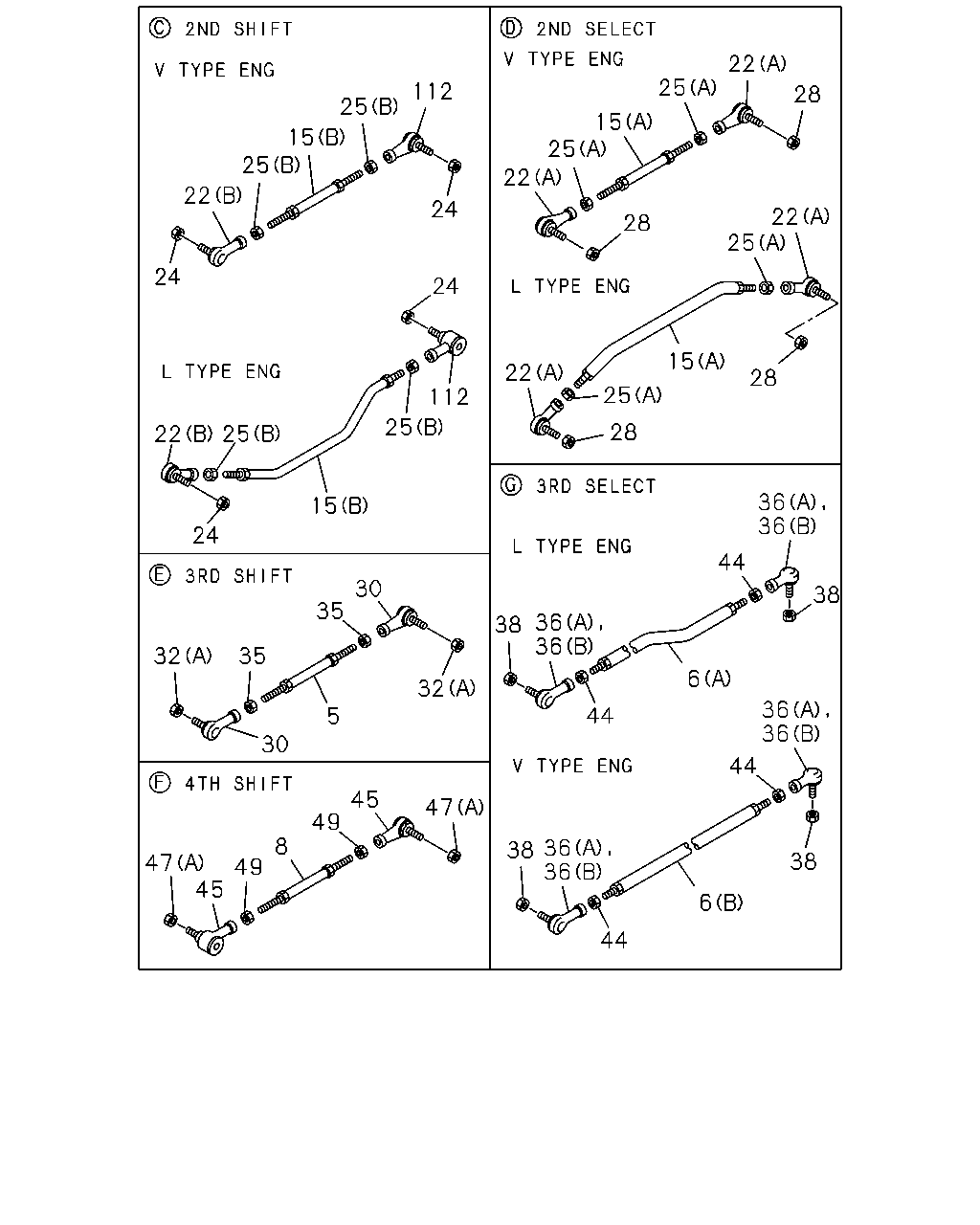

çizim 7276
22 25 112 28 25 15 15 25 25 22 22 24 22 25 28 24 24 15 22 28 25 112 25 28 36 36 15 24 44 30 38 35 36 36 38 32 35 6 32 36 36 44 5 30 44 45 47 49 8 38 36 36 38 47 45 49 6 44
BalonParca AdiParca NoAdetTipApplied Date A B
5 ROD; LINK,3RD SHIFT
V TYPE ENG<91L> L=855 		1-33652-321-0 01 1 9603-9904 ● ●
5 ROD; LINK,3RD SHIFT
V TYPE ENG<91L> L=855 		1-33652-321-0 01 1 9905- ● ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> L=1110 		1-33652-623-0 01 1 9603-9904 ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> L=1110 		1-33652-623-0 01 1 9905- ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8> (B) L=1409 		1-33652-444-0 01 1 9603- ● ●
6 ROD; LINK,3RD SELECT
10PE1S(60L) ASSISTER SHIFT CONTROL<WX8> (B) L=1400 		1-33652-735-0 01 1 9603-9807 ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8> (B) L=1403 		1-33652-824-1 01 1 9808- ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> (A) L=1585 		1-33652-660-0 01 1 9603- ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8> L=330 		1-33652-653-1 01 1 9603- ● ●
8 ROD; LINK,4TH SHIFT
L TYPE ENG<90L> L=330 		1-33652-653-1 01 1 9603- ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8> L=490 		1-33652-749-0 01 1 9603- ● ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) L=440 		1-33652-672-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) L=440 		1-33652-672-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (B) L=490 		1-33652-700-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (B) L=490 		1-33652-700-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=438 		1-33652-682-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=428 		1-33652-781-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=428 		1-33652-781-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=497 		1-33652-716-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=490 		1-33652-780-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=490 		1-33652-780-0 01 1 9905- ●
22 JOINT; BALL,SCREW,LINK ROD
(B) L=64.5 		1-09760-111-0 01 1 9603-9710 ● ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-125-0 01 1 9711-9904 ● ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-125-0 01 1 9905- ● ●
22 JOINT; BALL,SCREW,LINK ROD
V TYPE ENG<91L> (A) 		1-09760-108-0 02 1 9603-9904 ● ●
22 JOINT; BALL,SCREW,LINK ROD
V TYPE ENG<91L> (A) 		1-09760-108-0 02 1 9905- ● ●
22 JOINT; BALL,SCREW,LINK ROD
L TYPE ENG<90L> (A) 		1-09760-109-0 02 1 9603-9904 ●
22 JOINT; BALL,SCREW,LINK ROD
L TYPE ENG<90L> (A) 		1-09760-109-0 02 1 9905- ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9603-9708 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9709-9802 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M12 		9-99111-412-0 02 1 9603-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M12 		9-99111-412-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A) M8 		9-09111-408-0 02 1 9603-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A) M8 		9-09111-408-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) M10 		9-09111-410-0 02 1 9603-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) M10 		9-09111-410-0 02 1 9905- ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905- ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9603-9710 ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9711-9904 ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9905- ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-050-0 02 1 9603-9710 ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9905- ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9603-9904 ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9905- ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
10PE1S(60L) (A) 		1-09760-108-0 02 1 9603-9904 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A) 		1-09760-108-0 02 1 9905- ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) (A) 		1-09760-109-0 02 1 9603-9904 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (A) 		1-09760-109-0 02 1 9905-9912 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (B) 		1-09760-109-0 02 1 0001- ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905-9912 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0001- ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
10PE1S(60L) M8 		9-09111-408-0 02 1 9603-9904 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> M8 		9-09111-408-0 02 1 9905- ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 9808-9912 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) M10 		9-09111-410-0 02 1 9603-9810 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 0001- ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-117-0 02 1 9603-9710 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9711-9904 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9905- ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-050-0 02 1 9603-9710 ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9803- ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9603-9904 ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905- ● ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9603-9904 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ●

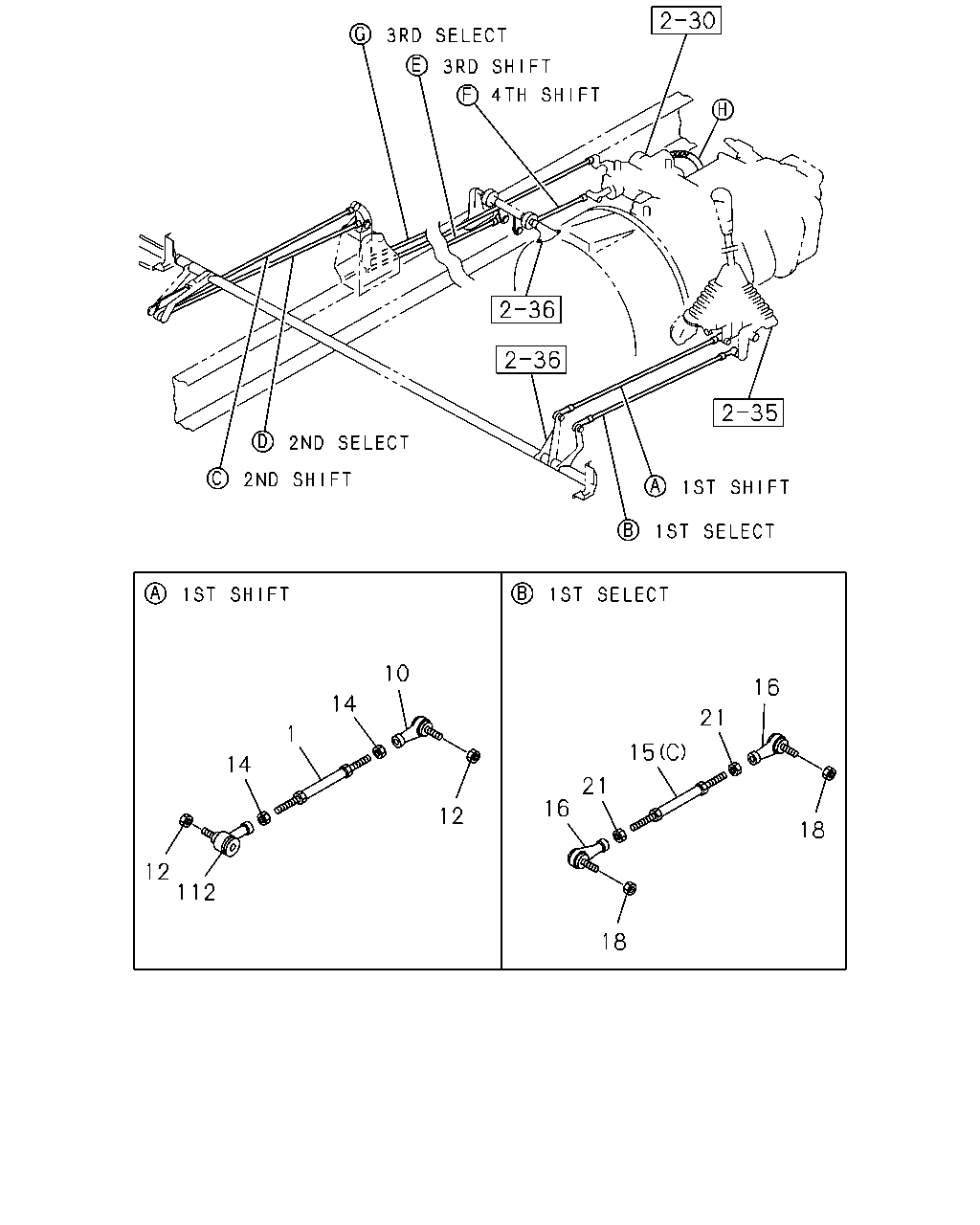

çizim 42363
10 16 14 21 1 15 14 21 16 12 18 12 112 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9603-9904 ● ●
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9905- ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-117-0 01 1 9603-9710 ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9711-9904 ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9905- ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9603-9708 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-056-0 02 1 9709-9802 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9603-9904 ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) L=440 		1-33652-672-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) L=440 		1-33652-672-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (B) L=490 		1-33652-700-0 01 1 9603-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (B) L=490 		1-33652-700-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=438 		1-33652-682-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=428 		1-33652-781-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (A) L=428 		1-33652-781-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=497 		1-33652-716-0 01 1 9603-9711 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=490 		1-33652-780-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) L=490 		1-33652-780-0 01 1 9905- ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9603-9904 ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9905- ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9603-9804 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905- ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9603-9904 ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9905- ● ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9603-9904 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9905- ● ●
