◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11318 - CYH MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#55776) — 294 parça

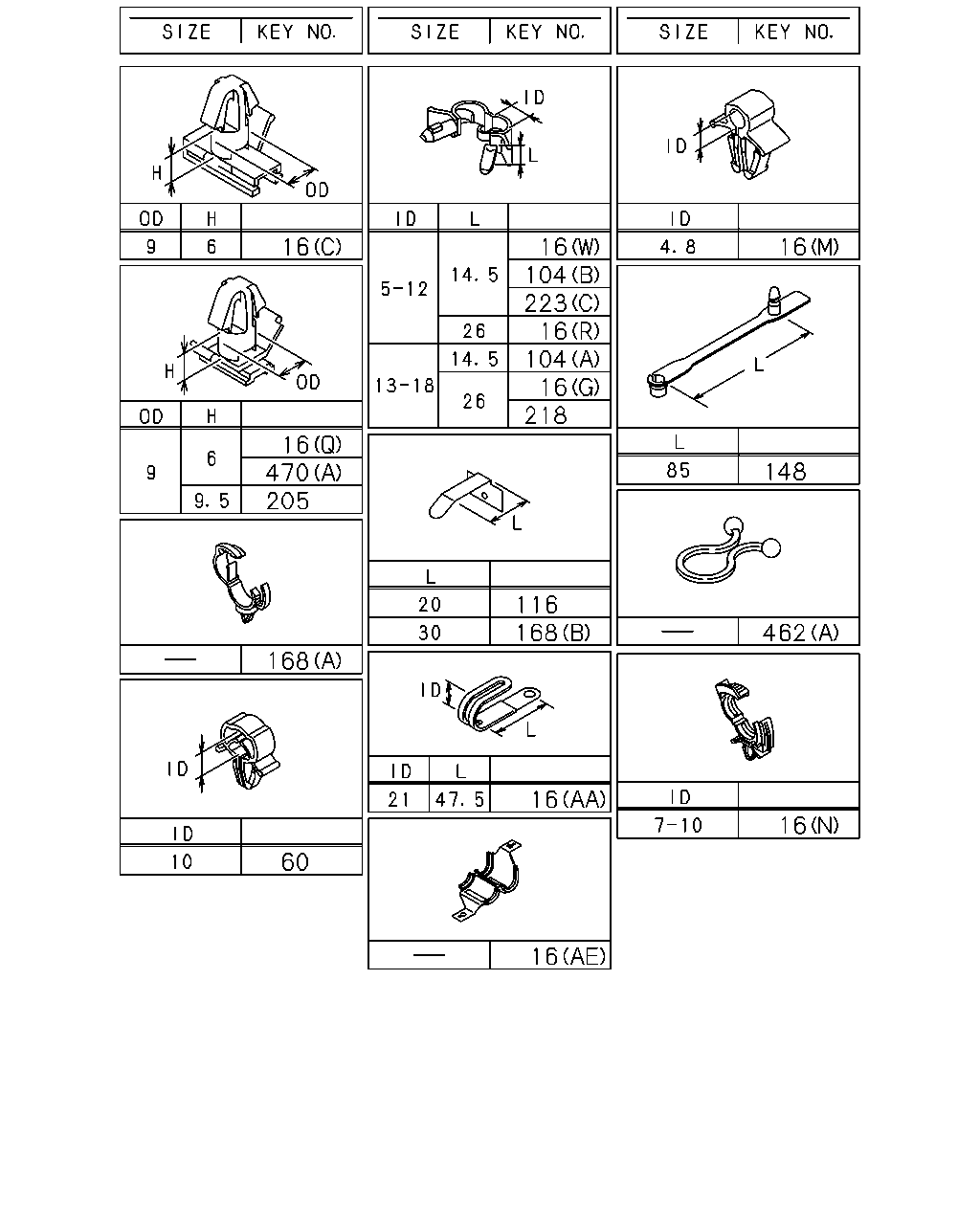

çizim 169571
16 16 104 223 16 104 16 218 16 16 470 205 148 116 168 462 168 16 16 60 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AC) ID=15 L=42 		1-09700-479-0 02 1 0811-0904
16 CLIP; HARNESS
(AE) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0811-0904
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0811-1002
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (G) ID=13-18 L=26 		1-09709-293-0 12 1 0811-
16 CLIP; HARNESS
(AF) ID=11 L=16 		0-95235-025-0 02 1 0811-
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0811-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0811-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 0811-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0811-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0811-
16 CLIP; HARNESS
(S) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0811-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0811-
16 CLIP; HARNESS
(AD) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0811-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0811-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0811-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0811-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0811-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0811-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0811-
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 0811-
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 03 1 0811-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0811-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 07 1 0811-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0811-
16 CLIP; HARNESS
(AG) ID=21 L=24 		8-94176-807-1 01 1 0811-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0811-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0811-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0811-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0811-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0811-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0811-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0812-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 0812-1208
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(AB) ID=19 L=20 		0-95235-832-0 01 1 0812-
16 CLIP; HARNESS
(AA) ID=21 L=47.5 		8-94178-108-0 02 1 0812-
16 CLIP; HARNESS
(V) ID=19 H=70 L=25 		8-97360-209-0 01 1 0812-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26 		1-09709-293-0 05 1 0811-0904
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26 		1-09709-293-0 06 1 0905-
16 CLIP; HARNESS
WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26 		1-09709-293-0 10 1 0811-0904
16 CLIP; HARNESS
WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26 		1-09709-293-0 11 1 0905-
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0811-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0811-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0811-
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0811-
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 0811-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0811-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 0811-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0811-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0811-
205 CLIP; BACK LAMP HARNESS
OD=9 H=9.5 		1-09709-179-0 01 1 0811-
218 CLIP; BAND,RR COMB
ID=13-18 L=26 		1-09709-293-0 05 1 0811-
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0811-
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0811-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0811-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 0811-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0811-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0811-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0811-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0811-
çizim 169575
53 27 53 53 211 53 53 334 312 312 375 342 53 334 53 334
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE 8-97618-028-0 01 1 0811-
53 BRACKET; HARNESS
(C) L=50 		1-47475-663-1 01 1 0811-
53 BRACKET; HARNESS
(D) L=59 B=20 		1-47479-048-0 04 1 0811-
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 04 1 0811-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 0811-
53 BRACKET; HARNESS
(F) 		1-82698-440-0 01 1 0811-1204
53 BRACKET; HARNESS
(G) 		1-82698-469-0 01 1 0811-
53 BRACKET; HARNESS
(B) 		8-98124-778-0 01 1 0811-
211 BRACKET; AXLE HARNESS 1-47479-430-0 02 1 0811-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-440-0 01 1 0811-1204
312 BRACKET; CLIP HARNESS
(A) 		1-82698-479-0 01 1 0811-
334 BRACKET
(B) L=55 		1-47476-177-0 02 1 0811-
334 BRACKET
(A) 		1-53458-709-1 01 1 0811-
334 BRACKET
(C) L=95 		1-82699-085-0 01 1 0811-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0811-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0811-
çizim 169581
5 224 1 1 178 178 178 178 178 510 530 292 503
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=25 		1-09337-052-0 01 1 0811-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0811-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0811-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0811-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 03 1 0811-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0811-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0811-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0811-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0811-
292 CAP; RUBBER 1-82691-239-0 02 1 0811-
503 CONNECTOR 1-82690-666-0 01 1 0812-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0811-1202
530 SEAL; HARNESS
180X40 		1-72498-019-1 04 1 0811-
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0811-
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 0811-
çizim 169634
38 150 242 150 38 313 38 38 242 386 38 242 86 139 313 38 242 516 19 239 38 88 133 358 239 38 358 386 88
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0811-0904
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0811-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0811-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0811-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0811-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 06 1 0811-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0811-
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 0811-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0811-1105
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0811-1201
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0811-
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0811-1007
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0811-1007
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0811-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0811-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0812-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0812-1208
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1209-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0811-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0811-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0811-
242 BOLT; BRKT,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0811-
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28651-025-0 02 1 0811-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0811-1204
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0811-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0811-
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0811-
386 BOLT; GRAND HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0811-0811
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0811-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0811-
çizim 169637
16 51 104 171 206 212 305 453 462 16 48 104 171 194 227 228 369 380 14 14 16 48 102 194 212 14 16 51 142 162 194 208
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0811-
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 0811-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 03 1 0811-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 03 1 0811-
16 CLIP; HARNESS
(AC) ID=15 L=42 		1-09700-479-0 02 1 0811-0904
16 CLIP; HARNESS
(AE) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0811-0904
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0811-1002
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (G) ID=13-18 L=26 		1-09709-293-0 12 1 0811-
16 CLIP; HARNESS
(AF) ID=11 L=16 		0-95235-025-0 02 1 0811-
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0811-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0811-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 0811-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0811-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0811-
16 CLIP; HARNESS
(S) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0811-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0811-
16 CLIP; HARNESS
(AD) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0811-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0811-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0811-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0811-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0811-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0811-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0811-
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 0811-
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 03 1 0811-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0811-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 07 1 0811-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0811-
16 CLIP; HARNESS
(AG) ID=21 L=24 		8-94176-807-1 01 1 0811-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0811-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0811-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0811-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0811-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0811-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0811-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0812-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 0812-1208
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(AB) ID=19 L=20 		0-95235-832-0 01 1 0812-
16 CLIP; HARNESS
(AA) ID=21 L=47.5 		8-94178-108-0 02 1 0812-
16 CLIP; HARNESS
(V) ID=19 H=70 L=25 		8-97360-209-0 01 1 0812-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26 		1-09709-293-0 05 1 0811-0904
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26 		1-09709-293-0 06 1 0905-
16 CLIP; HARNESS
WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26 		1-09709-293-0 10 1 0811-0904
16 CLIP; HARNESS
WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26 		1-09709-293-0 11 1 0905-
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0811-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0811-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0811-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-1 06 1 0811-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0811-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0811-
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 0811-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0811-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0811-
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0811-
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 0811-
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 02 1 0812-1207
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1208-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0811-
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0811-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 06 1 0811-
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0811-1001
194 CLIP; BAND
(B) L=350 		1-09707-183-0 10 1 0811-
194 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 0811-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0811-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0811-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0811-
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0811-
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0811-
227 CLIP; FOG LAMP HARNESS
L=250 		5-09707-030-1 01 1 0811-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0811-1112
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1201-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0811-
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 01 1 0811-
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0811-
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 0811-1103
453 CLIP; CABLE HARNESS
L=140 		5-09707-031-1 01 1 0811-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0811-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0811-
çizim 169641
24 524 24 219 294 340 515 515 119 64 255 522 423 520 43
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; HARNESS
(A) M6 		0-91110-506-0 01 1 0811-
24 NUT; HARNESS
(B) M8 FLANGE 		0-91180-108-0 01 1 0811-
43 WASHER; LK,HARNESS
ID=6.1 		0-91510-506-0 01 1 0811-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0811-1202
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 1006-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0811-
219 NUT
M8 FLANGE 		0-91180-108-0 19 1 0811-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0811-0904
294 NUT
M8 FLANGE 		0-91180-108-0 12 1 0811-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0811-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 05 1 0811-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0811-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 0811-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0811-0811
522 WASHER; PL,HARNESS
ID=6.4 		9-09160-506-0 02 1 0811-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0811-

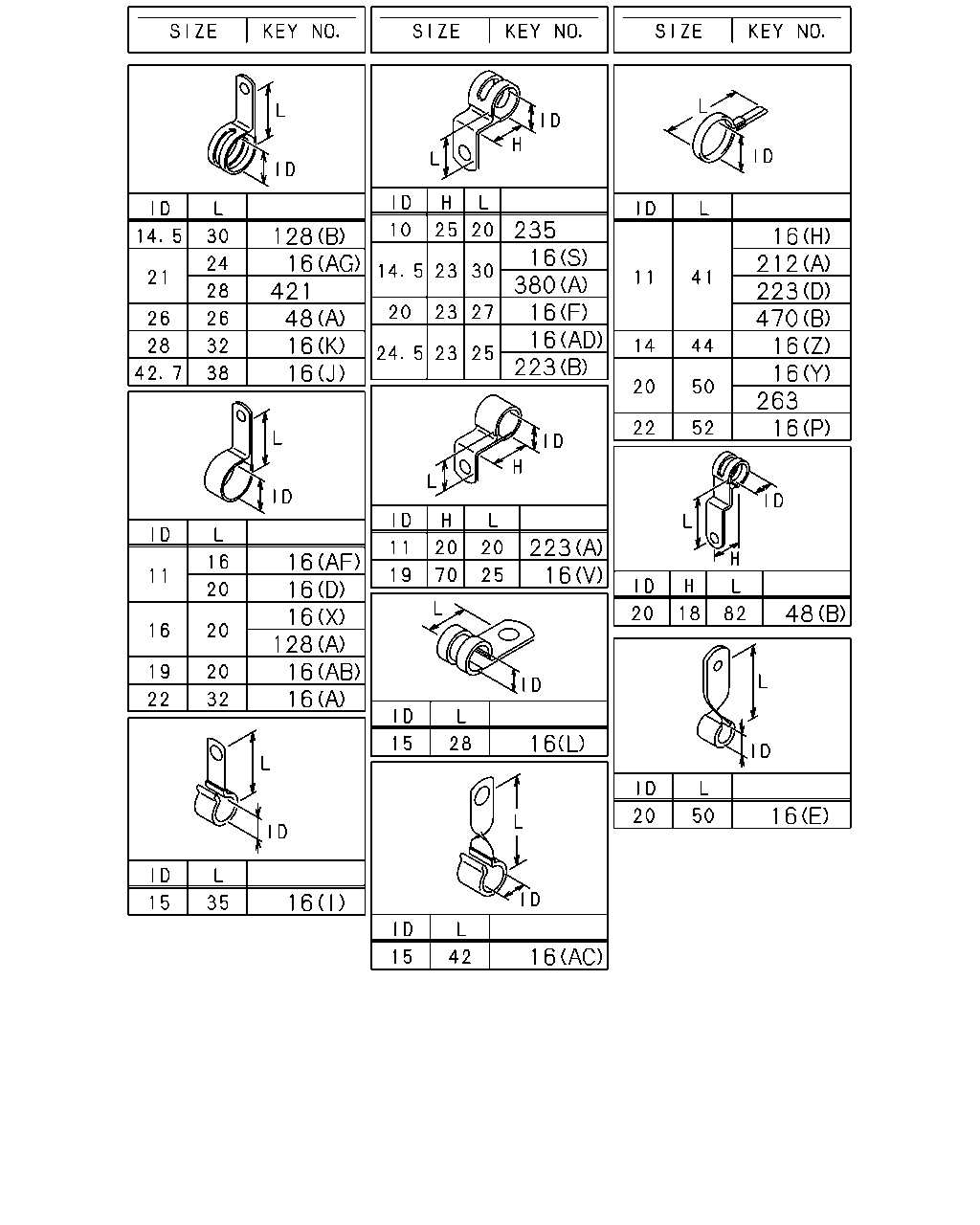

çizim 169660
235 16 380 16 16 223 128 16 421 48 16 16 16 212 223 470 16 16 263 16 223 16 16 16 16 128 16 16 48 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AC) ID=15 L=42 		1-09700-479-0 02 1 0811-0904
16 CLIP; HARNESS
(AE) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0811-0904
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0811-1002
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) (G) ID=13-18 L=26 		1-09709-293-0 12 1 0811-
16 CLIP; HARNESS
(AF) ID=11 L=16 		0-95235-025-0 02 1 0811-
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0811-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0811-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 0811-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0811-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0811-
16 CLIP; HARNESS
(S) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0811-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0811-
16 CLIP; HARNESS
(AD) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0811-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0811-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0811-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0811-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0811-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0811-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0811-
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 01 1 0811-
16 CLIP; HARNESS
(R) ID=5-12 L=26 		1-09709-289-0 03 1 0811-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0811-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 07 1 0811-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0811-
16 CLIP; HARNESS
(AG) ID=21 L=24 		8-94176-807-1 01 1 0811-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0811-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0811-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0811-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0811-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0811-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0811-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0812-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 0812-1208
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(AB) ID=19 L=20 		0-95235-832-0 01 1 0812-
16 CLIP; HARNESS
(AA) ID=21 L=47.5 		8-94178-108-0 02 1 0812-
16 CLIP; HARNESS
(V) ID=19 H=70 L=25 		8-97360-209-0 01 1 0812-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26 		1-09709-293-0 05 1 0811-0904
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (G) ID=13-18 L=26 		1-09709-293-0 06 1 0905-
16 CLIP; HARNESS
WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26 		1-09709-293-0 10 1 0811-0904
16 CLIP; HARNESS
WHEEL BASE 7400MM(74W) (G) ID=13-18 L=26 		1-09709-293-0 11 1 0905-
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0811-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0811-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0811-
48 CLIP; FRAME HARNESS
(D) L=250 		5-09707-030-1 06 1 0811-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0811-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0811-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0811-
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0811-
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0811-
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0811-
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0811-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0811-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 0811-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 0811-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0811-
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0811-
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 0811-1103
421 CLIP; FLOOR HARNESS
ID=21 L=28 		1-09700-673-1 02 1 0811-1202
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0811-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0811-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
