◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11318 - CYH MIDDLE EAST WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#55770) — 13 parça

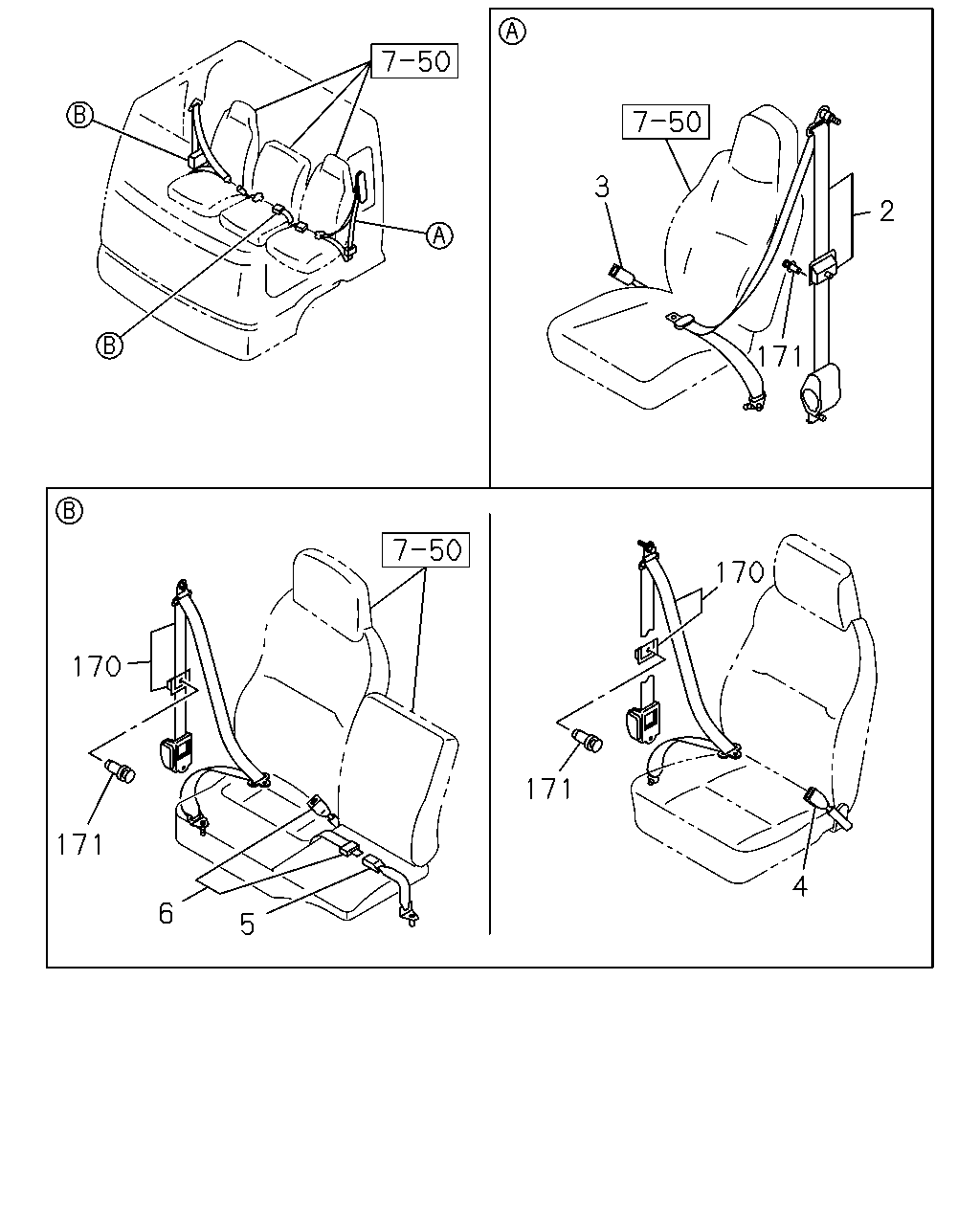

çizim 169646
3 2 171 170 170 171 171 4 6 5
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE 8-98120-810-0 01 1 0811-0811
2 BELT; SEAT,TONGUE SIDE 8-97382-647-3 01 1 0812-
3 BELT; SEAT,BUCKLE SIDE 1-75618-914-0 01 1 0811-0811
3 BELT; SEAT,BUCKLE SIDE 1-75617-545-0 01 1 0812-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75618-911-1 01 1 0811-
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) 		1-75617-553-1 01 1 0811-
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) 		1-75618-915-4 01 1 0811-0811
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		8-97382-652-1 01 1 0812-
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-818-0 01 1 0811-0811
170 BELT; PASSENGER SEAT,TONGUE SIDE
CENTER SEAT(SA1),CENTER SEAT DELETE(SP9) 		8-97382-650-2 01 1 0812-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0811-

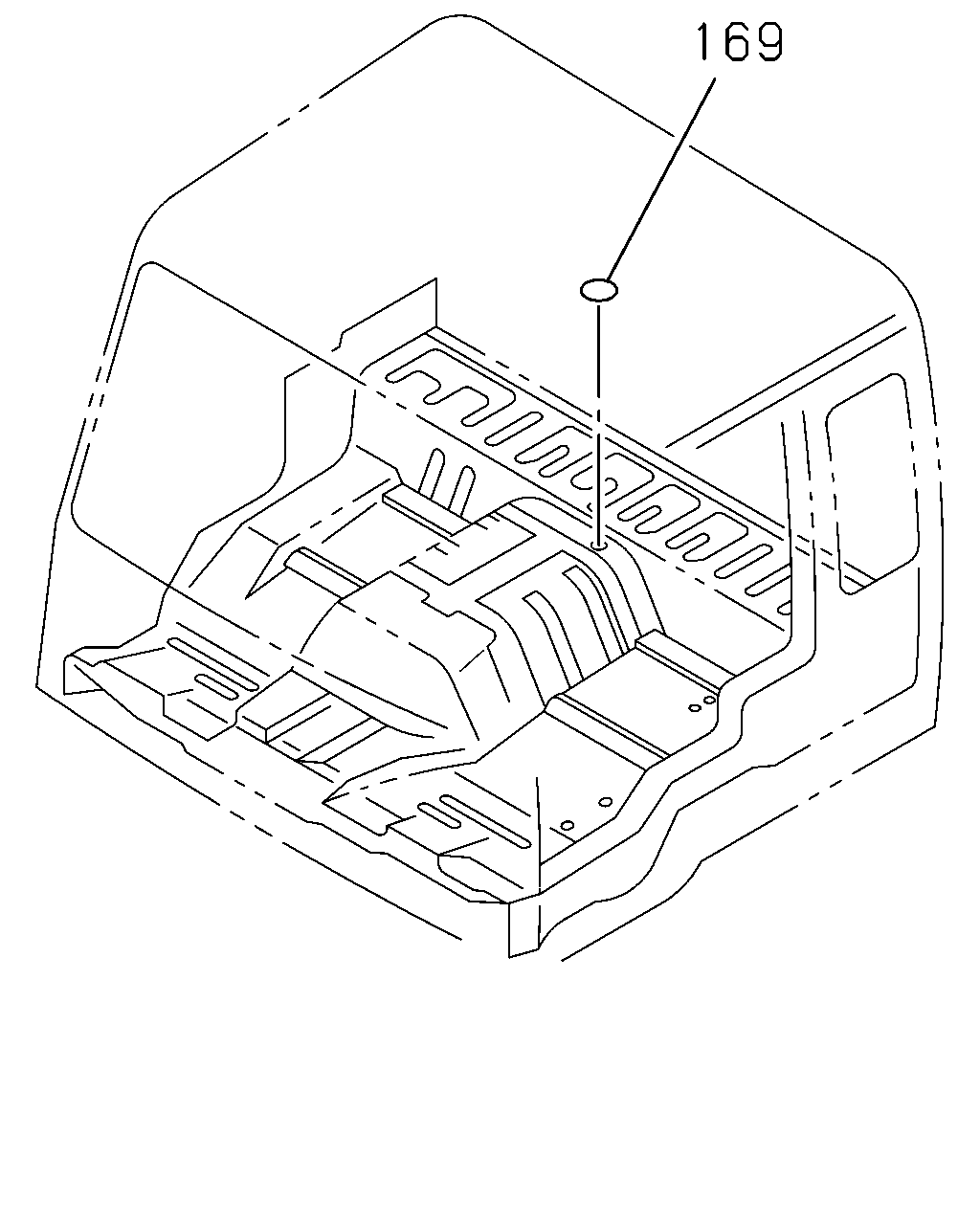

çizim 169663
169
BalonParca AdiParca NoAdetTipApplied Date
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0811-
169 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 0811-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
