◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36B - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#5577) — 194 parça

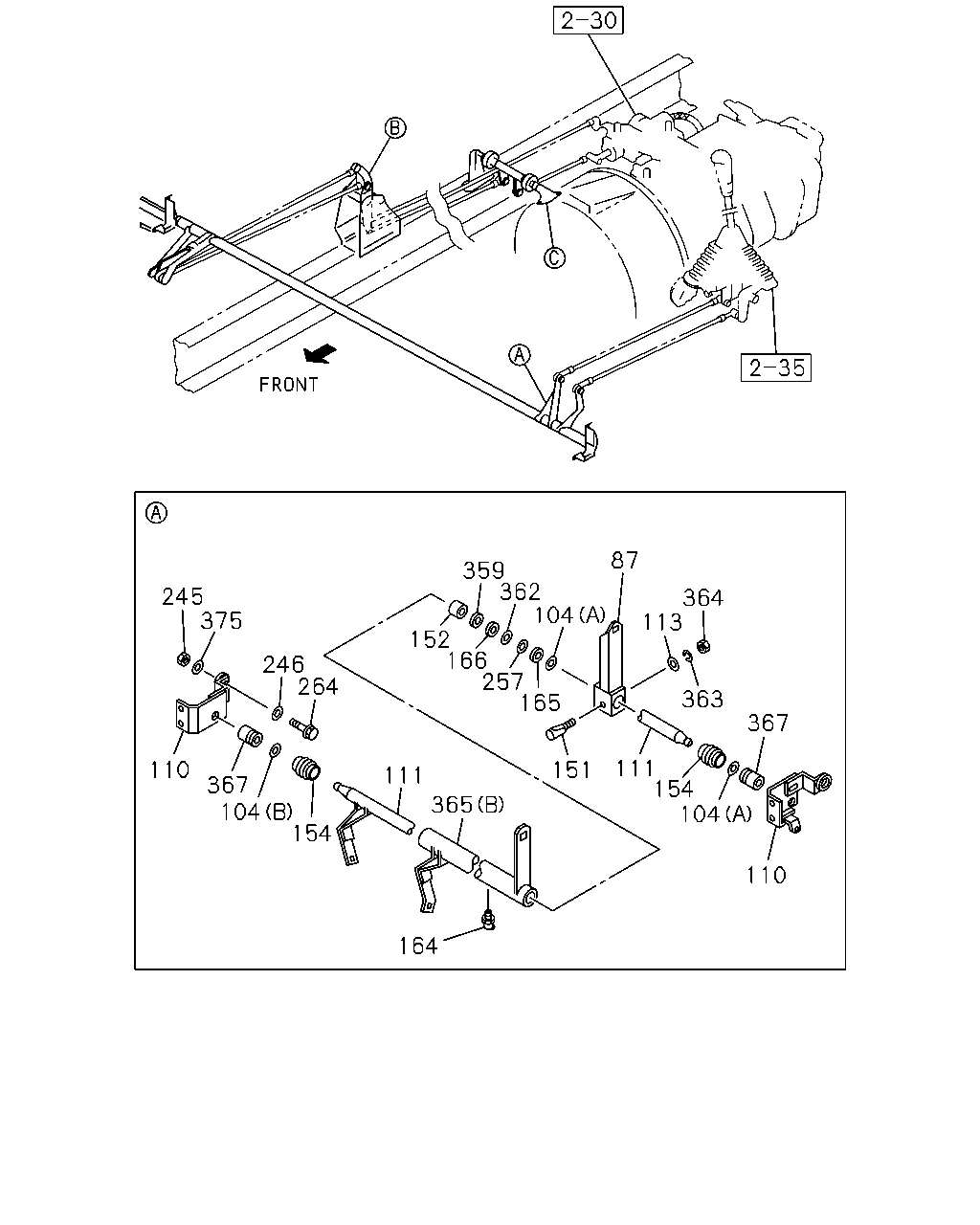

çizim 38984
87 359 362 104 245 375 364 113 152 166 257 165 246 264 363 367 111 154 104 110 151 111 367 104 154 365 110 164
BalonParca AdiParca NoAdetTipApplied Date A B
87 LEVER; RELAY,SELECT 1-33651-666-0 01 1 9603-9904 ●
87 LEVER; RELAY,SELECT 1-33651-666-0 01 1 9905- ● ●
104 RING; SNAP
(A) ID=32.2 		9-09180-035-0 02 1 9603-9904 ●
104 RING; SNAP
(A) ID=32.2 		9-09180-035-0 02 1 9905- ● ●
104 RING; SNAP
(B) OD=23.5 		9-09180-122-0 01 1 9603-9904 ●
104 RING; SNAP
(B) OD=23.5 		9-09180-122-0 01 1 9905- ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-617-0 01 1 9603-9904 ●
110 BRACKET; RELAY LEVER,1ST 1-33657-617-0 01 1 9905- ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-618-0 01 1 9603-9904 ●
110 BRACKET; RELAY LEVER,1ST 1-33657-618-0 01 1 9905- ● ●
111 SHAFT; RELAY LEVER,1ST 1-33659-200-0 01 1 9603-9904 ●
111 SHAFT; RELAY LEVER,1ST 1-33659-200-0 01 1 9905- ● ●
113 WASHER; RELAY LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9603-9904 ●
113 WASHER; RELAY LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9905- ● ●
151 BOLT; KEY,RELAY LEVER 1-33659-063-0 01 1 9603-9904 ●
151 BOLT; KEY,RELAY LEVER 1-33659-063-0 01 1 9905- ● ●
152 BEARING; NEEDLE,RELAY LEVER 1-09811-328-0 02 1 9603-9904 ●
152 BEARING; NEEDLE,RELAY LEVER 1-09811-328-0 02 1 9905- ● ●
154 COVER; DUST,RELAY LEVER 1-33659-068-0 02 1 9603-9904 ●
154 COVER; DUST,RELAY LEVER 1-33659-068-0 02 1 9905- ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9603-9904 ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9905- ● ●
165 WASHER; RELAY LEVER 1-09503-148-0 AR 1 9603-9904 ●
165 WASHER; RELAY LEVER 1-09503-148-0 AR 1 9905- ● ●
166 WASHER; NYLON,RELAY LEVER 1-09509-040-0 02 1 9603-9904 ●
166 WASHER; NYLON,RELAY LEVER 1-09509-040-0 02 1 9905- ● ●
245 NUT; BRKT,RELAY LEVER
M10 		1-09984-142-0 02 1 9603-9904 ●
245 NUT; BRKT,RELAY LEVER
M10 		1-09984-142-0 02 1 9905- ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 02 1 9603-9904 ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 02 1 9905- ● ●
257 PIECE; DIST,RELAY LEVER 1-09503-198-0 AR 1 9603-9904 ●
257 PIECE; DIST,RELAY LEVER 1-09503-198-0 AR 1 9905- ● ●
264 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 02 1 9603-9904 ●
264 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 02 1 9905- ● ●
264 BOLT; BRKT,RELAY LEVER
M10X100 		1-09980-547-0 02 1 9603-9904 ●
264 BOLT; BRKT,RELAY LEVER
M10X100 		1-09980-547-0 02 1 9905- ● ●
359 SEAL; RUBBER,RELAY LEVER 1-09625-005-1 02 1 9603-9904 ●
359 SEAL; RUBBER,RELAY LEVER 1-09625-005-1 02 1 9905- ● ●
362 SHIM 1-09503-172-0 AR 1 9603-9904 ●
362 SHIM 1-09503-172-0 AR 1 9905- ● ●
363 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 01 1 9603-9904 ●
363 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 01 1 9905- ● ●
364 NUT; KEY BOLT
M10 		9-09111-410-0 01 1 9603-9904 ●
364 NUT; KEY BOLT
M10 		9-09111-410-0 01 1 9905- ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-665-0 01 1 9603-9904 ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-665-0 01 1 9905- ● ●
365 LEVER; RELAY,SELECT
V TYPE ENG<91L> (A) 		1-33651-627-1 01 1 9603-9904 ●
365 LEVER; RELAY,SELECT
V TYPE ENG<91L> (A) 		1-33651-627-1 01 1 9905- ● ●
365 LEVER; RELAY,SELECT
L TYPE ENG<90L> (A) 		1-33651-628-1 01 1 9603-9904 ●
365 LEVER; RELAY,SELECT
L TYPE ENG<90L> (A) 		1-33651-628-1 01 1 9905- ● ●
367 SEAT; BALL,CONT SHAFT 1-33659-053-0 04 1 9603-9904 ●
367 SEAT; BALL,CONT SHAFT 1-33659-053-0 04 1 9905- ● ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 9603-9904 ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 9905- ● ●

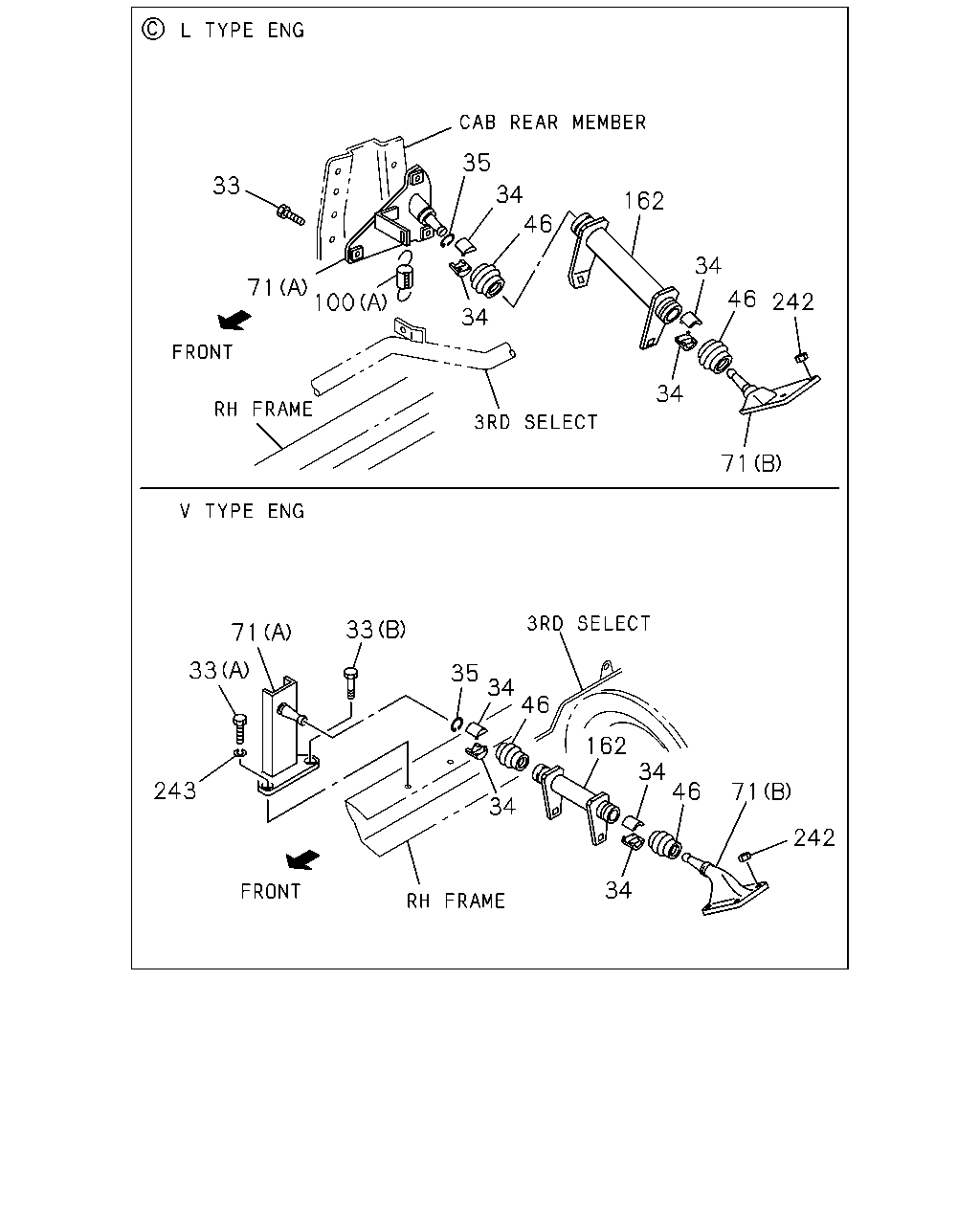

çizim 40744
35 33 34 162 46 34 71 100 46 242 34 34 71 33 71 33 35 34 46 162 34 46 243 71 34 242 34
BalonParca AdiParca NoAdetTipApplied Date A B
33 BOLT; BRKT,3RD RELAY LEVER
V TYPE ENG<91L> (A) M14X45 		0-20801-445-0 01 1 9603-9904 ●
33 BOLT; BRKT,3RD RELAY LEVER
V TYPE ENG<91L> (A) M14X45 		0-20801-445-0 01 1 9905- ● ●
33 BOLT; BRKT,3RD RELAY LEVER
V TYPE ENG<91L> (B) M10X40 W/LK WASHER 		0-50041-040-0 01 1 9603-9904 ●
33 BOLT; BRKT,3RD RELAY LEVER
V TYPE ENG<91L> (B) M10X40 W/LK WASHER 		0-50041-040-0 01 1 9905- ● ●
33 BOLT; BRKT,3RD RELAY LEVER
L TYPE ENG<90L> M10X30 W/LK WASHER 		0-50041-030-0 03 1 9603-9606 ●
33 BOLT; BRKT,3RD RELAY LEVER
L TYPE ENG<90L> M10X30 FLANGE 		0-28681-030-0 03 1 9607-9904 ●
33 BOLT; BRKT,3RD RELAY LEVER
L TYPE ENG<90L> M10X30 FLANGE 		0-28681-030-0 03 1 9905- ● ●
34 SEAT; BALL,RELAY LEVER
V TYPE ENG<91L> 		1-33659-118-0 04 1 9603-9904 ●
34 SEAT; BALL,RELAY LEVER
V TYPE ENG<91L> 		1-33659-118-0 04 1 9905- ● ●
34 SEAT; BALL,RELAY LEVER
L TYPE ENG<90L> 		1-33659-165-0 04 1 9603-9904 ●
34 SEAT; BALL,RELAY LEVER
L TYPE ENG<90L> 		1-33659-165-0 04 1 9905- ● ●
35 RING; SNAP,RELAY LEVER
10PE1S(60L) OD=23.5 		9-09180-122-0 01 1 9603-9904 ●
35 RING; SNAP,RELAY LEVER
V TYPE ENG<91L> OD=23.5 		9-09180-122-0 01 1 9905- ● ●
35 RING; SNAP,RELAY LEVER
L TYPE ENG<90L> OD=34.4 		9-09180-132-0 01 1 9603-9904 ●
35 RING; SNAP,RELAY LEVER
L TYPE ENG<90L> OD=34.4 		9-09180-132-0 01 1 9905- ● ●
46 SEAL; DUST,RELAY LEVER
V TYPE ENG<91L> 		1-33659-172-0 02 1 9603-9904 ●
46 SEAL; DUST,RELAY LEVER
V TYPE ENG<91L> 		1-33659-172-0 02 1 9905- ● ●
46 SEAL; DUST,RELAY LEVER
L TYPE ENG<90L> 		1-33659-166-0 02 1 9603-9904 ●
46 SEAL; DUST,RELAY LEVER
L TYPE ENG<90L> 		1-33659-166-0 02 1 9905- ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
L TYPE ENG<90L> (B) 		1-33657-481-0 01 1 9603-9904 ●
71 BRACKET; 3RD RELAY LEVER,FRAME
L TYPE ENG<90L> (B) 		1-33657-481-0 01 1 9905- ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
L TYPE ENG<90L> (A) 		1-33657-512-0 01 1 9603-9904 ●
71 BRACKET; 3RD RELAY LEVER,FRAME
L TYPE ENG<90L> (A) 		1-33657-512-0 01 1 9905- ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
10PE1S(60L) (B) 		1-33657-478-0 01 1 9603-9904 ●
71 BRACKET; 3RD RELAY LEVER,FRAME
V TYPE ENG<91L> (B) 		1-33657-478-0 01 1 9905- ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
10PE1S(60L) (A) 		1-33657-569-0 01 1 9603-9904 ●
71 BRACKET; 3RD RELAY LEVER,FRAME
V TYPE ENG<91L> (A) 		1-33657-569-0 01 1 9905- ● ●
100 SPRING
L TYPE ENG<90L> (B) 		1-09583-218-0 01 1 9603-9904 ●
100 SPRING
L TYPE ENG<90L> (B) 		1-09583-351-0 01 1 9905- ● ●
100 SPRING
L TYPE ENG<90L> (A) 		1-09583-319-0 01 1 9603-9904 ●
100 SPRING
L TYPE ENG<90L> (A) 		1-09583-319-0 01 1 9905- ● ●
162 LEVER; RELAY
L TYPE ENG<90L> 		1-33651-679-0 01 1 9603-9904 ●
162 LEVER; RELAY
L TYPE ENG<90L> 		1-33651-679-0 01 1 9905- ● ●
162 LEVER; RELAY
10PE1S(60L) 		1-33651-678-1 01 1 9603-9904 ●
162 LEVER; RELAY
V TYPE ENG<91L> 		1-33651-678-1 01 1 9905- ● ●
242 NUT; FLANGE 3RD RELAY LEVER
V TYPE ENG<91L> M8 FLANGE 		5-09440-005-0 04 1 9603-9904 ●
242 NUT; FLANGE 3RD RELAY LEVER
V TYPE ENG<91L> M8 FLANGE 		5-09440-005-0 04 1 9905- ● ●
242 NUT; FLANGE 3RD RELAY LEVER
L TYPE ENG<90L> M12 FLANGE 		0-91150-212-0 03 1 9603-9904 ●
242 NUT; FLANGE 3RD RELAY LEVER
L TYPE ENG<90L> M12 FLANGE 		0-91150-212-0 03 1 9905- ● ●
243 WASHER; LK,BRKT
V TYPE ENG<91L> ID=14.2 		9-09150-614-0 01 1 9603-9904 ●
243 WASHER; LK,BRKT
V TYPE ENG<91L> ID=14.2 		9-09150-614-0 01 1 9905- ● ●

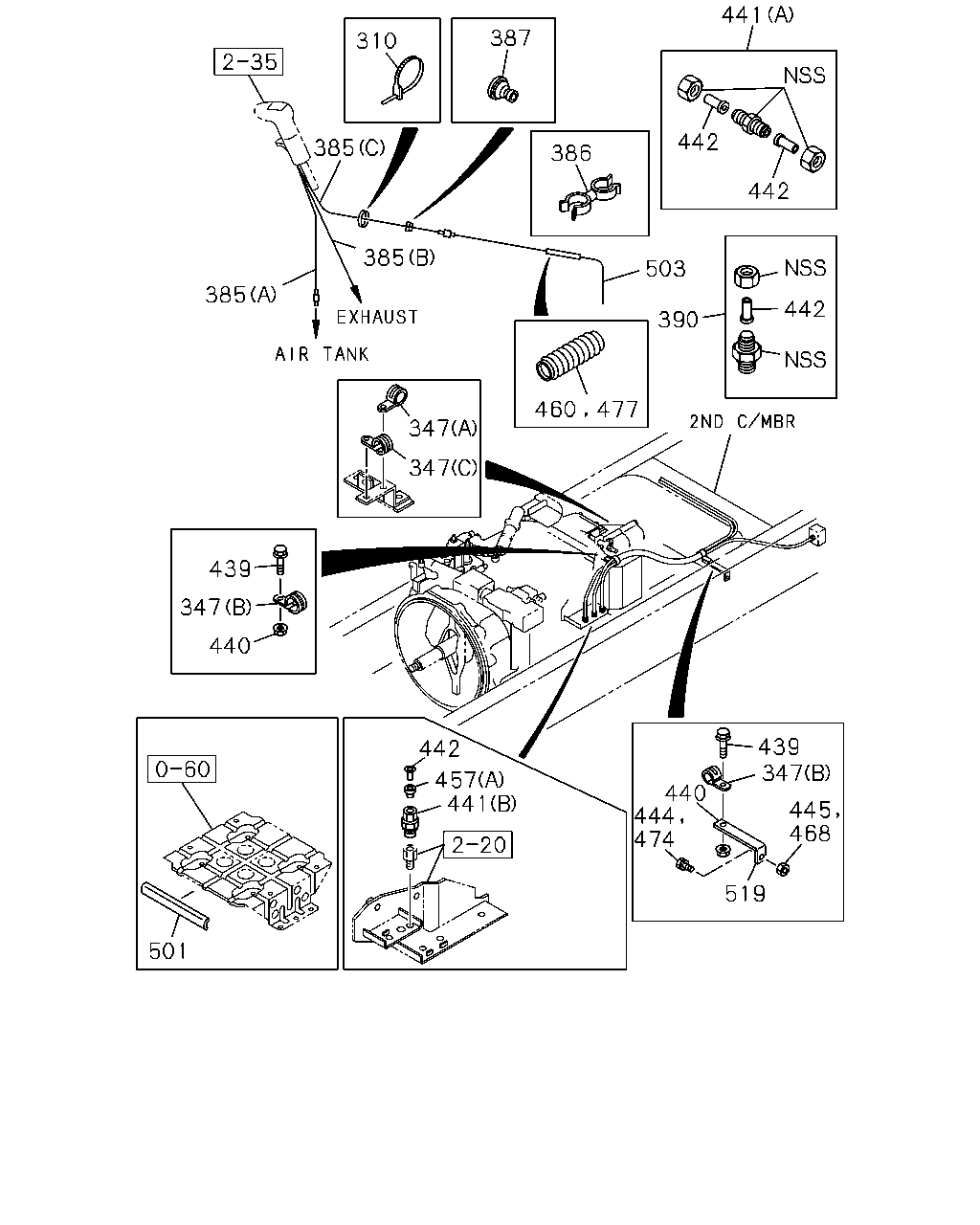

çizim 40783
441 387 310 385 442 386 442 385 503 385 442 390 347 347 439 347 440 439 347 442 457 441 440 444 474 445 468 519 501 460 477
BalonParca AdiParca NoAdetTipApplied Date A B
310 CLIP; TUBE
10PE1S(60L) L=250 		1-09707-126-0 05 1 9603-9904 ●
310 CLIP; TUBE
V TYPE ENG<91L> L=250 		1-09707-126-0 05 1 9905-9910 ● ●
310 CLIP; TUBE
10PE1S(60L) L=140 		5-09707-031-1 13 1 9603-9904 ●
310 CLIP; TUBE
V TYPE ENG<91L> L=140 		5-09707-031-1 13 1 9905-9910 ● ●
310 CLIP; TUBE
6WA1 TC-S(56L) L=250 		1-09707-126-0 07 1 9603-9904 ●
310 CLIP; TUBE
L TYPE ENG<90L> L=250 		1-09707-126-0 07 1 9905-9910 ● ●
310 CLIP; TUBE
L=250 		1-09707-126-0 17 1 9911- ●
310 CLIP; TUBE
6WA1 TC-S(56L) L=140 		5-09707-031-1 11 1 9603-9904 ●
310 CLIP; TUBE
L TYPE ENG<90L> L=140 		5-09707-031-1 11 1 9905-9910 ● ●
310 CLIP; TUBE
L=140 		5-09707-031-1 04 1 9911-0105 ●
310 CLIP; TUBE
L=140 		5-09707-031-1 05 1 0106- ●
347 CLIP; AIR PIPE
(C) ID=24 L=27 		1-09700-809-0 02 1 9905-9905 ●
347 CLIP; AIR PIPE
(C) ID=24 L=27 		1-09700-809-0 01 1 9906- ● ●
347 CLIP; AIR PIPE
EXC. PTO ZF TRANS RR(BDM) (C) ID=24 L=27 		1-09700-809-0 01 1 9906- ●
347 CLIP; AIR PIPE
(C) ID=24 L=27 		1-09700-809-0 01 1 9906- ●
347 CLIP; AIR PIPE
PTO ZF TRANS RR(BDM) (B) ID=28 L=40 		1-09701-261-0 01 1 9906- ●
347 CLIP; AIR PIPE
PTO ZF TRANS RR(BDM) (A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 9906- ● ●
385 TUBE; NYLON
(B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 9603- ●
385 TUBE; NYLON
(A) L=1420 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603- ●
385 TUBE; NYLON
(C) L=1160 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9603-9904 ●
385 TUBE; NYLON
(C) L=1340 SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9905- ●
386 CLIP; CONT CABLE & TUBE
ID=8.3 & 8.3 		8-94426-175-0 01 1 9603- ●
387 GROMMET; CONT TUBE,FULLER 1-09332-102-0 01 1 9603- ●
390 CONNECTOR; STRAIGHT,TRANS SIDE
DIN4 & PT1/8 STRAIGHT 		1-09660-765-0 01 1 9603- ●
439 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9905-9905 ●
439 BOLT; CLIP,AIR PIPE
PTO ZF TRANS RR(BDM) M8X25 FLANGE 		0-28680-825-0 03 1 9906- ● ●
439 BOLT; CLIP,AIR PIPE
EXC. PTO ZF TRANS RR(BDM) M8X25 FLANGE 		0-28680-825-0 02 1 9906- ● ●
440 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905-9905 ●
440 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9906- ●
441 CONNECTOR; NYLON TUBE
(A) DIN4 STRAIGHT 		1-09660-512-0 02 1 9603- ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9905- ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 04 1 9603-9910 ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9911- ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9603-9904 ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9905-9910 ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9905-9910 ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 05 1 9911- ●
444 BOLT; BRKT,NIPPLE
M8X30 FLANGE 		0-28680-830-0 01 1 9905-0001 ●
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91150-108-0 01 1 9905-0001 ●
457 GASKET
(B) 		1-09623-594-0 04 1 9603-9904 ●
457 GASKET
(B) 		1-09623-594-0 04 1 9905- ● ●
457 GASKET
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905- ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 L=620 		1-83129-031-1 01 1 9603-9904 ●
460 TUBE; CORRUGATE
L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 9905- ●
460 TUBE; CORRUGATE
L=1300 SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9603-9904 ●
460 TUBE; CORRUGATE
L=1300 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 9905- ●
460 TUBE; CORRUGATE
L=340 SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9603-9603 ●
460 TUBE; CORRUGATE
SERVICED BY L=800 ID=7 L=250 		1-83129-031-1 01 1 9604- ●
468 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0002- ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0002- ●
477 TUBE; CORRUGATE
SERVICED BY L=6000 ID=7 		1-87410-087-0 01 1 9603-9910 ●
477 TUBE; CORRUGATE
SERVICED BY L=6000 ID=7 		1-87410-087-0 01 1 9911- ●
477 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9911- ●
477 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9905-9910 ●
477 TUBE; CORRUGATE
SERVICED BY L=6000 OD=4 		1-87410-079-0 01 1 9911- ●
501 SEAL; HARNESS PROTECTOR
100X30 		1-72498-014-1 04 1 9603-9903 ●
501 SEAL; HARNESS PROTECTOR
100X40 		1-72498-022-0 04 1 9904- ●
503 TUBE; NYLON
SERVICED BY L=6000 OD=4 		1-87410-079-0 01 1 9603-9910 ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9911- ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9905-9910 ●
519 BRACKET; FRAME
L=125 		1-47475-897-0 01 1 0002- ●
519 BRACKET; FRAME
L=125 		1-47475-897-0 01 1 9905-0001 ●

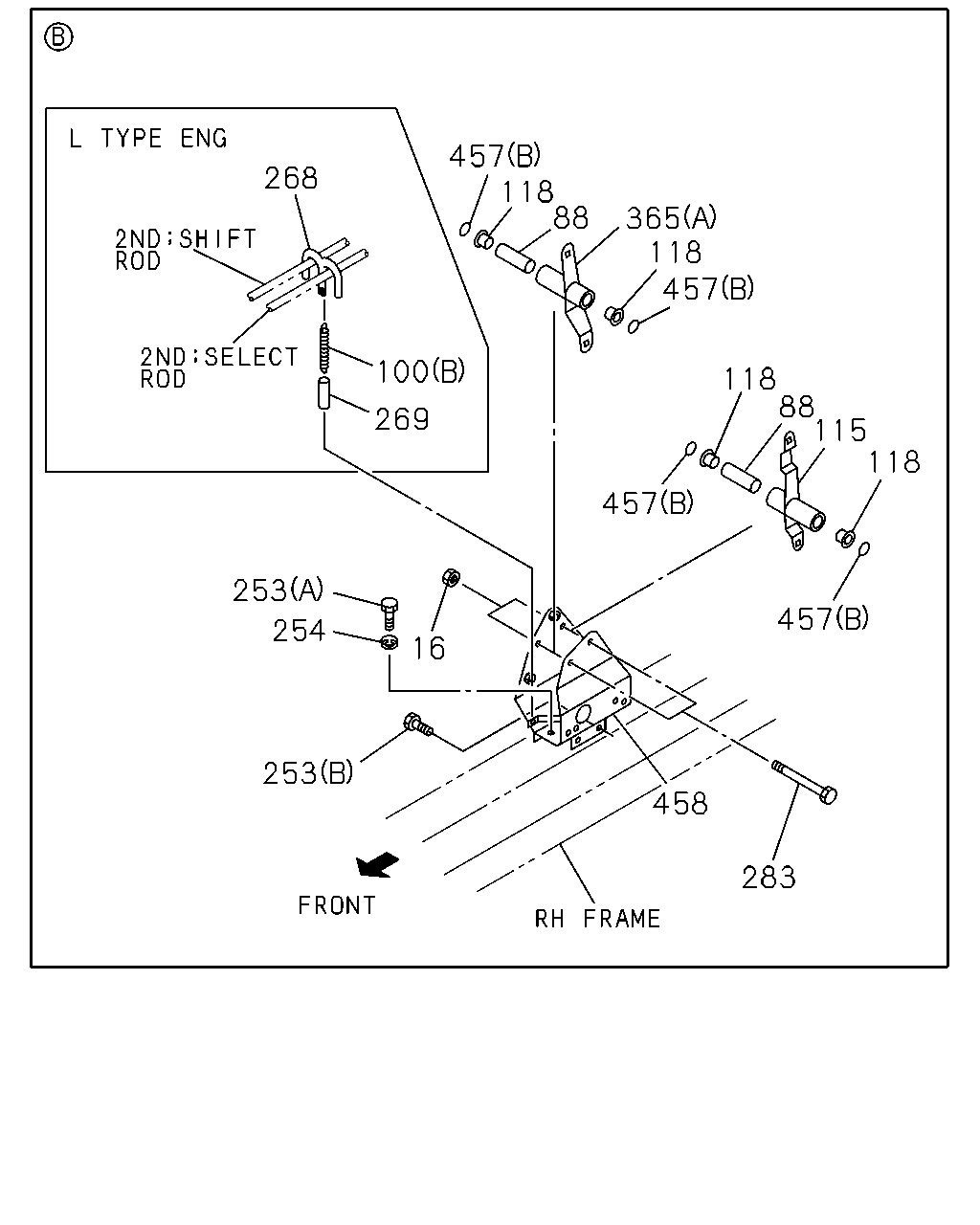

çizim 40811
457 118 88 268 365 118 457 100 118 88 115 118 269 457 253 457 254 16 253 458 283
BalonParca AdiParca NoAdetTipApplied Date A B
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9603-9904 ●
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9905- ● ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9603-9904 ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9905- ● ●
100 SPRING
L TYPE ENG<90L> (B) 		1-09583-218-0 01 1 9603-9904 ●
100 SPRING
L TYPE ENG<90L> (B) 		1-09583-351-0 01 1 9905- ● ●
100 SPRING
L TYPE ENG<90L> (A) 		1-09583-319-0 01 1 9603-9904 ●
100 SPRING
L TYPE ENG<90L> (A) 		1-09583-319-0 01 1 9905- ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9603-9904 ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9905- ● ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9603-9904 ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9905- ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 9603-9904 ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 9905- ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9603-9606 ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9607-9904 ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9905- ● ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 9603-9904 ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 9905- ● ●
268 BRACKET; LINK ROD
L TYPE ENG<90L> 		1-33657-216-0 01 1 9603-9904 ●
268 BRACKET; LINK ROD
L TYPE ENG<90L> 		1-33657-216-0 01 1 9905- ● ●
269 COVER; SPR
L TYPE ENG<90L> 		1-15669-002-0 01 1 9603-9904 ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9603-9904 ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9905- ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-665-0 01 1 9603-9904 ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-665-0 01 1 9905- ● ●
365 LEVER; RELAY,SELECT
V TYPE ENG<91L> (A) 		1-33651-627-1 01 1 9603-9904 ●
365 LEVER; RELAY,SELECT
V TYPE ENG<91L> (A) 		1-33651-627-1 01 1 9905- ● ●
365 LEVER; RELAY,SELECT
L TYPE ENG<90L> (A) 		1-33651-628-1 01 1 9603-9904 ●
365 LEVER; RELAY,SELECT
L TYPE ENG<90L> (A) 		1-33651-628-1 01 1 9905- ● ●
457 GASKET
(B) 		1-09623-594-0 04 1 9603-9904 ●
457 GASKET
(B) 		1-09623-594-0 04 1 9905- ● ●
457 GASKET
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9905- ●
458 BRACKET; 2ND RELAY LEVER
V TYPE ENG<91L> 		1-33657-572-2 01 1 9603-9904 ●
458 BRACKET; 2ND RELAY LEVER
V TYPE ENG<91L> 		1-33657-572-2 01 1 9905- ● ●
458 BRACKET; 2ND RELAY LEVER
L TYPE ENG<90L> 		1-33657-573-2 01 1 9603-9904 ●
458 BRACKET; 2ND RELAY LEVER
L TYPE ENG<90L> 		1-33657-583-1 01 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
