7-50 — FRONT SEAT (#55769) — 130 parça

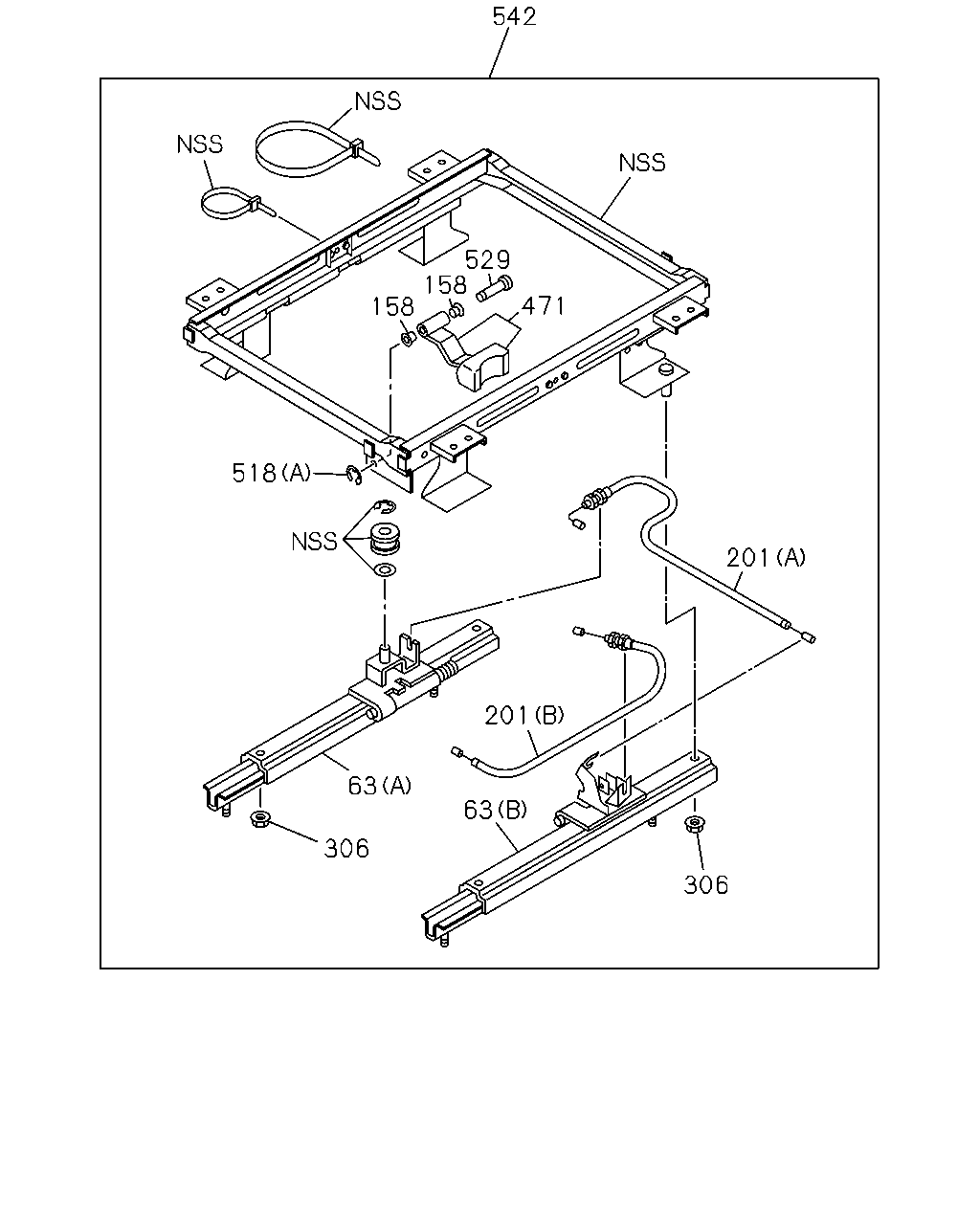

çizim 169546
542 529 158 471 158 518 201 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-324-0 01 1 0811-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 0811-
63 ADJUSTER; SEAT SLIDE
EXC. RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-295-1 01 1 0811-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0811-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0811-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0811-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0811-
306 NUT; SEAT ADJ
EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0811-
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 0811-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-264-0 04 1 0811-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0811-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (C) M8 FLANGE 		8-94152-886-0 04 1 0811-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0811-
529 PIN; LINK 1-75518-262-0 01 1 0811-
542 ADJUSTER ASM; SEAT SLIDE
EXC. RIGID SEAT WO/ARM REST(TAZ) 		1-75518-283-3 01 1 0811-1502
542 ADJUSTER ASM; SEAT SLIDE
EXC. RIGID SEAT WO/ARM REST(TAZ) 		8-98291-656-0 01 1 1503-

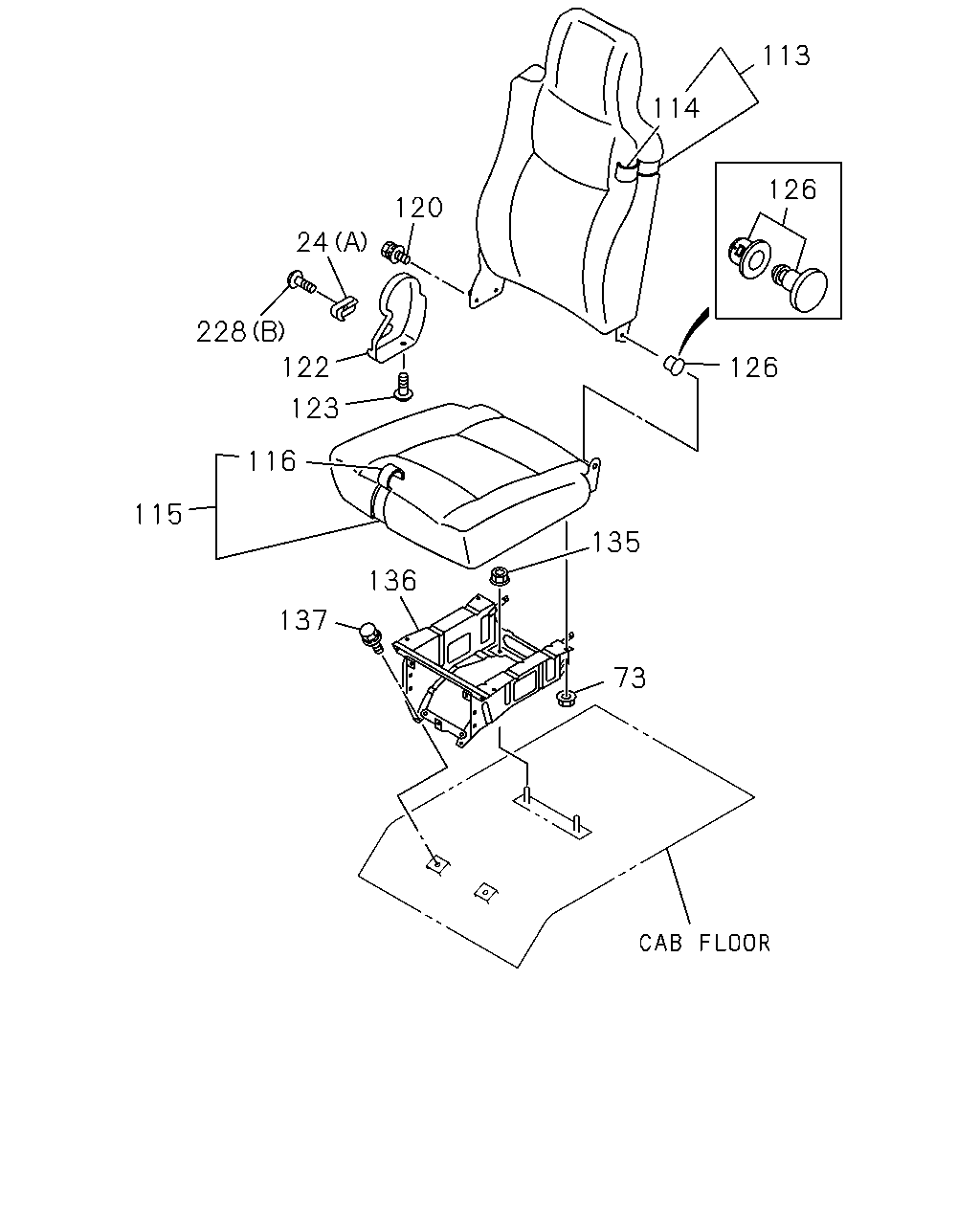

çizim 169549
113 114 126 120 24 228 122 126 123 116 115 135 136 137 73
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0811-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0811-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0811-
113 BACK ASM; SEAT 1-75208-241-2 01 1 0811-
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-742-1 01 1 0811-
115 CUSHION ASM; PASSENGER SEAT 1-75207-367-1 01 1 0811-
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75127-133-1 01 1 0811-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0811-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97867-020-0 01 1 0811-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0811-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0811-
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0811-
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0811-1305
136 STAND; PASSENGER SEAT 8-98242-299-0 01 1 1306-
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0811-
228 SCREW; KNOB
(B) M4X6 		8-97042-273-0 01 1 0811-
228 SCREW; KNOB
(A) M4 		8-98062-662-0 01 1 0811-

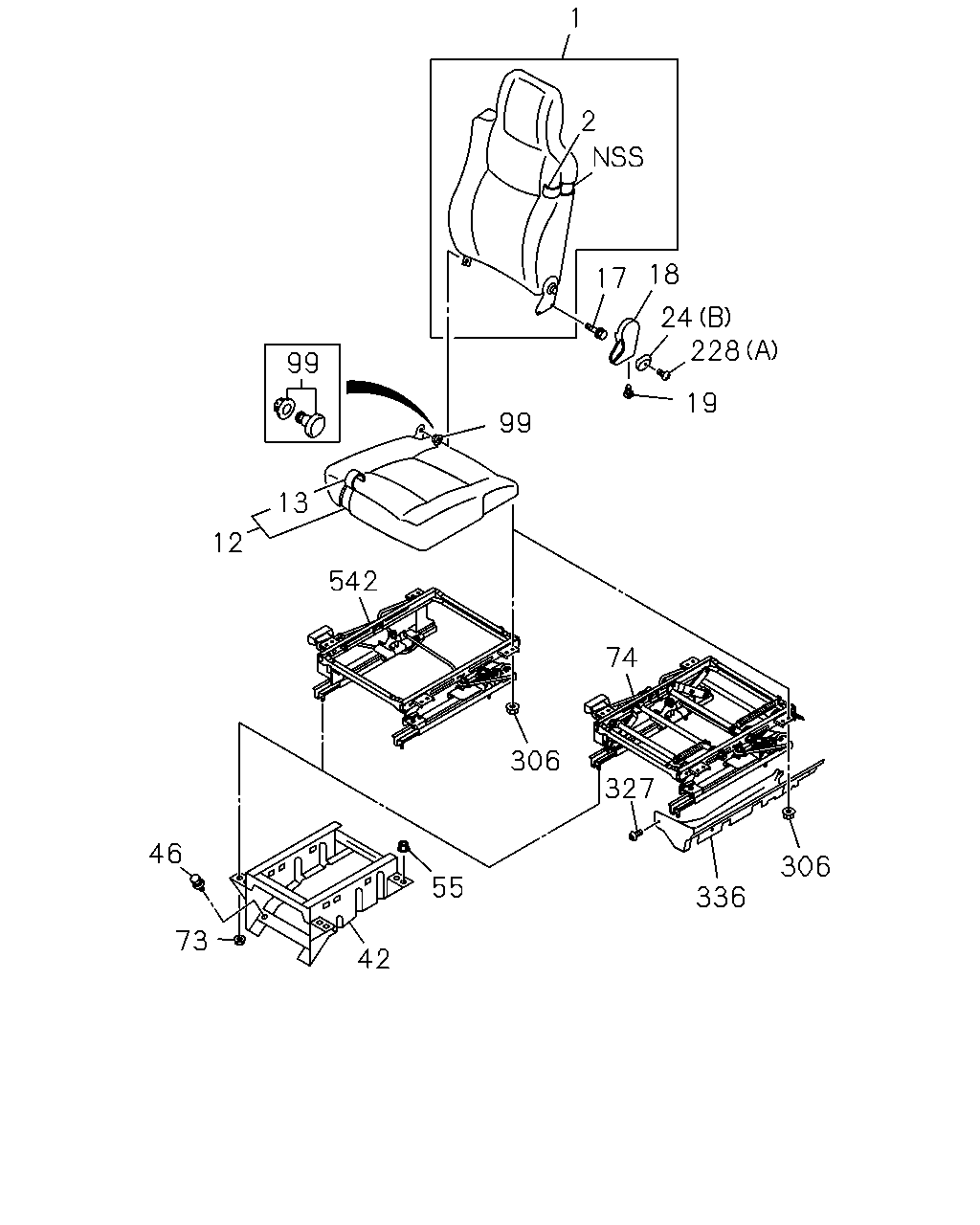

çizim 169552
1 2 18 17 24 228 99 19 99 13 12 542 74 306 327 46 306 55 336 73 42
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 1-75207-728-2 01 1 0811-0901
1 BACK ASM; SEAT 8-98135-638-0 01 1 0902-
2 COVER; TRIM,FRT SEAT,BACK 1-75127-183-1 01 1 0811-
12 CUSHION; SEAT,FRT 1-75207-006-3 01 1 0811-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75127-104-1 01 1 0811-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0811-
18 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 0811-
19 SCREW; COVER
RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 0811-
19 SCREW; COVER
EXC. RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0811-
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0811-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0811-
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 0811-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0811-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0811-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0811-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-331-3 01 1 0811-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		8-98291-646-0 01 1 1503-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0811-
228 SCREW; KNOB
(B) M4X6 		8-97042-273-0 01 1 0811-
228 SCREW; KNOB
(A) M4 		8-98062-662-0 01 1 0811-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0811-
306 NUT; SEAT ADJ
EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0811-
327 CLIP; COVER
RIGID SEAT WO/ARM REST(TAZ) 		1-09987-273-0 01 1 0811-
336 COVER; DRIVER SEAT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-313-0 01 1 0811-
542 ADJUSTER ASM; SEAT SLIDE
EXC. RIGID SEAT WO/ARM REST(TAZ) 		1-75518-283-3 01 1 0811-1502
542 ADJUSTER ASM; SEAT SLIDE
EXC. RIGID SEAT WO/ARM REST(TAZ) 		8-98291-656-0 01 1 1503-

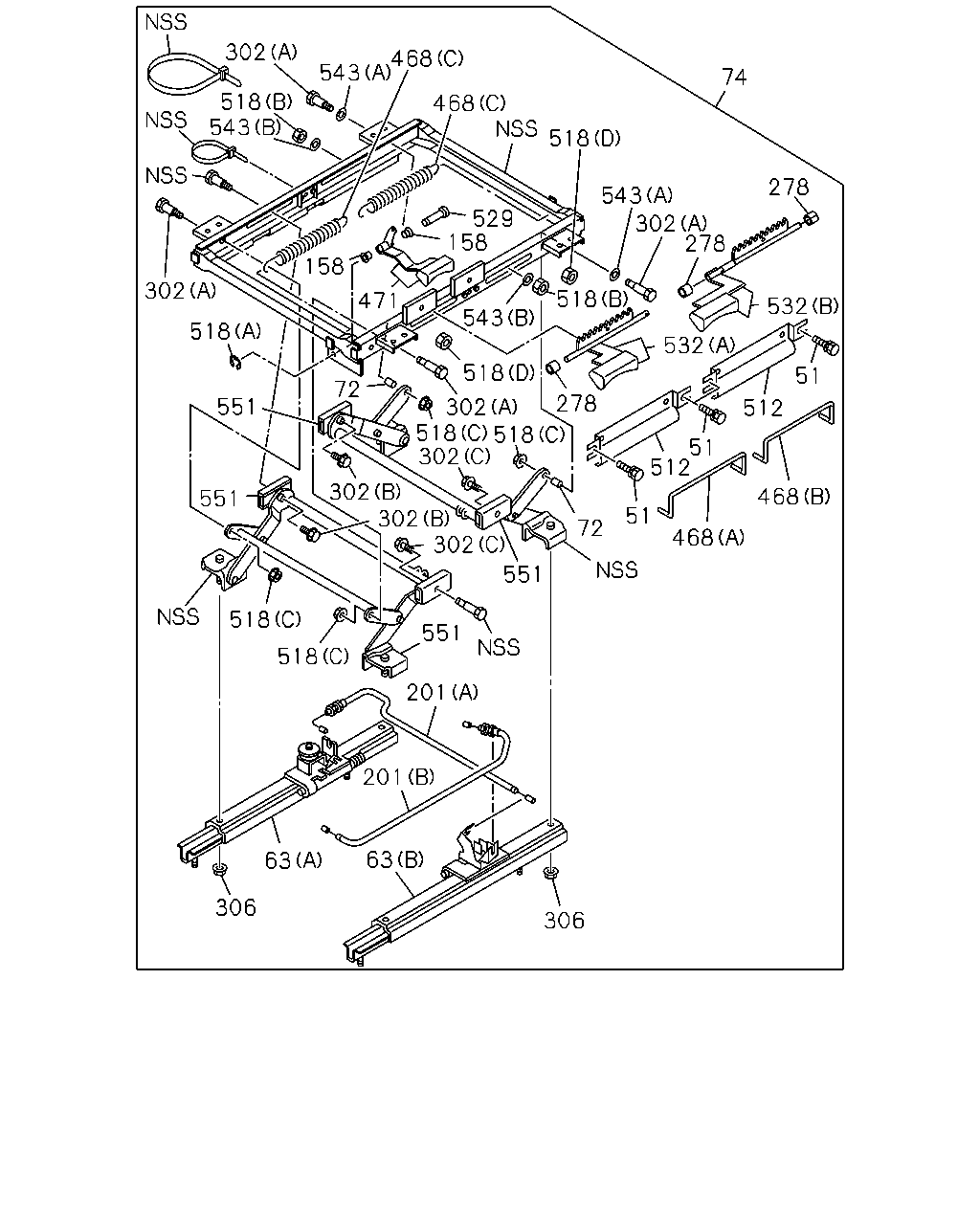

çizim 169594
302 468 543 74 518 543 468 518 278 543 302 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-325-1 04 1 0811-
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-324-0 01 1 0811-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 0811-
63 ADJUSTER; SEAT SLIDE
EXC. RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-295-1 01 1 0811-
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-334-1 02 1 0811-1502
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) 		8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-331-3 01 1 0811-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		8-98291-646-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0811-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0811-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0811-
278 COLLAR; FRT SEAT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-244-0 03 1 0811-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-266-2 02 1 0811-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-270-1 04 1 0811-1502
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-336-1 02 1 0811-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 14 1 0811-
306 NUT; SEAT ADJ
EXC. RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 12 1 0811-
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-206-0 01 1 0811-
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-207-0 01 1 0811-
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-208-0 02 1 0811-
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 0811-
512 COVER; LEVER
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-245-1 02 1 0811-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-264-0 04 1 0811-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0811-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (C) M8 FLANGE 		8-94152-886-0 04 1 0811-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0811-
529 PIN; LINK 1-75518-262-0 01 1 0811-
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-221-0 01 1 0811-
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-222-1 01 1 0811-
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-335-0 02 1 0811-1502
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) (A) 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) (B) ID=8.4 		9-09160-508-0 04 1 0811-
551 SLIDER; HEIGHT ADJ
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-265-0 04 1 0811-

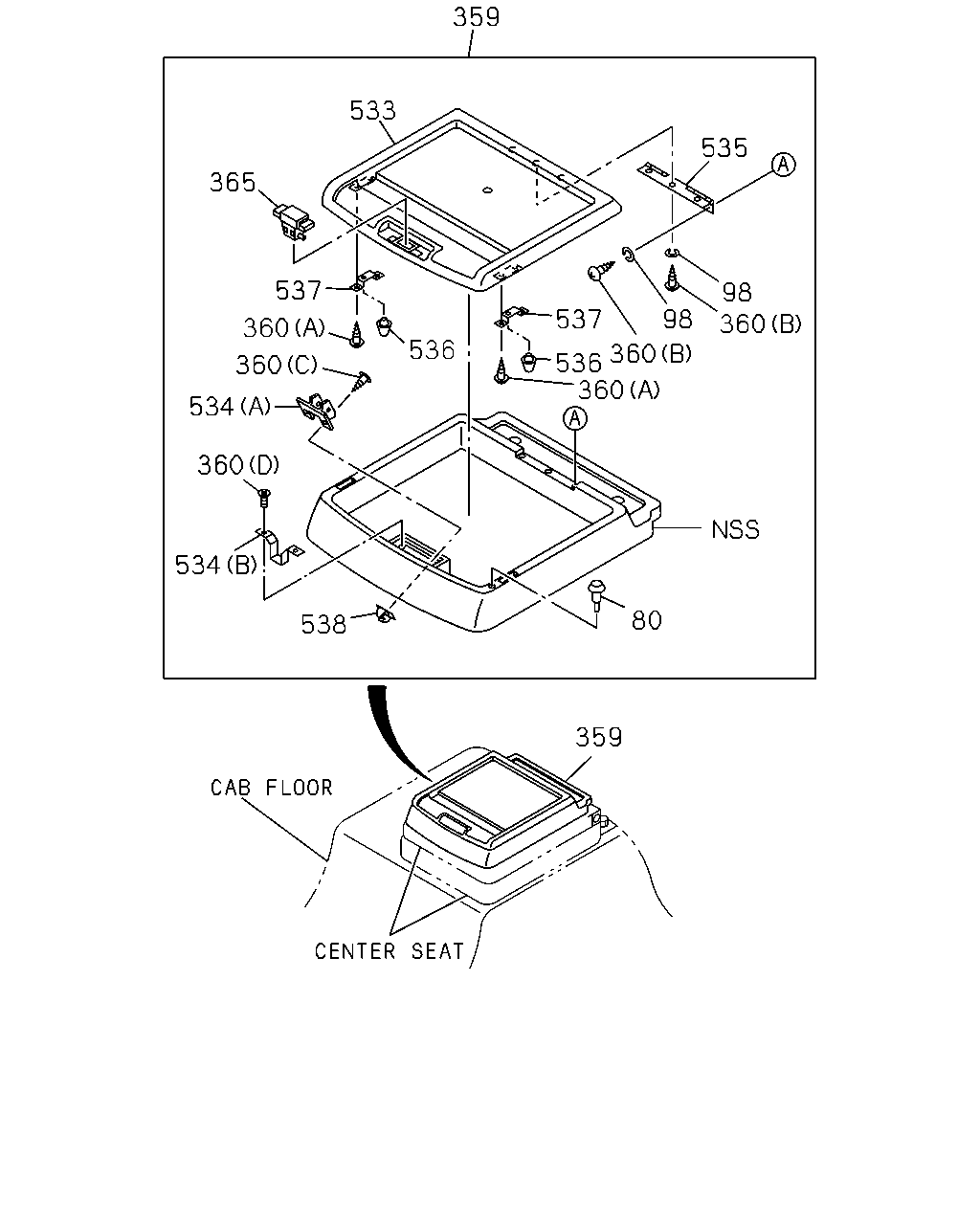

çizim 169623
359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1007-
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0811-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0811-1006
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0811-1104
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0811-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0811-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 0811-
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-1 01 1 0811-1006
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		8-98145-118-0 01 1 1007-
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (A) 		1-72538-181-0 01 1 0811-1006
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-190-0 01 1 1007-
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0811-
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0811-1006
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0811-1006
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0811-1006

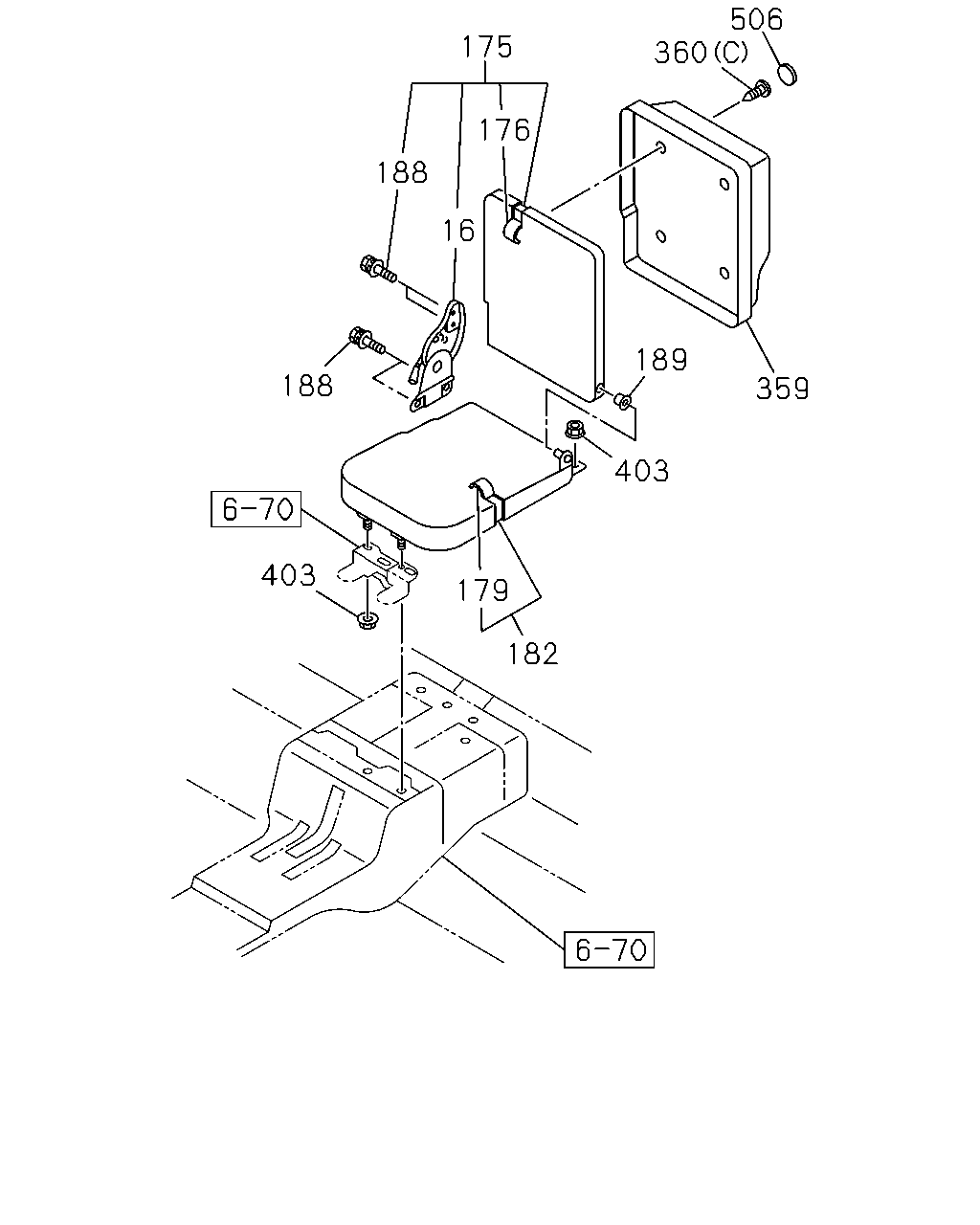

çizim 169627
506 360 175 176 188 16 189 188 359 403 403 179 182
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 0811-
175 BACK ASM; PASSENGER CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-75026-856-3 01 1 0811-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE(SP9) 		1-75116-710-1 01 1 0811-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. CENTER SEAT DELETE(SP9) 		1-75127-127-1 01 1 0811-
182 CUSHION ASM; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-75207-009-4 01 1 0811-
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0811-
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0811-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0811-1006
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0811-1104
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0811-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0811-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 04 1 0811-
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 04 1 0811-1006
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 02 1 1007-
