◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11318 - CYH MIDDLE EAST WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#55768) — 11 parça

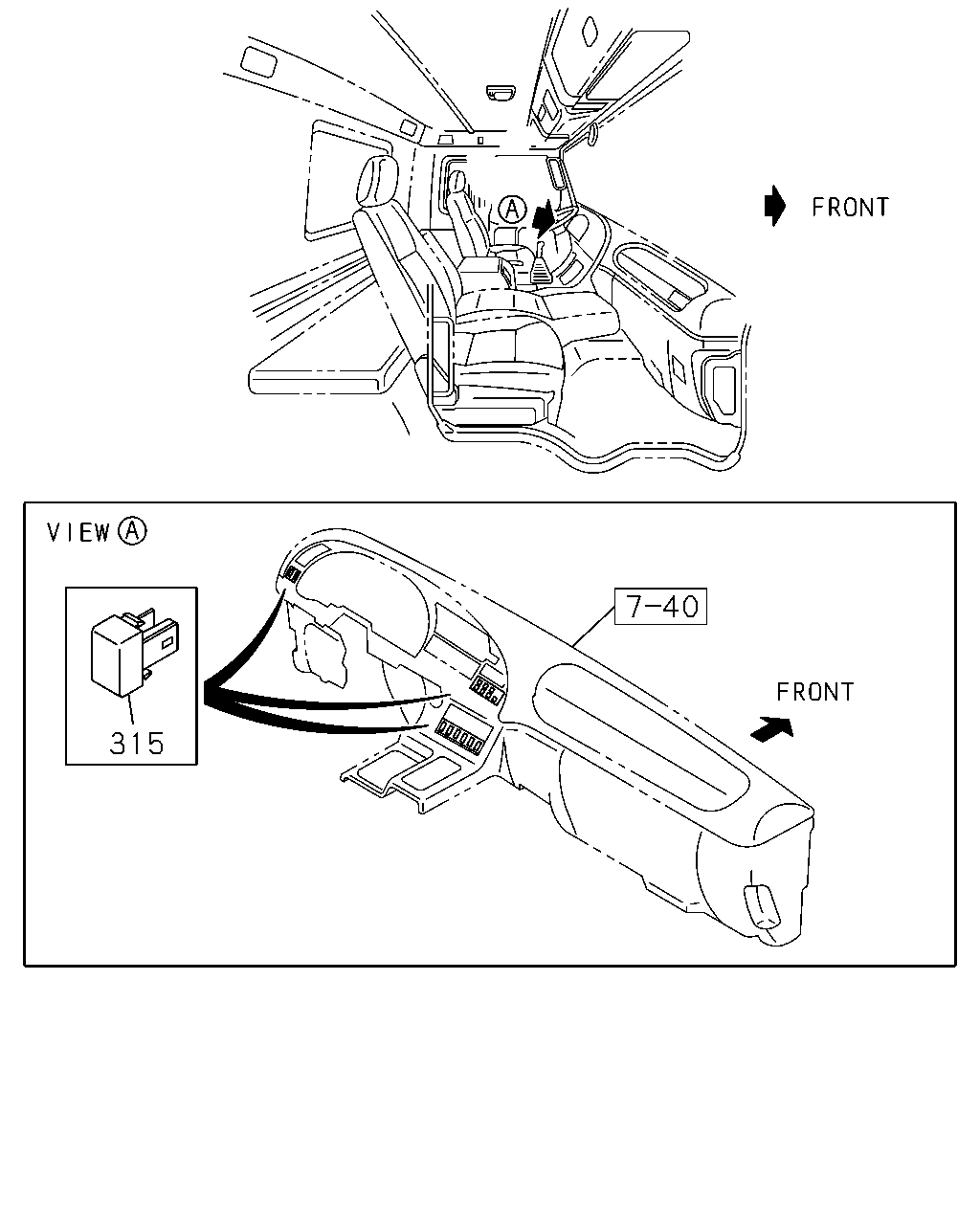

çizim 169536
315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW 1-82359-069-2 01 1 0811-
315 COVER; HOLE,SW 1-82359-069-2 01 1 0811-
315 COVER; HOLE,SW
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC>,PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82359-069-2 01 1 0811-
315 COVER; HOLE,SW
PROVISIONAL PACKAGE SPEC<BCC> 		1-82359-069-2 01 1 0811-
315 COVER; HOLE,SW
EXC. MIXER TRUCK<RA2>,CONCRETE PUMP<RA5>, TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82359-069-2 01 1 0811-
315 COVER; HOLE,SW 1-82359-069-2 01 1 0811-
315 COVER; HOLE,SW 1-82359-069-2 20 1 0811-0811
315 COVER; HOLE,SW 1-82359-069-2 09 1 0812-
çizim 169616
317 250 296
BalonParca AdiParca NoAdetTipApplied Date
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0811-
296 SEAL
OD=25 BLACK 		1-76798-019-0 03 1 0811-
317 CONSENT 1-82523-020-2 01 1 0811-0811
