◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11318 - CYH MIDDLE EAST WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#55764) — 98 parça
çizim 169527
1 2
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM 1-73117-033-1 01 1 0811-
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 0811-

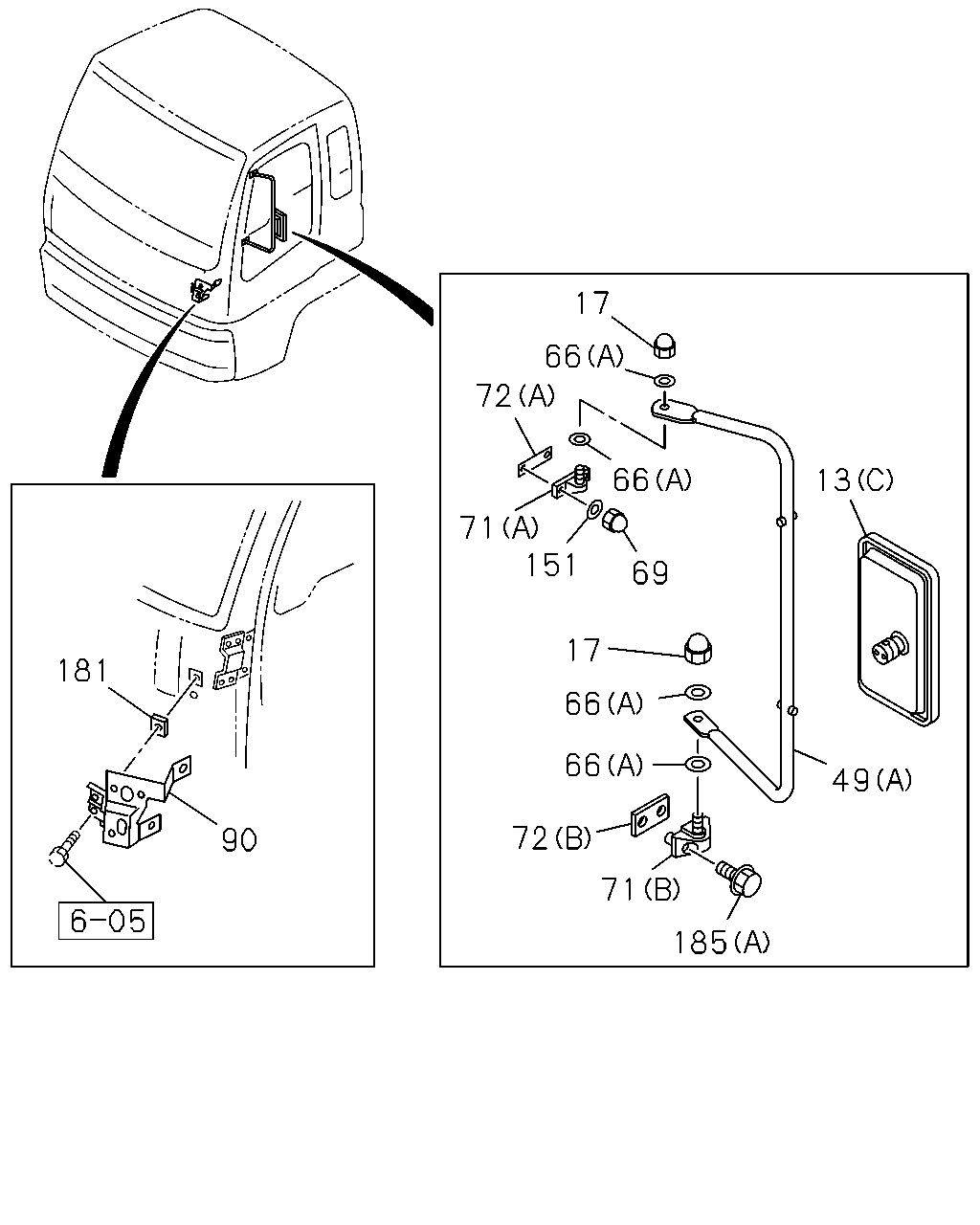

çizim 169572
17 66 72 66 13 71 151 69 17 181 66 66 49 72 90 71 185
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71707-270-0 01 1 0812-
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71798-862-1 01 1 0812-
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		8-98037-583-1 01 1 0812-
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 1106-
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 0812-1105
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1106-
49 STAY; MIRROR SIDE
(B) 		1-71707-167-1 01 1 0812-
49 STAY; MIRROR SIDE
(A) 		1-71798-868-1 01 1 0812-
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 1106-
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0811-
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 0812-1105
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1106-
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 0812-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71707-263-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 0812-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 0812-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98099-810-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 0812-1007
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98167-111-0 01 1 1008-
72 SHEET
(A) 		1-71798-487-3 02 1 0812-
72 SHEET
(B) 		1-71798-488-1 02 1 0812-
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 0811-
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0811-
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0812-
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0811-
185 BOLT; BRKT
(B) M5X16 		1-71707-259-0 02 1 0812-
185 BOLT; BRKT
(A) M8X35 FLANGE 		8-98046-876-0 04 1 0812-
çizim 169592
13 17 66 66 13 72 71 151 69 87 17 66 181 49 90 72 66 71 185
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71707-270-0 01 1 0812-
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71798-862-1 01 1 0812-
13 MIRROR ASM; OUTSIDE RR VIEW
(C) 		8-98037-583-1 01 1 0812-
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 1106-
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 0812-1105
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1106-
49 STAY; MIRROR SIDE
(B) 		1-71707-167-1 01 1 0812-
49 STAY; MIRROR SIDE
(A) 		1-71798-868-1 01 1 0812-
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 1106-
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0811-
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 0812-1105
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1106-
69 NUT; CAP
M8 CAP NUT 		8-98059-914-0 04 1 0812-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71707-263-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 0812-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 0812-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98099-810-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 0812-1007
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98167-111-0 01 1 1008-
72 SHEET
(A) 		1-71798-487-3 02 1 0812-
72 SHEET
(B) 		1-71798-488-1 02 1 0812-
87 SPACER
(A) 		1-71707-261-0 01 1 0812-
87 SPACER
(B) 		1-71737-646-2 01 1 0812-
90 BRACKET; MIRROR STAY 1-71707-237-0 01 1 0811-
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0811-
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0812-
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0811-
185 BOLT; BRKT
(B) M5X16 		1-71707-259-0 02 1 0812-
185 BOLT; BRKT
(A) M8X35 FLANGE 		8-98046-876-0 04 1 0812-
çizim 169604
58 22 116 14 116 71 71 77 163
BalonParca AdiParca NoAdetTipApplied Date
14 MIRROR ASM; OUTSIDE 1-71798-862-1 01 1 0812-
22 STAY; OUTSIDE MIRROR 1-71798-663-1 01 1 0812-
58 NUT; MIRROR STAY
M10 		1-09984-183-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71707-263-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 0812-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 0812-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98099-810-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 0812-1007
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98167-111-0 01 1 1008-
77 WASHER; PL,BRKT,STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0812-
116 WASHER; PL,STAY,MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0812-
163 NUT; MIRROR BRKT
M8 		1-09984-187-0 02 1 0812-0910
163 NUT; MIRROR BRKT
M8 CAP NUT 		8-98059-914-0 02 1 0911-
çizim 169630
17 66 66 17 66 66 66 63 29 164 99 71 66 86 87 66 17 32 164 185 21 135 30
BalonParca AdiParca NoAdetTipApplied Date
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 04 1 1106-
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 07 1 0812-1105
17 NUT; CAP,MIRROR STAY
M10 CAP NUT 		1-09984-134-0 03 1 1106-
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 0812-
29 MIRROR ASM; UNDER 1-71798-422-0 01 1 0812-
30 MIRROR; UNDER 1-71798-591-1 01 1 0812-
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 0812-
63 NUT; STAY
M8 		1-09984-187-0 02 1 0811-
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 1106-
66 WASHER; PL
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0811-
66 WASHER; PL
(A) ID=10.5 OD=26 T=2.6 		1-09985-184-0 14 1 0812-1105
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 06 1 1106-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71707-263-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-484-1 02 1 0812-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-486-2 02 1 0812-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98099-810-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98099-811-0 01 1 0812-1007
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98167-111-0 01 1 1008-
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-649-1 01 1 0812-
87 SPACER
(A) 		1-71707-261-0 01 1 0812-
87 SPACER
(B) 		1-71737-646-2 01 1 0812-
99 STAY; MAIN UNDER MIRROR 1-71707-265-1 01 1 0812-
135 LENS; MIRROR,SIDE UNDER 1-71798-838-0 01 1 0812-
164 STAY; ROOF
(A) 		1-71707-264-0 01 1 0812-
164 STAY; ROOF
(B) 		1-71707-267-0 01 1 0812-
185 BOLT; BRKT
(B) M5X16 		1-71707-259-0 02 1 0812-
185 BOLT; BRKT
(A) M8X35 FLANGE 		8-98046-876-0 04 1 0812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
