◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11318 - CYH MIDDLE EAST WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#55763) — 18 parça

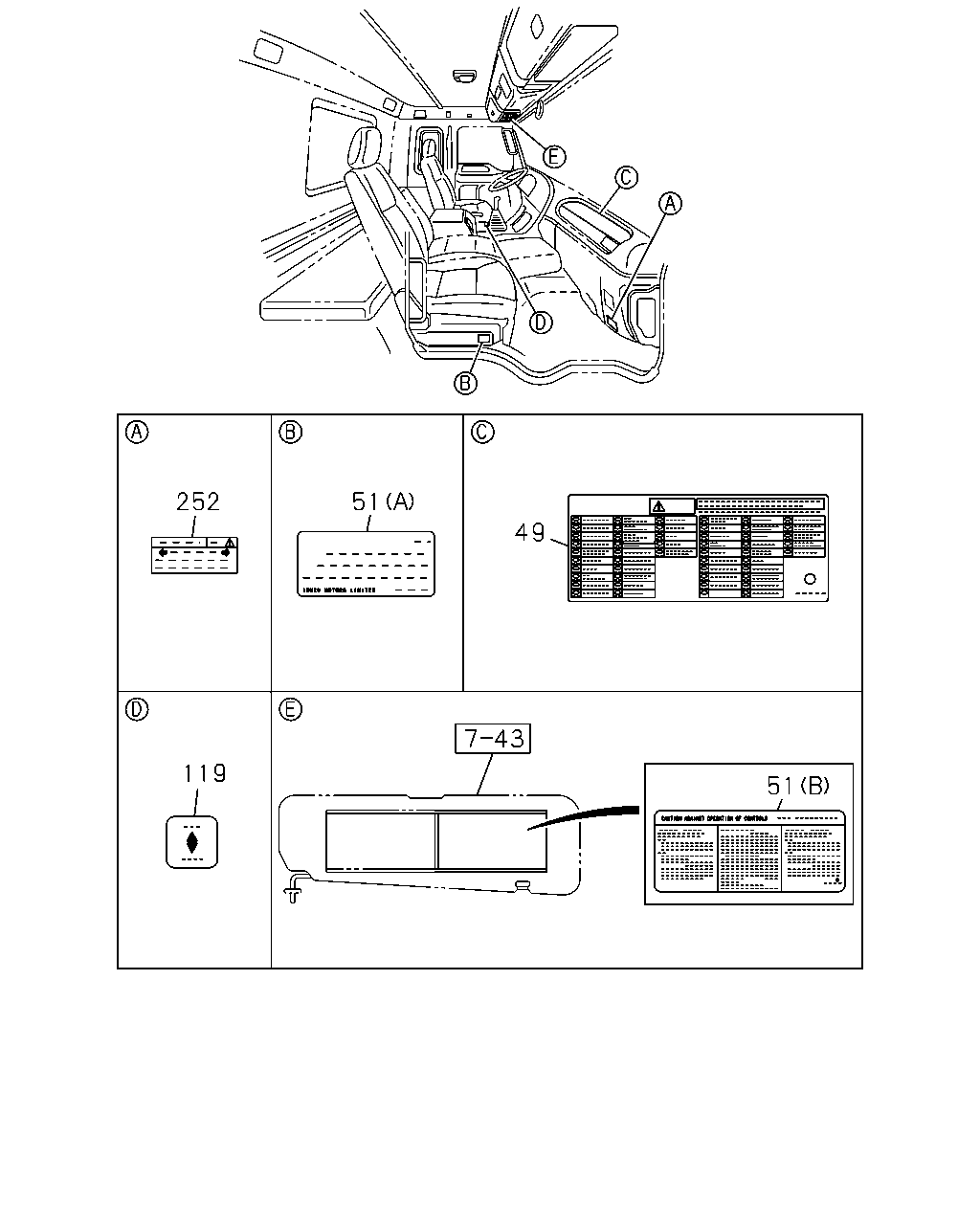

çizim 169526
252 51 49 119 51
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX 8-97624-086-0 01 1 0812-
51 PLATE; CAUTION,WARNING
(B) 		1-85880-787-0 01 1 0812-
51 PLATE; CAUTION,WARNING
(A) 		8-97624-052-0 01 1 0812-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-979-0 01 1 0812-
252 PLATE; CAUTION,HARNESS 8-97623-996-0 01 1 0905-
çizim 169540
181 181 162
BalonParca AdiParca NoAdetTipApplied Date
162 PLATE; CAUTION,FUEL 8-98083-160-0 01 1 0812-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0811-
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 0811-
çizim 169542
4 4 5 289
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(B) 		8-98088-627-0 01 1 0812-
4 LABEL; ENG MAINTENANCE
(A) 		8-98088-630-0 01 1 0812-
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0811-
289 PLATE; CAUTION,DRIVING 8-98093-472-0 01 1 0812-
çizim 169588
60 263 260
BalonParca AdiParca NoAdetTipApplied Date
60 PLATE; CAUTION,CAB TILT 1-85883-174-0 01 1 0811-0811
60 PLATE; CAUTION,CAB TILT 1-85883-181-0 01 1 0812-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0811-
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> 		8-98094-561-0 01 1 0812-
çizim 169631
6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-98082-437-0 01 1 0811-0811
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-98082-441-0 01 1 0812-
