2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#5576) — 130 parça

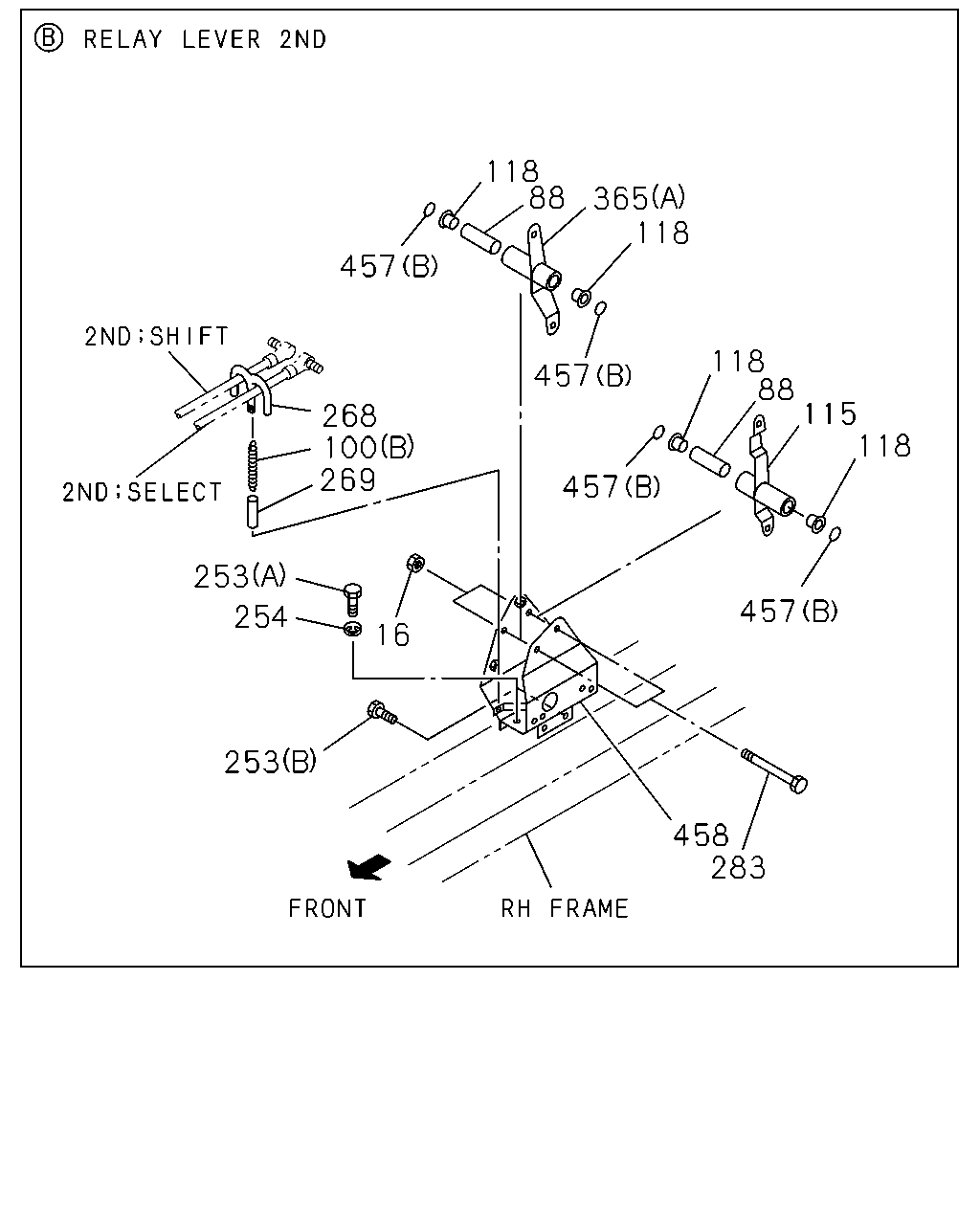

çizim 39029
118 88 365 118 457 118 88 115 118 457 268 100 269 457 253 457 254 16 253 458 283
BalonParca AdiParca NoAdetTipApplied Date A B
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9603-9904 ● ●
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9905- ● ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9603-9904 ● ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9905- ● ●
100 SPRING
L TYPE ENG<90L> (B) 		1-09583-218-0 01 1 9603-9904 ●
100 SPRING
L TYPE ENG<90L> (B) 		1-09583-351-0 01 1 9905- ●
100 SPRING
L TYPE ENG<90L> (A) 		1-09583-319-0 01 1 9603-9904 ●
100 SPRING
L TYPE ENG<90L> (A) 		1-09583-319-0 01 1 9905- ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9603-9904 ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9905- ● ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9603-9904 ● ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9905- ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 9603-9904 ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 9905- ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9603-9606 ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9607-9904 ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9905- ● ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 9603-9904 ● ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 9905- ● ●
268 BRACKET; LINK ROD
L TYPE ENG<90L> 		1-33657-216-0 01 1 9603-9904 ●
268 BRACKET; LINK ROD
L TYPE ENG<90L> 		1-33657-216-0 01 1 9905- ●
269 COVER; SPR
L TYPE ENG<90L> 		1-15669-002-0 01 1 9603-9904 ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9603-9904 ● ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9905- ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-665-0 01 1 9603-9904 ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-665-0 01 1 9905- ● ●
365 LEVER; RELAY,SELECT
V TYPE ENG<91L> (A) 		1-33651-627-1 01 1 9603-9904 ● ●
365 LEVER; RELAY,SELECT
V TYPE ENG<91L> (A) 		1-33651-627-1 01 1 9905- ● ●
365 LEVER; RELAY,SELECT
L TYPE ENG<90L> (A) 		1-33651-628-1 01 1 9603-9904 ●
365 LEVER; RELAY,SELECT
L TYPE ENG<90L> (A) 		1-33651-628-1 01 1 9905- ●
457 GASKET
(B) 		1-09623-594-0 04 1 9603-9904 ● ●
457 GASKET
(B) 		1-09623-594-0 04 1 9905- ● ●
458 BRACKET; 2ND RELAY LEVER
V TYPE ENG<91L> 		1-33657-572-2 01 1 9603-9904 ● ●
458 BRACKET; 2ND RELAY LEVER
V TYPE ENG<91L> 		1-33657-572-2 01 1 9905- ● ●
458 BRACKET; 2ND RELAY LEVER
L TYPE ENG<90L> 		1-33657-573-2 01 1 9603-9904 ●
458 BRACKET; 2ND RELAY LEVER
L TYPE ENG<90L> 		1-33657-583-1 01 1 9905- ●

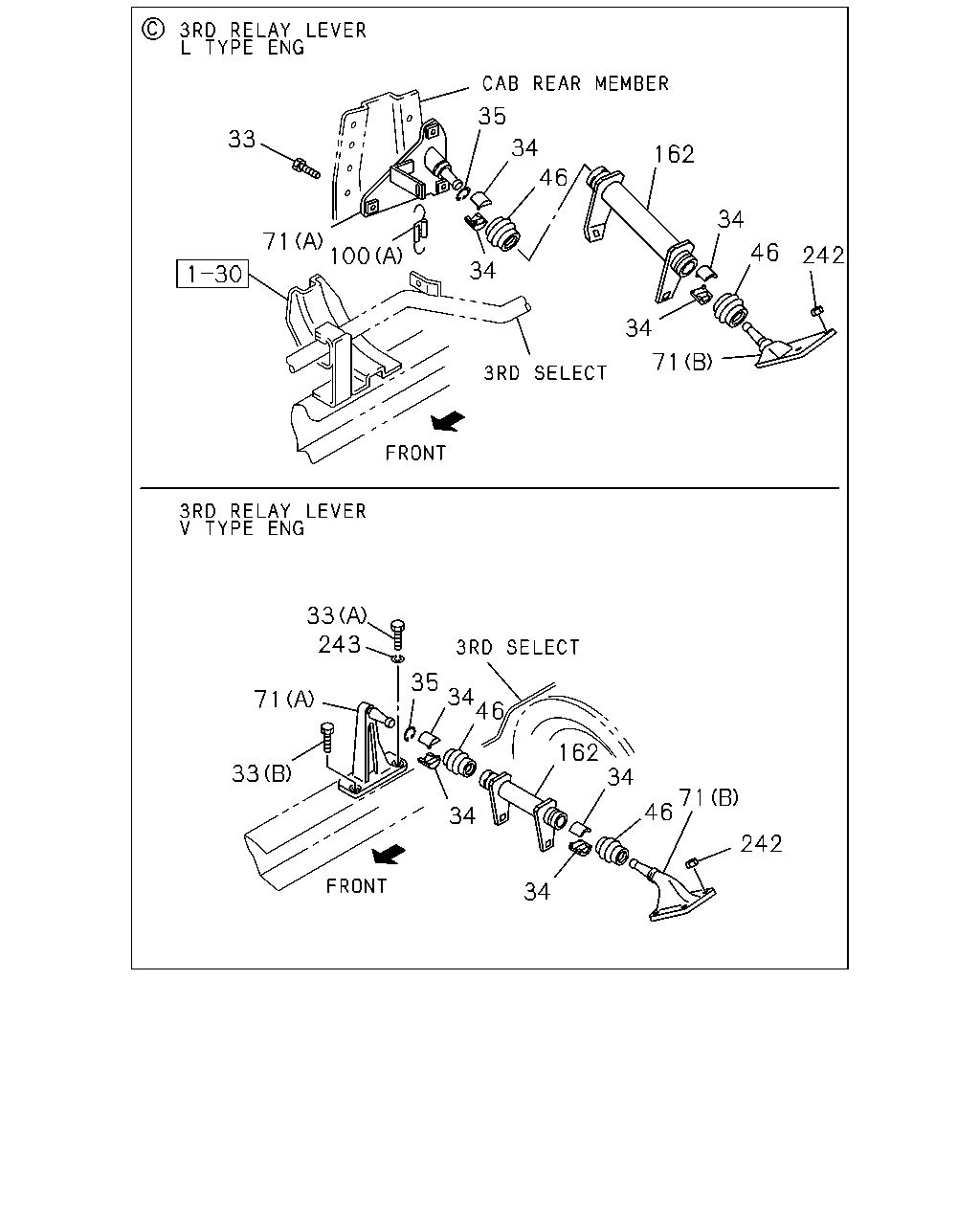

çizim 40785
35 33 34 162 46 34 71 100 46 242 34 34 71 33 243 35 34 46 71 162 34 33 71 46 34 242 34
BalonParca AdiParca NoAdetTipApplied Date A B
33 BOLT; BRKT,3RD RELAY LEVER
V TYPE ENG<91L> (A) M14X45 		0-20801-445-0 01 1 9603-9904 ● ●
33 BOLT; BRKT,3RD RELAY LEVER
V TYPE ENG<91L> (A) M14X45 		0-20801-445-0 01 1 9905- ● ●
33 BOLT; BRKT,3RD RELAY LEVER
V TYPE ENG<91L> (B) M10X40 W/LK WASHER 		0-50041-040-0 01 1 9603-9904 ● ●
33 BOLT; BRKT,3RD RELAY LEVER
V TYPE ENG<91L> (B) M10X40 W/LK WASHER 		0-50041-040-0 01 1 9905- ● ●
33 BOLT; BRKT,3RD RELAY LEVER
L TYPE ENG<90L> M10X30 W/LK WASHER 		0-50041-030-0 03 1 9603-9606 ●
33 BOLT; BRKT,3RD RELAY LEVER
L TYPE ENG<90L> M10X30 FLANGE 		0-28681-030-0 03 1 9607-9904 ●
33 BOLT; BRKT,3RD RELAY LEVER
L TYPE ENG<90L> M10X30 FLANGE 		0-28681-030-0 03 1 9905- ●
34 SEAT; BALL,RELAY LEVER
V TYPE ENG<91L> 		1-33659-118-0 04 1 9603-9904 ● ●
34 SEAT; BALL,RELAY LEVER
V TYPE ENG<91L> 		1-33659-118-0 04 1 9905- ● ●
34 SEAT; BALL,RELAY LEVER
L TYPE ENG<90L> 		1-33659-165-0 04 1 9603-9904 ●
34 SEAT; BALL,RELAY LEVER
L TYPE ENG<90L> 		1-33659-165-0 04 1 9905- ●
35 RING; SNAP,RELAY LEVER
10PE1S(60L) OD=23.5 		9-09180-122-0 01 1 9603-9904 ● ●
35 RING; SNAP,RELAY LEVER
V TYPE ENG<91L> OD=23.5 		9-09180-122-0 01 1 9905- ● ●
35 RING; SNAP,RELAY LEVER
L TYPE ENG<90L> OD=34.4 		9-09180-132-0 01 1 9603-9904 ●
35 RING; SNAP,RELAY LEVER
L TYPE ENG<90L> OD=34.4 		9-09180-132-0 01 1 9905- ●
46 SEAL; DUST,RELAY LEVER
V TYPE ENG<91L> 		1-33659-172-0 02 1 9603-9904 ● ●
46 SEAL; DUST,RELAY LEVER
V TYPE ENG<91L> 		1-33659-172-0 02 1 9905- ● ●
46 SEAL; DUST,RELAY LEVER
L TYPE ENG<90L> 		1-33659-166-0 02 1 9603-9904 ●
46 SEAL; DUST,RELAY LEVER
L TYPE ENG<90L> 		1-33659-166-0 02 1 9905- ●
71 BRACKET; 3RD RELAY LEVER,FRAME
10PE1S(60L) (B) 		1-33657-188-0 01 1 9603-9904 ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
V TYPE ENG<91L> (B) 		1-33657-188-0 01 1 9905- ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
10PE1S(60L) (A) 		1-33657-568-0 01 1 9603-9904 ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
V TYPE ENG<91L> (A) 		1-33657-568-0 01 1 9905- ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
L TYPE ENG<90L> (B) 		1-33657-481-0 01 1 9603-9904 ●
71 BRACKET; 3RD RELAY LEVER,FRAME
L TYPE ENG<90L> (B) 		1-33657-481-0 01 1 9905- ●
71 BRACKET; 3RD RELAY LEVER,FRAME
L TYPE ENG<90L> (A) 		1-33657-512-0 01 1 9603-9904 ●
71 BRACKET; 3RD RELAY LEVER,FRAME
L TYPE ENG<90L> (A) 		1-33657-512-0 01 1 9905- ●
100 SPRING
L TYPE ENG<90L> (B) 		1-09583-218-0 01 1 9603-9904 ●
100 SPRING
L TYPE ENG<90L> (B) 		1-09583-351-0 01 1 9905- ●
100 SPRING
L TYPE ENG<90L> (A) 		1-09583-319-0 01 1 9603-9904 ●
100 SPRING
L TYPE ENG<90L> (A) 		1-09583-319-0 01 1 9905- ●
162 LEVER; RELAY
L TYPE ENG<90L> 		1-33651-625-0 01 1 9603- ● ●
162 LEVER; RELAY
V TYPE ENG<91L> 		1-33651-622-1 01 1 9603-0103 ● ●
162 LEVER; RELAY
V TYPE ENG<91L> 		1-33651-806-0 01 1 0104- ● ●
242 NUT; FLANGE 3RD RELAY LEVER
V TYPE ENG<91L> M8 FLANGE 		5-09440-005-0 04 1 9603-9904 ● ●
242 NUT; FLANGE 3RD RELAY LEVER
V TYPE ENG<91L> M8 FLANGE 		5-09440-005-0 04 1 9905- ● ●
242 NUT; FLANGE 3RD RELAY LEVER
L TYPE ENG<90L> M12 FLANGE 		0-91150-212-0 03 1 9603-9904 ●
242 NUT; FLANGE 3RD RELAY LEVER
L TYPE ENG<90L> M12 FLANGE 		0-91150-212-0 03 1 9905- ●
243 WASHER; LK,BRKT
V TYPE ENG<91L> ID=14.2 		9-09150-614-0 01 1 9603-9904 ● ●
243 WASHER; LK,BRKT
V TYPE ENG<91L> ID=14.2 		9-09150-614-0 01 1 9905- ● ●

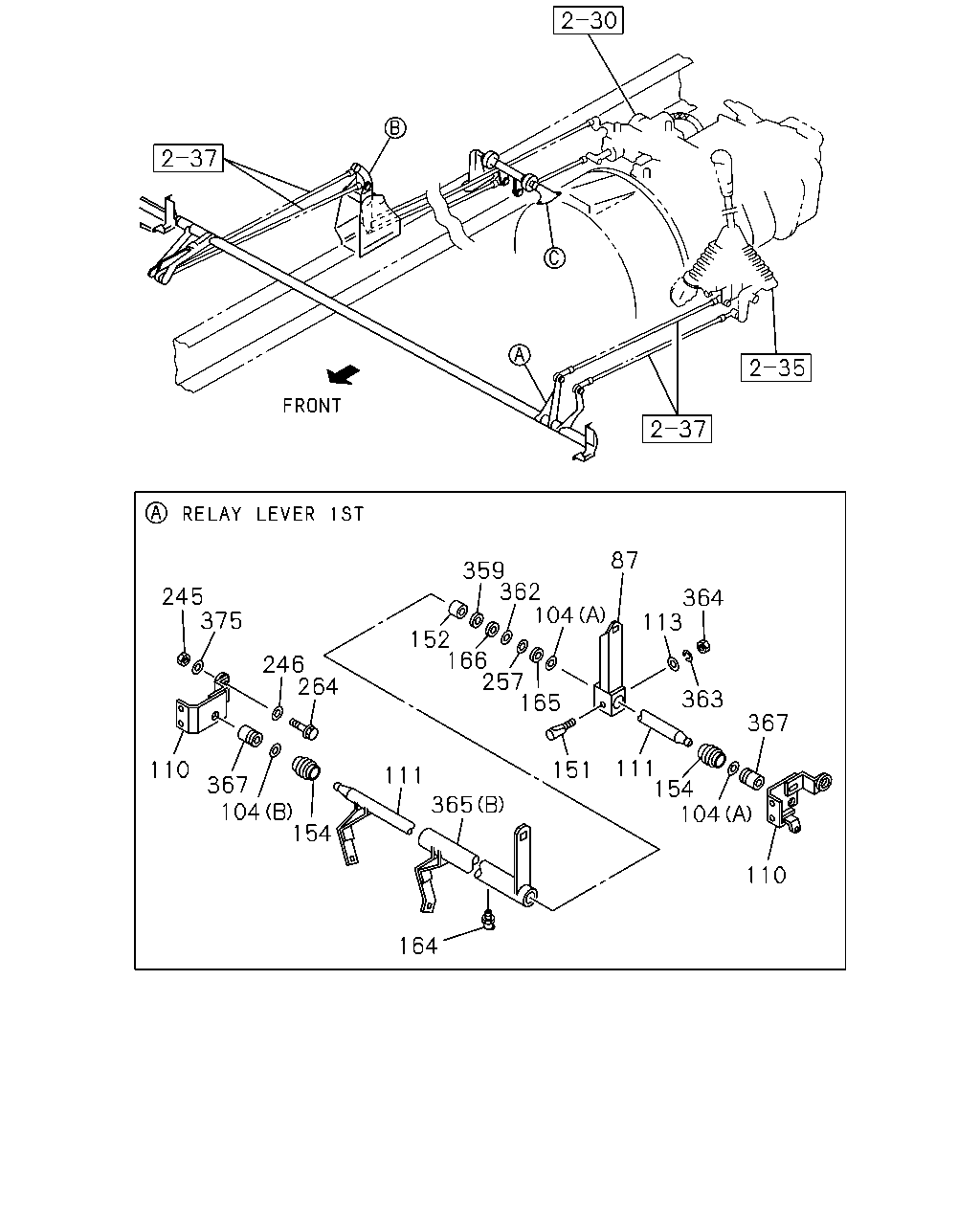

çizim 42262
87 359 362 104 245 375 364 113 152 166 257 165 246 264 363 367 111 154 104 110 151 111 367 104 154 365 110 164
BalonParca AdiParca NoAdetTipApplied Date A B
87 LEVER; RELAY,SELECT 1-33651-666-0 01 1 9603-9904 ● ●
87 LEVER; RELAY,SELECT 1-33651-666-0 01 1 9905- ● ●
104 RING; SNAP
(A) ID=32.2 		9-09180-035-0 02 1 9603-9904 ● ●
104 RING; SNAP
(A) ID=32.2 		9-09180-035-0 02 1 9905- ● ●
104 RING; SNAP
(B) OD=23.5 		9-09180-122-0 01 1 9603-9904 ● ●
104 RING; SNAP
(B) OD=23.5 		9-09180-122-0 01 1 9905- ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-617-0 01 1 9603-9904 ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-617-0 01 1 9905- ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-618-0 01 1 9603-9904 ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-618-0 01 1 9905- ● ●
111 SHAFT; RELAY LEVER,1ST 1-33659-200-0 01 1 9603-9904 ● ●
111 SHAFT; RELAY LEVER,1ST 1-33659-200-0 01 1 9905- ● ●
113 WASHER; RELAY LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9603-9904 ● ●
113 WASHER; RELAY LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9905- ● ●
151 BOLT; KEY,RELAY LEVER 1-33659-063-0 01 1 9603-9904 ● ●
151 BOLT; KEY,RELAY LEVER 1-33659-063-0 01 1 9905- ● ●
152 BEARING; NEEDLE,RELAY LEVER 1-09811-328-0 02 1 9603-9904 ● ●
152 BEARING; NEEDLE,RELAY LEVER 1-09811-328-0 02 1 9905- ● ●
154 COVER; DUST,RELAY LEVER 1-33659-068-0 02 1 9603-9904 ● ●
154 COVER; DUST,RELAY LEVER 1-33659-068-0 02 1 9905- ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9603-9904 ● ●
164 NIPPLE; GREASE,RELAY LEVER,SHIFT ROD
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 9905- ● ●
165 WASHER; RELAY LEVER 1-09503-148-0 AR 1 9603-9904 ● ●
165 WASHER; RELAY LEVER 1-09503-148-0 AR 1 9905- ● ●
166 WASHER; NYLON,RELAY LEVER 1-09509-040-0 02 1 9603-9904 ● ●
166 WASHER; NYLON,RELAY LEVER 1-09509-040-0 02 1 9905- ● ●
245 NUT; BRKT,RELAY LEVER
M10 		1-09984-142-0 02 1 9603-9904 ● ●
245 NUT; BRKT,RELAY LEVER
M10 		1-09984-142-0 02 1 9905- ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 02 1 9603-9904 ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 02 1 9905- ● ●
257 PIECE; DIST,RELAY LEVER 1-09503-198-0 AR 1 9603-9904 ● ●
257 PIECE; DIST,RELAY LEVER 1-09503-198-0 AR 1 9905- ● ●
264 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 02 1 9603-9904 ● ●
264 BOLT; BRKT,RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 02 1 9905- ● ●
264 BOLT; BRKT,RELAY LEVER
M10X100 		1-09980-547-0 02 1 9603-9904 ● ●
264 BOLT; BRKT,RELAY LEVER
M10X100 		1-09980-547-0 02 1 9905- ● ●
359 SEAL; RUBBER,RELAY LEVER 1-09625-005-1 02 1 9603-9904 ● ●
359 SEAL; RUBBER,RELAY LEVER 1-09625-005-1 02 1 9905- ● ●
362 SHIM 1-09503-172-0 AR 1 9603-9904 ● ●
362 SHIM 1-09503-172-0 AR 1 9905- ● ●
363 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 01 1 9603-9904 ● ●
363 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 01 1 9905- ● ●
364 NUT; KEY BOLT
M10 		9-09111-410-0 01 1 9603-9904 ● ●
364 NUT; KEY BOLT
M10 		9-09111-410-0 01 1 9905- ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-665-0 01 1 9603-9904 ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-665-0 01 1 9905- ● ●
365 LEVER; RELAY,SELECT
V TYPE ENG<91L> (A) 		1-33651-627-1 01 1 9603-9904 ● ●
365 LEVER; RELAY,SELECT
V TYPE ENG<91L> (A) 		1-33651-627-1 01 1 9905- ● ●
365 LEVER; RELAY,SELECT
L TYPE ENG<90L> (A) 		1-33651-628-1 01 1 9603-9904 ●
365 LEVER; RELAY,SELECT
L TYPE ENG<90L> (A) 		1-33651-628-1 01 1 9905- ●
367 SEAT; BALL,CONT SHAFT 1-33659-053-0 04 1 9603-9904 ● ●
367 SEAT; BALL,CONT SHAFT 1-33659-053-0 04 1 9905- ● ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 9603-9904 ● ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 9905- ● ●
