2-35B — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#5575) — 50 parça

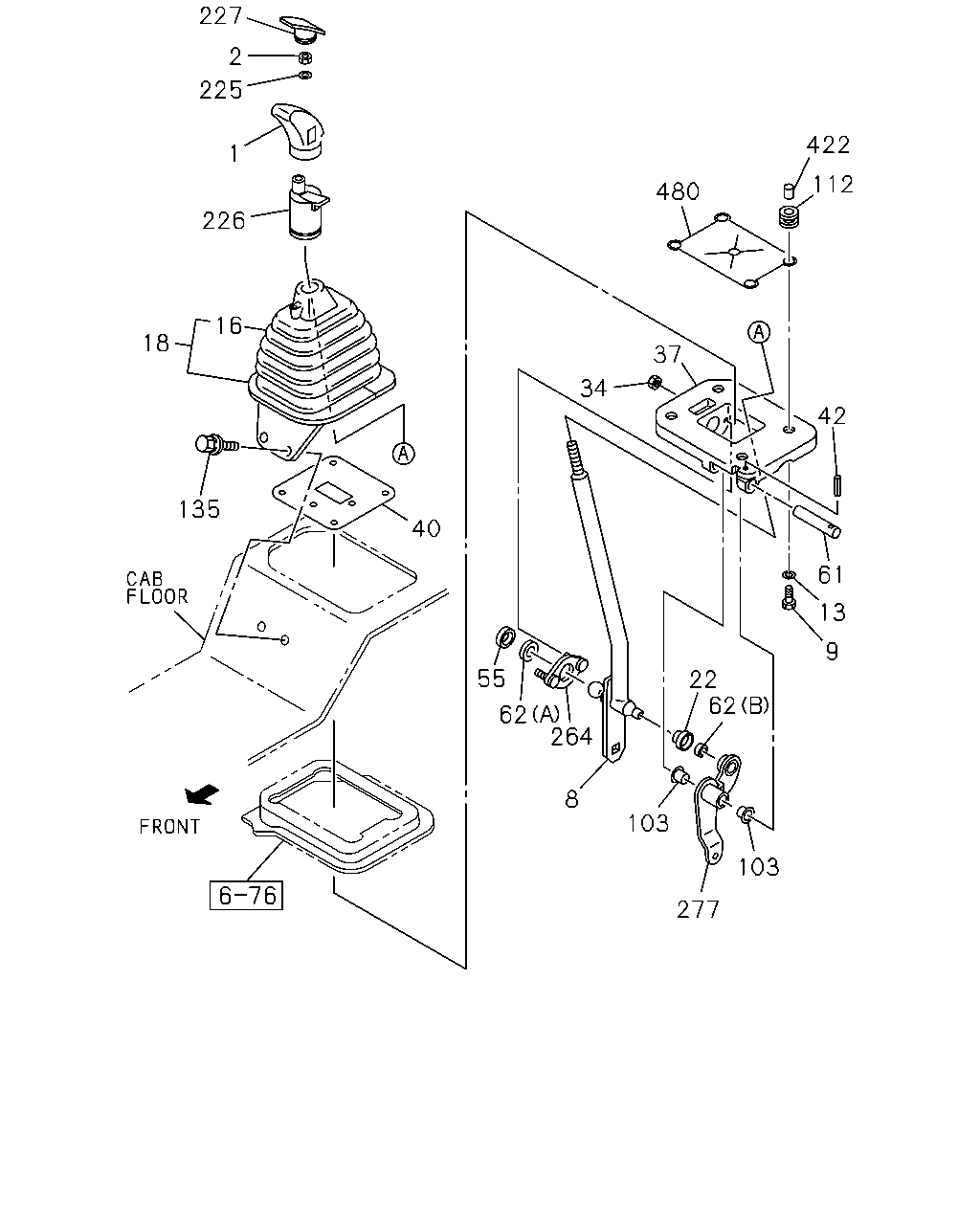

çizim 38919
227 2 225 422 1 112 480 226 16 18 37 34 42 135 40 61 13 9 55 22 62 62 264 8 103 103 277
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-038-0 01 1 9603- ●
1 KNOB; CHANGE LEVER 1-33611-090-0 01 1 9905- ●
2 NUT; KNOB
M10 FLANGE 		0-91150-110-0 01 1 9603-9608 ●
2 NUT; KNOB
M10 FLANGE 		0-91150-210-0 01 1 9609- ●
8 LEVER; CHANGE 1-33613-345-0 01 1 9603- ●
9 BOLT; CHANGE LEVER
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9603-9807 ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9808-9904 ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9905- ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9603-9904 ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9905- ● ●
16 BOOT; CHANGE LEVER 1-79996-368-0 01 1 9905- ●
16 BOOT; CHANGE LEVER 1-79996-369-0 01 1 9603- ●
18 BOOT; CHANGE LEVER 1-79996-436-2 01 1 9905- ●
18 BOOT; CHANGE LEVER 1-79996-300-2 01 1 9603-9702 ●
18 BOOT; CHANGE LEVER 1-79996-366-2 01 1 9703-9904 ●
18 BOOT; CHANGE LEVER 1-79996-401-0 01 1 9905- ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9610-9904 ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9905- ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9603-9904 ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9905- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9603-9904 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9905- ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9905- ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9603-9904 ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9905- ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9603-9904 ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9905- ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9603-9904 ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9905- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9603-9904 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9905- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9603-9904 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9905- ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9603-9904 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9905- ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9603-9904 ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9905- ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9603-9904 ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905- ● ●
225 WASHER; PL,KNOB
ID=10.5 OD=22 		9-09160-610-0 01 1 9603- ●
226 VALVE; SELECTOR 1-33710-006-0 01 1 9603-0004 ●
226 VALVE; SELECTOR 1-33710-008-0 01 1 0005- ●
227 COVER; KNOB 1-33619-219-0 01 1 9603- ●
264 PLATE; COVER 1-33619-469-0 01 1 9603-9904 ●
264 PLATE; COVER 1-33619-469-0 01 1 9905- ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9603-9904 ●
277 LEVER; RELAY 1-33651-636-0 01 1 9905- ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9603-9904 ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9905- ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 9905- ● ●
