◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#55725) — 47 parça

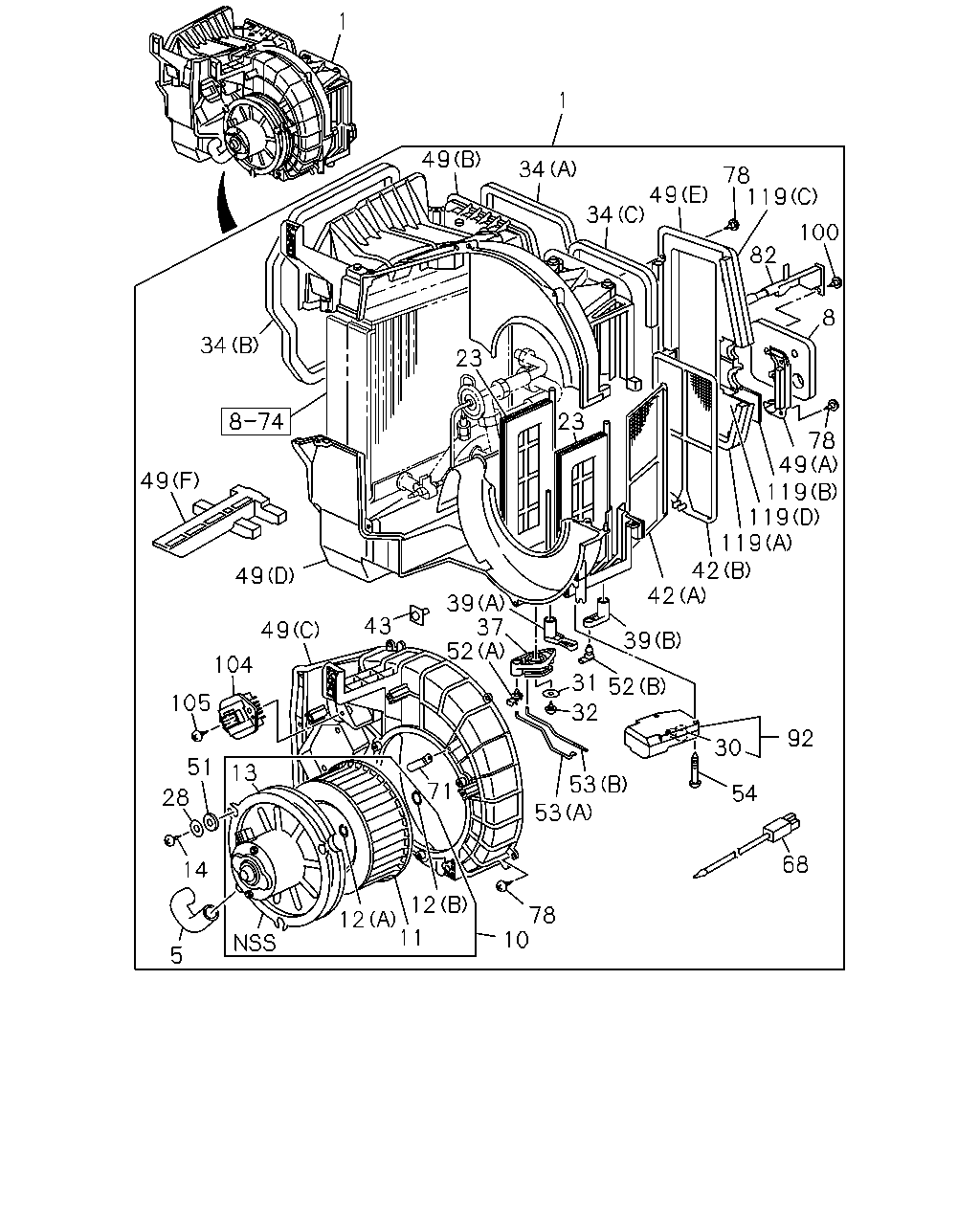

çizim 167562
1 1 49 34 78 119 49 34 100 82 8 34 23 23 78 49 119 119 119 42 42 49 49 39 37 52 43 49 39 104 31 52 105 32 92 30 51 13 53 53 71 54 28 68 14 12 78 10 12 11 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM 1-83561-183-2 01 1 1008- ● ●
5 HOSE; AIR 1-83563-147-0 01 1 1008- ● ●
8 SEAL; BLOWER UNIT 1-83539-261-1 01 1 1008- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-164-0 01 1 1008- ● ●
11 IMPELLER; FAN MOTOR 1-83579-796-0 01 1 1008- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 1008- ● ●
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 1008- ● ●
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 1008- ● ●
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 03 1 1008- ● ●
23 SHUTTER; BLOWER UNIT 1-83579-797-0 02 1 1008- ● ●
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 1008- ● ●
30 LEVER; ACTUATOR 1-83564-345-1 01 1 1008- ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 1008- ● ●
32 SCREW; LEVER
M5X20 		9-09829-324-1 01 1 1008- ● ●
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 1008- ● ●
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 1008- ● ●
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 1008- ● ●
37 LEVER; MODE LEVER 1-83564-375-0 01 1 1008- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-373-0 01 1 1008- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-374-0 01 1 1008- ● ●
42 FILTER; BLOWER UNIT
(B) 		1-83579-800-1 01 1 1008- ● ●
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 1008- ● ●
43 BOLT; CASE 1-83579-657-2 04 1 1008- ● ●
49 CASE; BLOWER UNIT
(B) 		1-83564-368-0 01 1 1008- ● ●
49 CASE; BLOWER UNIT
(C) 		1-83564-370-0 01 1 1008- ● ●
49 CASE; BLOWER UNIT
(E) 		1-83564-371-0 01 1 1008- ● ●
49 CASE; BLOWER UNIT
(A) 		1-83564-372-0 01 1 1008- ● ●
49 CASE; BLOWER UNIT
(D) 		1-83564-378-0 01 1 1008- ● ●
49 CASE; BLOWER UNIT
(F) 		8-97500-034-0 01 1 1008- ● ●
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 1008- ● ●
52 CLIP; LEVER TO CASE
(A) 		1-83574-136-0 01 1 1008- ● ●
52 CLIP; LEVER TO CASE
(B) 		8-94248-794-0 01 1 1008- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 1008- ● ●
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-799-0 01 1 1008- ● ●
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 1008- ● ●
68 THERMOSTAT; BLOWER UNIT 1-83544-026-1 01 1 1008- ● ●
71 CLIP; HARNESS 8-97096-145-0 01 1 1008- ● ●
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 18 1 1008- ● ●
82 BRACKET; BLOWER UNIT 1-83571-932-0 01 1 1008- ● ●
92 ACTUATOR; BLOWER UNIT 1-83579-798-1 01 1 1008- ● ●
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 1008- ● ●
104 RESISTOR; BLOWER UNIT 1-83519-093-0 01 1 1008- ● ●
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 1008- ● ●
119 LINING; CASE
(C) 		1-83579-670-1 01 1 1008- ● ●
119 LINING; CASE
(A) 		1-83579-671-1 01 1 1008- ● ●
119 LINING; CASE
(B) 		1-83579-672-0 01 1 1008- ● ●
119 LINING; CASE
(D) 		1-83579-795-0 01 1 1008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
