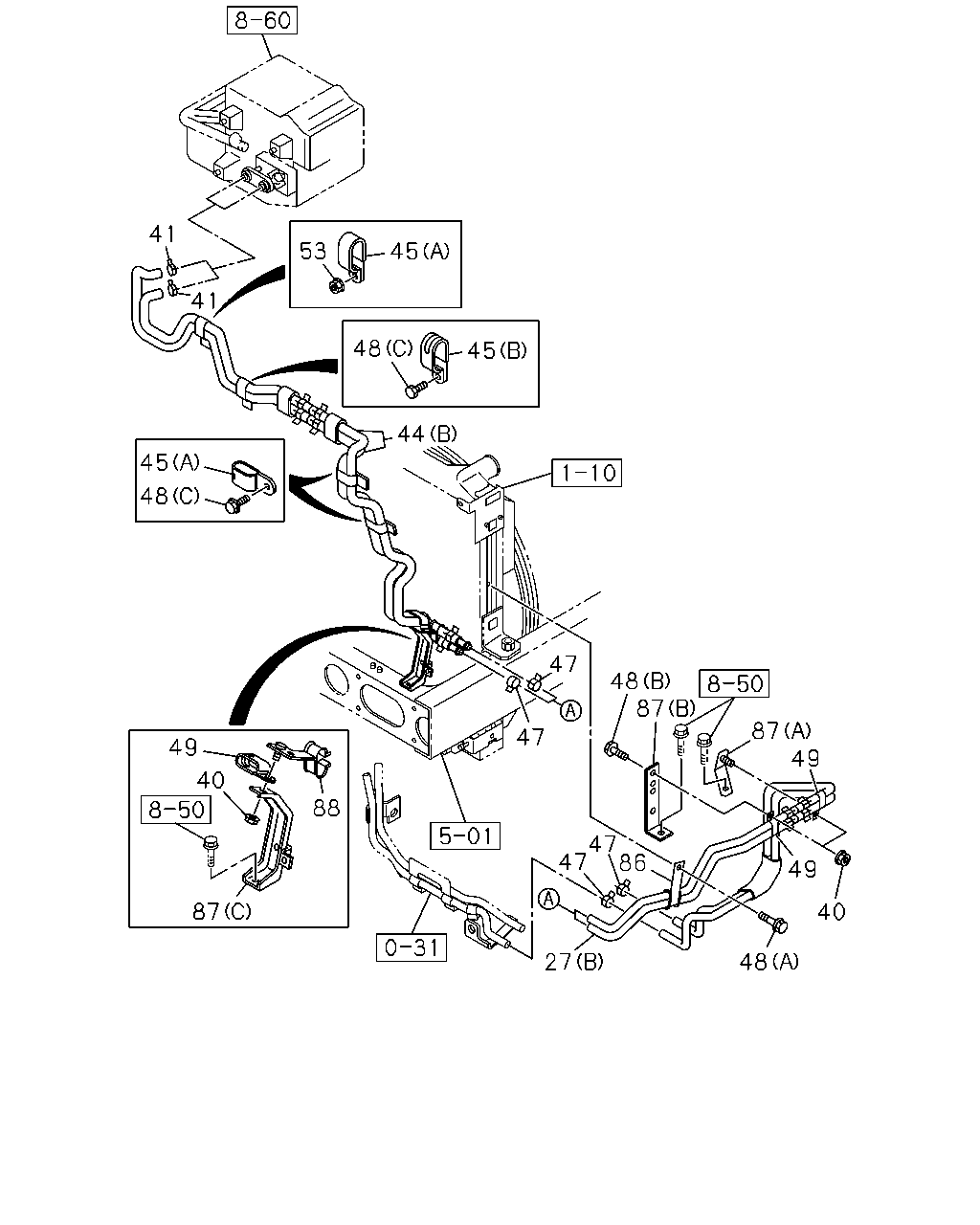

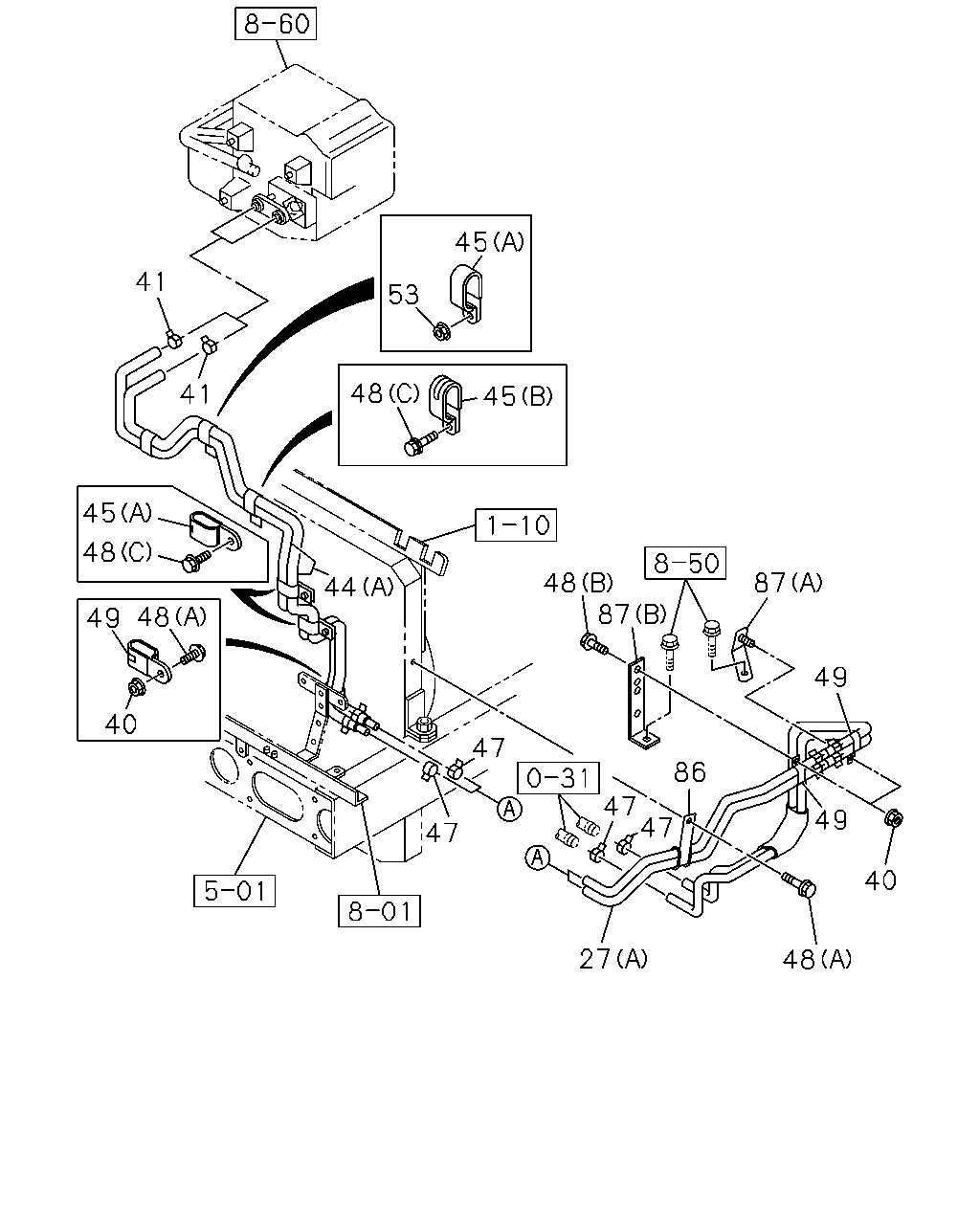

8-45 — HEATER PIPING (#55720) — 38 parça

45 41 53 48 41 45 45 48 87 48 87 44 48 49 49 40 47 86 47 47 49 47 40 27 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-83565-802-3	01	1	1008-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE ENGINE CONTROL-B2(Q4T) (B)	1-83565-839-1	01	1	1008-	●	●
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	1008-	●	●
44	HOSE; WATER,HTR,INL ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98052-676-2	01	1	1008-	●	●
44	HOSE; WATER,HTR,INL ENGINE CONTROL-B2(Q4T) (B)	8-98052-678-2	01	1	1008-	●	●
45	CLIP; WATER PIPE (B) WO/SCREW	1-09701-143-1	01	1	1008-	●	●
45	CLIP; WATER PIPE (A)	1-09701-238-0	03	1	1008-	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	1008-	●	●
48	BOLT; CLIP FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
48	BOLT; CLIP FIX (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1008-	●	●
48	BOLT; CLIP FIX ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
48	BOLT; CLIP FIX ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	1008-	●	●
53	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
86	CLIP; HTR HOSE	1-83573-076-0	01	1	1008-	●	●
87	BRACKET; HTR HOSE CLIP (B)	1-82698-358-0	01	1	1008-	●	●
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	01	1	1008-	●	●
87	BRACKET; HTR HOSE CLIP ENGINE CONTROL-B2(Q4T) (C)	1-83573-315-0	01	1	1008-	●	●

41 53 45 41 48 45 44 45 48 47 48 87 87 49 47 49 40 88 47 49 87 40 48 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-83565-802-3	01	1	1008-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE ENGINE CONTROL-B2(Q4T) (B)	1-83565-839-1	01	1	1008-	●	●
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	1008-	●	●
44	HOSE; WATER,HTR,INL ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98052-676-2	01	1	1008-	●	●
44	HOSE; WATER,HTR,INL ENGINE CONTROL-B2(Q4T) (B)	8-98052-678-2	01	1	1008-	●	●
45	CLIP; WATER PIPE (B) WO/SCREW	1-09701-143-1	01	1	1008-	●	●
45	CLIP; WATER PIPE (A)	1-09701-238-0	03	1	1008-	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	1008-	●	●
48	BOLT; CLIP FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
48	BOLT; CLIP FIX (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1008-	●	●
48	BOLT; CLIP FIX ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
48	BOLT; CLIP FIX ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	1008-	●	●
53	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
87	BRACKET; HTR HOSE CLIP (B)	1-82698-358-0	01	1	1008-	●	●
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	01	1	1008-	●	●
87	BRACKET; HTR HOSE CLIP ENGINE CONTROL-B2(Q4T) (C)	1-83573-315-0	01	1	1008-	●	●
88	STAY; WATER HOSE ENGINE CONTROL-B2(Q4T)	1-83573-291-1	01	1	1008-	●	●
