Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#5572) — 334 parça

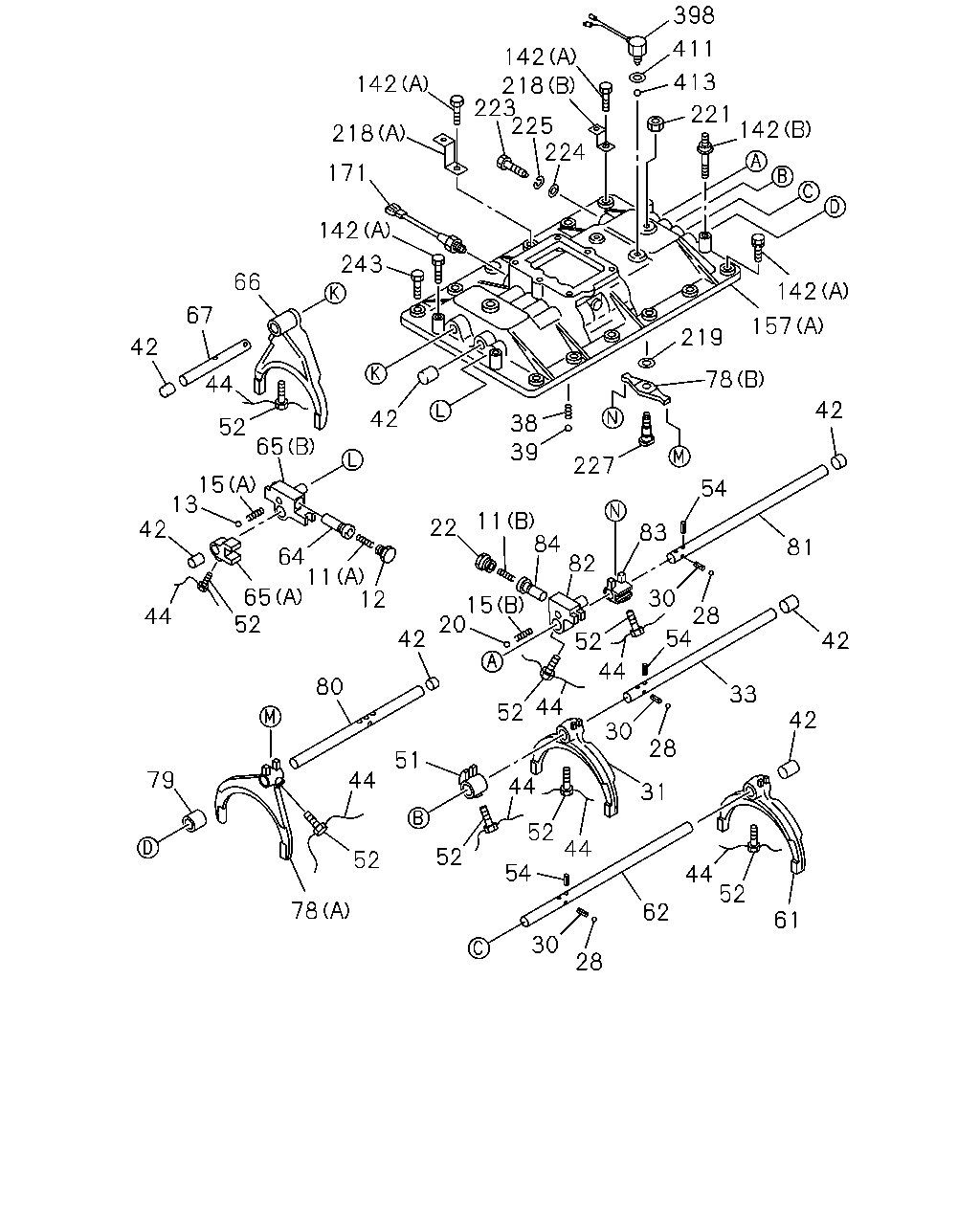

398 411 142 413 142 218 223 225 224 221 142 218 171 142 243 66 142 67 157 219 42 78 44 42 42 38 52 65 39 227 15 13 42 54 11 84 82 22 83 81 64 11 12 65 52 30 15 20 28 54 44 42 42 52 44 80 33 44 52 42 30 28 51 79 44 44 31 52 44 52 52 54 44 52 78 62 61 30 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9603-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9603-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9603-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9603-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9603-		●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9603-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9603-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9603-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9603-	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9603-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9603-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-386-1	01	1	9603-9708		●
31	ARM; SHIFT,LOW & 2ND	1-33511-295-1	01	1	9709-9710		●
31	ARM; SHIFT,LOW & 2ND	1-33511-386-1	01	1	9711-		●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	9603-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-296-1	01	1	9603-9603		●
33	ROD; SHIFT,LOW & 2ND	1-33531-425-1	01	1	9604-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-352-0	01	1	9603-9603	●
33	ROD; SHIFT,LOW & 2ND	1-33531-426-1	01	1	9604-	●
38	SPRING; DETENT	1-09580-379-0	04	1	9603-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9603-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9603-	●	●
44	WIRE; LK L=180	1-09780-024-0	07	1	9804-	●	●
44	WIRE; LK L=200	9-08351-020-0	02	1	9804-9904	●	●
44	WIRE; LK L=200	9-08351-020-0	02	1	9905-	●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-286-1	01	1	9603-		●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-256-2	01	1	9603-9905	●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-605-0	01	1	9906-	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-4	01	1	9603-	●
52	BOLT; SHIFT ARM M12X20	1-09052-039-0	09	1	9603-9803	●	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	09	1	9804-	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9603-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-315-1	01	1	9603-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	9603-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-290-1	01	1	9603-9603	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-428-1	01	1	9604-	●	●
64	SLEEVE; SHIFT BLOCK,5TH TO 6TH	1-33516-022-1	01	1	9603-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-256-2	01	1	9603-9905		●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-605-0	01	1	9906-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-293-2	01	1	9603-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-286-1	01	1	9603-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-297-1	01	1	9603-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	9603-	●
67	ROD; SHIFT,5TH & 6TH	1-33531-297-1	01	1	9603-9603		●
67	ROD; SHIFT,5TH & 6TH	1-33531-430-1	01	1	9604-		●
67	ROD; SHIFT,5TH & 6TH	1-33531-291-1	01	1	9603-9603	●
67	ROD; SHIFT,5TH & 6TH	1-33531-429-1	01	1	9604-	●
78	ARM; SHIFT,REV (A)	1-33511-245-1	01	1	9603-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9603-	●	●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	9603-	●
79	STOPPER; REV BLOCK	9-33537-018-0	01	1	9603-		●
80	ROD; SHIFT,REV ARM	1-33531-289-0	01	1	9603-9603		●
80	ROD; SHIFT,REV ARM	1-33531-427-1	01	1	9604-		●
81	ROD; SHIFT,REV BLOCK	1-33531-295-1	01	1	9603-9603		●
81	ROD; SHIFT,REV BLOCK	1-33531-424-1	01	1	9604-		●
82	BLOCK; SHIFT,REV	1-33511-298-4	01	1	9603-		●
83	BLOCK; SHIFT,REV LEVER	1-33511-038-2	01	1	9603-		●
84	SLEEVE; REV	1-33516-022-1	01	1	9603-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9603-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9603-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	9603-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	9603-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9603-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9603-		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9603-	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9603-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9603-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9603-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9603-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9603-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9603-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9603-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9603-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9603-	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9603-	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9603-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9603-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9603-	●	●

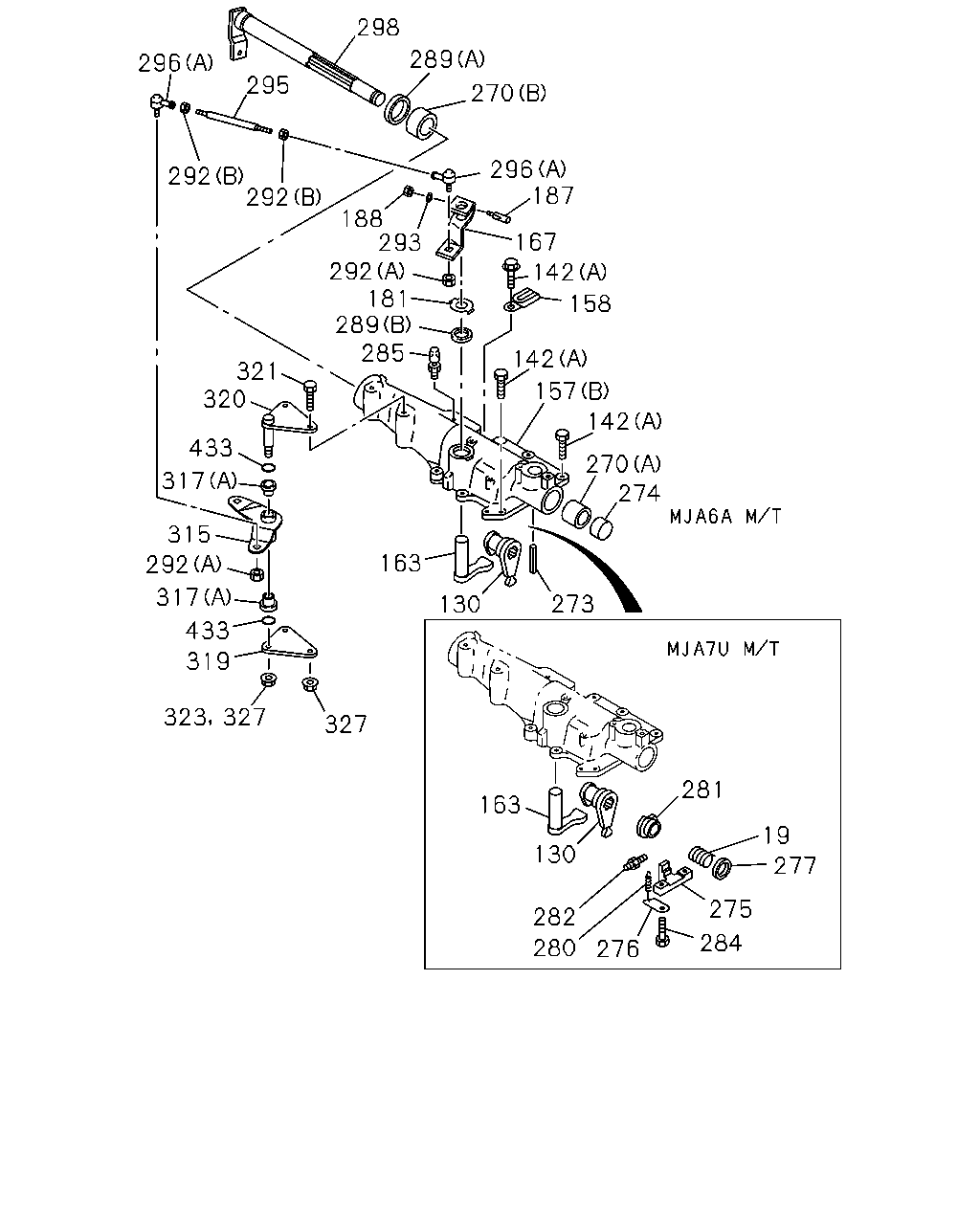

298 289 296 295 270 296 187 292 292 188 293 292 181 289 285 167 142 158 142 321 320 157 142 433 270 274 6 317 315 163 292 317 273 130 433 319 327 281 163 19 130 277 275 282 284 280 276 323 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY	1-33511-233-1	01	1	9603-	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	9603-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-124-0	01	1	9603-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9603-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-125-0	01	1	9603-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9603-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9603-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	9603-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	9603-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9603-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9603-		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9603-	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	9603-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9603-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	9603-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9603-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9603-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9603-9804	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9603-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9603-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9603-	●	●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9709-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9603-	●	●
275	BLOCK; OBSTRUCT,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-33529-031-1	01	1	9603-	●
275	BLOCK; OBSTRUCT,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-027-0	01	1	9603-	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9603-	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9603-	●
280	SPRING; COIL TENSION ASSISTER SHIFT CONTROL<WX8>	1-09583-285-0	01	1	9603-	●
280	SPRING; COIL TENSION EXC. ASSISTER SHIFT CONTROL<WX8>	1-09583-255-0	01	1	9603-	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	9603-	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9603-	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9603-	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9603-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9603-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9603-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9603-9804	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	9805-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9603-9904	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9905-9906	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9907-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9603-	●	●
295	ROD; LINK,RELAY LEVER V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8>	9-08400-815-0	01	1	9603-	●	●
295	ROD; LINK,RELAY LEVER V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	9603-	●	●
295	ROD; LINK,RELAY LEVER 6WA1 TC-S(56L)	9-08400-817-0	01	1	9603-9810	●
295	ROD; LINK,RELAY LEVER 6WA1 TC-S(56L) ASSISTER SHIFT CONTROL<WX8>	9-08400-817-0	01	1	9811-9904	●
295	ROD; LINK,RELAY LEVER L TYPE ENG<90L>	9-08400-817-0	01	1	9905-	●
296	ROD END (A)	1-09760-108-0	02	1	9603-9904	●	●
296	ROD END (A)	1-09760-108-0	02	1	9905-9906	●	●
296	ROD END (A)	1-09760-108-0	02	1	9907-	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9603-	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-150-0	01	1	9603-	●	●
315	LEVER; SELECT V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8>	1-33651-643-0	01	1	9603-9807	●	●
315	LEVER; SELECT V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8>	1-33651-727-0	01	1	9808-	●	●
315	LEVER; SELECT V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-674-0	01	1	9603-9807	●	●
315	LEVER; SELECT V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-747-0	01	1	9808-	●	●
315	LEVER; SELECT 6WA1 TC-S(56L)	1-33651-644-0	01	1	9603-9807	●
315	LEVER; SELECT 6WA1 TC-S(56L)	1-33651-719-0	01	1	9808-9810	●
315	LEVER; SELECT 6WA1 TC-S(56L) ASSISTER SHIFT CONTROL<WX8>	1-33651-719-0	01	1	9811-9904	●
315	LEVER; SELECT L TYPE ENG<90L>	1-33651-719-0	01	1	9905-	●
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9603-9906	●	●
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9907-	●	●
319	BRACKET; SELECT LEVER V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8>	1-33657-591-0	01	1	9603-	●	●
319	BRACKET; SELECT LEVER V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-190-0	01	1	9603-9807	●	●
319	BRACKET; SELECT LEVER V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-640-0	01	1	9808-	●	●
319	BRACKET; SELECT LEVER 6WA1 TC-S(56L)	1-33657-590-0	01	1	9603-9810	●
319	BRACKET; SELECT LEVER 6WA1 TC-S(56L) ASSISTER SHIFT CONTROL<WX8>	1-33657-590-0	01	1	9811-9904	●
319	BRACKET; SELECT LEVER L TYPE ENG<90L>	1-33657-590-0	01	1	9905-	●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-527-1	01	1	9603-9807	●	●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-625-0	01	1	9808-9810	●	●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-630-0	01	1	9811-	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9603-	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9603-	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9603-9810	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9811-9904	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9905-9906	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9907-	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	9905-	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9603-	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9603-9807	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9808-9904	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9905-9906	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9907-	●	●

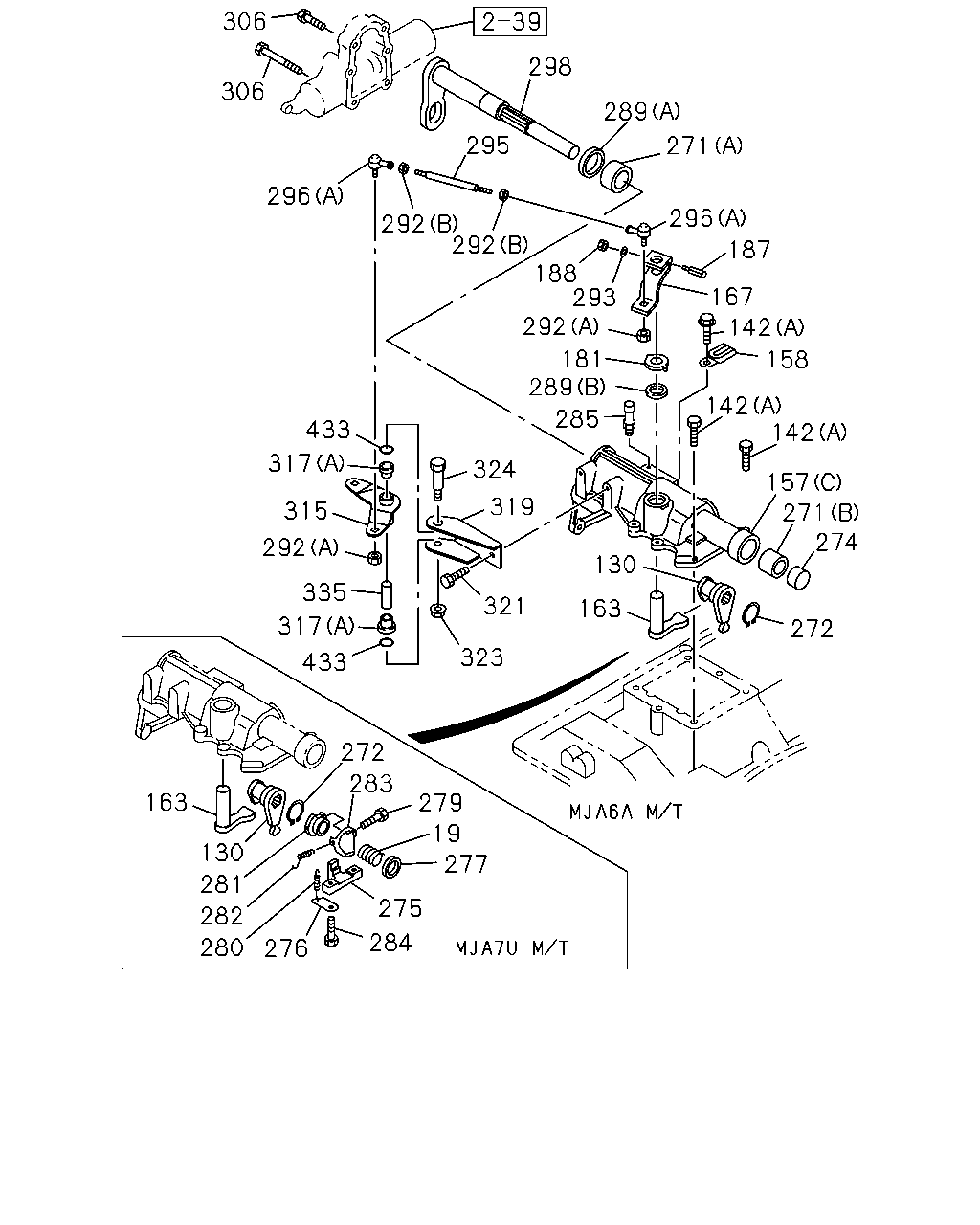

306 298 306 289 295 271 296 296 292 292 188 293 292 187 167 142 181 289 158 142 142 285 433 317 324 157 319 315 271 274 292 130 335 321 163 317 272 323 433 272 283 163 279 19 130 277 281 275 282 284 280 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP	1-09580-519-0	01	1	9603-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-124-0	01	1	9603-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9603-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-125-0	01	1	9603-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9603-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9603-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	9603-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	9603-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9603-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9603-		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9603-	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	9603-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	9603-	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	9603-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9603-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9603-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9603-9804	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	9805-	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=20 OD=23	1-33549-016-0	01	1	9603-	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=28 OD=32	1-33549-104-0	01	1	9603-	●	●
272	RING; SNAP,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9603-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9603-	●	●
275	BLOCK; OBSTRUCT,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-33529-031-1	01	1	9603-	●
275	BLOCK; OBSTRUCT,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-027-0	01	1	9603-	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	9603-	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	9603-	●
279	BOLT; STOPPER ASSISTER SHIFT CONTROL<WX8> M5X8	0-20800-508-0	01	1	9603-	●
280	SPRING; COIL TENSION ASSISTER SHIFT CONTROL<WX8>	1-09583-285-0	01	1	9603-	●
280	SPRING; COIL TENSION EXC. ASSISTER SHIFT CONTROL<WX8>	1-09583-255-0	01	1	9603-	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	9603-	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	9603-	●
283	STOPPER; SHIFT SHAFT ASSISTER SHIFT CONTROL<WX8>	1-33529-032-0	01	1	9603-	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	9603-	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9603-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9603-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9603-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9603-9804	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	9805-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9603-9904	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9905-9906	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	9907-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9603-	●	●
295	ROD; LINK,RELAY LEVER V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8>	9-08400-815-0	01	1	9603-	●	●
295	ROD; LINK,RELAY LEVER V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	9603-	●	●
295	ROD; LINK,RELAY LEVER 6WA1 TC-S(56L)	9-08400-817-0	01	1	9603-9810	●
295	ROD; LINK,RELAY LEVER 6WA1 TC-S(56L) ASSISTER SHIFT CONTROL<WX8>	9-08400-817-0	01	1	9811-9904	●
295	ROD; LINK,RELAY LEVER L TYPE ENG<90L>	9-08400-817-0	01	1	9905-	●
296	ROD END (A)	1-09760-108-0	02	1	9603-9904	●	●
296	ROD END (A)	1-09760-108-0	02	1	9905-9906	●	●
296	ROD END (A)	1-09760-108-0	02	1	9907-	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9603-	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-150-0	01	1	9603-	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9603-	●	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X80 FLANGE	0-28181-080-0	04	1	9603-	●	●
315	LEVER; SELECT V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8>	1-33651-643-0	01	1	9603-9807	●	●
315	LEVER; SELECT V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8>	1-33651-727-0	01	1	9808-	●	●
315	LEVER; SELECT V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-674-0	01	1	9603-9807	●	●
315	LEVER; SELECT V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-747-0	01	1	9808-	●	●
315	LEVER; SELECT 6WA1 TC-S(56L)	1-33651-644-0	01	1	9603-9807	●
315	LEVER; SELECT 6WA1 TC-S(56L)	1-33651-719-0	01	1	9808-9810	●
315	LEVER; SELECT 6WA1 TC-S(56L) ASSISTER SHIFT CONTROL<WX8>	1-33651-719-0	01	1	9811-9904	●
315	LEVER; SELECT L TYPE ENG<90L>	1-33651-719-0	01	1	9905-	●
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9603-9906	●	●
317	BUSHING; LEVER (A)	1-09330-119-0	02	1	9907-	●	●
319	BRACKET; SELECT LEVER V TYPE ENG<91L> ASSISTER SHIFT CONTROL<WX8>	1-33657-591-0	01	1	9603-	●	●
319	BRACKET; SELECT LEVER V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-190-0	01	1	9603-9807	●	●
319	BRACKET; SELECT LEVER V TYPE ENG<91L> EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-640-0	01	1	9808-	●	●
319	BRACKET; SELECT LEVER 6WA1 TC-S(56L)	1-33657-590-0	01	1	9603-9810	●
319	BRACKET; SELECT LEVER 6WA1 TC-S(56L) ASSISTER SHIFT CONTROL<WX8>	1-33657-590-0	01	1	9811-9904	●
319	BRACKET; SELECT LEVER L TYPE ENG<90L>	1-33657-590-0	01	1	9905-	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9603-	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9603-	●	●
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	9603-9810	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9811-9904	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9905-9906	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	9907-	●	●
324	BOLT; SHAFT ASSISTER SHIFT CONTROL<WX8> M10X60	0-10811-060-0	01	1	9603-	●	●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTER SHIFT CONTROL<WX8>	1-33659-203-0	01	1	9603-9807	●	●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTER SHIFT CONTROL<WX8>	1-33659-217-0	01	1	9808-9810	●	●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTER SHIFT CONTROL<WX8>	1-33659-220-0	01	1	9811-	●	●
433	GASKET; BUSHING	1-09623-594-0	02	1	9603-9807	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9808-9904	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9905-9906	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	9907-	●	●

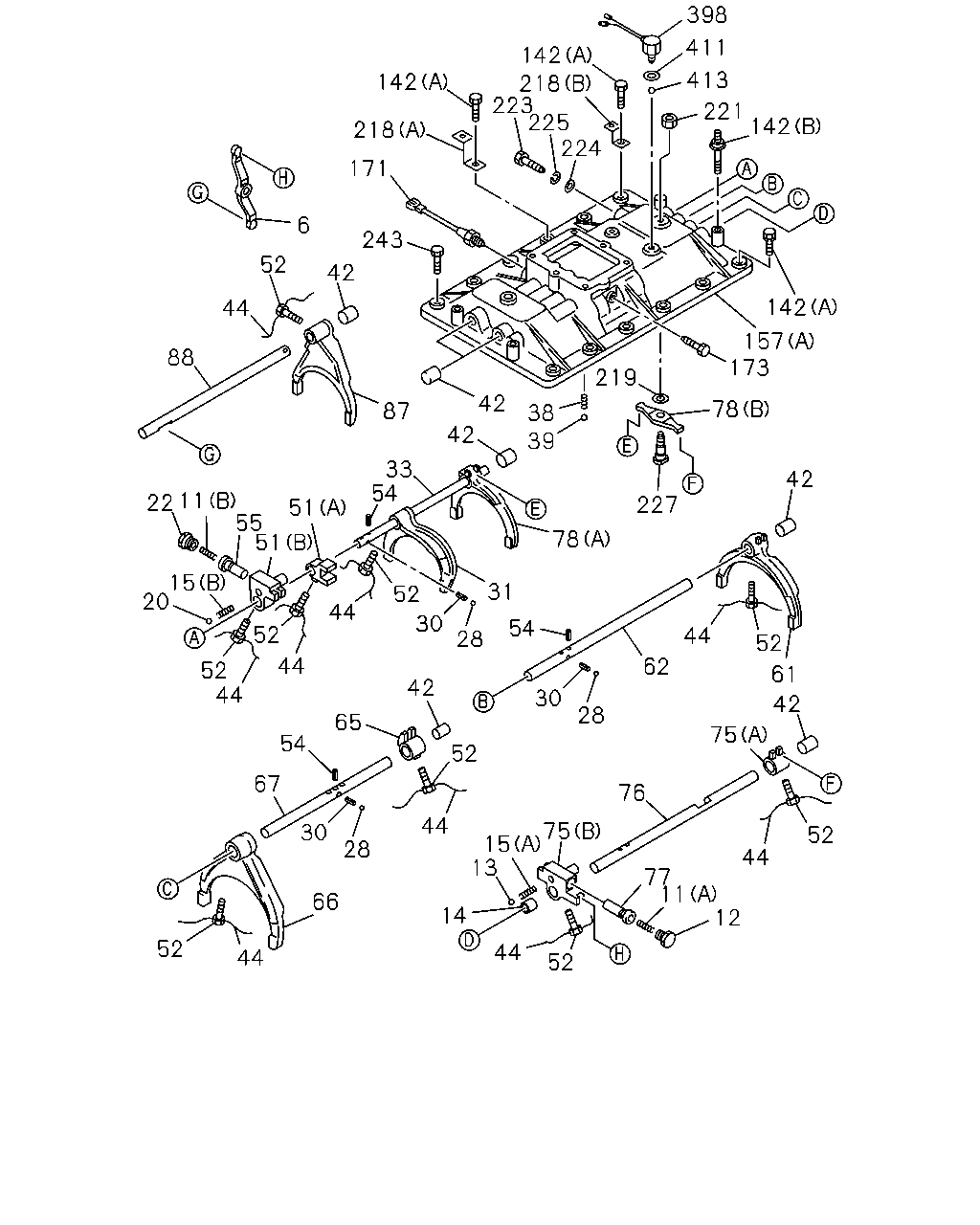

398 411 142 413 142 218 223 225 224 221 142 218 171 6 243 52 42 142 44 157 173 88 219 42 78 87 38 39 42 33 54 42 55 51 227 51 78 15 20 31 52 44 30 54 52 44 28 52 44 62 52 44 61 42 30 42 28 65 75 54 52 67 76 44 75 30 52 15 13 28 44 77 11 12 66 14 52 44 44 52 22 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY	1-33511-233-1	01	1	9603-	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9603-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	9603-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9603-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9603-	●	●
14	STOPPER; SHIFT ROD,7TH TO RR	1-33537-019-0	01	1	9603-	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	9603-		●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	9603-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	9603-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9603-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	9603-	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	9603-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	9603-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-386-1	01	1	9603-9708		●
31	ARM; SHIFT,LOW & 2ND	1-33511-295-1	01	1	9709-9710		●
31	ARM; SHIFT,LOW & 2ND	1-33511-386-1	01	1	9711-		●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	9603-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-296-1	01	1	9603-9603		●
33	ROD; SHIFT,LOW & 2ND	1-33531-425-1	01	1	9604-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-352-0	01	1	9603-9603	●
33	ROD; SHIFT,LOW & 2ND	1-33531-426-1	01	1	9604-	●
38	SPRING; DETENT	1-09580-379-0	04	1	9603-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	9603-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	9603-	●	●
44	WIRE; LK L=180	1-09780-024-0	07	1	9804-	●	●
44	WIRE; LK L=200	9-08351-020-0	02	1	9804-9904	●	●
44	WIRE; LK L=200	9-08351-020-0	02	1	9905-	●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-286-1	01	1	9603-		●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-256-2	01	1	9603-9905	●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-605-0	01	1	9906-	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-4	01	1	9603-	●
52	BOLT; SHIFT ARM M12X20	1-09052-039-0	09	1	9603-9803	●	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	09	1	9804-	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9603-	●	●
55	SLEEVE; 1ST & 2ND	1-33516-022-1	01	1	9603-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-315-1	01	1	9603-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	9603-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-290-1	01	1	9603-9603	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-428-1	01	1	9604-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-256-2	01	1	9603-9905		●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-605-0	01	1	9906-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-293-2	01	1	9603-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-286-1	01	1	9603-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-297-1	01	1	9603-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	9603-	●
67	ROD; SHIFT,5TH & 6TH	1-33531-297-1	01	1	9603-9603		●
67	ROD; SHIFT,5TH & 6TH	1-33531-430-1	01	1	9604-		●
67	ROD; SHIFT,5TH & 6TH	1-33531-291-1	01	1	9603-9603	●
67	ROD; SHIFT,5TH & 6TH	1-33531-429-1	01	1	9604-	●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-236-1	01	1	9603-	●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-300-4	01	1	9603-	●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-294-1	01	1	9603-9603	●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-432-1	01	1	9604-	●
77	SLEEVE; REV & 7TH	1-33516-022-1	01	1	9603-	●
78	ARM; SHIFT,REV (A)	1-33511-245-1	01	1	9603-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	9603-	●	●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	9603-	●
87	ARM; SHIFT,7TH	1-33511-275-1	01	1	9603-	●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-285-0	01	1	9603-9603	●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-433-1	01	1	9604-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	9603-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	9603-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	9603-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	9603-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	9603-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-404-0	01	1	9603-		●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9603-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9603-	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	9603-	●	●
173	SCREW; SET,7TH TO REV	1-09000-446-1	01	1	9603-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	9603-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9603-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	9603-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9603-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9603-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9603-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9603-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9603-	●	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9603-	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	9603-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9603-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
