◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#55718) — 210 parça

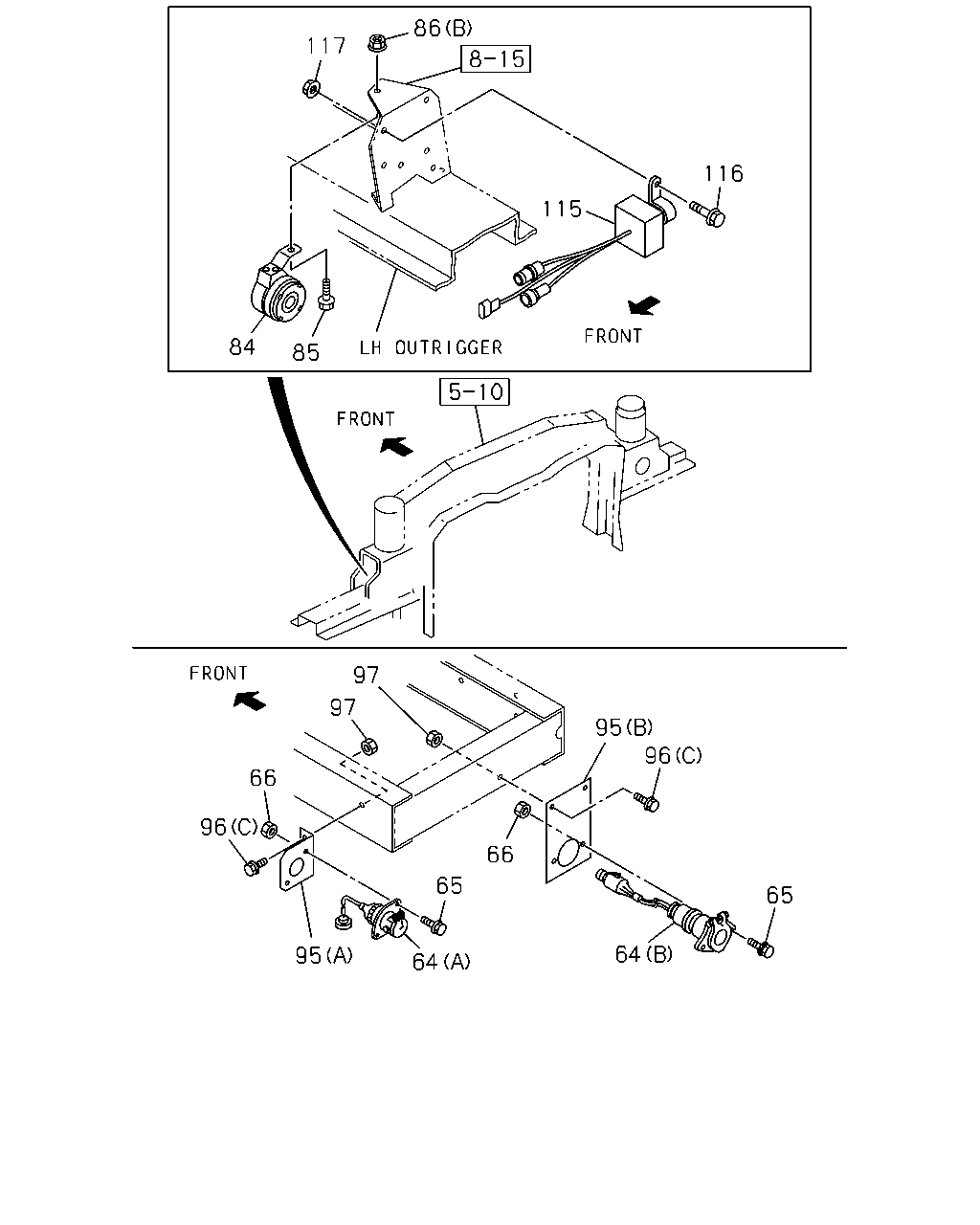

çizim 167341
86 117 116 115 84 85 97 97 95 96 66 96 66 65 65 64 95 64
BalonParca AdiParca NoAdetTipApplied Date A B
64 SOCKET; TRAILER
FULL TRAILER PIPING<Z25> (B) 7P 		1-82523-014-0 01 1 1008- ●
64 SOCKET; TRAILER
FULL TRAILER PIPING<Z25> (A) L=860 		1-82699-449-2 01 1 1008-1008 ●
64 SOCKET; TRAILER
FULL TRAILER PIPING<Z25> (A) L=860 		8-98172-008-0 01 1 1009- ●
65 BOLT; SOCKET FIX
FULL TRAILER PIPING<Z25> M8X25 FLANGE 		0-28650-825-0 04 1 1008- ●
66 NUT; SOCKET FIX
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 02 1 1008- ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1008- ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1008- ● ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
86 NUT; BUZZER
ENGINE CONTROL COMMON RAIL(Q4R) (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
95 BRACKET; SOCKET,TRAILER
FULL TRAILER PIPING<Z25> (B) 		1-82699-387-0 01 1 1008- ●
95 BRACKET; SOCKET,TRAILER
FULL TRAILER PIPING<Z25> (A) 		1-82699-979-0 01 1 1008-1008 ●
95 BRACKET; SOCKET,TRAILER
FULL TRAILER PIPING<Z25> (A) 		8-97985-137-0 01 1 1009- ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1008- ● ●
96 BOLT; BRKT FIX
EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1008- ● ●
96 BOLT; BRKT FIX
EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE 		0-28650-825-0 05 1 1008- ● ●
96 BOLT; BRKT FIX
EURO4 SPECIFICATION<KBT> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
96 BOLT; BRKT FIX
FULL TRAILER PIPING<Z25> (C) M8X35 FLANGE 		0-28650-835-0 04 1 1008- ●
97 NUT; BRKT FIX
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
97 NUT; BRKT FIX
EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91180-108-0 05 1 1008- ● ●
97 NUT; BRKT FIX
EURO4 SPECIFICATION<KBT> M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
97 NUT; BRKT FIX
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 04 1 1008- ●
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 1008- ● ●
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 1008- ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●

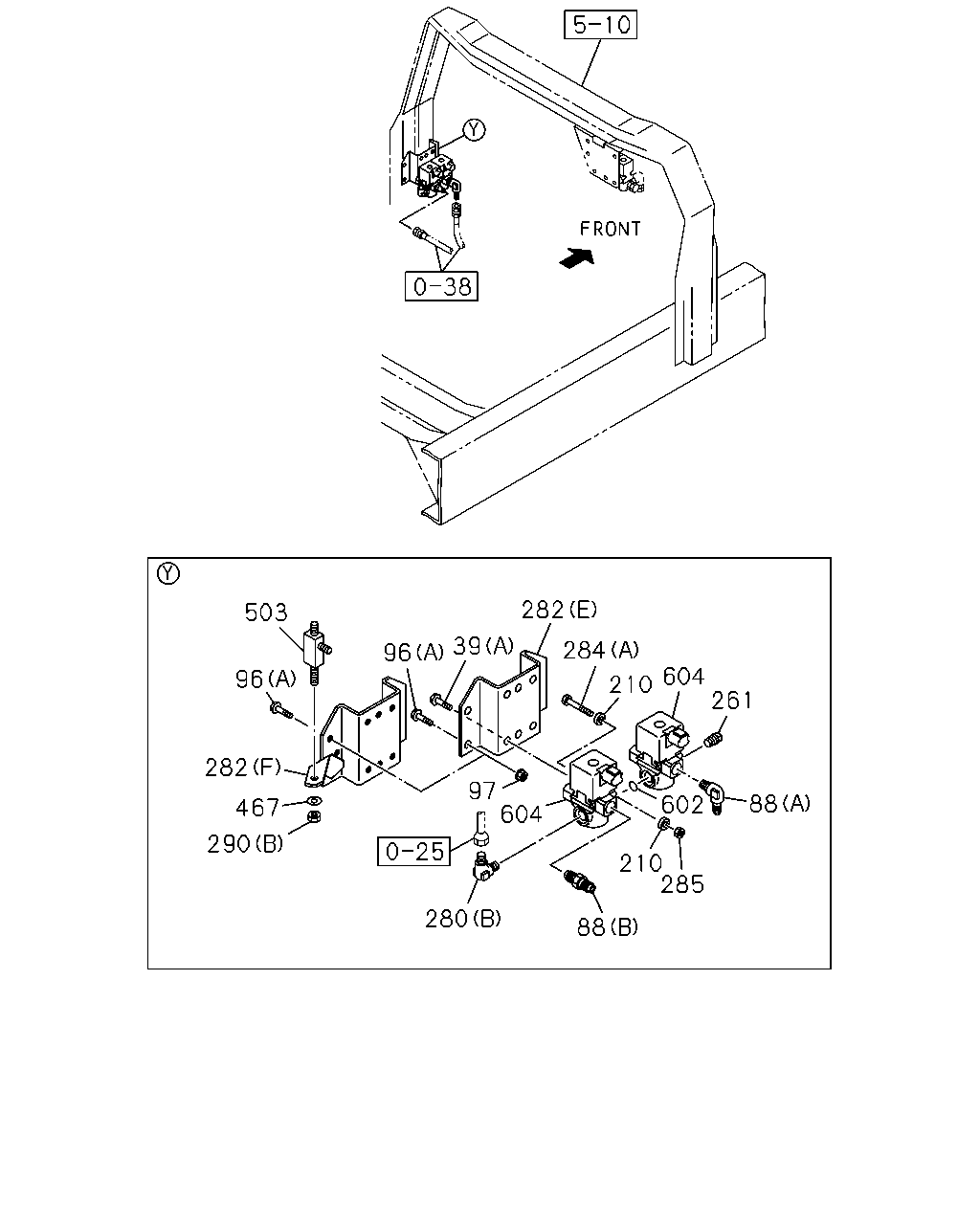

çizim 167343
282 503 39 284 96 604 261 96 210 282 602 97 604 88 467 290 210 285 280 88
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
EURO4 SPECIFICATION<KBT> (A) M8X20 FLANGE 		0-28650-820-0 04 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M8X35 FLANGE 		0-28650-835-0 02 1 1008- ●
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1008- ● ●
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1008- ● ●
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1008- ● ●
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1008- ● ●
88 CONNECTOR; MAG VLV
EURO4 SPECIFICATION<KBT> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 1008- ● ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1008- ● ●
96 BOLT; BRKT FIX
EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1008- ● ●
96 BOLT; BRKT FIX
EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE 		0-28650-825-0 05 1 1008- ● ●
96 BOLT; BRKT FIX
EURO4 SPECIFICATION<KBT> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
96 BOLT; BRKT FIX
FULL TRAILER PIPING<Z25> (C) M8X35 FLANGE 		0-28650-835-0 04 1 1008- ●
97 NUT; BRKT FIX
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
97 NUT; BRKT FIX
EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91180-108-0 05 1 1008- ● ●
97 NUT; BRKT FIX
EURO4 SPECIFICATION<KBT> M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
97 NUT; BRKT FIX
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 04 1 1008- ●
210 WASHER; PL,BRKT
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) 		1-82569-266-0 02 1 1008- ● ●
210 WASHER; PL,BRKT
EURO4 SPECIFICATION<KBT> 		1-82569-266-0 06 1 1008- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1008- ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 1008- ● ●
261 PLUG; MAG VLV
EURO4 SPECIFICATION<KBT> PT1/4 		9-99204-513-0 01 1 1008- ● ●
261 PLUG; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 1008- ●
261 PLUG; MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) PT1/4 		9-99204-513-0 01 1 1008- ●
280 CONNECTOR; IN,MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1008- ● ●
280 CONNECTOR; IN,MAG VLV
EURO4 SPECIFICATION<KBT> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1008- ● ●
280 CONNECTOR; IN,MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1008- ● ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (E) 		1-82569-290-0 01 1 1008- ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (E) 		1-82569-290-0 01 1 1008- ●
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (F) 		1-82569-367-1 01 1 1008- ●
282 BRACKET; MAG VLV
(B) 		1-82569-421-0 01 1 1008- ● ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-82569-277-2 01 1 1008- ● ●
282 BRACKET; MAG VLV
EURO4 SPECIFICATION<KBT> (D) 		1-82569-298-0 01 1 1008- ● ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 1008- ● ●
284 BOLT; MAG VLV
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
284 BOLT; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M6X50 FLANGE 		0-28050-650-0 01 1 1008- ● ●
284 BOLT; MAG VLV
EURO4 SPECIFICATION<KBT> (A) M6X50 FLANGE 		0-28050-650-0 03 1 1008- ● ●
285 NUT; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
285 NUT; MAG VLV
EURO4 SPECIFICATION<KBT> M6 FLANGE 		0-91180-106-0 03 1 1008- ● ●
290 NUT
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 		0-91111-512-0 01 1 1008- ●
290 NUT
(A) M6 FLANGE 		0-91180-106-0 02 1 1008- ● ●
467 WASHER; LK,MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) ID=12.2 		0-91510-512-0 01 1 1008- ●
503 UNION
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M12 2WAY 		1-09654-059-2 01 1 1008- ●
602 GASKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) ID=16.8 		9-09565-117-0 01 1 1008- ● ●
602 GASKET; MAG VLV
EURO4 SPECIFICATION<KBT> ID=16.8 		9-09565-117-0 03 1 1008- ● ●
604 VALVE; MAG,ENG CONT
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) 		1-82563-871-2 02 1 1008- ● ●
604 VALVE; MAG,ENG CONT
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) 		1-82563-871-2 01 1 1008- ● ●
604 VALVE; MAG,ENG CONT
EURO4 SPECIFICATION<KBT> 		1-82563-871-2 04 1 1008- ● ●
çizim 167350
78 505 77 41 39 40
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
EURO4 SPECIFICATION<KBT> (A) M8X20 FLANGE 		0-28650-820-0 04 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M8X35 FLANGE 		0-28650-835-0 02 1 1008- ●
40 BRACKET; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) EXC. BATTERY LAYOUT REAR VAR1<NCT> 		1-82698-424-0 01 1 1008- ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
41 NUT; BRKT,MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 02 1 1008- ●
77 HORN ASM 1-83430-043-0 01 1 1008- ● ●
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
505 JOINT; AIR HORN 1-83439-006-0 01 1 1008- ● ●

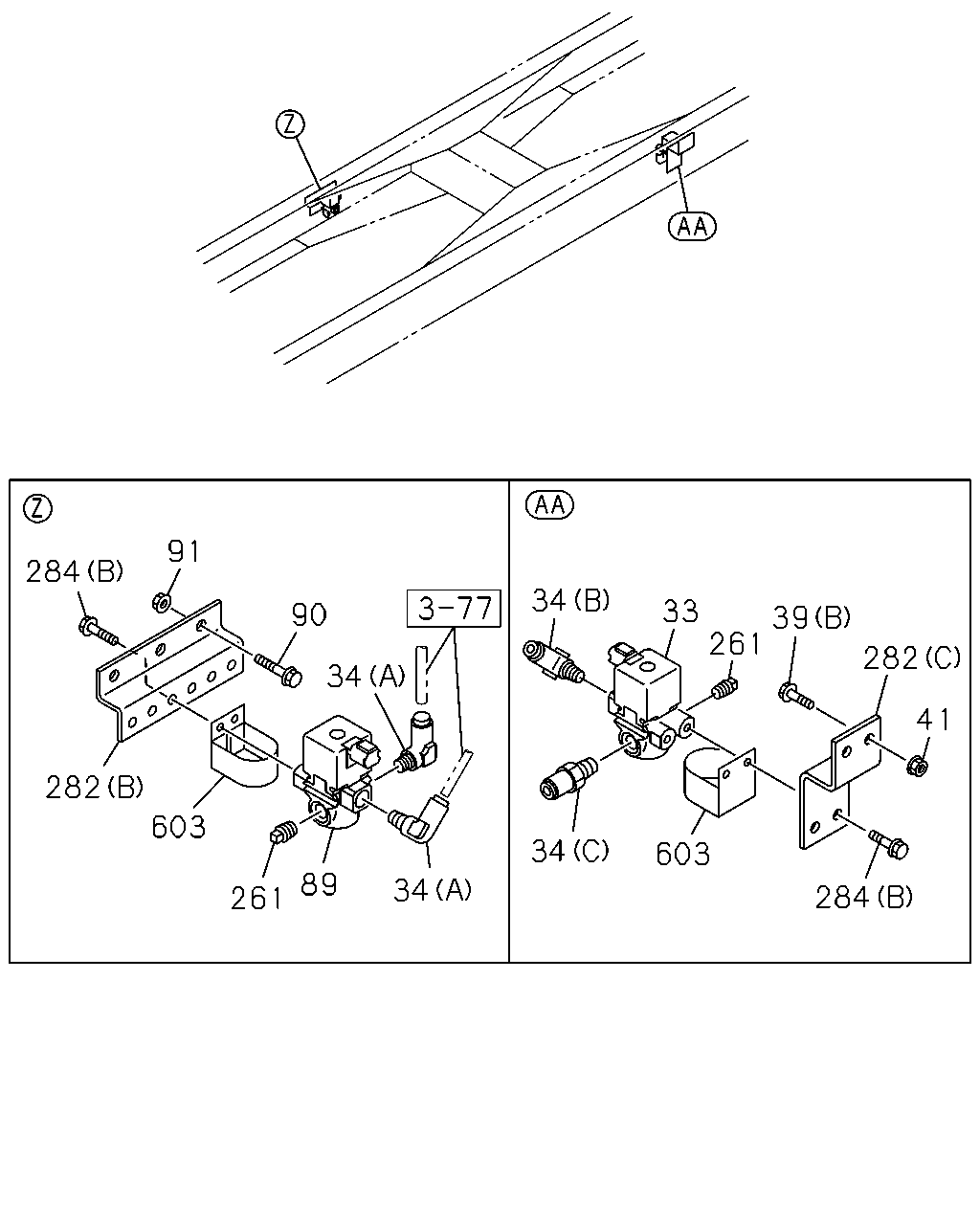

çizim 167354
91 284 34 33 39 261 90 282 34 41 282 603 34 603 89 34 284 261
BalonParca AdiParca NoAdetTipApplied Date A B
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1008- ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1008- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
EURO4 SPECIFICATION<KBT> (A) M8X20 FLANGE 		0-28650-820-0 04 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M8X35 FLANGE 		0-28650-835-0 02 1 1008- ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
41 NUT; BRKT,MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE 		0-91180-108-0 02 1 1008- ●
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 1008-1205 ● ●
89 VALVE; MAG,DIFF LOCK 8-97641-594-0 01 1 1206- ● ●
90 BOLT; MAG VLV
M8X40 FLANGE 		0-28650-840-0 02 1 1008- ● ●
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1008- ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 1008- ● ●
261 PLUG; MAG VLV
EURO4 SPECIFICATION<KBT> PT1/4 		9-99204-513-0 01 1 1008- ● ●
261 PLUG; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 1008- ●
261 PLUG; MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) PT1/4 		9-99204-513-0 01 1 1008- ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (E) 		1-82569-290-0 01 1 1008- ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (E) 		1-82569-290-0 01 1 1008- ●
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (F) 		1-82569-367-1 01 1 1008- ●
282 BRACKET; MAG VLV
(B) 		1-82569-421-0 01 1 1008- ● ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-82569-277-2 01 1 1008- ● ●
282 BRACKET; MAG VLV
EURO4 SPECIFICATION<KBT> (D) 		1-82569-298-0 01 1 1008- ● ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 1008- ● ●
284 BOLT; MAG VLV
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
284 BOLT; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M6X50 FLANGE 		0-28050-650-0 01 1 1008- ● ●
284 BOLT; MAG VLV
EURO4 SPECIFICATION<KBT> (A) M6X50 FLANGE 		0-28050-650-0 03 1 1008- ● ●
603 PROTECTOR; MAG VLV 1-47471-046-0 01 1 1008- ● ●
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-046-0 01 1 1008- ● ●

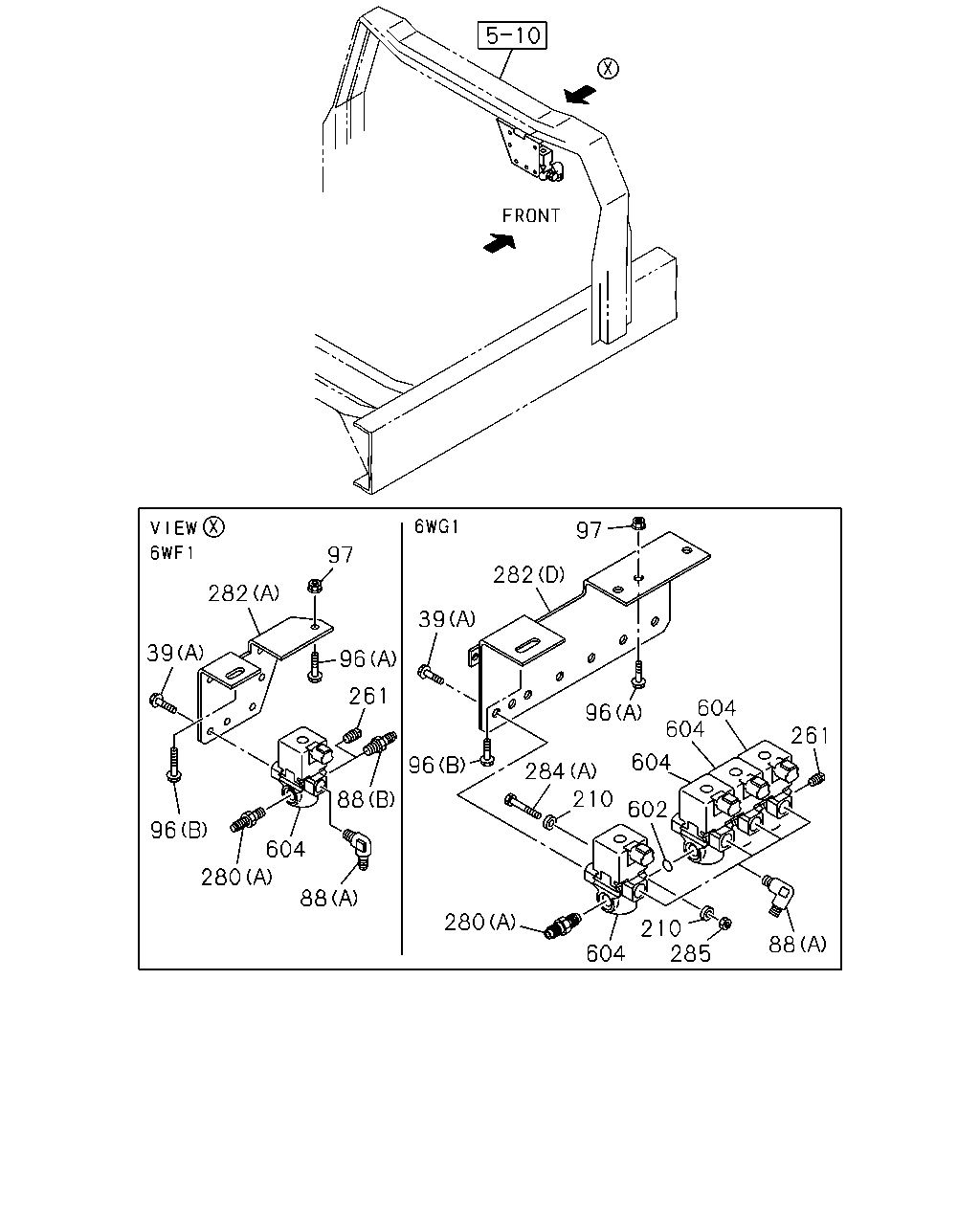

çizim 167358
97 97 282 282 39 39 96 261 604 604 96 261 604 96 284 210 88 602 96 604 280 88 280 210 285 88 604
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
EURO4 SPECIFICATION<KBT> (A) M8X20 FLANGE 		0-28650-820-0 04 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 1008- ● ●
39 BOLT; BRKT,MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M8X35 FLANGE 		0-28650-835-0 02 1 1008- ●
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1008- ● ●
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1008- ● ●
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1008- ● ●
88 CONNECTOR; MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1008- ● ●
88 CONNECTOR; MAG VLV
EURO4 SPECIFICATION<KBT> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 1008- ● ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1008- ● ●
96 BOLT; BRKT FIX
EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE 		0-28650-825-0 01 1 1008- ● ●
96 BOLT; BRKT FIX
EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE 		0-28650-825-0 05 1 1008- ● ●
96 BOLT; BRKT FIX
EURO4 SPECIFICATION<KBT> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
96 BOLT; BRKT FIX
FULL TRAILER PIPING<Z25> (C) M8X35 FLANGE 		0-28650-835-0 04 1 1008- ●
97 NUT; BRKT FIX
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
97 NUT; BRKT FIX
EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91180-108-0 05 1 1008- ● ●
97 NUT; BRKT FIX
EURO4 SPECIFICATION<KBT> M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
97 NUT; BRKT FIX
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 04 1 1008- ●
210 WASHER; PL,BRKT
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) 		1-82569-266-0 02 1 1008- ● ●
210 WASHER; PL,BRKT
EURO4 SPECIFICATION<KBT> 		1-82569-266-0 06 1 1008- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1008- ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 1008- ● ●
261 PLUG; MAG VLV
EURO4 SPECIFICATION<KBT> PT1/4 		9-99204-513-0 01 1 1008- ● ●
261 PLUG; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 1008- ●
261 PLUG; MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) PT1/4 		9-99204-513-0 01 1 1008- ●
280 CONNECTOR; IN,MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1008- ● ●
280 CONNECTOR; IN,MAG VLV
EURO4 SPECIFICATION<KBT> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1008- ● ●
280 CONNECTOR; IN,MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1008- ● ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (E) 		1-82569-290-0 01 1 1008- ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (E) 		1-82569-290-0 01 1 1008- ●
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (F) 		1-82569-367-1 01 1 1008- ●
282 BRACKET; MAG VLV
(B) 		1-82569-421-0 01 1 1008- ● ●
282 BRACKET; MAG VLV
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-82569-277-2 01 1 1008- ● ●
282 BRACKET; MAG VLV
EURO4 SPECIFICATION<KBT> (D) 		1-82569-298-0 01 1 1008- ● ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 1008- ● ●
284 BOLT; MAG VLV
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
284 BOLT; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (A) M6X50 FLANGE 		0-28050-650-0 01 1 1008- ● ●
284 BOLT; MAG VLV
EURO4 SPECIFICATION<KBT> (A) M6X50 FLANGE 		0-28050-650-0 03 1 1008- ● ●
285 NUT; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
285 NUT; MAG VLV
EURO4 SPECIFICATION<KBT> M6 FLANGE 		0-91180-106-0 03 1 1008- ● ●
602 GASKET; MAG VLV
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) ID=16.8 		9-09565-117-0 01 1 1008- ● ●
602 GASKET; MAG VLV
EURO4 SPECIFICATION<KBT> ID=16.8 		9-09565-117-0 03 1 1008- ● ●
604 VALVE; MAG,ENG CONT
EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) 		1-82563-871-2 02 1 1008- ● ●
604 VALVE; MAG,ENG CONT
EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> ENGINE CONTROL COMMON RAIL(Q4R) 		1-82563-871-2 01 1 1008- ● ●
604 VALVE; MAG,ENG CONT
EURO4 SPECIFICATION<KBT> 		1-82563-871-2 04 1 1008- ● ●

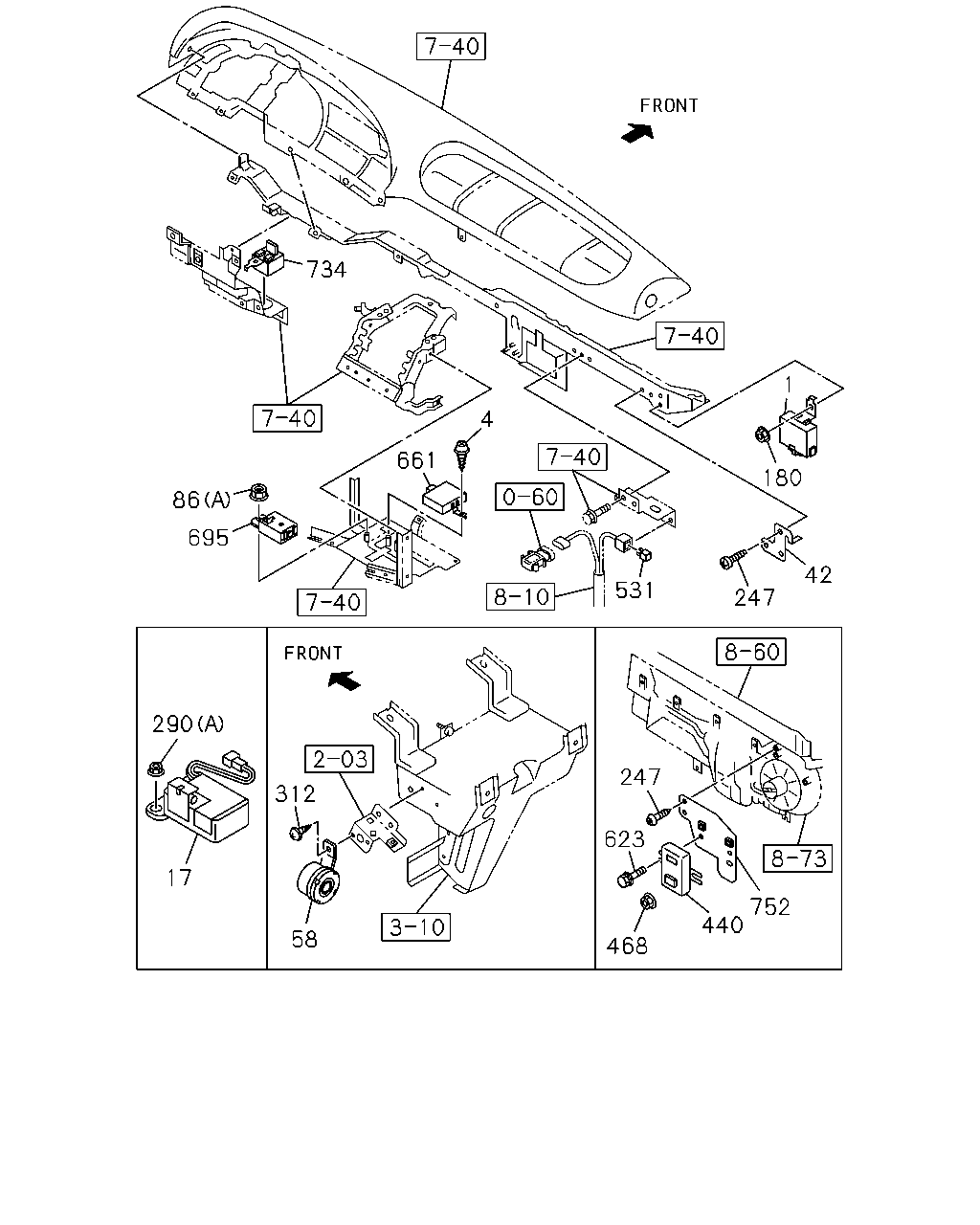

çizim 167364
734 1 4 661 180 86 695 42 531 247 290 247 312 623 17 752 440 58 468
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 1008- ●
1 UNIT; FLASHER
EXC. FULL TRAILER PIPING<Z25> 		8-98025-533-1 01 1 1008- ●
1 UNIT; FLASHER
FULL TRAILER PIPING<Z25> 		8-97613-970-1 01 1 1008- ●
4 SCREW; FLASHER UNIT
ENGINE CONTROL COMMON RAIL(Q4R) FULL TRAILER PIPING<Z25> M5X14 		8-94279-325-0 01 1 1008- ●
17 TIMER; SEAT BELT 1-82550-183-1 01 1 1008- ● ●
42 BRACKET; RELAY
ENGINE CONTROL-B2(Q4T) 		1-82698-128-2 01 1 1008- ● ●
58 BUZZER; AIR PRESSURE WARNING
ENGINE CONTROL COMMON RAIL(Q4R) METRO DENSO 		8-98069-859-0 01 1 1008- ● ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
86 NUT; BUZZER
ENGINE CONTROL COMMON RAIL(Q4R) (A) M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
180 NUT; FLASHER UNIT
ENGINE CONTROL-B2(Q4T) FULL TRAILER PIPING<Z25> M6 FLANGE 		0-91180-106-0 01 1 1008- ●
247 SCREW; BRKT
ENGINE CONTROL-B2(Q4T) M5X14 		8-94279-325-0 01 1 1008- ● ●
247 SCREW; BRKT
ENGINE CONTROL-B2(Q4T) FULL TRAILER PIPING<Z25> M5X14 		8-94279-325-0 03 1 1008- ●
290 NUT
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 		0-91111-512-0 01 1 1008- ●
290 NUT
(A) M6 FLANGE 		0-91180-106-0 02 1 1008- ● ●
312 BOLT; BUZZER
ENGINE CONTROL COMMON RAIL(Q4R) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008- ● ●
440 MODULE; INFORMATION,ABS
FULL TRAILER PIPING<Z25> 		1-81510-701-0 01 1 1008- ●
468 NUT; MODULE
ENGINE CONTROL COMMON RAIL(Q4R) FULL TRAILER PIPING<Z25> M6 FLANGE 		0-91180-106-0 02 1 1008- ●
531 RELAY; MAIN
ENGINE CONTROL-B2(Q4T) 24V 		8-98167-175-0 01 1 1008- ● ●
623 BOLT; MODULE
ENGINE CONTROL-B2(Q4T) FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008- ●
661 CONTROL UNIT; FLASHER
FULL TRAILER PIPING<Z25> 		1-83470-066-1 01 1 1008- ●
695 ALARM; OVER HEAT
ENGINE CONTROL COMMON RAIL(Q4R) 		1-83460-051-1 01 1 1008- ● ●
734 ALARM; MULTI
ENGINE CONTROL-B2(Q4T) 		1-83460-106-0 01 1 1008- ● ●
752 BRACKET; MODULE
ENGINE CONTROL-B2(Q4T) FULL TRAILER PIPING<Z25> 		8-97611-710-0 01 1 1008- ●

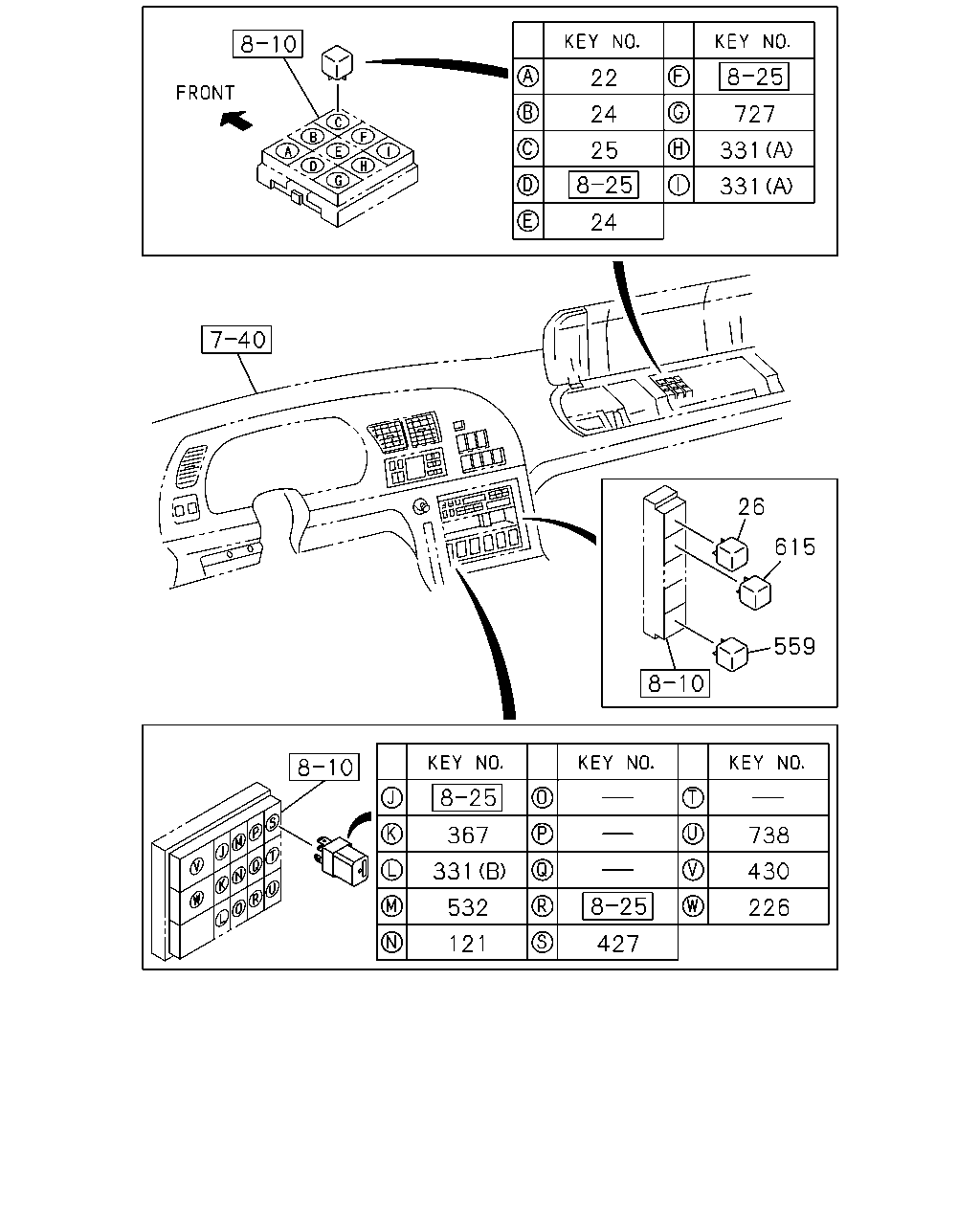

çizim 167545
22 24 727 25 331 331 24 26 615 559 367 738 331 430 532 226 121 427
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008- ●
22 RELAY; STOP LAMP
EXC. FULL TRAILER PIPING<Z25> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008- ●
22 RELAY; STOP LAMP
FULL TRAILER PIPING<Z25> 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1008- ●
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1008- ● ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008- ● ●
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008- ● ●
121 RELAY; PARKING BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 1008- ● ●
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008- ● ●
331 RELAY; A/C
(A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1008- ● ●
331 RELAY; A/C
ENGINE CONTROL-B2(Q4T) (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1008- ● ●
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 1008-1112 ● ●
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ● ●
367 RELAY; NEUTRAL
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
427 RELAY; RETARDER
ENGINE CONTROL-B2(Q4T) 24V 10A PANASONIC 		8-97173-035-1 01 1 1008- ● ●
430 RELAY; RANGE
MJX16P M/T(Y3Z) ENGINE CONTROL-B2(Q4T) 24V 10A PANASONIC 		8-97173-035-1 01 1 1008- ● ●
532 RELAY; SEAT BELT WARNING
24V 10A PANASONIC 		8-97173-035-1 01 1 1008- ● ●
559 RELAY; MAG VLV
ENGINE CONTROL COMMON RAIL(Q4R) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008- ● ●
615 RELAY; TRAILER
FULL TRAILER PIPING<Z25> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008- ●
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008- ● ●
738 RELAY; EXH & RETARDER CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 1008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
