◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#55717) — 70 parça

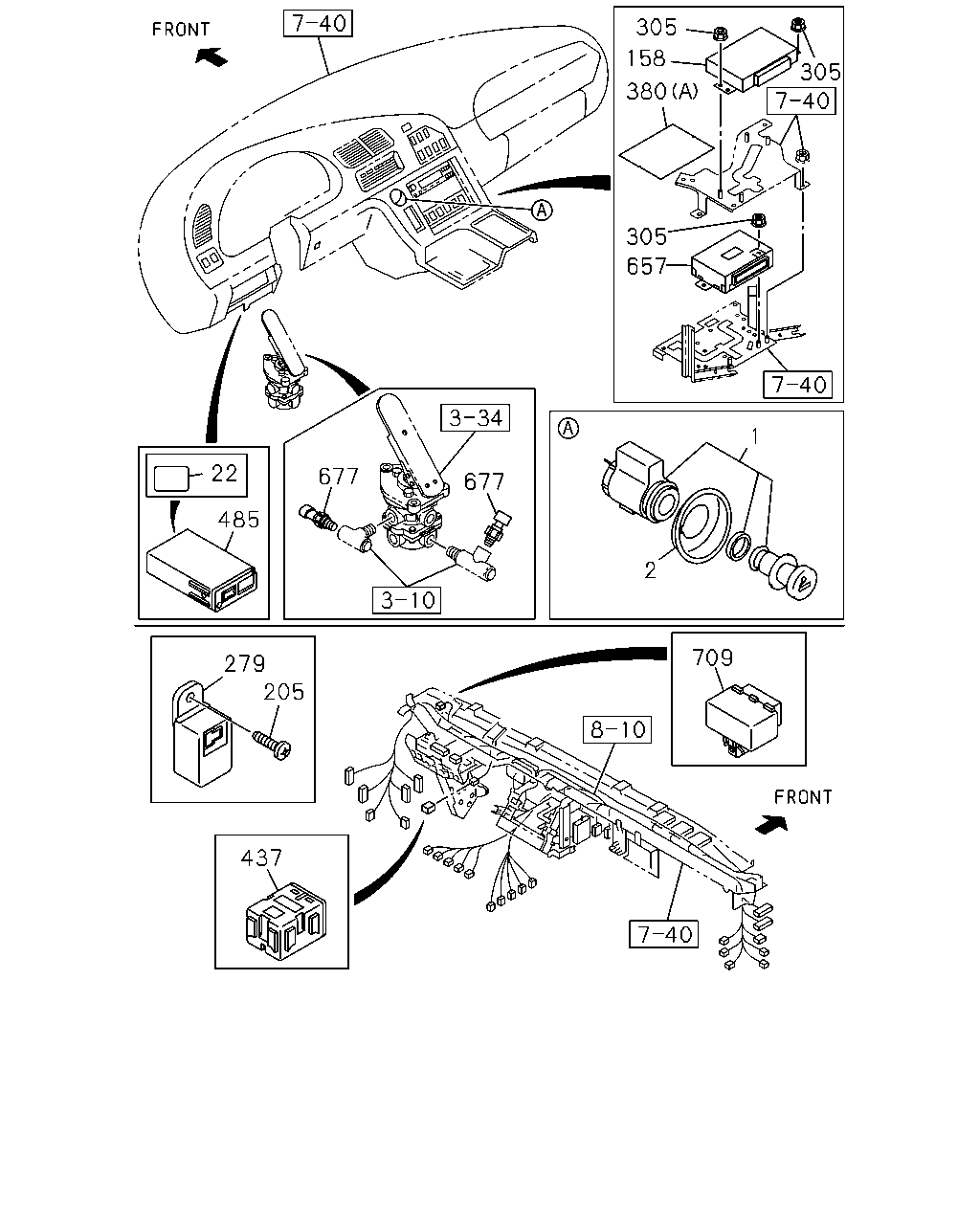

çizim 167340
305 158 305 380 305 657 1 22 677 677 485 2 709 279 205 437
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1008- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 1008- ● ●
22 SEAL; TAPE
EURO4 SPECIFICATION<KBT> SPEED LIMITER 90KM(NMJ) EXC. CHINA EQUIPMENT(YT2) 		8-98083-174-0 01 1 1008- ● ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1),TIRE315/80R22.5-15 6/150K RIBLUG LATIN AMERICA(5N2) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) 		8-98176-163-0 01 1 1008-1109 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L RIB EEC(5J5),F315/80R22.5-156/150L R295/80R22.5-152/148K(5M7),TIRE 315/80R22.5-156/150KRIB LUG RUSSIA(5N1),TIRE315/80R22.5-156/150K RIBLUG LATIN AMERICA(5N2),TIRE 295/80R22.5-153/150J RIBLUG(5N3) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) 		8-98176-163-0 01 1 1008-1109 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1),TIRE315/80R22.5-15 6/150K RIBLUG LATIN AMERICA(5N2),TIRE 295/80R22.5-152/148K RIB LUG CCC(5P9) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) 		8-98176-163-0 01 1 1110- ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L RIB EEC(5J5),TIRE 315/80R22.5-156/150KRIB LUG RUSSIA(5N1),TIRE315/80R22.5-156/150K RIBLUG LATIN AMERICA(5N2),TIRE 295/80R22.5-152/148K RIB LUG CCC(5P9),TIRE 295/80R22.5-153/150J RIB LUG CCC(5Q0),TIRE FRT315/80 156/151K,RR295/80 152/148KCCC(5Q1) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) 		8-98176-163-0 01 1 1110- ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1),TIRE315/80R22.5-15 6/150K RIBLUG LATIN AMERICA(5N2) GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-80119-244-1 01 1 1008-1109 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L RIB EEC(5J5),F315/80R22.5-156/150L R295/80R22.5-152/148K(5M7),TIRE 315/80R22.5-156/150KRIB LUG RUSSIA(5N1),TIRE315/80R22.5-156/150K RIBLUG LATIN AMERICA(5N2),TIRE 295/80R22.5-153/150J RIBLUG(5N3) GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-80119-244-1 01 1 1008-1109 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1),TIRE315/80R22.5-15 6/150K RIBLUG LATIN AMERICA(5N2),TIRE 295/80R22.5-152/148K RIB LUG CCC(5P9) GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-80119-244-1 01 1 1110-1201 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L RIB EEC(5J5),TIRE 315/80R22.5-156/150KRIB LUG RUSSIA(5N1),TIRE315/80R22.5-156/150K RIBLUG LATIN AMERICA(5N2),TIRE 295/80R22.5-152/148K RIB LUG CCC(5P9),TIRE 295/80R22.5-153/150J RIB LUG CCC(5Q0),TIRE FRT315/80 156/151K,RR295/80 152/148KCCC(5Q1) GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-80119-244-1 01 1 1110-1201 ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1),TIRE315/80R22.5-15 6/150K RIBLUG LATIN AMERICA(5N2),TIRE 295/80R22.5-152/148K RIB LUG CCC(5P9) GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		8-98196-720-0 01 1 1202- ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L RIB EEC(5J5),TIRE 315/80R22.5-156/150KRIB LUG RUSSIA(5N1),TIRE315/80R22.5-156/150K RIBLUG LATIN AMERICA(5N2),TIRE 295/80R22.5-152/148K RIB LUG CCC(5P9),TIRE 295/80R22.5-153/150J RIB LUG CCC(5Q0),TIRE FRT315/80 156/151K,RR295/80 152/148KCCC(5Q1) GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		8-98196-720-0 01 1 1202- ●
205 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 1008- ● ●
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 1008- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1008-1008 ● ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 1009- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1008- ● ●
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 1008- ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1008-1210 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1211- ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1211- ● ●
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1008- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1008-1008 ● ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ● ●
657 CONTROL UNIT; MIMAMORI
6WF1 TC-C(1B8) 		1-80190-175-0 01 1 1008-1008 ● ●
657 CONTROL UNIT; MIMAMORI
6WF1 TC-C(1B8) MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-175-0 01 1 1009- ● ●
657 CONTROL UNIT; MIMAMORI
6WG1 TC-R(75L) 		8-98081-576-1 01 1 1008- ● ●
677 SENSOR; AIR METER
ENGINE CONTROL-B2(Q4T) THREAD R1/4 		1-80220-023-1 02 1 1008- ● ●
709 RESISTOR; HD LAMP LEVELING 8-97359-130-1 01 1 1008- ● ●

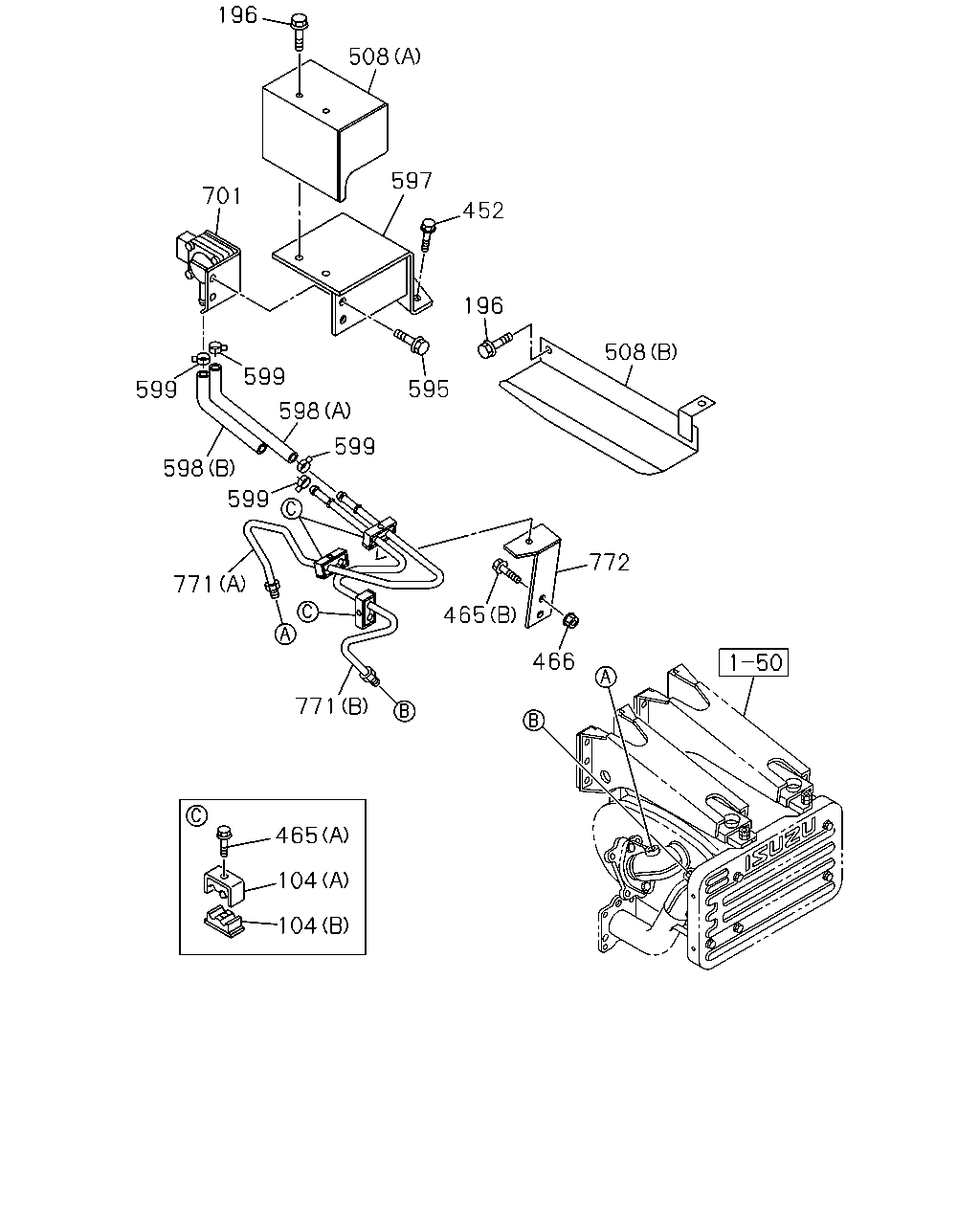

çizim 167351
196 508 597 701 452 196 508 599 595 599 598 599 598 599 772 771 465 466 771 465 104 104
BalonParca AdiParca NoAdetTipApplied Date A B
104 CLIP; PIPE
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (A) ID=7 & 7 L=22 		8-97381-635-0 03 1 1202- ● ●
104 CLIP; PIPE
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=7 & 7 L=22 		8-97381-636-0 03 1 1202- ● ●
196 BOLT
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28050-820-0 04 1 1202- ● ●
452 BOLT; BRKT
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28050-820-0 02 1 1202- ● ●
465 BOLT; CLIP
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (A) M6X35 FLANGE 		0-28050-635-0 03 1 1202- ● ●
465 BOLT; CLIP
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE 		0-28050-820-0 02 1 1202- ● ●
466 NUT; CLIP
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 02 1 1202- ● ●
508 PROTECTOR
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (A) 		8-97642-269-0 01 1 1202- ● ●
508 PROTECTOR
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B) 		8-97642-525-1 01 1 1202- ● ●
595 BOLT; SENSOR
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28050-820-0 02 1 1202- ● ●
597 BRACKET; SENSOR
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> 		8-97642-266-0 01 1 1202- ● ●
598 HOSE; RUBBER,SENSOR
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (A) 		8-97642-267-0 01 1 1202- ● ●
598 HOSE; RUBBER,SENSOR
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B) 		8-97642-268-0 01 1 1202- ● ●
599 CLIP; HOSE
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> ID=13 		8-97329-627-0 04 1 1202- ● ●
701 SENSOR; DPD
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) 		8-97360-368-2 01 1 1202- ●
771 PIPE; AIR
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (A) 		8-97642-263-0 01 1 1202- ● ●
771 PIPE; AIR
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> (B) 		8-97642-264-0 01 1 1202- ● ●
772 BRACKET; PIPE
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. SILENCER SINGLE VERTICAL<N28> 		8-97642-265-0 01 1 1202- ● ●

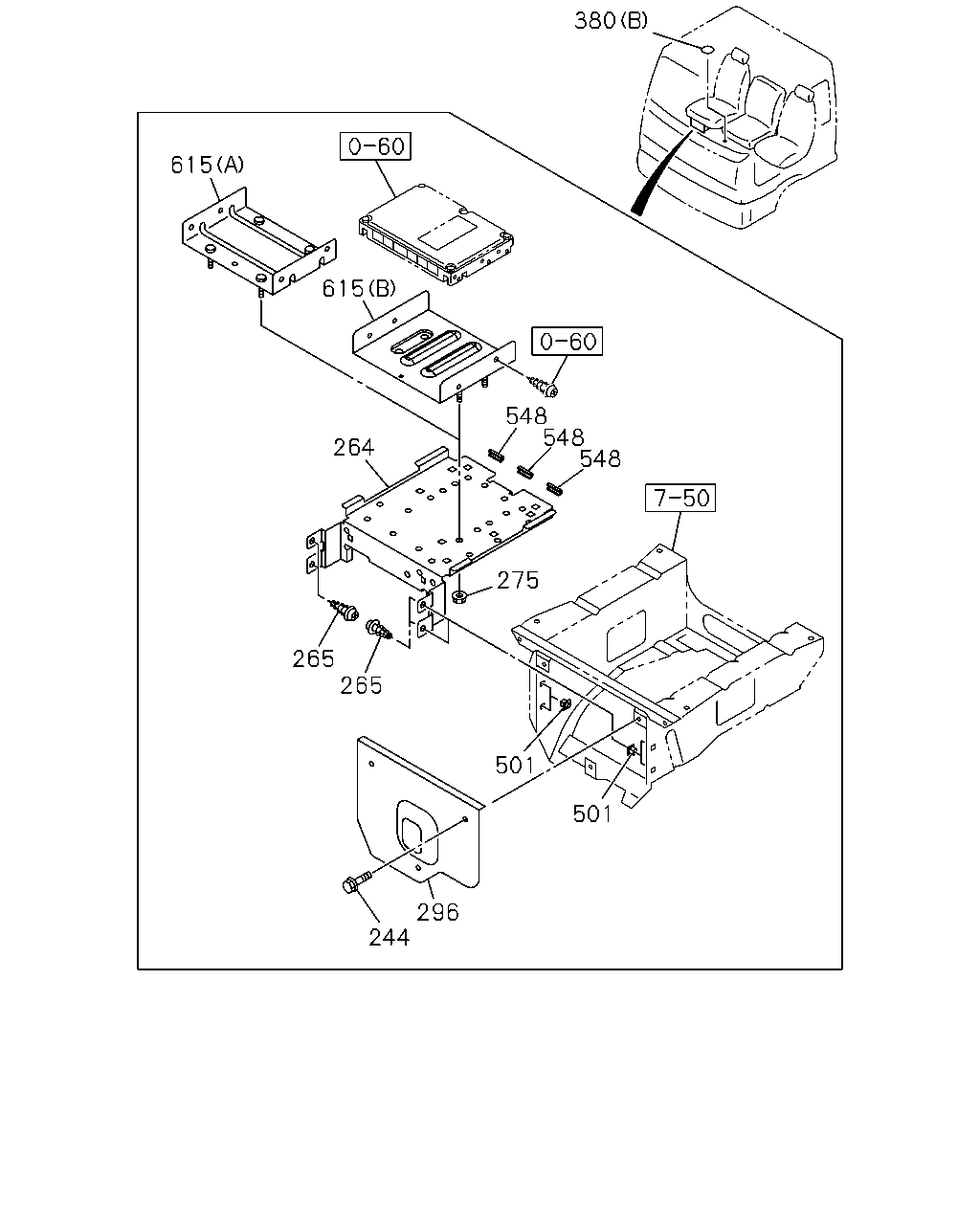

çizim 167356
380 615 615 548 548 548 264 275 265 265 501 501 296 244
BalonParca AdiParca NoAdetTipApplied Date A B
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 1008- ● ●
264 BRACKET; CONT UNIT 8-97589-038-5 01 1 1008- ● ●
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 1008- ● ●
275 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 1008- ● ●
296 COVER; CONT UNIT
6WF1 TC-C(1B8) 		8-98151-570-0 01 1 1008- ● ●
296 COVER; CONT UNIT
6WG1 TC-R(75L) 		8-97589-674-1 01 1 1008- ● ●
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 1008- ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1008-1210 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1211- ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1211- ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1008- ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 1008-1305 ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306- ● ●
615 BRACKET; ECU,SEAT STAND
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		8-97375-194-2 01 1 1008- ● ●
615 BRACKET; ECU,SEAT STAND
ENGINE CONTROL-B2(Q4T) (B) 		8-98013-431-0 01 1 1008- ● ●
çizim 167371
25 24 328 328 497 497
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 1008- ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28050-616-0 02 1 1008- ● ●
328 NUT
M16 		0-91111-516-0 02 1 1008- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 1008- ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 1008- ● ●

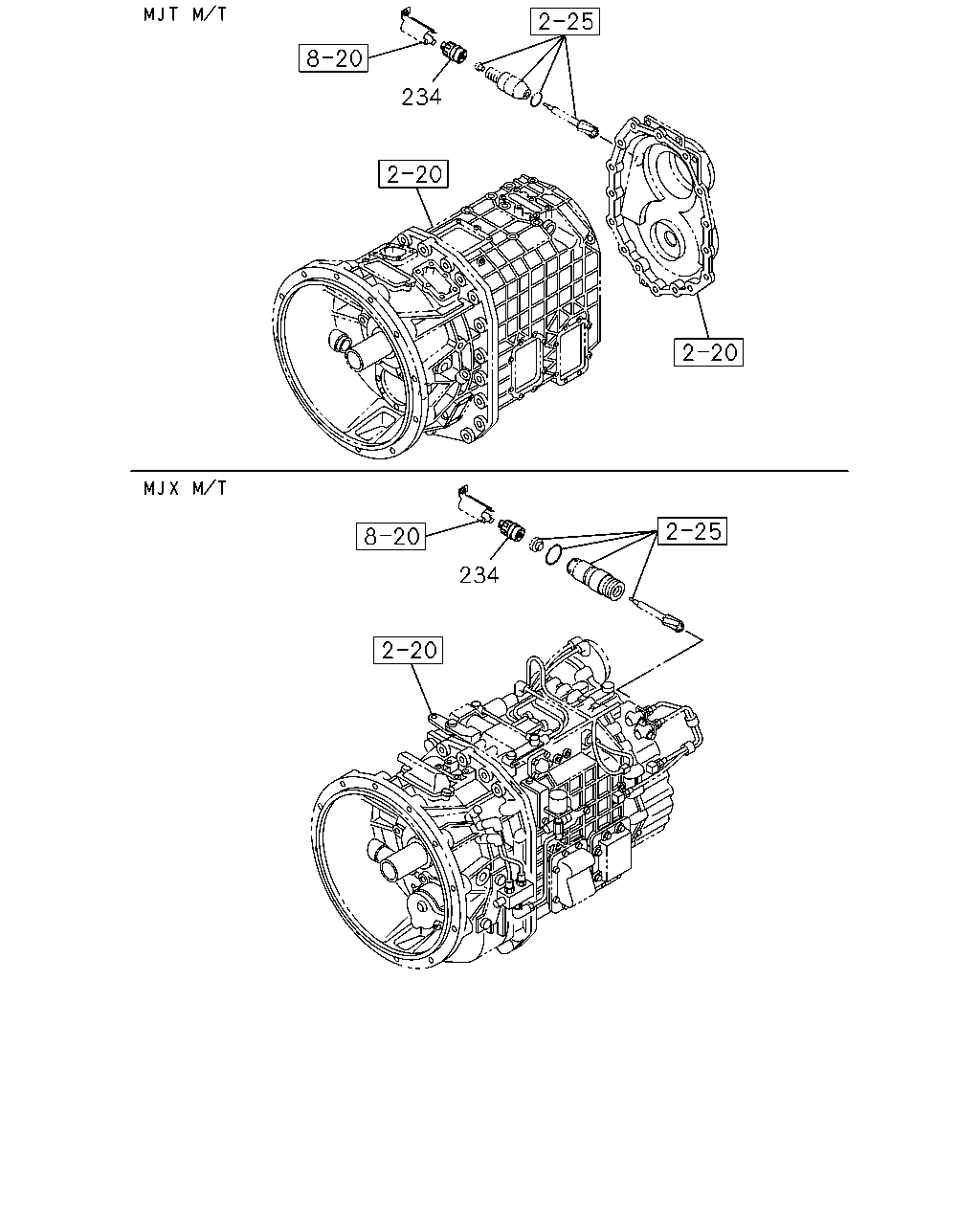

çizim 167379
234 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1008- ● ●
