Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#55713) — 564 parça

16 51 104 206 208 212 305 16 104 142 171 228 369 380 470 373 14 194 14 16 48 194 470 16 51 142 162 208 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

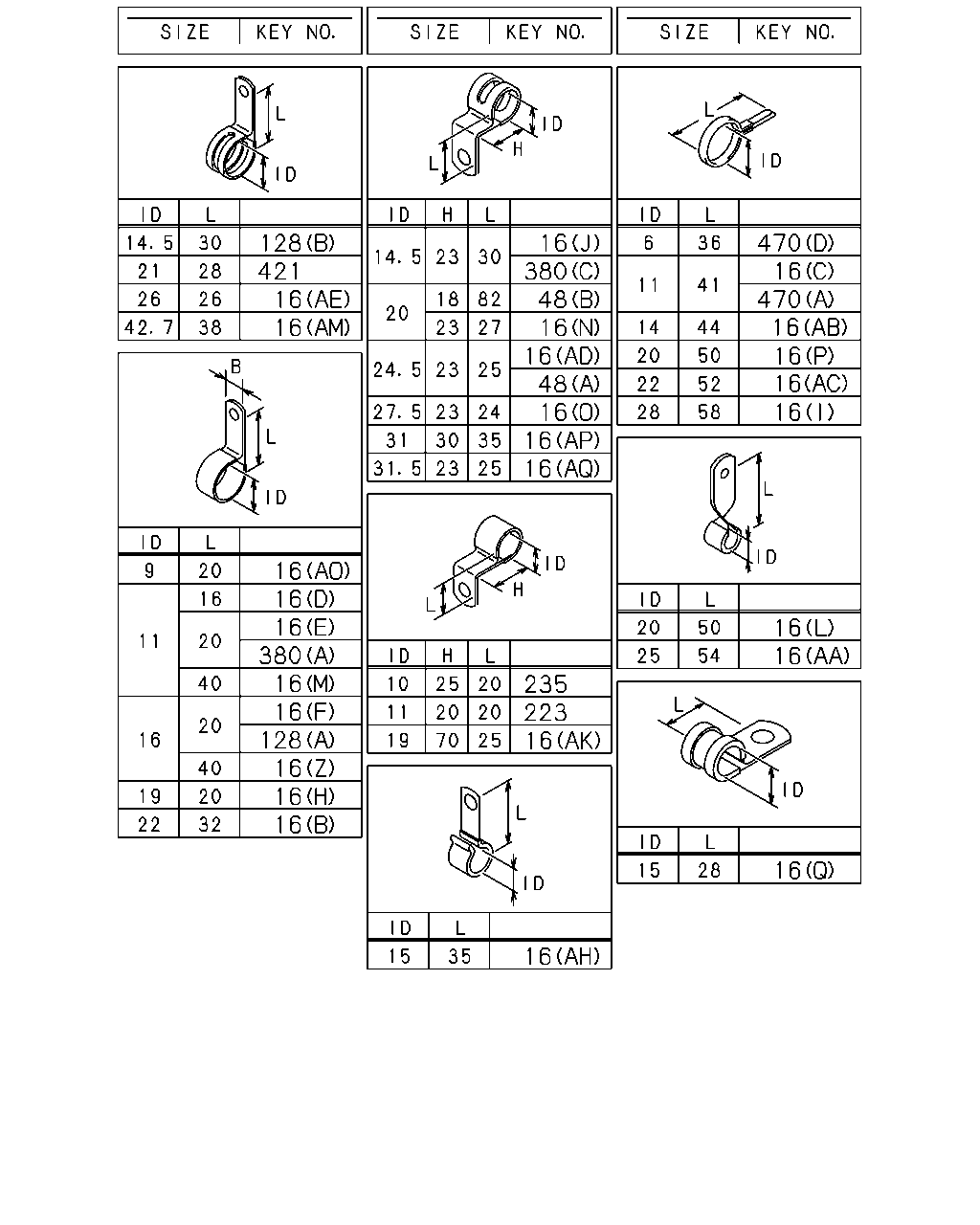

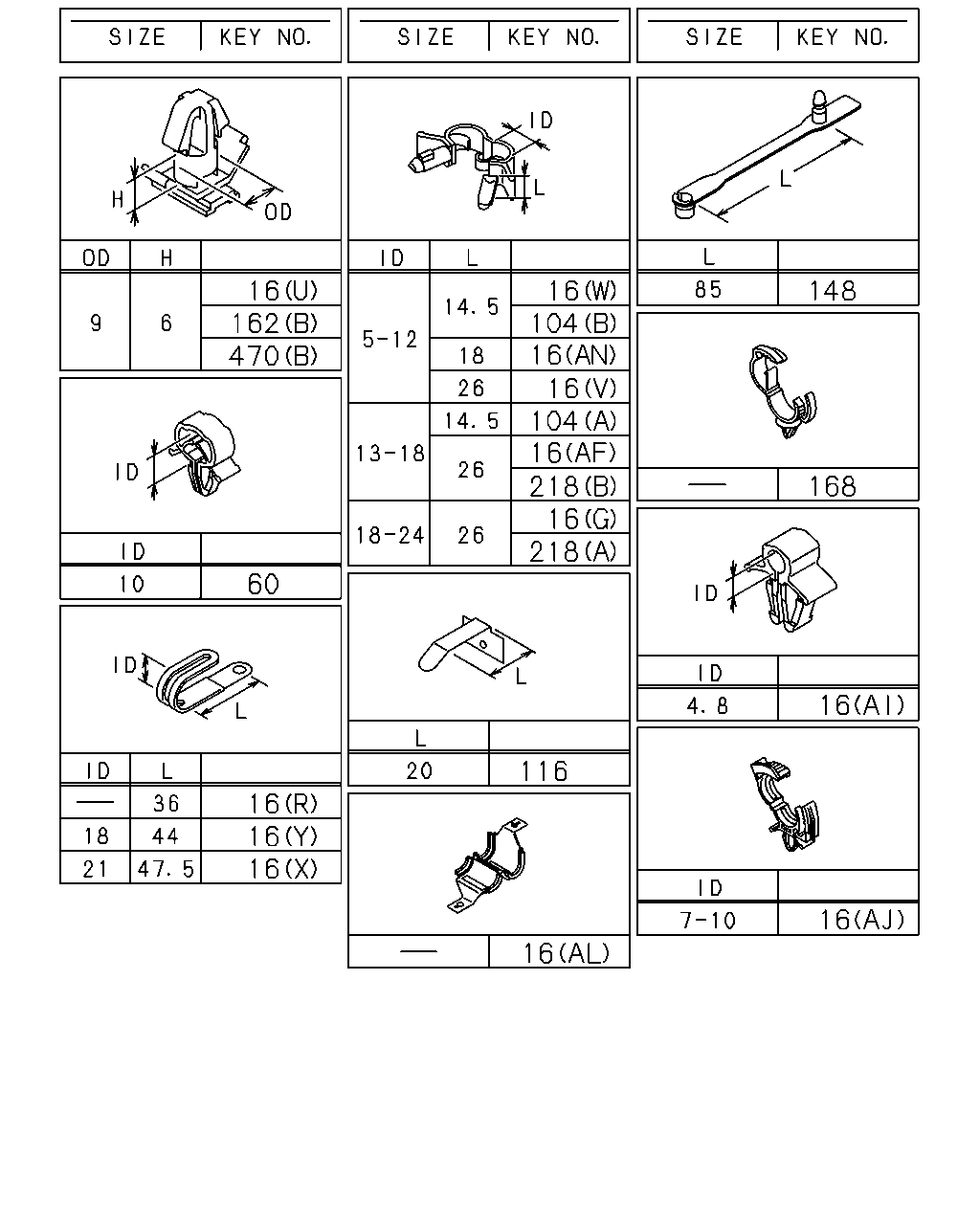

14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1008-	●	●
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	02	1	1008-	●	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (AN) ID=5-12 L=18	1-09709-287-0	02	1	1203-	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) EXC. BATTERY LAYOUT REAR VAR1<NCT> (AN) ID=5-12 L=18	1-09709-287-0	02	1	1203-		●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1203-	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) EXC. BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1203-		●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> CHINA EQUIPMENT(YT2) (AN) ID=5-12 L=18	1-09709-287-0	01	1	1203-		●
16	CLIP; HARNESS 6WF1 TC-C(1B8) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (AP) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-	●	●
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AN) ID=5-12 L=18	1-09709-287-0	03	1	1106-	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (AO) ID=9 L=20	0-95234-835-0	02	1	1106-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AM) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AQ) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	1008-	●	●
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	1008-	●	●
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1008-	●
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1008-		●
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1008-	●
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1008-		●
16	CLIP; HARNESS MIXER TRUCK<RA2> (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-	●
16	CLIP; HARNESS WHEEL BASE 5200MM(52W) (G) ID=18-24 L=26	1-09709-296-0	01	1	1008-	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (G) ID=18-24 L=26	1-09709-296-0	01	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (G) ID=18-24 L=26	1-09709-296-0	01	1	1008-		●
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1008-	●	●
16	CLIP; HARNESS (F) B=18 T=0.8 ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	1008-1409	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=11 L=41	1-09700-403-0	02	1	1410-	●	●
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1008-	●	●
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1008-	●	●
16	CLIP; HARNESS (AH) ID=15 L=35	1-09700-507-0	01	1	1008-	●	●
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-		●
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1008-	●	●
16	CLIP; HARNESS (AI) ID=4.8	1-09701-218-0	01	1	1008-	●	●
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1008-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1008-1105	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1008-1105	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1106-	●	●
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1106-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) ENGINE CONTROL-B2(Q4T) (U) OD=9 H=6	1-09709-178-0	01	1	1008-	●	●
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	1008-1105	●	●
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1008-1105	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> (V) ID=5-12 L=26	1-09709-289-0	04	1	1106-	●	●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-	●	●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1008-		●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1008-1105	●	●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1106-	●	●
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1106-	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	01	1	1008-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (A) L=140	5-09707-031-1	01	1	1008-		●
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-	●	●
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-	●
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=14 L=44	9-09917-427-0	03	1	1008-		●
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	02	1	1008-	●	●
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	1008-	●	●
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-	●	●
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-		●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (S) L=180	1-09707-162-1	06	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AJ) ID=7-10	8-94472-578-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=20 L=50	9-09917-430-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AC) ID=22 L=52	9-09917-431-0	02	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (I) ID=28 L=58	1-09700-400-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1202	●	●
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1202	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1202		●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-	●	●
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-		●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> CHINA EQUIPMENT(YT2) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-		●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AC) ID=22 L=52	9-09917-431-0	05	1	1008-	●	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1008-1208	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	04	1	1008-1105	●	●
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	1106-	●	●
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1106-	●	●
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1106-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (J) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1008-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (U) OD=9 H=6	1-09709-178-0	02	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (M) ID=11 L=40	0-95235-075-0	01	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Z) ID=16 L=40	0-95235-576-0	01	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	02	1	1008-	●	●
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (T) L=350	1-09707-183-0	02	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	03	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (X) ID=21 L=47.5	8-94178-108-0	02	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AK) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	05	1	1008-1105	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	03	1	1106-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (F) B=18 T=1.2 ID=16 L=20	0-95235-536-0	02	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (H) ID=19 L=20	0-95235-836-0	03	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	5-09707-030-1	09	1	1008-1205	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	8-98216-430-0	09	1	1206-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (X) ID=21 L=47.5	8-94178-108-0	03	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (R) L=36	8-94224-891-1	01	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (Y) ID=18 L=44	8-97367-985-1	05	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	03	1	1008-1112	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	01	1	1201-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS ENGLISH<RR8> (AG) L=251	8-97619-917-0	02	1	1008-	●	●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1008-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AL) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AF) ID=13-18 L=26	1-09709-293-0	03	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FULL TRACTOR TRUCK<RD6> (AF) ID=13-18 L=26	1-09709-293-0	03	1	1008-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (P) ID=20 L=50	9-09917-430-0	03	1	1008-		●
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AA) ID=25 L=54	1-09700-392-1	01	1	1008-		●
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AE) ID=26 L=26	1-09701-236-0	01	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (AF) ID=13-18 L=26	1-09709-293-0	01	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (G) ID=18-24 L=26	1-09709-296-0	03	1	1008-		●
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1008-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	1008-	●	●
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1008-	●	●
51	CLIP; COOLER CMPR (B) L=140	5-09707-031-1	01	1	1008-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1008-	●	●
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	1008-	●	●
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	1008-	●	●
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	1008-	●	●
142	CLIP; HARNESS,ENG 6WF1 TC-C(1B8) (A) L=180	1-09707-162-1	02	1	1008-1207	●	●
142	CLIP; HARNESS,ENG 6WF1 TC-C(1B8) (A) L=180	8-98216-427-0	02	1	1208-	●	●
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (A) L=180	1-09707-162-1	01	1	1008-1207	●	●
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (A) L=180	8-98216-427-0	01	1	1208-	●	●
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (B) L=250	5-09707-030-1	01	1	1008-1205	●	●
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (B) L=250	8-98216-430-0	01	1	1206-	●	●
162	CLIP; SW HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1410-	●	●
162	CLIP; SW HARNESS (A) L=180	1-09707-162-1	01	1	1008-1409	●	●
162	CLIP; SW HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (A) L=180	1-09707-162-1	01	1	1410-	●	●
171	CLIP; STARTER HARNESS ENGINE CONTROL-B2(Q4T) L=250	5-09707-030-1	04	1	1008-	●	●
171	CLIP; STARTER HARNESS ENGINE CONTROL COMMON RAIL(Q4R) L=250	5-09707-030-1	05	1	1008-	●	●
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1008-	●	●
194	CLIP; BAND ENGINE CONTROL COMMON RAIL(Q4R) (B) L=350	1-09707-183-0	04	1	1008-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	01	1	1008-	●	●
194	CLIP; BAND ENGINE CONTROL-B2(Q4T) (B) L=350	1-09707-183-0	01	1	1008-	●	●
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1008-	●	●
208	CLIP; HARNESS,MAG VLV ENGINE CONTROL-B2(Q4T) (A) L=140	5-09707-031-1	01	1	1008-	●	●
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180	1-09707-162-1	01	1	1008-	●	●
212	CLIP; HORN HARNESS L=140	5-09707-031-1	01	1	1008-	●	●
228	CLIP; COOLER HARNESS L=250	5-09707-030-1	02	1	1008-	●	●
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	1008-	●	●
369	CLIP; BAND EDS HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	01	1	1008-	●	●
369	CLIP; BAND EDS HARNESS FULL TRACTOR TRUCK<RD6> L=250	5-09707-030-1	02	1	1008-		●
373	CLIP; BAND,GEN HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=175	1-09707-176-1	01	1	1008-		●
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1008-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1008-	●	●
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	1008-	●	●
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (A) ID=11 L=41	1-09700-403-0	01	1	1008-	●	●
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (B) OD=9 H=6	1-09709-178-0	01	1	1008-	●	●
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (C) L=350	1-09707-183-0	02	1	1008-1111	●	●
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (E) L=250	5-09707-030-1	04	1	1112-	●	●
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (D) ID=6 L=36	9-09917-423-0	02	1	1008-1111	●	●

16 470 162 60 16 16 16 16 104 16 16 16 104 218 218 16 116 16 148 168 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (AN) ID=5-12 L=18	1-09709-287-0	02	1	1203-	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) EXC. BATTERY LAYOUT REAR VAR1<NCT> (AN) ID=5-12 L=18	1-09709-287-0	02	1	1203-		●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1203-	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) EXC. BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1203-		●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> CHINA EQUIPMENT(YT2) (AN) ID=5-12 L=18	1-09709-287-0	01	1	1203-		●
16	CLIP; HARNESS 6WF1 TC-C(1B8) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (AP) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-	●	●
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AN) ID=5-12 L=18	1-09709-287-0	03	1	1106-	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (AO) ID=9 L=20	0-95234-835-0	02	1	1106-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AM) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AQ) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	1008-	●	●
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	1008-	●	●
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1008-	●
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1008-		●
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1008-	●
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1008-		●
16	CLIP; HARNESS MIXER TRUCK<RA2> (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-	●
16	CLIP; HARNESS WHEEL BASE 5200MM(52W) (G) ID=18-24 L=26	1-09709-296-0	01	1	1008-	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (G) ID=18-24 L=26	1-09709-296-0	01	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (G) ID=18-24 L=26	1-09709-296-0	01	1	1008-		●
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1008-	●	●
16	CLIP; HARNESS (F) B=18 T=0.8 ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	1008-1409	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=11 L=41	1-09700-403-0	02	1	1410-	●	●
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1008-	●	●
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1008-	●	●
16	CLIP; HARNESS (AH) ID=15 L=35	1-09700-507-0	01	1	1008-	●	●
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-		●
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1008-	●	●
16	CLIP; HARNESS (AI) ID=4.8	1-09701-218-0	01	1	1008-	●	●
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1008-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1008-1105	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1008-1105	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1106-	●	●
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1106-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) ENGINE CONTROL-B2(Q4T) (U) OD=9 H=6	1-09709-178-0	01	1	1008-	●	●
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	1008-1105	●	●
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1008-1105	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> (V) ID=5-12 L=26	1-09709-289-0	04	1	1106-	●	●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-	●	●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1008-		●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1008-1105	●	●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1106-	●	●
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1106-	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	01	1	1008-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (A) L=140	5-09707-031-1	01	1	1008-		●
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-	●	●
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-	●
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=14 L=44	9-09917-427-0	03	1	1008-		●
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	02	1	1008-	●	●
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	1008-	●	●
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-	●	●
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-		●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (S) L=180	1-09707-162-1	06	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AJ) ID=7-10	8-94472-578-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=20 L=50	9-09917-430-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AC) ID=22 L=52	9-09917-431-0	02	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (I) ID=28 L=58	1-09700-400-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1202	●	●
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1202	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1202		●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-	●	●
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-		●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> CHINA EQUIPMENT(YT2) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-		●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AC) ID=22 L=52	9-09917-431-0	05	1	1008-	●	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1008-1208	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	04	1	1008-1105	●	●
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	1106-	●	●
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1106-	●	●
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1106-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (J) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1008-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (U) OD=9 H=6	1-09709-178-0	02	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (M) ID=11 L=40	0-95235-075-0	01	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Z) ID=16 L=40	0-95235-576-0	01	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	02	1	1008-	●	●
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (T) L=350	1-09707-183-0	02	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	03	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (X) ID=21 L=47.5	8-94178-108-0	02	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AK) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	05	1	1008-1105	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	03	1	1106-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (F) B=18 T=1.2 ID=16 L=20	0-95235-536-0	02	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (H) ID=19 L=20	0-95235-836-0	03	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	5-09707-030-1	09	1	1008-1205	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	8-98216-430-0	09	1	1206-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (X) ID=21 L=47.5	8-94178-108-0	03	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (R) L=36	8-94224-891-1	01	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (Y) ID=18 L=44	8-97367-985-1	05	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	03	1	1008-1112	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	01	1	1201-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS ENGLISH<RR8> (AG) L=251	8-97619-917-0	02	1	1008-	●	●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1008-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AL) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AF) ID=13-18 L=26	1-09709-293-0	03	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FULL TRACTOR TRUCK<RD6> (AF) ID=13-18 L=26	1-09709-293-0	03	1	1008-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (P) ID=20 L=50	9-09917-430-0	03	1	1008-		●
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AA) ID=25 L=54	1-09700-392-1	01	1	1008-		●
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AE) ID=26 L=26	1-09701-236-0	01	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (AF) ID=13-18 L=26	1-09709-293-0	01	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (G) ID=18-24 L=26	1-09709-296-0	03	1	1008-		●
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	1008-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1008-	●	●
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	1008-	●	●
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	1008-	●	●
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	1008-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	1008-1409	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-	●	●
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	01	1	1008-	●	●
162	CLIP; SW HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1410-	●	●
162	CLIP; SW HARNESS (A) L=180	1-09707-162-1	01	1	1008-1409	●	●
162	CLIP; SW HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (A) L=180	1-09707-162-1	01	1	1410-	●	●
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	02	1	1008-	●	●
218	CLIP; BAND,RR COMB CHINA EQUIPMENT(YT2) (B) ID=13-18 L=26	1-09709-293-0	06	1	1008-	●
218	CLIP; BAND,RR COMB WHEEL BASE 5200MM(52W) EXC. CHINA EQUIPMENT(YT2) (B) ID=13-18 L=26	1-09709-293-0	06	1	1008-	●
218	CLIP; BAND,RR COMB CHINA EQUIPMENT(YT2) EXC. FULL TRACTOR TRUCK<RD6> (B) ID=13-18 L=26	1-09709-293-0	06	1	1008-		●
218	CLIP; BAND,RR COMB WHEEL BASE 5200MM(52W) EXC. CHINA EQUIPMENT(YT2) (A) ID=18-24 L=26	1-09709-296-0	01	1	1008-	●
218	CLIP; BAND,RR COMB WHEEL BASE 5500MM(55W) EXC. CHINA EQUIPMENT(YT2) (A) ID=18-24 L=26	1-09709-296-0	01	1	1008-		●
218	CLIP; BAND,RR COMB EXC. CHINA EQUIPMENT(YT2) (B) ID=13-18 L=26	1-09709-293-0	05	1	1008-		●
218	CLIP; BAND,RR COMB EXC. FULL TRACTOR TRUCK<RD6>,CHINA EQUIPMENT(YT2) (B) ID=13-18 L=26	1-09709-293-0	01	1	1008-		●
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (A) ID=11 L=41	1-09700-403-0	01	1	1008-	●	●
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (B) OD=9 H=6	1-09709-178-0	01	1	1008-	●	●
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (C) L=350	1-09707-183-0	02	1	1008-1111	●	●
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (E) L=250	5-09707-030-1	04	1	1112-	●	●
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (D) ID=6 L=36	9-09917-423-0	02	1	1008-1111	●	●

530 224 1 1 1 1 510 5 178 178 178 178 178 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (B) ID=38.1 OD=48.1 L=25	1-09337-052-0	01	1	1008-	●	●
1	SLEEVE; RUBBER (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1008-	●	●
1	SLEEVE; RUBBER (D) ID=14 OD=18 L=60	1-09337-030-0	01	1	1008-	●	●
1	SLEEVE; RUBBER 6WG1 TC-R(75L) (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	1008-	●	●
5	GUIDE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) L=360	1-82699-476-1	01	1	1008-1201	●	●
178	GROMMET; HARNESS (E) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-1202	●	●
178	GROMMET; HARNESS (E) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-1202	●	●
178	GROMMET; HARNESS (E) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-1202	●	●
178	GROMMET; HARNESS CHINA EQUIPMENT(YT2) (E) ID=28 OD=35 T=25	1-09332-011-1	01	1	1203-	●	●
178	GROMMET; HARNESS (E) ID=28 OD=35 T=25	1-09332-011-1	01	1	1203-	●	●
178	GROMMET; HARNESS (E) ID=28 OD=35 T=25	1-09332-011-1	01	1	1203-	●	●
178	GROMMET; HARNESS (E) ID=28 OD=35 T=25	1-09332-011-1	01	1	1203-	●	●
178	GROMMET; HARNESS (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	1008-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	1008-	●	●
178	GROMMET; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C)	1-82699-891-0	01	1	1008-	●	●
178	GROMMET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1008-	●	●
224	SLEEVE; RUBBER,HARNESS ID=6 L=30	5-09360-352-0	01	1	1008-	●	●
292	CAP; RUBBER ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN>	1-82691-239-0	02	1	1008-	●	●
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	02	1	1008-1202	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	04	1	1008-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	08	1	1008-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1008-	●	●

312 312 312 334 335 335 312 342 342 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

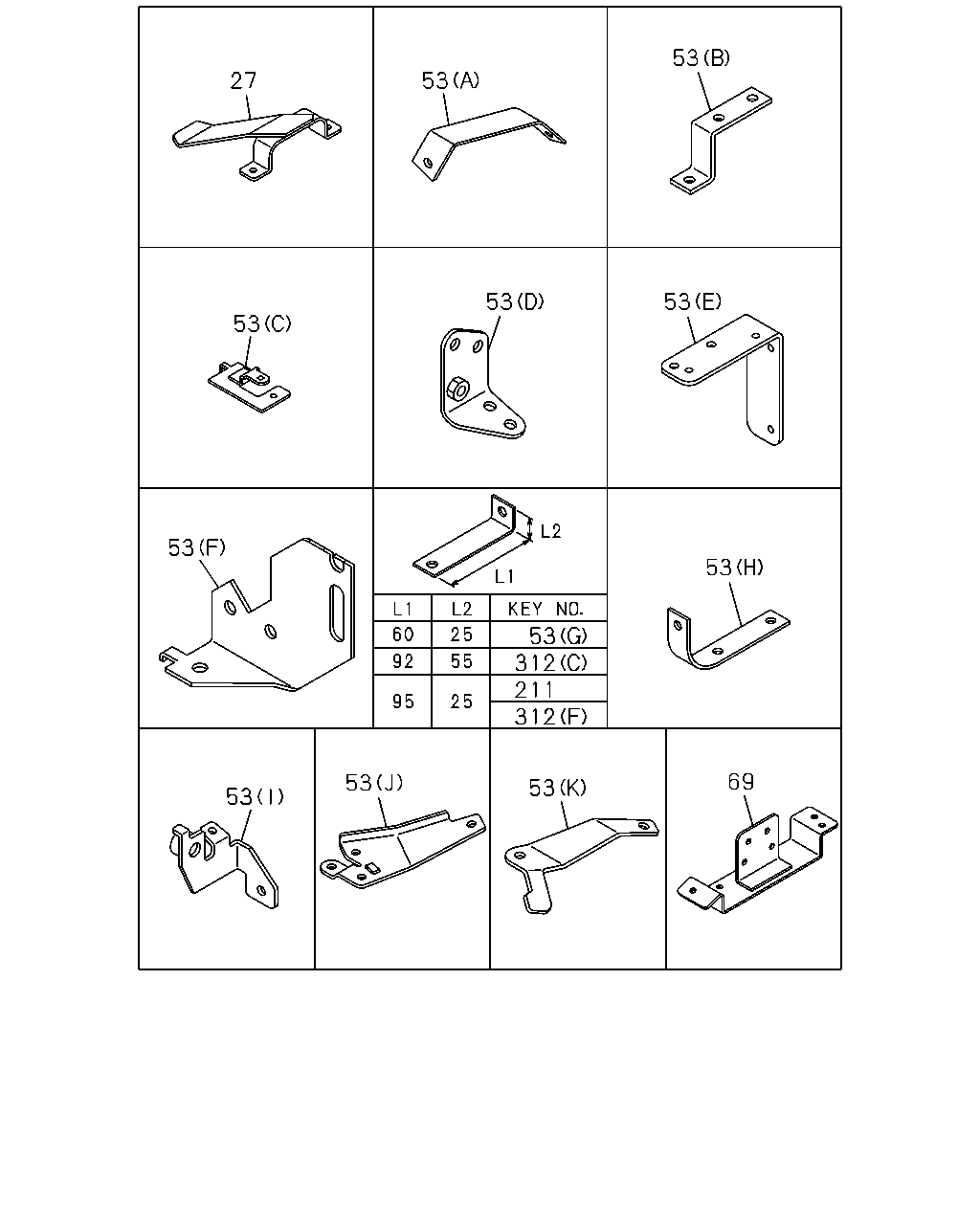

312	BRACKET; CLIP HARNESS BATTERY LAYOUT REAR VAR1<NCT> CHINA EQUIPMENT(YT2) (F) L=95	1-82699-085-0	01	1	1203-		●
312	BRACKET; CLIP HARNESS (E) L=120 H=35	1-82698-088-0	01	1	1008-	●	●
312	BRACKET; CLIP HARNESS (C)	1-21464-481-0	01	1	1008-	●	●
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (B)	1-82698-476-0	01	1	1008-	●	●
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (A)	1-82698-648-0	01	1	1008-	●	●
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (D)	1-82699-199-0	01	1	1008-	●	●
334	BRACKET	8-98160-717-1	01	1	1008-	●	●
335	BRACKET; CONNECTOR (A)	1-82698-167-0	01	1	1008-	●
335	BRACKET; CONNECTOR WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A)	1-82698-167-0	01	1	1008-		●
335	BRACKET; CONNECTOR WHEEL BASE 5900MM(59W) (B)	1-82698-663-0	01	1	1008-		●
342	BRACKET; HARNESS CAB MTG EXC. ENGINE REAR PTO(SV1) (B)	1-47479-974-0	01	1	1008-	●
342	BRACKET; HARNESS CAB MTG (B)	1-47479-974-0	01	1	1008-		●
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	1008-	●	●
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1008-	●	●

128 421 16 16 16 380 48 16 16 48 16 16 16 470 16 470 16 16 16 16 16 16 16 380 16 16 128 16 16 16 16 16 235 223 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (AN) ID=5-12 L=18	1-09709-287-0	02	1	1203-	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) EXC. BATTERY LAYOUT REAR VAR1<NCT> (AN) ID=5-12 L=18	1-09709-287-0	02	1	1203-		●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1203-	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) EXC. BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1203-		●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> CHINA EQUIPMENT(YT2) (AN) ID=5-12 L=18	1-09709-287-0	01	1	1203-		●
16	CLIP; HARNESS 6WF1 TC-C(1B8) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (AP) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-	●	●
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AN) ID=5-12 L=18	1-09709-287-0	03	1	1106-	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (AO) ID=9 L=20	0-95234-835-0	02	1	1106-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AM) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AQ) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	1008-	●	●
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	1008-	●	●
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1008-	●
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1008-		●
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1008-	●
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1008-		●
16	CLIP; HARNESS MIXER TRUCK<RA2> (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-	●
16	CLIP; HARNESS WHEEL BASE 5200MM(52W) (G) ID=18-24 L=26	1-09709-296-0	01	1	1008-	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (G) ID=18-24 L=26	1-09709-296-0	01	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (G) ID=18-24 L=26	1-09709-296-0	01	1	1008-		●
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1008-	●	●
16	CLIP; HARNESS (F) B=18 T=0.8 ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	1008-1409	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=11 L=41	1-09700-403-0	02	1	1410-	●	●
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	1008-	●	●
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1008-	●	●
16	CLIP; HARNESS (AH) ID=15 L=35	1-09700-507-0	01	1	1008-	●	●
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-	●
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-		●
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1008-	●	●
16	CLIP; HARNESS (AI) ID=4.8	1-09701-218-0	01	1	1008-	●	●
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1008-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1008-1105	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1008-1105	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1106-	●	●
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1106-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) ENGINE CONTROL-B2(Q4T) (U) OD=9 H=6	1-09709-178-0	01	1	1008-	●	●
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	1008-1105	●	●
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1008-1105	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> (V) ID=5-12 L=26	1-09709-289-0	04	1	1106-	●	●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-	●	●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1008-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1008-		●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1008-1105	●	●
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1106-	●	●
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1106-	●	●
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	01	1	1008-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (A) L=140	5-09707-031-1	01	1	1008-		●
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-	●	●
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-	●
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=14 L=44	9-09917-427-0	03	1	1008-		●
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	02	1	1008-	●	●
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	05	1	1008-	●	●
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-	●	●
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-		●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (S) L=180	1-09707-162-1	06	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AJ) ID=7-10	8-94472-578-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=20 L=50	9-09917-430-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AC) ID=22 L=52	9-09917-431-0	02	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (I) ID=28 L=58	1-09700-400-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-	●	●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1202	●	●
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1202	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1202		●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-	●	●
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-		●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> CHINA EQUIPMENT(YT2) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-		●
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AC) ID=22 L=52	9-09917-431-0	05	1	1008-	●	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1008-1208	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-	●	●
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	04	1	1008-1105	●	●
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	1106-	●	●
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1106-	●	●
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1106-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (J) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1008-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (U) OD=9 H=6	1-09709-178-0	02	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (M) ID=11 L=40	0-95235-075-0	01	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Z) ID=16 L=40	0-95235-576-0	01	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	02	1	1008-	●	●
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (T) L=350	1-09707-183-0	02	1	1008-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	03	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (X) ID=21 L=47.5	8-94178-108-0	02	1	1008-	●	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AK) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	05	1	1008-1105	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	03	1	1106-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (F) B=18 T=1.2 ID=16 L=20	0-95235-536-0	02	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (H) ID=19 L=20	0-95235-836-0	03	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	5-09707-030-1	09	1	1008-1205	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	8-98216-430-0	09	1	1206-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (X) ID=21 L=47.5	8-94178-108-0	03	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (R) L=36	8-94224-891-1	01	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) (Y) ID=18 L=44	8-97367-985-1	05	1	1008-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	03	1	1008-1112	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	01	1	1201-	●	●
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS ENGLISH<RR8> (AG) L=251	8-97619-917-0	02	1	1008-	●	●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1008-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AL) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AF) ID=13-18 L=26	1-09709-293-0	03	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FULL TRACTOR TRUCK<RD6> (AF) ID=13-18 L=26	1-09709-293-0	03	1	1008-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (P) ID=20 L=50	9-09917-430-0	03	1	1008-		●
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AA) ID=25 L=54	1-09700-392-1	01	1	1008-		●
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AE) ID=26 L=26	1-09701-236-0	01	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (AF) ID=13-18 L=26	1-09709-293-0	01	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (G) ID=18-24 L=26	1-09709-296-0	03	1	1008-		●
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1008-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	1008-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1008-	●	●
223	CLIP; AIR TANK HARNESS ENGINE CONTROL COMMON RAIL(Q4R) ID=11 H=20 L=20	8-98033-780-0	04	1	1008-	●	●
223	CLIP; AIR TANK HARNESS ENGINE CONTROL-B2(Q4T) ID=11 H=20 L=20	8-98033-780-0	03	1	1008-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=10 H=25 L=20	1-09700-519-0	01	1	1008-	●	●
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1008-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	1008-	●	●
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	1008-	●	●
421	CLIP; FLOOR HARNESS ID=21 L=28	1-09700-673-1	02	1	1008-1202	●	●
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (A) ID=11 L=41	1-09700-403-0	01	1	1008-	●	●
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (B) OD=9 H=6	1-09709-178-0	01	1	1008-	●	●
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (C) L=350	1-09707-183-0	02	1	1008-1111	●	●
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (E) L=250	5-09707-030-1	04	1	1112-	●	●
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (D) ID=6 L=36	9-09917-423-0	02	1	1008-1111	●	●

53 27 53 53 53 53 53 53 53 312 211 312 69 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	PROTECTOR; EDGE	8-97618-028-0	01	1	1008-	●	●
53	BRACKET; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (J)	8-98190-688-0	01	1	1201-	●	●
53	BRACKET; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (K)	8-98190-689-0	01	1	1201-	●	●
53	BRACKET; HARNESS 6WG1 TC-R(75L) (I)	8-98194-068-0	01	1	1112-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	04	1	1008-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	1008-	●	●
53	BRACKET; HARNESS (B)	8-98124-778-0	01	1	1008-	●	●
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (G) L=60	1-47475-455-0	01	1	1008-	●	●
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (H)	1-47479-342-0	01	1	1008-	●	●
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (C)	1-82698-495-2	01	1	1008-	●	●
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (F)	8-97617-970-0	01	1	1008-	●	●
53	BRACKET; HARNESS 6WG1 TC-R(75L) (D)	8-97610-339-1	01	1	1008-	●	●
53	BRACKET; HARNESS 6WG1 TC-R(75L) (E)	8-97610-340-1	01	1	1008-	●	●
69	BRACKET; CLIP ENGINE CONTROL COMMON RAIL(Q4R)	8-98171-829-0	01	1	1202-	●	●
211	BRACKET; AXLE HARNESS L=95	1-82699-085-0	02	1	1008-	●	●
312	BRACKET; CLIP HARNESS BATTERY LAYOUT REAR VAR1<NCT> CHINA EQUIPMENT(YT2) (F) L=95	1-82699-085-0	01	1	1203-		●
312	BRACKET; CLIP HARNESS (E) L=120 H=35	1-82698-088-0	01	1	1008-	●	●
312	BRACKET; CLIP HARNESS (C)	1-21464-481-0	01	1	1008-	●	●
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (B)	1-82698-476-0	01	1	1008-	●	●
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (A)	1-82698-648-0	01	1	1008-	●	●
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (D)	1-82699-199-0	01	1	1008-	●	●

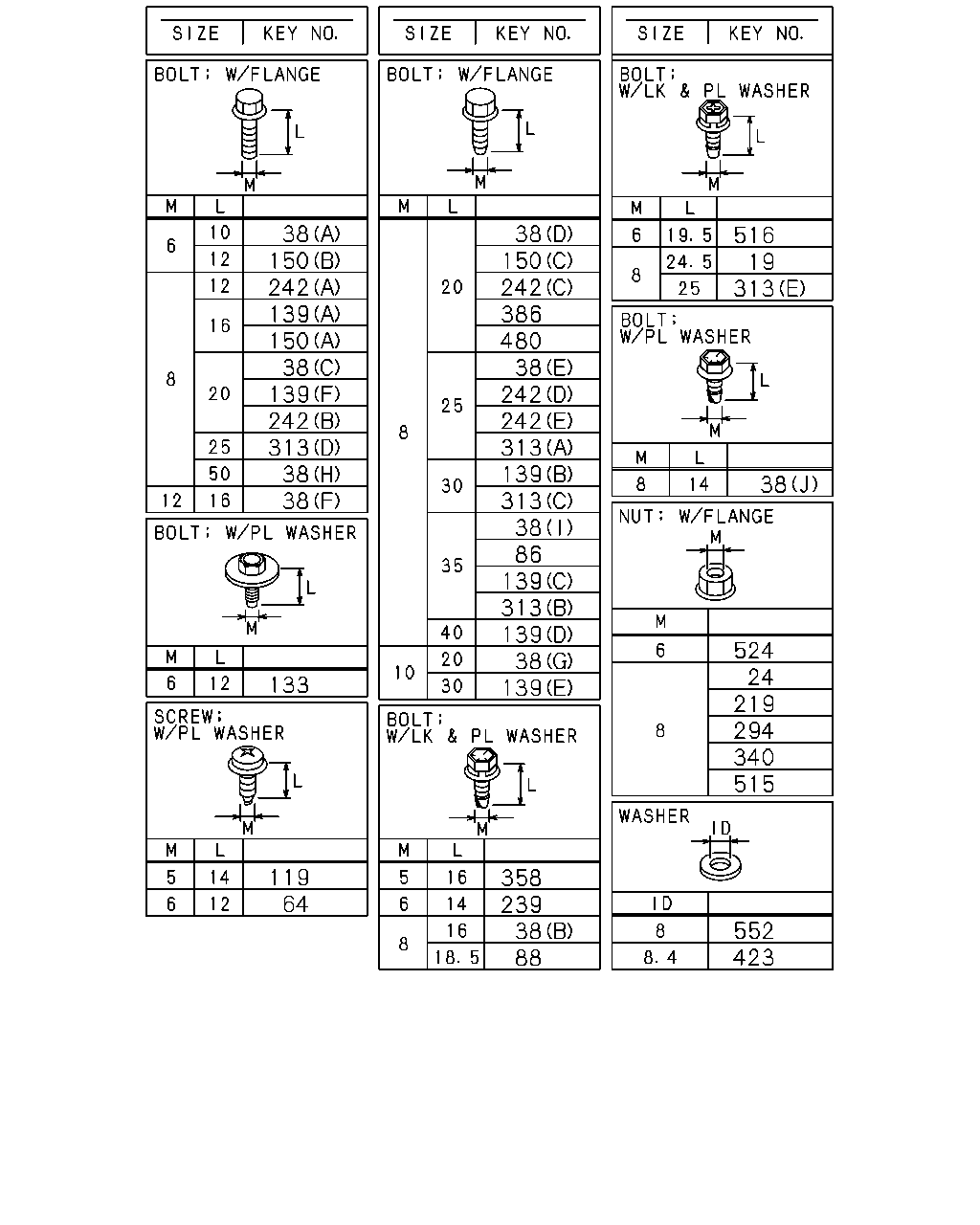

38 150 242 139 150 38 139 242 313 38 38 38 150 242 386 480 38 242 242 313 139 313 38 86 139 313 139 38 139 516 19 313 38 524 24 219 294 340 515 133 119 64 358 239 38 88 552 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BOLT; PROTECTOR M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-	●	●
24	NUT; HARNESS M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	1008-	●
38	BOLT; CLIP,HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) M6X10 FLANGE	0-28050-610-0	01	1	1008-		●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	1008-	●	●
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
38	BOLT; CLIP,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (D) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (D) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	1008-	●	●
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	1008-1105	●	●
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-	●	●
38	BOLT; CLIP,HARNESS (B) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	1008-1201	●	●
38	BOLT; CLIP,HARNESS (J) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-	●	●
38	BOLT; CLIP,HARNESS ENGINE CONTROL-B2(Q4T) (C) M8X20 FLANGE	0-28050-820-0	02	1	1008-	●	●
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E) (D) M8X20 FLANGE	0-28650-820-0	03	1	1008-	●	●
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) (D) M8X20 FLANGE	0-28650-820-0	05	1	1008-	●	●
38	BOLT; CLIP,HARNESS WHEEL BASE 5500MM(55W) FULL TRACTOR TRUCK<RD6> (H) M8X50 FLANGE	0-28050-850-0	01	1	1008-		●
38	BOLT; CLIP,HARNESS WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (I) M8X35 FLANGE	0-28650-835-0	01	1	1008-		●
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	02	1	1008-1202	●	●
86	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
88	BOLT; DOOR HARNESS EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-	●	●
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1008-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1008-	●	●
139	BOLT; BRKT 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (F) M8X20 FLANGE	0-28050-820-0	03	1	1201-	●	●
139	BOLT; BRKT 6WG1 TC-R(75L) (E) M10X30 FLANGE	0-28151-030-0	01	1	1112-	●	●
139	BOLT; BRKT WHEEL BASE 5900MM(59W) (D) M8X40 FLANGE	0-28650-840-0	02	1	1110-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1008-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	1008-	●	●
139	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1008-1109	●	●
139	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1110-	●
139	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (C) M8X35 FLANGE	0-28650-835-0	01	1	1110-		●
139	BOLT; BRKT 6WG1 TC-R(75L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
150	BOLT; CLIP 6WF1 TC-C(1B8) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (C) M8X20 FLANGE	0-28650-820-0	01	1	1202-	●	●
150	BOLT; CLIP EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●
150	BOLT; CLIP 6WF1 TC-C(1B8) (B) M6X12 FLANGE	0-28050-612-0	02	1	1008-	●	●
150	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X16 FLANGE	0-28050-816-0	03	1	1008-1208	●	●
150	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X16 FLANGE	0-28050-816-0	02	1	1209-	●	●
150	BOLT; CLIP 6WG1 TC-R(75L) (A) M8X16 FLANGE	0-28050-816-0	13	1	1008-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
219	NUT ENGINE CONTROL-B2(Q4T) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
219	NUT EXC. ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	01	1	1008-	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1008-		●
219	NUT FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91180-108-0	01	1	1008-		●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
219	NUT ENGINE CONTROL COMMON RAIL(Q4R) M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
219	NUT ENGINE CONTROL-B2(Q4T) M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-	●	●
242	BOLT; BRKT,HARNESS BATTERY LAYOUT REAR VAR1<NCT> CHINA EQUIPMENT(YT2) (E) M8X25 FLANGE	0-28050-825-0	01	1	1203-		●
242	BOLT; BRKT,HARNESS EXC. ENGINE REAR PTO(SV1) (C) M8X20 FLANGE	0-28650-820-0	01	1	1008-	●
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	1008-		●
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1008-	●	●
242	BOLT; BRKT,HARNESS (D) M8X25 FLANGE	0-28650-825-0	02	1	1008-	●	●
242	BOLT; BRKT,HARNESS ENGINE CONTROL-B2(Q4T) (B) M8X20 FLANGE	0-28050-820-0	02	1	1008-	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
294	NUT FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
294	NUT M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
313	BOLT; BRKT ENGINE CONTROL COMMON RAIL(Q4R) (E) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	1202-	●	●
313	BOLT; BRKT ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	04	1	1008-	●	●
313	BOLT; BRKT ENGINE CONTROL-B2(Q4T) (D) M8X25 FLANGE	0-28050-825-0	02	1	1008-	●	●
313	BOLT; BRKT FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (B) M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
340	NUT; HARNESS CAB TO FRAME ENGINE CONTROL COMMON RAIL(Q4R) M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
340	NUT; HARNESS CAB TO FRAME ENGINE CONTROL-B2(Q4T) M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1008-	●	●
386	BOLT; GRAND HARNESS M8X20 FLANGE	0-28650-820-0	01	1	1008-	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	1008-	●	●
480	BOLT; BRKT ENGINE CONTROL-B2(Q4T) M8X20 FLANGE	0-28650-820-0	04	1	1008-	●	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	1008-	●	●
552	NUT; BRKT,HARNESS BATTERY LAYOUT REAR VAR1<NCT> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	01	1	1203-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
