◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#55712) — 214 parça

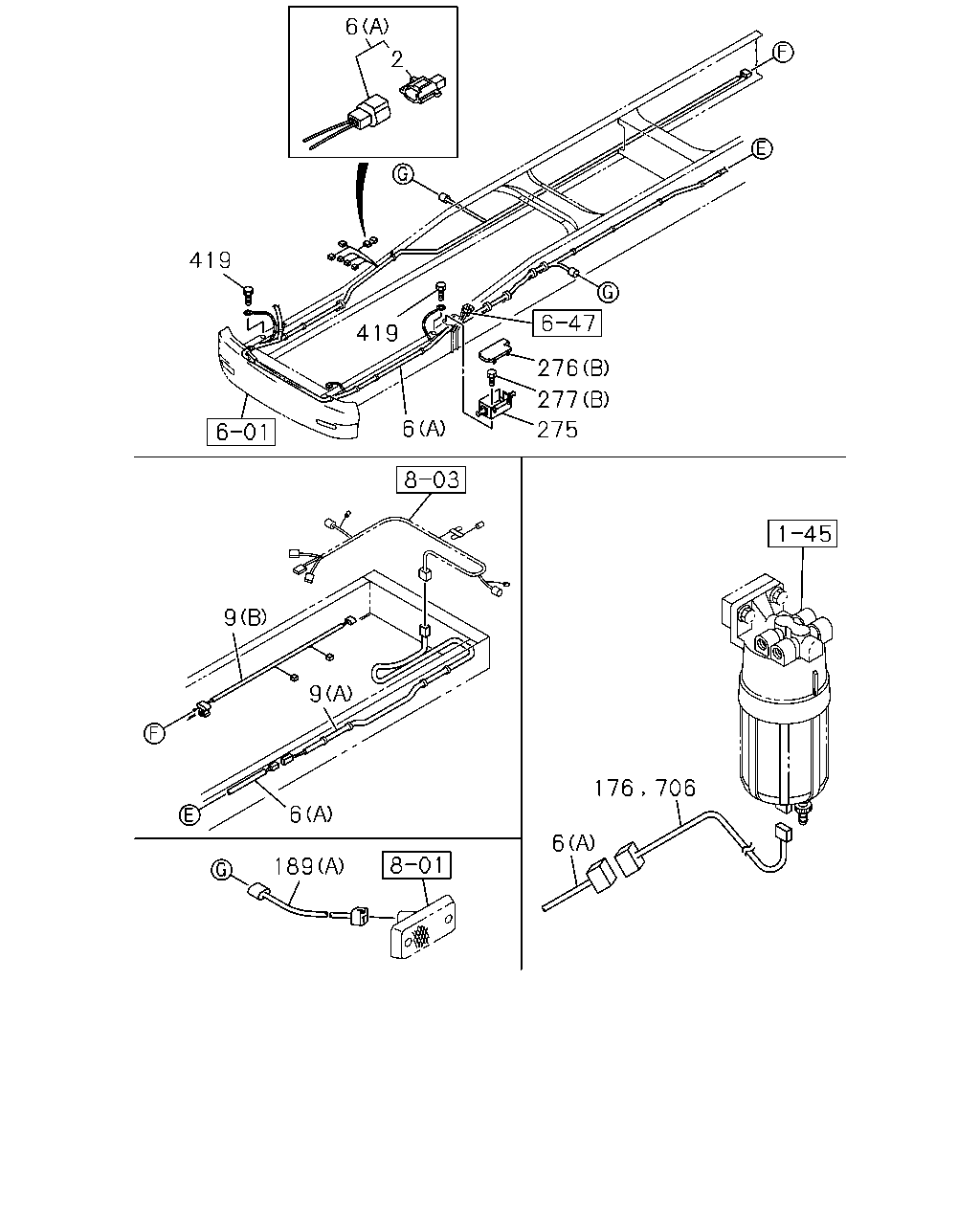

çizim 167375
6 419 419 6 296 275 277 9 9 6 189 176 6 706 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 1008- ● ●
6 HARNESS; FRAME
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) (A) 		8-97642-099-1 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-97642-099-1 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) CHINA EQUIPMENT(YT2) EXC. FULL TRAILER PIPING<Z25> (A) 		8-97642-101-1 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) EXC. FULL TRAILER PIPING<Z25> (A) 		8-97642-100-0 01 1 1203- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) (B) 		1-82677-378-3 01 1 1008-1201 ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) (B) 		8-98181-560-0 01 1 1202- ● ●
6 HARNESS; FRAME
6WG1 TC-R(75L) (B) 		1-82678-325-2 01 1 1008- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) (A) 		8-98144-970-6 01 1 1008- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98144-970-6 01 1 1008- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) (A) 		8-98139-380-4 01 1 1008-1202 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98139-380-4 01 1 1008-1202 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) EXC. CHINA EQUIPMENT(YT2) (A) 		8-98139-380-5 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) EXC. BATTERY LAYOUT REAR VAR1<NCT>,CHINA EQUIPMENT(YT2),FULL TRAILER PIPING<Z25> (A) 		8-98139-380-5 01 1 1203- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BATTERY LAYOUT REAR VAR1<NCT> FULL TRAILER PIPING<Z25> (A) 		8-98144-995-4 01 1 1008- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98144-996-4 01 1 1008- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98144-972-5 01 1 1008- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98144-971-6 01 1 1008- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> FULL TRAILER PIPING<Z25> (A) 		8-98159-284-3 01 1 1008- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98159-282-2 01 1 1008-1202 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) EXC. CHINA EQUIPMENT(YT2),FULL TRAILER PIPING<Z25> (A) 		8-98159-282-3 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98144-994-3 01 1 1008-1202 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. CHINA EQUIPMENT(YT2),FULL TRAILER PIPING<Z25> (A) 		8-98144-994-3 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98159-283-3 01 1 1008- ●
9 HARNESS; FRAME,RR
(A) 		8-98144-772-1 01 1 1008- ●
9 HARNESS; FRAME,RR
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		8-98144-773-1 01 1 1008- ●
9 HARNESS; FRAME,RR
ENGINE CONTROL-B2(Q4T) (B) 		8-98144-774-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) ENGINE CONTROL COMMON RAIL(Q4R) (B) 		8-98149-041-0 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) ENGINE CONTROL-B2(Q4T) (B) 		8-98139-476-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> (A) 		8-98139-412-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98139-414-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) ENGINE CONTROL COMMON RAIL(Q4R) (B) 		8-98149-042-0 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) ENGINE CONTROL-B2(Q4T) (B) 		8-98139-477-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> (A) 		8-98139-418-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98139-425-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) ENGINE CONTROL COMMON RAIL(Q4R) (B) 		8-98149-043-0 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) ENGINE CONTROL-B2(Q4T) (B) 		8-98139-478-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) FULL TRAILER PIPING<Z25> (A) 		8-98139-436-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98139-443-1 01 1 1008- ●
176 HARNESS; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-634-0 01 1 1106-1203 ●
176 HARNESS; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> EXC. BATTERY LAYOUT REAR VAR1<NCT> 		8-98188-634-0 01 1 1106-1203 ●
176 HARNESS; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-639-0 01 1 1106-1203 ●
176 HARNESS; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT>,FUEL SEDIMENTERWITH HEATER<6HU> 		8-98188-639-0 01 1 1106-1203 ●
176 HARNESS; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-635-0 01 1 1106-1203 ●
176 HARNESS; FUEL SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-640-0 01 1 1106-1203 ●
176 HARNESS; FUEL SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98149-048-3 01 1 1008-1105 ●
176 HARNESS; FUEL SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> EXC. BATTERY LAYOUT REAR VAR1<NCT> 		8-98149-048-3 01 1 1008-1105 ●
176 HARNESS; FUEL SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98149-048-3 01 1 1106-1203 ●
176 HARNESS; FUEL SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> 		8-98149-048-3 01 1 1106-1203 ●
176 HARNESS; FUEL SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98139-487-2 01 1 1008-1105 ●
176 HARNESS; FUEL SEDIMENTER
EXC. BATTERY LAYOUT REAR VAR1<NCT>,FUEL SEDIMENTERWITH HEATER<6HU> 		8-98139-487-2 01 1 1008-1105 ●
176 HARNESS; FUEL SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0>,FUEL SEDIMENTERWITH HEATER<6HU> 		8-98139-487-2 01 1 1106-1203 ●
176 HARNESS; FUEL SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98139-487-2 01 1 1106-1203 ●
176 HARNESS; FUEL SEDIMENTER
BATTERY LAYOUT REAR VAR1<NCT> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98160-835-1 01 1 1008-1105 ●
176 HARNESS; FUEL SEDIMENTER
BATTERY LAYOUT REAR VAR1<NCT> FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98160-835-1 01 1 1106-1203 ●
176 HARNESS; FUEL SEDIMENTER
BATTERY LAYOUT REAR VAR1<NCT> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98154-763-1 01 1 1008-1105 ●
176 HARNESS; FUEL SEDIMENTER
BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0>,FUEL SEDIMENTERWITH HEATER<6HU> 		8-98154-763-1 01 1 1106-1203 ●
189 HARNESS; EXT
CHINA EQUIPMENT(YT2) (B) 		8-97625-952-0 01 1 1008- ● ●
189 HARNESS; EXT
EXC. CHINA EQUIPMENT(YT2) (A) 		1-82673-735-0 06 1 1008- ●
189 HARNESS; EXT
EXC. CHINA EQUIPMENT(YT2) (A) 		1-82673-735-0 08 1 1008- ●
275 BOX ASM; FRAME HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) 		1-82699-474-2 01 1 1008-1201 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1008- ● ●
277 BOLT; BOX ASM FIX
ENGINE CONTROL COMMON RAIL(Q4R) (B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 05 1 1202- ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-634-1 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> EXC. BATTERY LAYOUT REAR VAR1<NCT> 		8-98188-634-1 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-639-1 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> EXC. BATTERY LAYOUT REAR VAR1<NCT>,FUEL SEDIMENTERWITH HEATER<6HU> 		8-98188-639-1 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98149-048-3 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT> 		8-98149-048-3 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0>,FUEL SEDIMENTERWITH HEATER<6HU> 		8-98139-487-2 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0>,BATTERY LAYOUT REAR VAR1<NCT>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98139-487-2 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-635-1 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> BATTERY LAYOUT REAR VAR1<NCT> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98188-640-1 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER
BATTERY LAYOUT REAR VAR1<NCT> FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98160-835-1 01 1 1204- ●
706 HARNESS; EXT,SEDIMENTER
BATTERY LAYOUT REAR VAR1<NCT> EXC. POOR QUALITY DIESEL FUEL<KF0>,FUEL SEDIMENTERWITH HEATER<6HU> 		8-98154-763-1 01 1 1204- ●

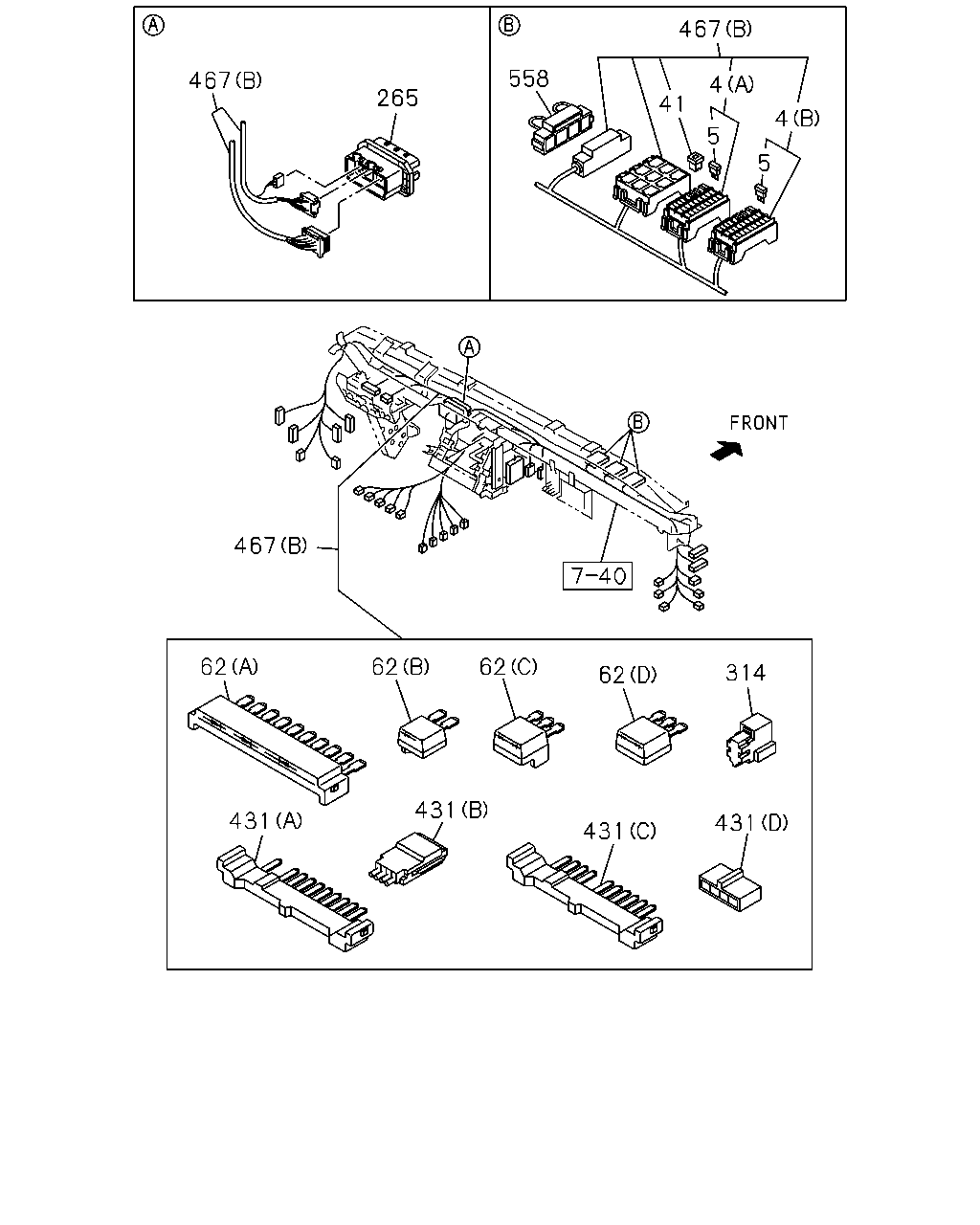

çizim 167377
467 558 467 4 265 41 4 5 5 467 62 62 62 314 62 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX21 		1-82510-420-0 01 1 1008- ● ●
4 BOX ASM; FUSE,HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) 15AX22 25AX3 		8-98126-046-0 01 1 1008- ● ●
4 BOX ASM; FUSE,HARNESS
ENGINE CONTROL-B2(Q4T) (B) 15AX21 25AX2 		1-82510-513-0 01 1 1008- ● ●
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 21 1 1008- ● ●
5 FUSE; FACIA HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) 15A BLUE 		5-82516-003-0 22 1 1008- ● ●
5 FUSE; FACIA HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) 25A CLEAR 		5-82516-005-0 03 1 1008- ● ●
5 FUSE; FACIA HARNESS
ENGINE CONTROL-B2(Q4T) 15A BLUE 		5-82516-003-0 21 1 1008- ● ●
5 FUSE; FACIA HARNESS
ENGINE CONTROL-B2(Q4T) 25A CLEAR 		5-82516-005-0 02 1 1008- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1008- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 1008- ● ●
62 DIODE; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (C) BLACK 3P-1.5A 		8-94416-438-1 04 1 1008- ● ●
62 DIODE; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) BLACK 2P-1.5A 		8-94422-639-1 04 1 1008-1112 ● ●
62 DIODE; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) BLACK 2P-1.5A 		8-94422-639-1 06 1 1201- ● ●
62 DIODE; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (D) BLACK 3P-1.5A 		8-94422-640-1 01 1 1008- ● ●
62 DIODE; HARNESS
ENGINE CONTROL-B2(Q4T) (C) BLACK 3P-1.5A 		8-94416-438-1 03 1 1008- ● ●
62 DIODE; HARNESS
ENGINE CONTROL-B2(Q4T) (B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1008- ● ●
62 DIODE; HARNESS
ENGINE CONTROL-B2(Q4T) (D) BLACK 3P-1.5A 		8-94422-640-1 02 1 1008- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1008- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1008- ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 1008- ● ●
431 CONNECTOR; JOINT
ENGINE CONTROL COMMON RAIL(Q4R) (B) 4P 		8-97376-776-0 03 1 1008- ● ●
431 CONNECTOR; JOINT
ENGINE CONTROL-B2(Q4T) (D) 		1-82698-617-0 01 1 1008- ● ●
431 CONNECTOR; JOINT
ENGINE CONTROL-B2(Q4T) (C) 10P BLUE 		1-82699-598-0 02 1 1008- ● ●
431 CONNECTOR; JOINT
ENGINE CONTROL-B2(Q4T) (B) 4P 		8-97376-776-0 04 1 1008-1009 ● ●
431 CONNECTOR; JOINT
ENGINE CONTROL-B2(Q4T) (B) 4P 		8-97376-776-0 06 1 1010- ● ●
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (B) LOWER 		8-98144-223-7 01 1 1008- ● ●
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (A) UPPER 		8-98145-590-1 01 1 1008- ● ●
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98144-226-9 01 1 1008-1406 ● ●
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98274-927-0 01 1 1407- ● ●
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (A) UPPER 		8-98144-228-1 01 1 1008- ● ●
558 CONNECTOR; HARNESS
4P 		1-82629-690-0 01 1 1008- ● ●

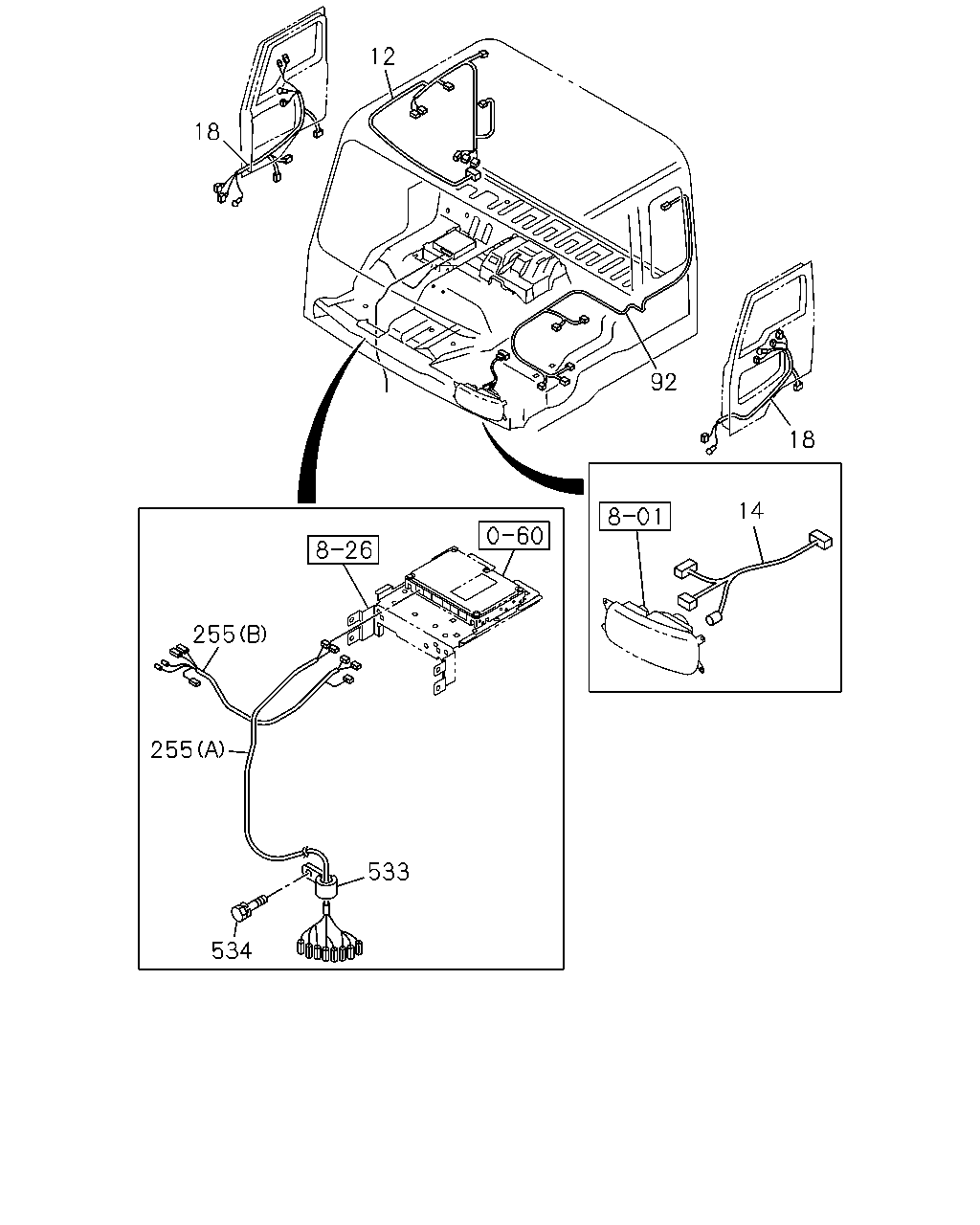

çizim 167543
12 18 92 18 14 255 255 533 534
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> 		1-82629-921-2 01 1 1008- ● ●
12 HARNESS; ROOF
ROOF MARKER LAMP<U01> 		8-98131-062-0 01 1 1008- ●
14 HARNESS; HEADLAMP 1-82677-628-3 02 1 1008- ● ●
18 HARNESS; DOOR
MIR O/S RR VIEW HEATED<DNN> 		8-98144-699-2 01 1 1008- ● ●
18 HARNESS; DOOR
MIR O/S RR VIEW HEATED<DNN> 		8-98144-701-2 01 1 1008- ● ●
18 HARNESS; DOOR
EXC. MIR O/S RR VIEW HEATED<DNN> 		8-98144-348-1 01 1 1008- ● ●
18 HARNESS; DOOR
EXC. MIR O/S RR VIEW HEATED<DNN> 		8-98144-350-0 01 1 1008- ● ●
92 HARNESS; FLOOR
ENGINE CONTROL COMMON RAIL(Q4R) 		8-98093-664-0 01 1 1008- ● ●
92 HARNESS; FLOOR
ENGINE CONTROL-B2(Q4T) 		8-98144-563-0 01 1 1008- ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-82662-241-2 01 1 1008-1201 ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		8-98181-558-0 01 1 1202-1202 ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		8-97641-992-1 01 1 1203- ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		1-82662-741-1 01 1 1008-1202 ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		8-97641-997-0 01 1 1203- ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (A) 		8-97611-877-2 01 1 1008-1202 ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (A) 		8-97641-995-1 01 1 1203- ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (B) 		8-97611-878-1 01 1 1008-1202 ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (B) 		8-97641-998-0 01 1 1203- ● ●
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 1008- ● ●
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008- ● ●

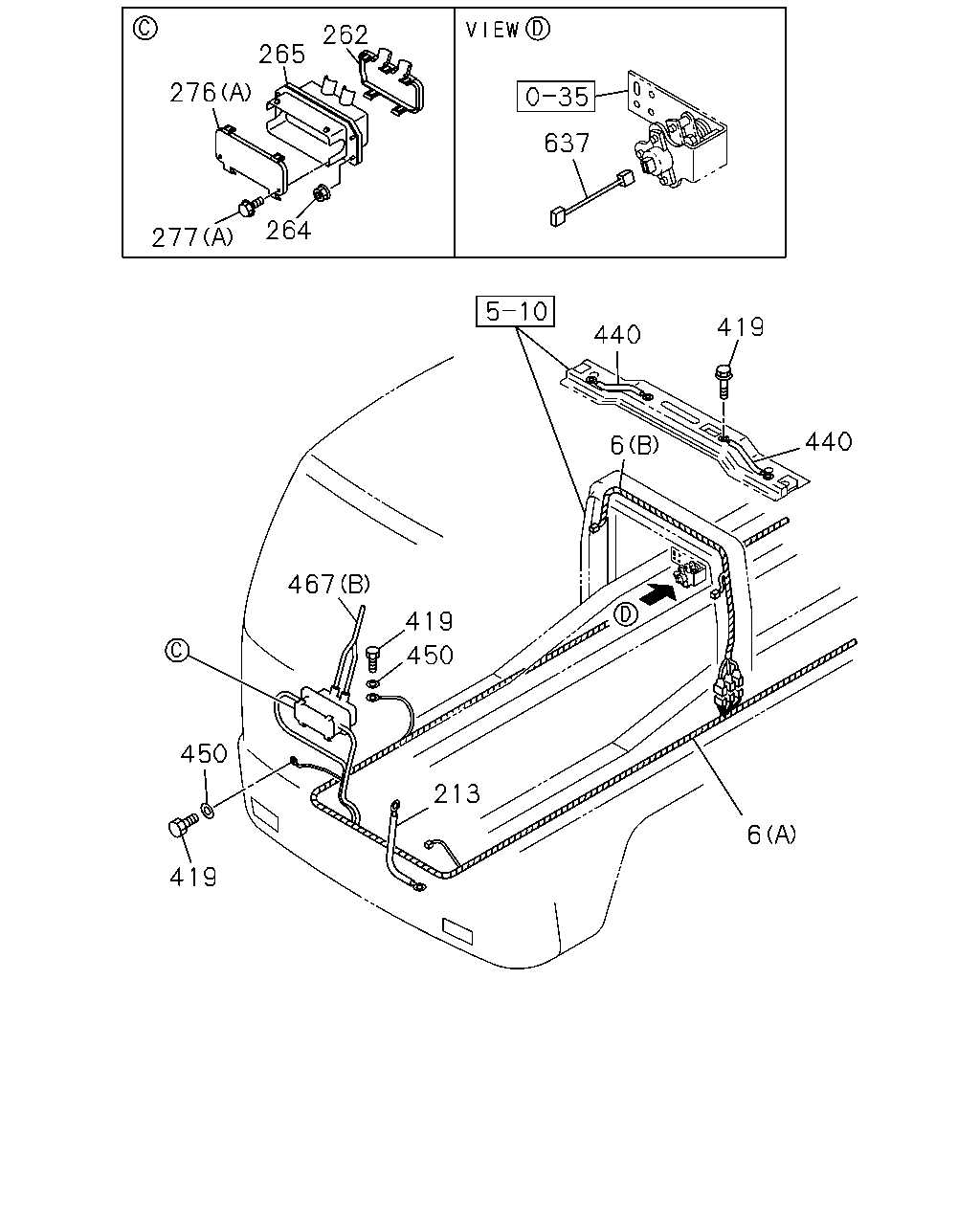

çizim 167553
262 265 276 637 264 277 419 440 440 6 467 419 450 450 213 6 419
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) (A) 		8-97642-099-1 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-97642-099-1 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) CHINA EQUIPMENT(YT2) EXC. FULL TRAILER PIPING<Z25> (A) 		8-97642-101-1 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) CHINA EQUIPMENT(YT2) EXC. FULL TRAILER PIPING<Z25> (A) 		8-97642-100-0 01 1 1203- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) (B) 		1-82677-378-3 01 1 1008-1201 ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) (B) 		8-98181-560-0 01 1 1202- ● ●
6 HARNESS; FRAME
6WG1 TC-R(75L) (B) 		1-82678-325-2 01 1 1008- ● ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) (A) 		8-98144-970-6 01 1 1008- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98144-970-6 01 1 1008- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) (A) 		8-98139-380-4 01 1 1008-1202 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98139-380-4 01 1 1008-1202 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) EXC. CHINA EQUIPMENT(YT2) (A) 		8-98139-380-5 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) EXC. BATTERY LAYOUT REAR VAR1<NCT>,CHINA EQUIPMENT(YT2),FULL TRAILER PIPING<Z25> (A) 		8-98139-380-5 01 1 1203- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BATTERY LAYOUT REAR VAR1<NCT> FULL TRAILER PIPING<Z25> (A) 		8-98144-995-4 01 1 1008- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98144-996-4 01 1 1008- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98144-972-5 01 1 1008- ●
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98144-971-6 01 1 1008- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> FULL TRAILER PIPING<Z25> (A) 		8-98159-284-3 01 1 1008- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98159-282-2 01 1 1008-1202 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) EXC. CHINA EQUIPMENT(YT2),FULL TRAILER PIPING<Z25> (A) 		8-98159-282-3 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98144-994-3 01 1 1008-1202 ●
6 HARNESS; FRAME
6WG1 TC-R(75L) BATTERY LAYOUT REAR VAR1<NCT> GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. CHINA EQUIPMENT(YT2),FULL TRAILER PIPING<Z25> (A) 		8-98144-994-3 01 1 1203- ●
6 HARNESS; FRAME
6WG1 TC-R(75L) FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98159-283-3 01 1 1008- ●
213 CABLE; EARTH,CAB TO FRAME 1-82677-900-1 01 1 1008- ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 1008- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1008- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1008- ● ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 1008- ● ●
276 COVER; BOX,FRAME HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		1-82699-475-2 01 1 1008-1201 ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1008- ● ●
277 BOLT; BOX ASM FIX
ENGINE CONTROL COMMON RAIL(Q4R) (B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 05 1 1202- ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
440 CABLE; EARTH 1-82678-273-0 02 1 1008- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 1008- ● ●
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (B) LOWER 		8-98144-223-7 01 1 1008- ● ●
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (A) UPPER 		8-98145-590-1 01 1 1008- ● ●
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98144-226-9 01 1 1008-1406 ● ●
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98274-927-0 01 1 1407- ● ●
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (A) UPPER 		8-98144-228-1 01 1 1008- ● ●
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1008- ● ●

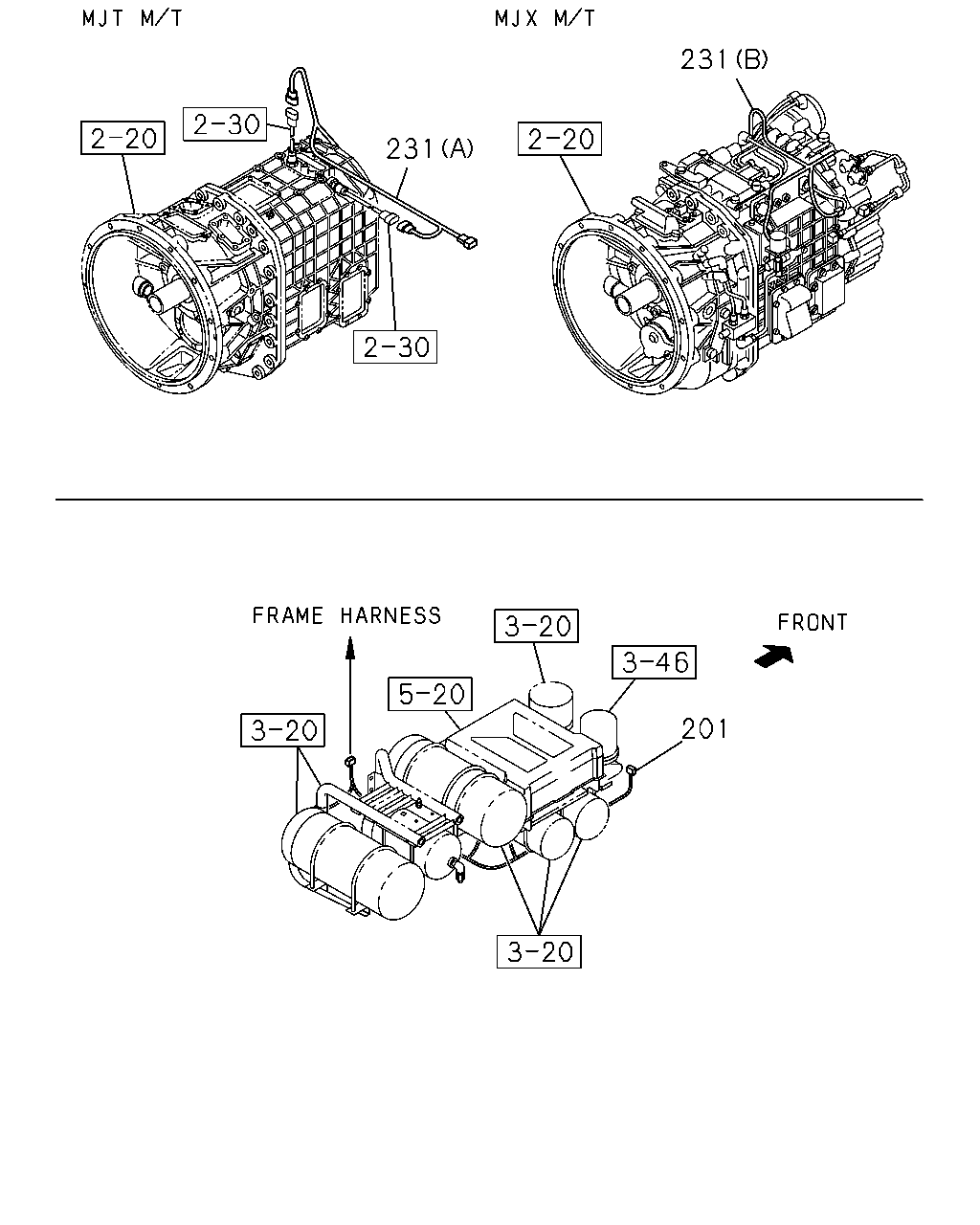

çizim 167565
231 231 201
BalonParca AdiParca NoAdetTipApplied Date A B
201 HARNESS; AIR TANK
ENGINE CONTROL COMMON RAIL(Q4R) 		8-98139-495-3 01 1 1008- ● ●
201 HARNESS; AIR TANK
ENGINE CONTROL-B2(Q4T) 		8-98139-492-3 01 1 1008- ● ●
231 HARNESS; TRANS
MJT7S M/T(Y3E) (A) 		8-97615-725-1 01 1 1008- ● ●
231 HARNESS; TRANS
MJX16P M/T(Y3Z) (B) 		8-98139-486-4 01 1 1008- ● ●

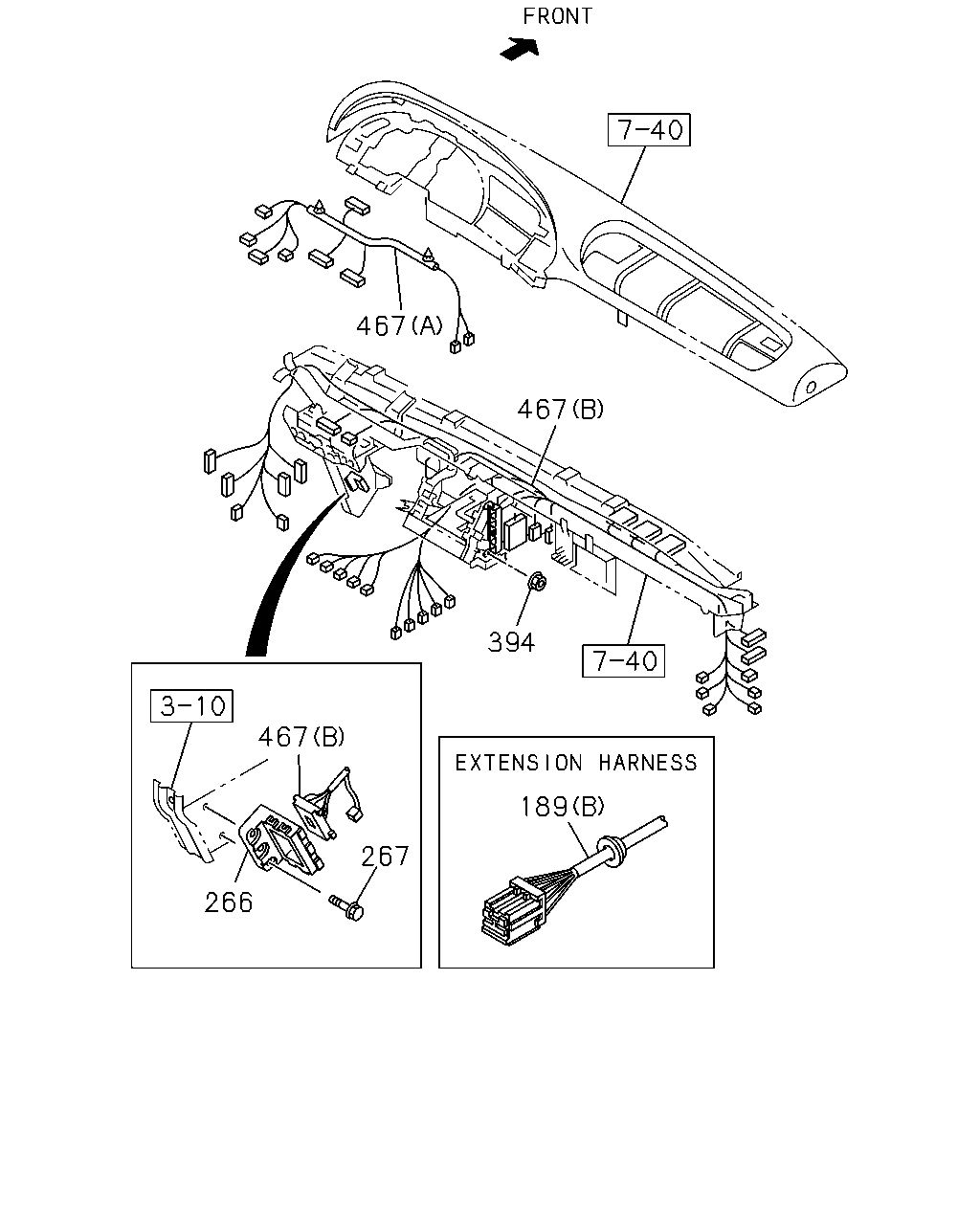

çizim 167568
467 467 394 467 189 267 266
BalonParca AdiParca NoAdetTipApplied Date A B
189 HARNESS; EXT
CHINA EQUIPMENT(YT2) (B) 		8-97625-952-0 01 1 1008- ● ●
189 HARNESS; EXT
EXC. CHINA EQUIPMENT(YT2) (A) 		1-82673-735-0 06 1 1008- ●
189 HARNESS; EXT
EXC. CHINA EQUIPMENT(YT2) (A) 		1-82673-735-0 08 1 1008- ●
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1008- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1008- ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (B) LOWER 		8-98144-223-7 01 1 1008- ● ●
467 HARNESS; FACIA
ENGINE CONTROL COMMON RAIL(Q4R) (A) UPPER 		8-98145-590-1 01 1 1008- ● ●
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98144-226-9 01 1 1008-1406 ● ●
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (B) LOWER 		8-98274-927-0 01 1 1407- ● ●
467 HARNESS; FACIA
ENGINE CONTROL-B2(Q4T) (A) UPPER 		8-98144-228-1 01 1 1008- ● ●

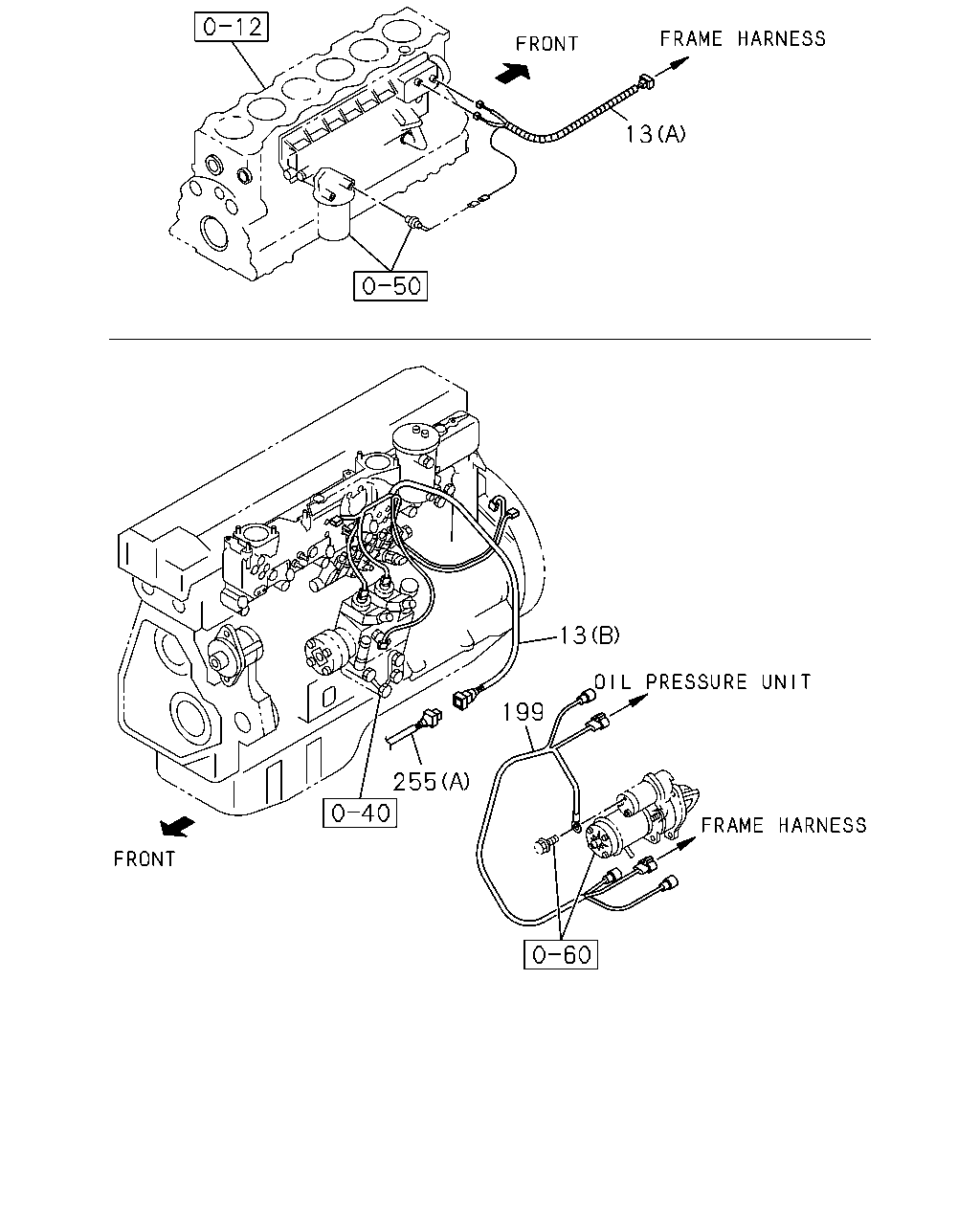

çizim 167571
13 255 199 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
6WG1 TC-R(75L) CAUTIONS ENGLISH<RR8> (B) 		8-98165-844-2 01 1 1008- ● ●
13 HARNESS; ENG
6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (B) 		8-97611-417-5 01 1 1008- ● ●
13 HARNESS; ENG
6WF1 TC-C(1B8) (B) 		8-98169-641-0 01 1 1008-1201 ● ●
13 HARNESS; ENG
6WF1 TC-C(1B8) CAUTIONS CHINESE<SL7> (B) 		8-98169-641-0 01 1 1202- ● ●
13 HARNESS; ENG
6WF1 TC-C(1B8) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B) 		8-98180-788-0 01 1 1202- ● ●
13 HARNESS; ENG
6WF1 TC-C(1B8) (A) 		1-82640-553-4 01 1 1008- ● ●
13 HARNESS; ENG
6WG1 TC-R(75L) (A) 		8-98076-007-0 01 1 1008- ● ●
199 HARNESS; STARTER
ENGINE CONTROL COMMON RAIL(Q4R) ENGINE REAR PTO(SV1) 		8-98147-121-0 01 1 1008- ●
199 HARNESS; STARTER
ENGINE CONTROL COMMON RAIL(Q4R) EXC. ENGINE REAR PTO(SV1) 		8-98139-485-0 01 1 1008- ●
199 HARNESS; STARTER
ENGINE CONTROL COMMON RAIL(Q4R) 		8-98139-485-0 01 1 1008- ●
199 HARNESS; STARTER
ENGINE CONTROL-B2(Q4T) ENGINE REAR PTO(SV1) 		8-97612-155-0 01 1 1008- ●
199 HARNESS; STARTER
ENGINE CONTROL-B2(Q4T) EXC. ENGINE REAR PTO(SV1) 		8-97607-313-0 01 1 1008- ●
199 HARNESS; STARTER
ENGINE CONTROL-B2(Q4T) 		8-97607-313-0 01 1 1008- ●
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		1-82662-241-2 01 1 1008-1201 ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		8-98181-558-0 01 1 1202-1202 ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		8-97641-992-1 01 1 1203- ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		1-82662-741-1 01 1 1008-1202 ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		8-97641-997-0 01 1 1203- ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (A) 		8-97611-877-2 01 1 1008-1202 ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (A) 		8-97641-995-1 01 1 1203- ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (B) 		8-97611-878-1 01 1 1008-1202 ● ●
255 HARNESS; ELEC GOV
ENGINE CONTROL-B2(Q4T) (B) 		8-97641-998-0 01 1 1203- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
