◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#55709) — 104 parça

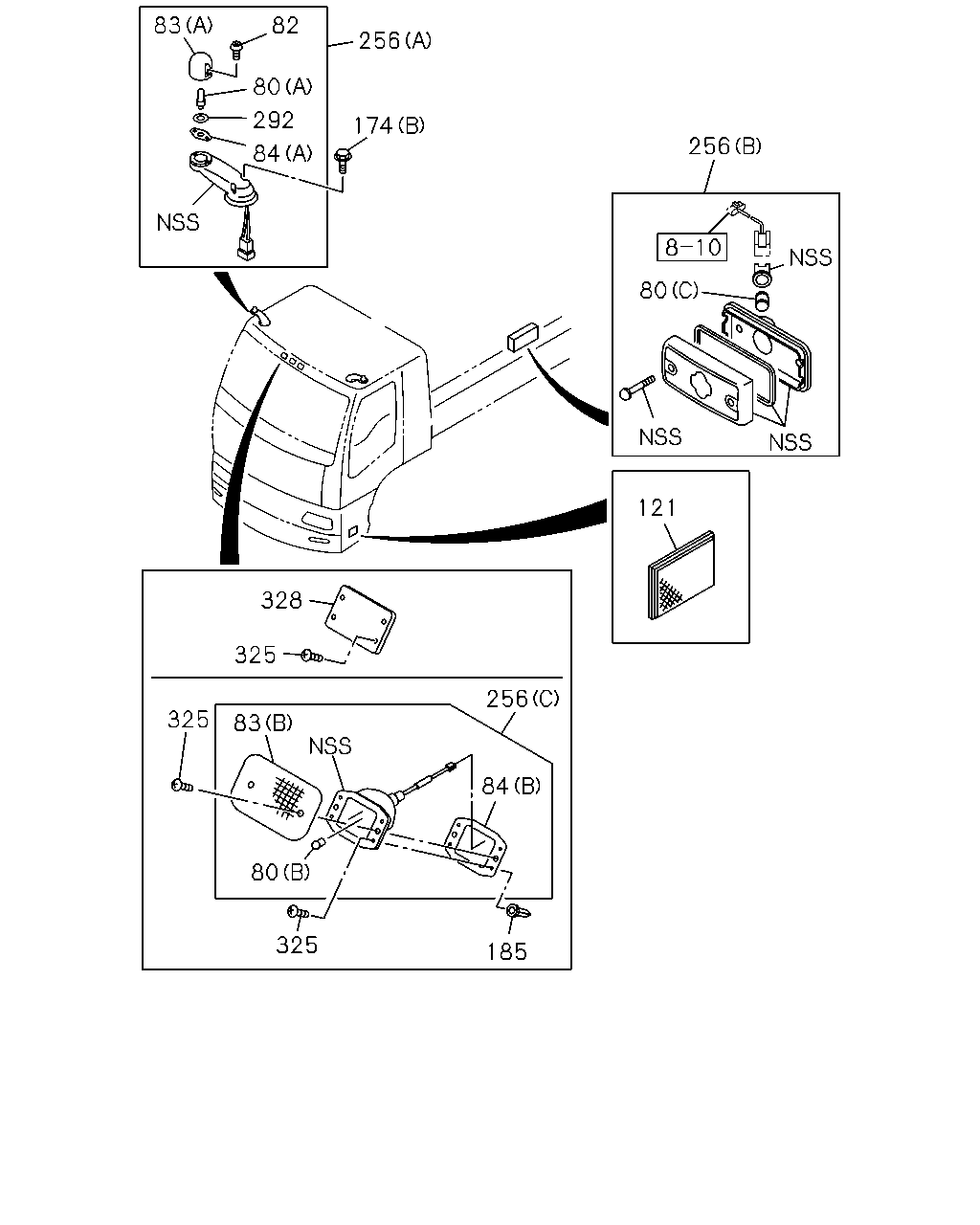

çizim 167295
82 83 256 80 292 174 256 84 80 121 328 325 256 325 83 84 80 325 185
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
EXC. CHINA EQUIPMENT(YT2) (C) 24V 3W 		1-82219-035-0 06 1 1008- ●
80 BULB; MARKER LAMP
(A) 24V 5W 		8-94135-397-0 02 1 1008- ● ●
80 BULB; MARKER LAMP
EXC. CHINA EQUIPMENT(YT2) (C) 24V 3W 		1-82219-035-0 08 1 1008- ●
80 BULB; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 24V 12W 		9-82691-302-0 03 1 1008- ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 1008- ● ●
83 LENS; MARKER LAMP
(A) 		1-82215-046-0 02 1 1008- ● ●
83 LENS; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-82215-068-0 03 1 1008- ●
84 GASKET; MARKER LAMP
(A) 		1-86830-288-0 04 1 1008- ● ●
84 GASKET; MARKER LAMP
ROOF MARKER LAMP<U01> (B) 		1-86830-153-0 03 1 1008- ●
121 REFLECTOR; REFLEX
EXC. CHINA EQUIPMENT(YT2) 		8-98013-990-1 02 1 1008- ● ●
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 1008- ● ●
174 BOLT
(B) M6X25 W/PL WASHER 		8-98064-173-0 04 1 1008- ● ●
185 GROMMET; SCREW
ROOF MARKER LAMP<U01> M5 SCREW GROMMET 		1-09983-131-0 12 1 1008- ●
256 LAMP; MARKER
(A) 		1-86830-292-0 01 1 1008- ● ●
256 LAMP; MARKER
(A) 		1-86830-293-0 01 1 1008- ● ●
256 LAMP; MARKER
EXC. CHINA EQUIPMENT(YT2) (B) 		1-82210-244-0 06 1 1008- ●
256 LAMP; MARKER
EXC. CHINA EQUIPMENT(YT2) (B) 		1-82210-244-0 08 1 1008- ●
256 LAMP; MARKER
ROOF MARKER LAMP<U01> (C) 		1-86830-170-0 03 1 1008- ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 1008- ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 1008- ●
325 SCREW; SPD INDICATOR LAMP
EXC. ROOF MARKER LAMP<U01> M5X14 TAPPING 		0-71040-514-0 12 1 1008- ●
325 SCREW; SPD INDICATOR LAMP
ROOF MARKER LAMP<U01> M5X20 TAPPING 		0-71090-520-0 18 1 1008- ●
328 COVER; LAMP 1-76217-122-1 03 1 1008- ●
328 COVER; LAMP
EXC. ROOF MARKER LAMP<U01> 		1-76217-122-1 03 1 1008- ●
çizim 167310
1 12 340 5 14 23 202 202 18 339 338 13 211 13 13 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98097-190-1 01 1 1008- ● ●
1 LAMP ASM; HEAD 8-98097-191-1 01 1 1008- ● ●
4 HEADLAMP UNIT 1-82119-212-0 01 1 1008- ● ●
4 HEADLAMP UNIT 1-82119-213-0 01 1 1008- ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 1008- ● ●
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 1008- ● ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 1008- ● ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 1008- ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 1008- ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 1008- ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 1008- ● ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 1008- ● ●
211 TUBE; HEADLAMP 8-98101-137-0 01 1 1008- ● ●
211 TUBE; HEADLAMP 8-98101-138-0 01 1 1008- ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1008- ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1008- ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 1008- ● ●

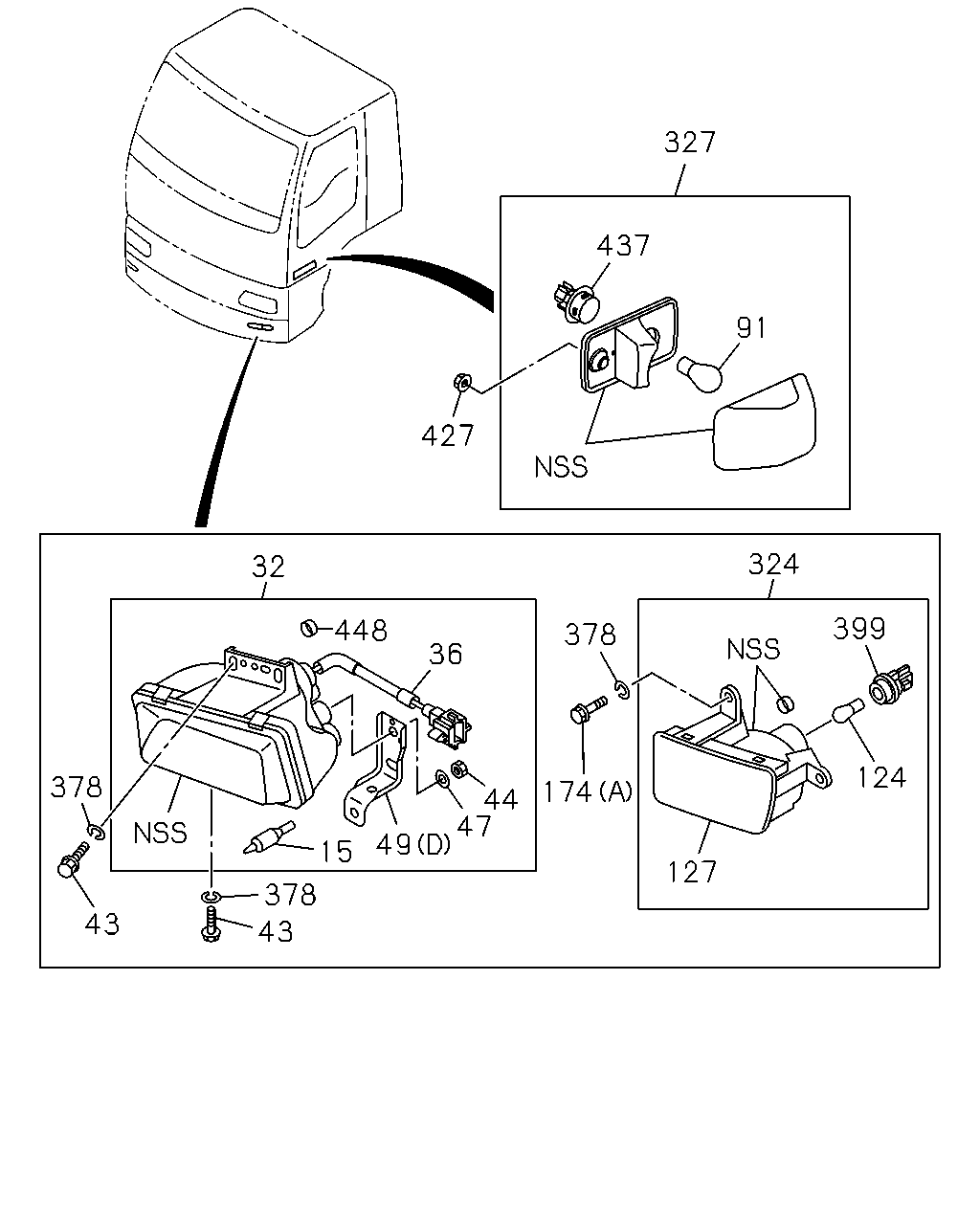

çizim 167330
327 91 437 427 324 399 124 378 127 174 32 36 448 44 378 15 378 43 49 47 43
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 1008- ● ●
32 LAMP ASM; FOG 8-98149-150-1 01 1 1008-1301 ● ●
32 LAMP ASM; FOG 8-98232-065-1 01 1 1302- ● ●
32 LAMP ASM; FOG 8-98149-149-1 01 1 1008-1301 ● ●
32 LAMP ASM; FOG 8-98232-064-1 01 1 1302- ● ●
36 CORD; FOG LAMP 1-82118-016-0 01 1 1008- ● ●
36 CORD; FOG LAMP 1-82118-015-0 01 1 1008- ● ●
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 06 1 1008- ● ●
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205- ● ●
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205- ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 1008- ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 1008- ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 1008- ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 1008- ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 1008- ● ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 1008- ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 1008- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1008- ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 1008- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 1008- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 1008- ● ●
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 1008- ● ●
174 BOLT
(B) M6X25 W/PL WASHER 		8-98064-173-0 04 1 1008- ● ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 1008- ● ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 1008- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1008- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1008- ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 10 1 1008- ● ●
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 1008- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1307- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1008- ● ●
448 CAP ASM; LAMP 8-97378-874-0 02 1 1008- ● ●

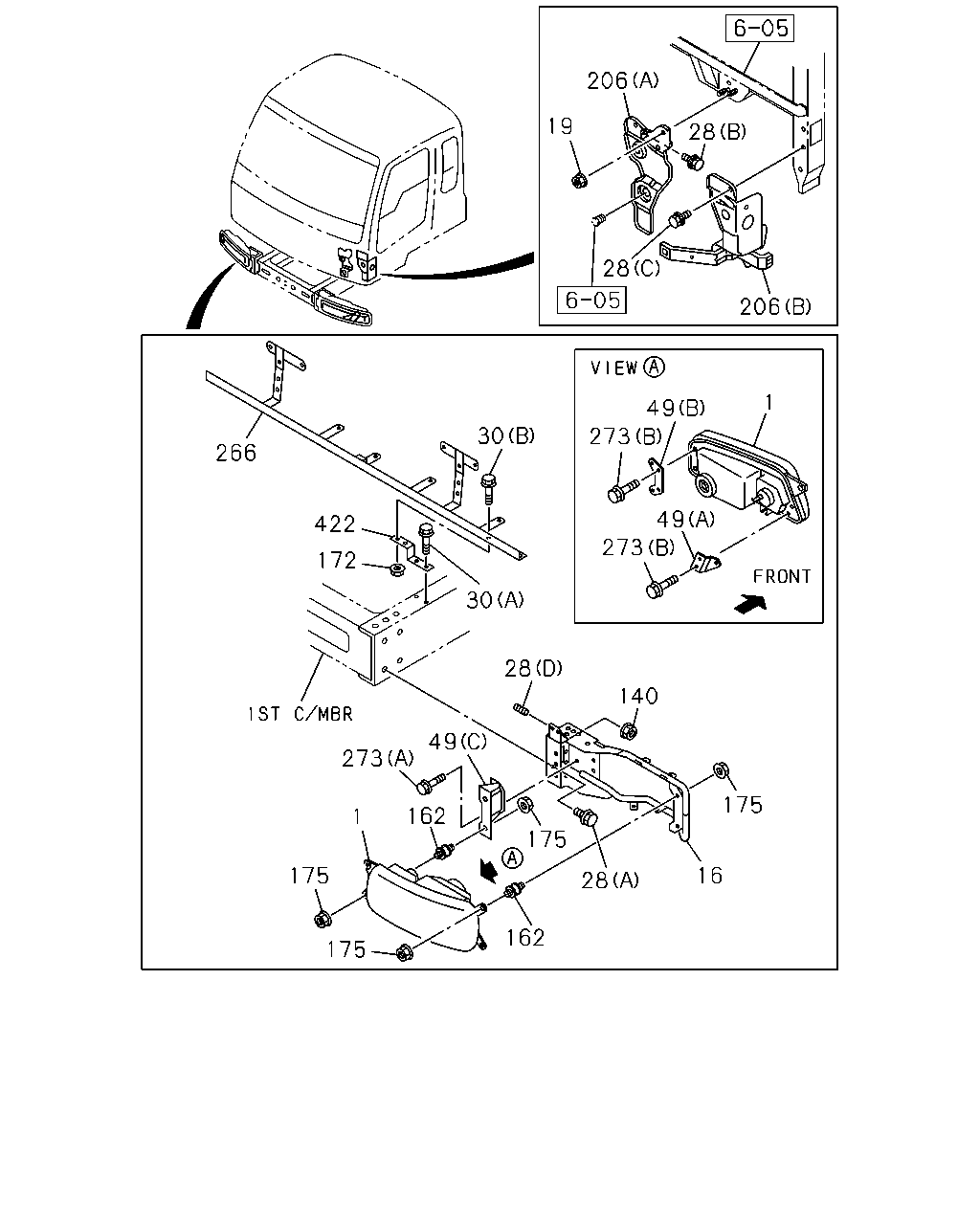

çizim 167570
206 19 28 28 206 1 49 30 266 49 422 172 30 28 140 49 273 175 12 1 175 175 16 28 162 175 273 273
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98097-190-1 01 1 1008- ● ●
1 LAMP ASM; HEAD 8-98097-191-1 01 1 1008- ● ●
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 1008- ● ●
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 1008- ● ●
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 1008- ● ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1008- ● ●
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 06 1 1008- ● ●
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 1008- ● ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008- ● ●
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008- ● ●
30 BOLT; STAY
ENGINE CONTROL COMMON RAIL(Q4R) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
30 BOLT; STAY
ENGINE CONTROL COMMON RAIL(Q4R) (A) M10X25 FLANGE 		0-28651-025-0 04 1 1008- ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 1008- ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 1008- ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 1008- ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 1008- ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 1008- ● ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 1008- ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 1008- ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 1008- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1008- ● ●
172 NUT; STAY
ENGINE CONTROL COMMON RAIL(Q4R) M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1008- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 1008- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 1008- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 1008- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 1008- ● ●
266 STAY; BRKT,HEADLAMP
ENGINE CONTROL COMMON RAIL(Q4R) 		1-82117-163-2 01 1 1008- ● ●
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1008- ● ●
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 1008- ● ●
422 BRACKET; HEADLAMP STAY
ENGINE CONTROL COMMON RAIL(Q4R) 		1-82698-605-0 02 1 1008- ● ●
