◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#55707) — 16 parça

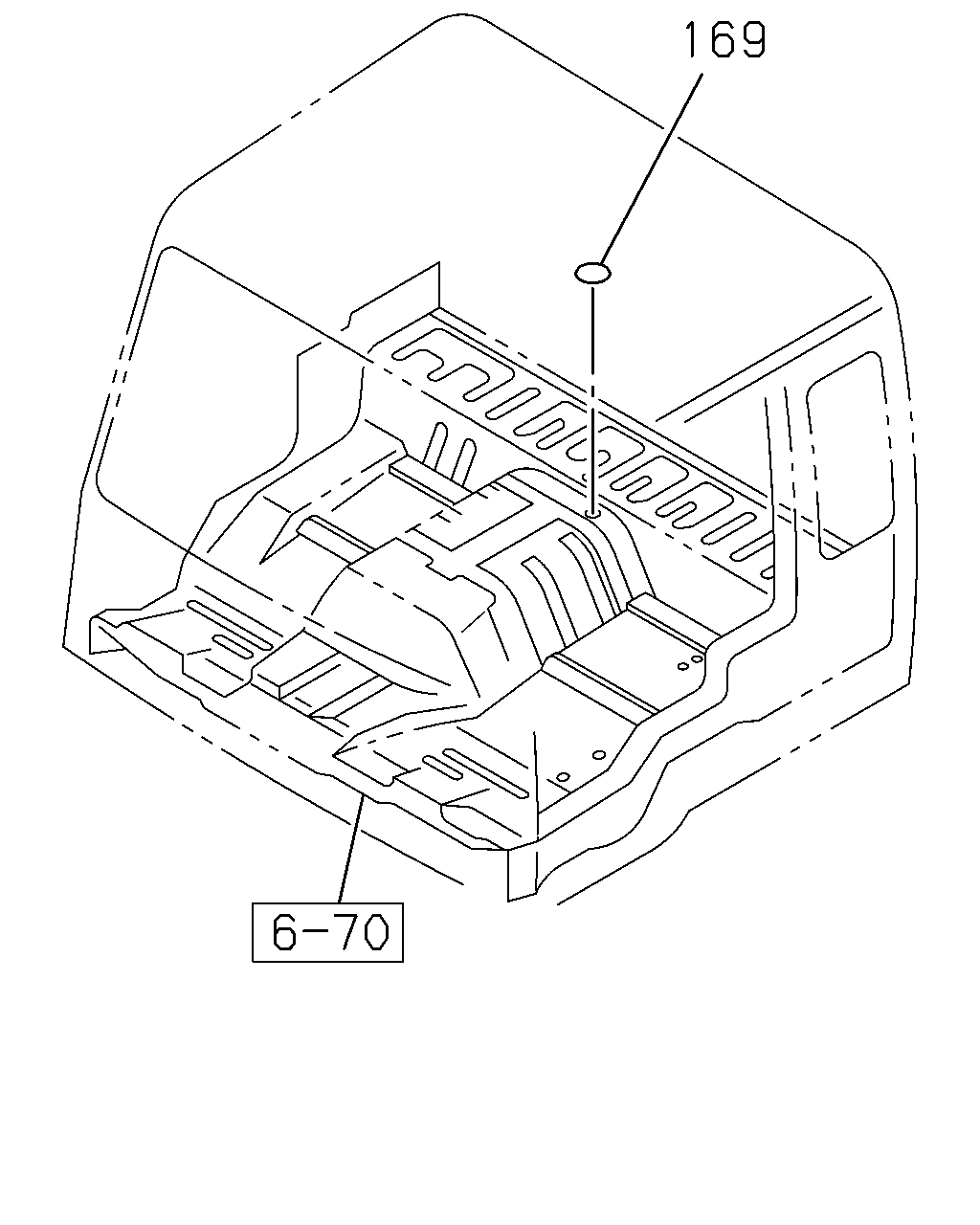

çizim 167318
169
BalonParca AdiParca NoAdetTipApplied Date A B
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1008- ● ●

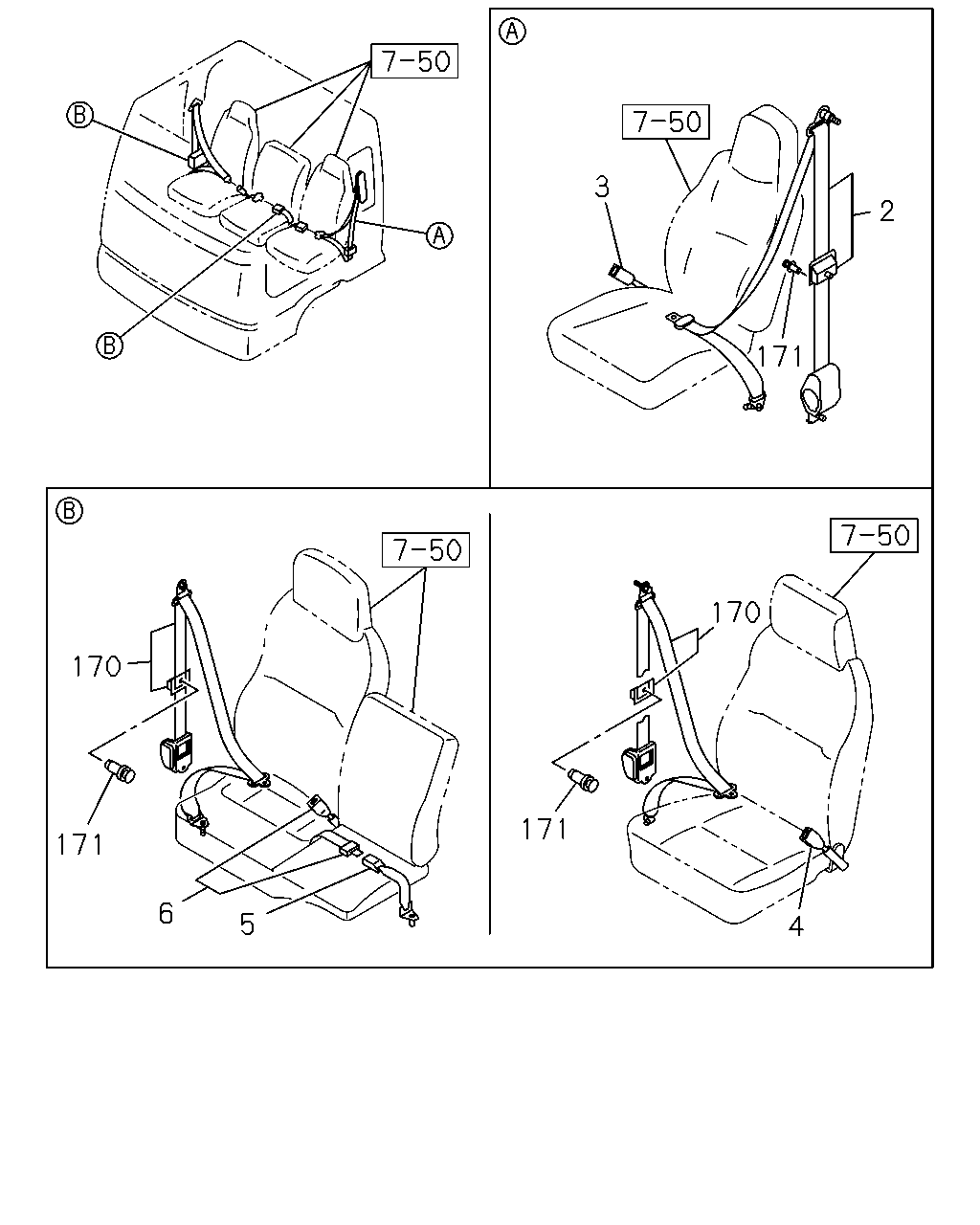

çizim 167335
3 2 171 170 170 171 171 4 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
CHINA EQUIPMENT(YT2) 		8-97382-647-3 01 1 1008- ● ●
2 BELT; SEAT,TONGUE SIDE
EXC. CHINA EQUIPMENT(YT2) 		8-98119-037-1 01 1 1008- ● ●
3 BELT; SEAT,BUCKLE SIDE 1-75617-545-0 01 1 1008- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75618-911-1 01 1 1008- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
CHINA EQUIPMENT(YT2) 		1-75617-553-1 01 1 1008-1304 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) CHINA EQUIPMENT(YT2) 		1-75617-553-1 01 1 1305- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CHINA EQUIPMENT(YT2) 		8-98127-493-0 01 1 1008-1304 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) EXC. CHINA EQUIPMENT(YT2) 		8-98127-493-0 01 1 1305- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
CHINA EQUIPMENT(YT2) 		8-97382-652-1 01 1 1008-1304 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) CHINA EQUIPMENT(YT2) 		8-97382-652-1 01 1 1305- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CHINA EQUIPMENT(YT2) 		8-98119-039-0 01 1 1008-1304 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) EXC. CHINA EQUIPMENT(YT2) 		8-98119-039-0 01 1 1305- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
CHINA EQUIPMENT(YT2) 		8-97382-650-2 01 1 1008- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. CHINA EQUIPMENT(YT2) 		8-98119-038-1 01 1 1008- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1008- ● ●
