◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#55706) — 113 parça

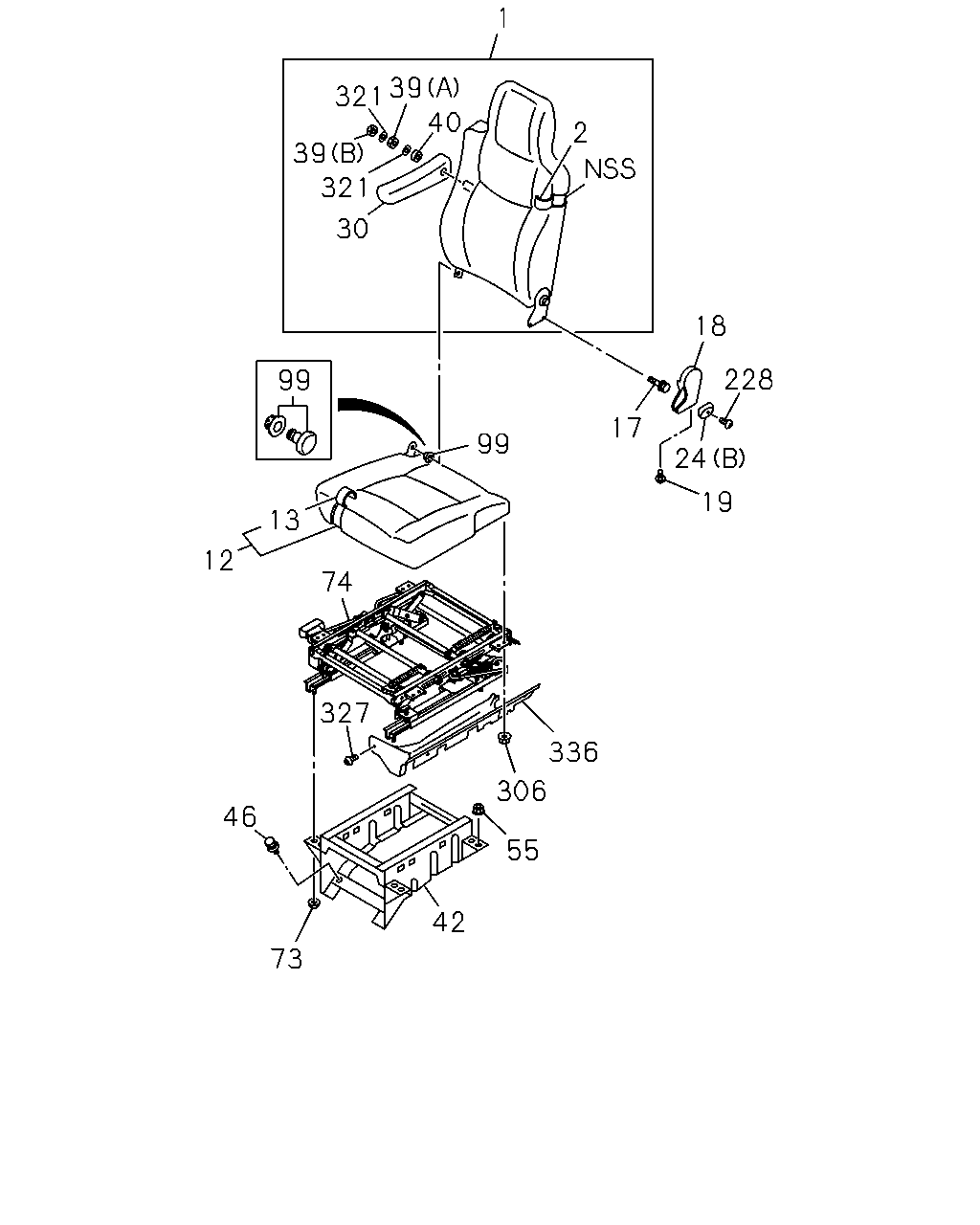

çizim 167293
1 39 321 40 2 39 321 30 18 228 99 17 99 24 19 13 12 74 327 336 306 46 55 42 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98124-116-0 01 1 1008-1011 ● ●
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-073-0 01 1 1012- ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98124-120-0 01 1 1008-1011 ● ●
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-090-0 01 1 1012- ● ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-640-2 01 1 1008-1011 ● ●
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-044-0 01 1 1012- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-160-2 01 1 1008-1011 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-075-0 01 1 1012- ● ●
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 02 1 1008- ● ●
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) DARK GRAY 		8-97859-018-0 01 1 1008- ● ●
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 1008- ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1008- ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75418-067-0 01 1 1008- ● ●
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98147-307-0 01 1 1008- ● ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) (B) M8 		1-75147-657-0 01 1 1008- ● ●
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) (A) M10 		9-09110-410-0 01 1 1008- ● ●
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) 		8-94285-921-0 02 1 1008- ● ●
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75558-604-2 01 1 1008- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1008- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 04 1 1008- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-331-3 01 1 1008-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) 		8-98291-646-0 01 1 1503- ● ●
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-97854-087-0 01 1 1008- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4 		8-98062-662-0 01 1 1008- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4 		8-98062-662-0 01 1 1008- ● ●
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 14 1 1008- ● ●
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) ID=10.5 OD=22 		9-09160-610-0 01 1 1008- ● ●
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) ID=8.4 OD=22 		9-09164-708-0 01 1 1008- ● ●
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) 		1-09987-273-0 01 1 1008- ● ●
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-313-0 01 1 1008- ● ●

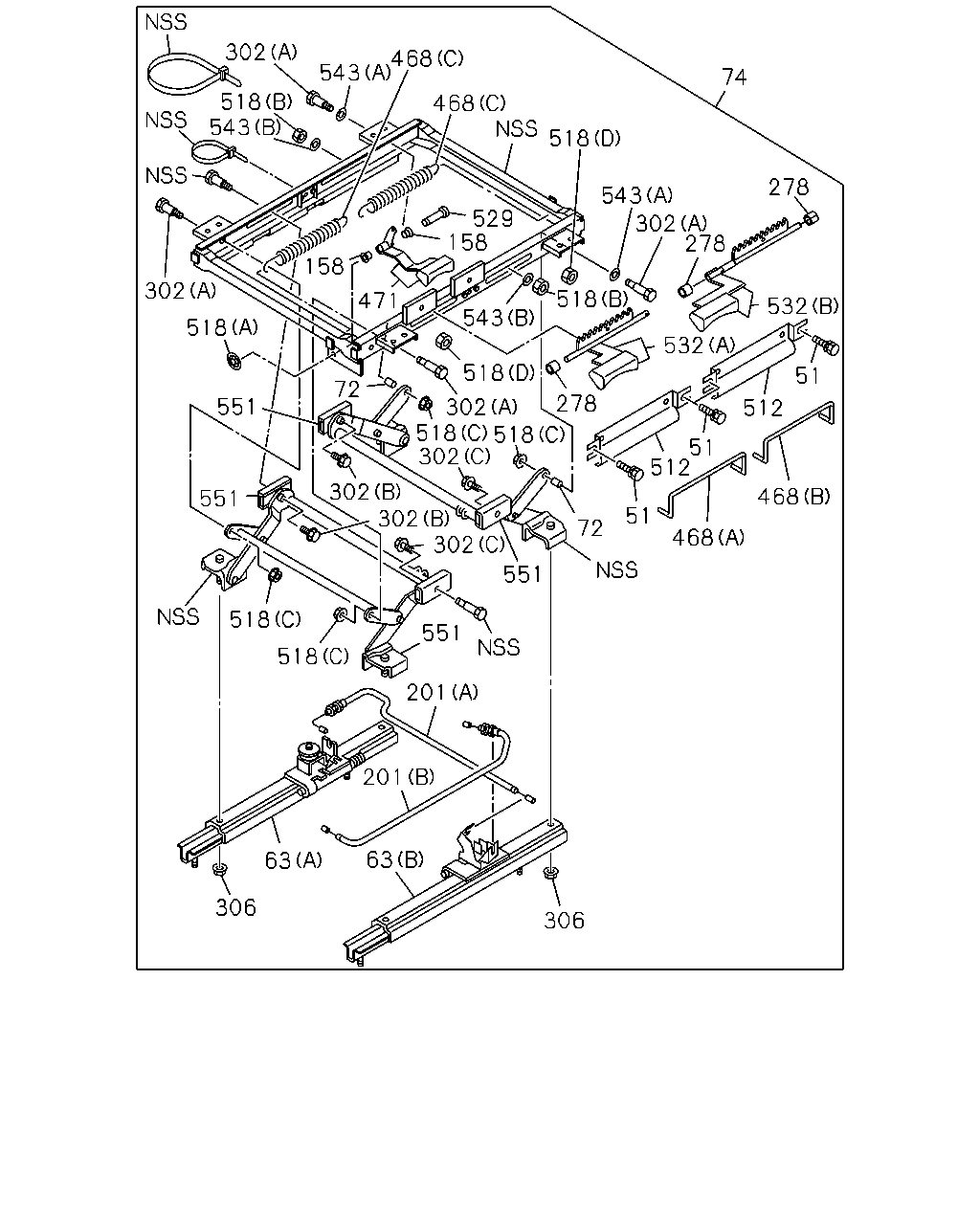

çizim 167308
302 468 543 74 518 543 468 518 278 543 302 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-325-1 04 1 1008- ● ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-227-1 01 1 1008- ● ●
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-324-0 01 1 1008- ● ●
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-334-1 02 1 1008-1502 ● ●
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) 		8-98291-668-0 02 1 1503- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-331-3 01 1 1008-1502 ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) 		8-98291-646-0 01 1 1503- ● ●
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-209-0 02 1 1008- ● ●
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) (A) L=667 		1-75518-288-0 01 1 1008- ● ●
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) (B) L=605 		1-75518-289-1 01 1 1008- ● ●
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-244-0 03 1 1008- ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-266-2 02 1 1008- ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-270-1 04 1 1008-1502 ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) (A) 		8-98291-667-0 04 1 1503- ● ●
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-336-1 02 1 1008- ● ●
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 14 1 1008- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-206-0 01 1 1008- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-207-0 01 1 1008- ● ●
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-208-0 02 1 1008- ● ●
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) 		8-98107-870-0 01 1 1008- ● ●
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-245-1 02 1 1008- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-263-0 01 1 1008- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (C) M8 		1-75518-264-0 04 1 1008- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1008- ● ●
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) (B) M8 FLANGE 		8-94152-886-0 04 1 1008- ● ●
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-262-0 01 1 1008- ● ●
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-221-0 01 1 1008- ● ●
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75518-222-1 01 1 1008- ● ●
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75518-335-0 02 1 1008-1502 ● ●
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503- ● ●
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) (B) ID=8.4 		9-09160-508-0 04 1 1008- ● ●
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) 		1-75518-265-0 04 1 1008- ● ●

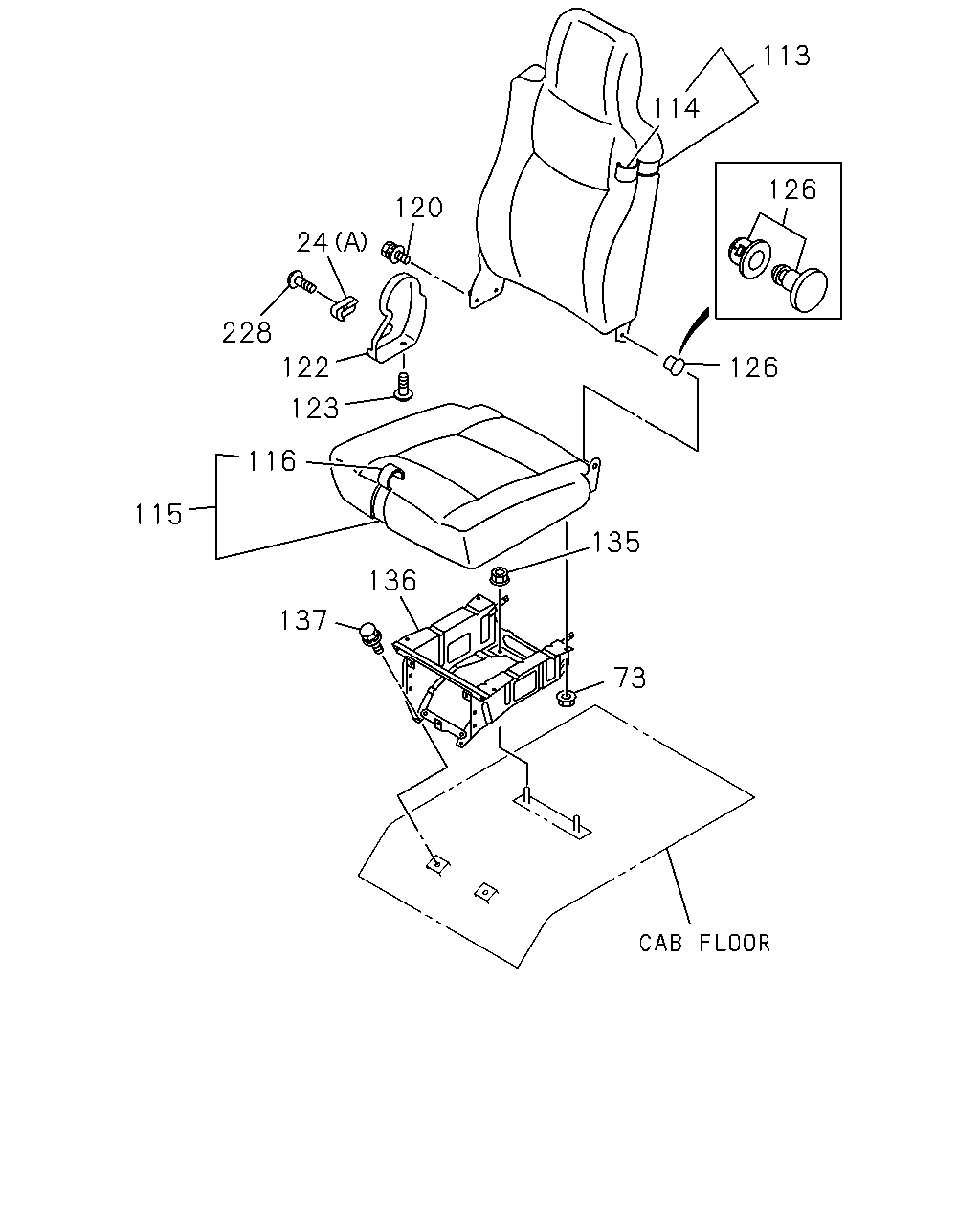

çizim 167314
113 114 126 120 24 228 122 126 123 116 115 135 136 137 73
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1008- ● ●
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (B) 		1-75418-067-0 01 1 1008- ● ●
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE 		1-75538-207-0 04 1 1008- ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98124-118-0 01 1 1008-1011 ● ●
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-297-0 01 1 1012- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98124-122-0 01 1 1008-1011 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-298-0 01 1 1012- ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-642-1 01 1 1008-1011 ● ●
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-127-0 01 1 1012- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-162-1 01 1 1008-1011 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-140-0 01 1 1012- ● ●
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 02 1 1008- ● ●
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) DARK GRAY 		8-97867-020-0 01 1 1008- ● ●
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 1008- ● ●
126 BUSHING; HINGE,RECLINING
FABRIC SEAT W/RECLINING(SFQ) 		8-97854-087-0 01 1 1008- ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 1008- ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75558-602-3 01 1 1008-1305 ● ●
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98242-299-0 01 1 1306- ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 1008- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4 		8-98062-662-0 01 1 1008- ● ●
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4 		8-98062-662-0 01 1 1008- ● ●

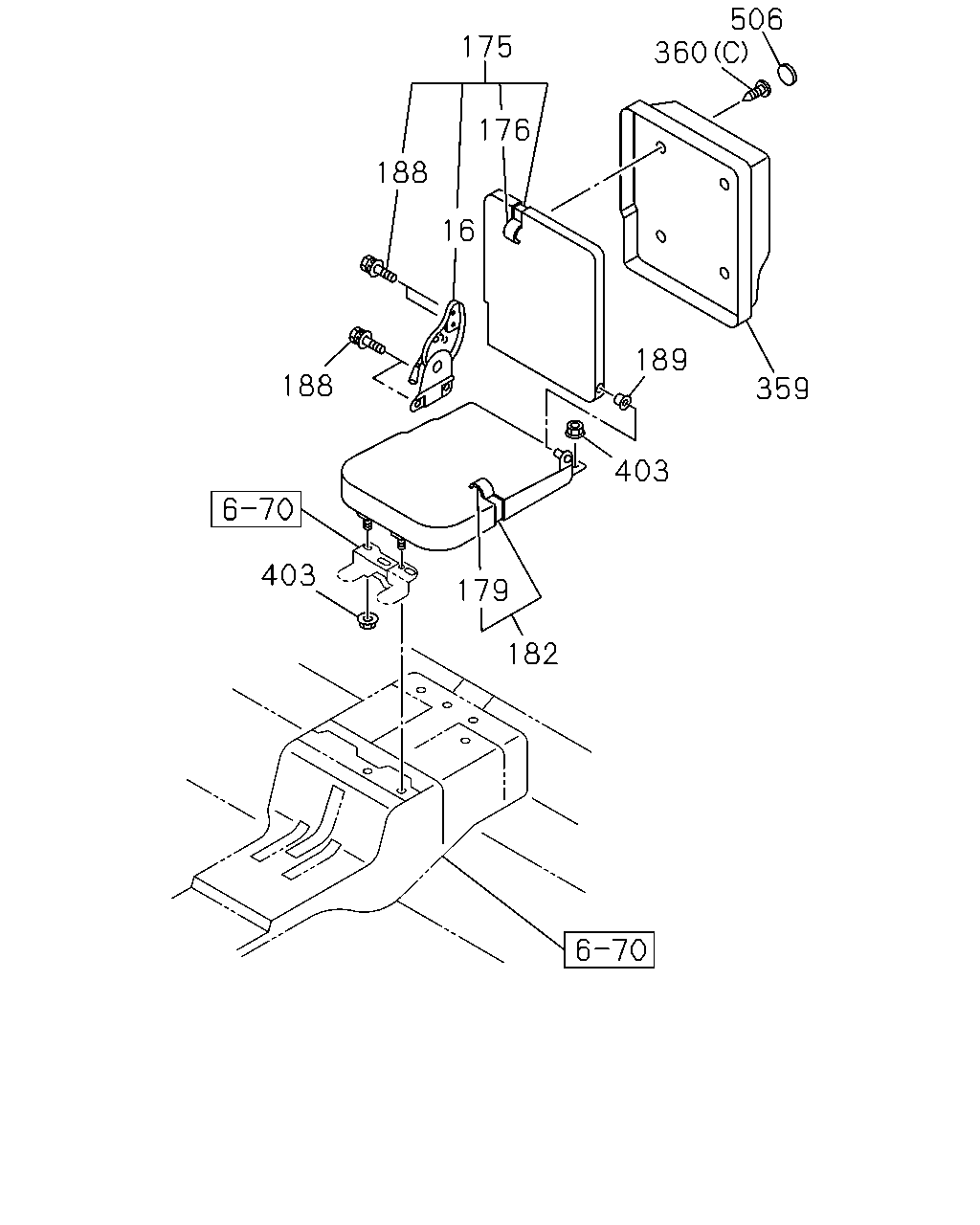

çizim 167328
506 360 175 176 188 16 189 188 359 403 403 179 182
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75418-062-1 01 1 1008- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-602-3 01 1 1008-1011 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-328-1 01 1 1012- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-156-2 01 1 1008-1011 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-331-0 01 1 1012- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-164-1 01 1 1008-1011 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-325-0 01 1 1012- ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-644-1 01 1 1008-1011 ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-317-2 01 1 1012- ● ●
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) M10X16 FLANGE 		1-75198-053-0 04 1 1008- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-97854-900-0 01 1 1008- ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98145-114-0 01 1 1008- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (B) M4X16 		0-70040-416-0 06 1 1008-1104 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1008- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1008- ● ●
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 1008- ● ●
506 CAP; PARCEL BOX
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-09983-180-3 02 1 1008- ● ●

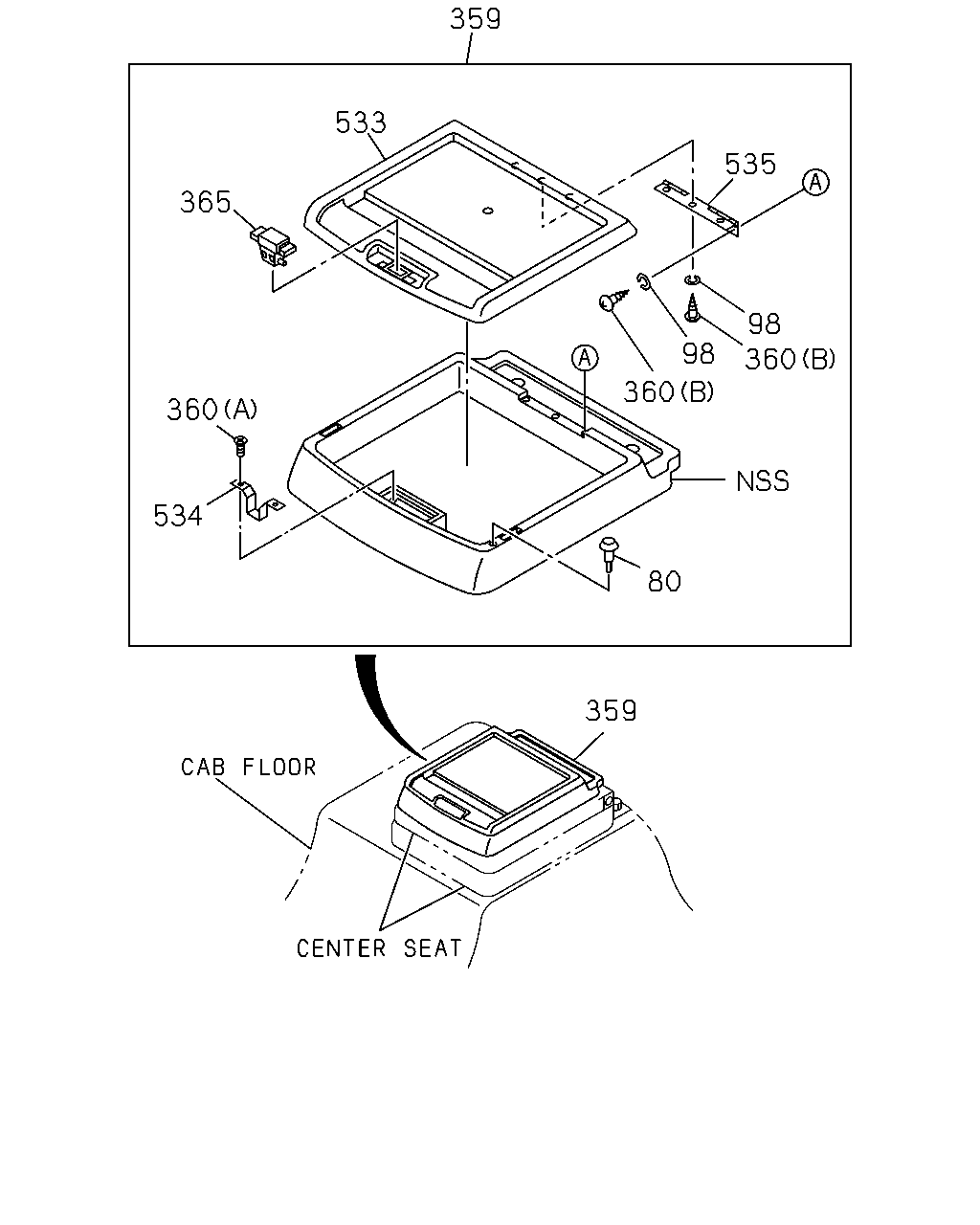

çizim 167550
359 533 535 365 98 360 98 360 360 534 80 359
BalonParca AdiParca NoAdetTipApplied Date A B
80 RUBBER; STOPPER
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-72538-187-0 02 1 1008- ● ●
98 WASHER; HINGE
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 1008- ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98145-114-0 01 1 1008- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (B) M4X16 		0-70040-416-0 06 1 1008-1104 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1008- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1008- ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-72538-180-0 01 1 1008- ● ●
533 LID; PARCEL BOX
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98145-118-0 01 1 1008- ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-72538-190-0 01 1 1008- ● ●
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-72447-391-1 01 1 1008- ● ●
