7-43 — SUN VISOR AND ASSIST GRIP (#55704) — 54 parça

150 71 106 87 55 71 142 48 76 54 150 48 71 56 48 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1008-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1008-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1008-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1008-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-	●	●
54	GRIP; ASSIST,QUARTER SIDE	8-98139-071-2	01	1	1008-	●	●
54	GRIP; ASSIST,QUARTER SIDE	8-98139-070-2	01	1	1008-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	1008-	●	●
56	GRIP; ASSIST,SIDE SILL	8-98139-073-1	01	1	1008-	●	●
56	GRIP; ASSIST,SIDE SILL	8-98139-072-1	01	1	1008-	●	●
71	SCREW (B) M6X30 W/LK WASHER	5-09981-064-0	04	1	1008-	●	●
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	1008-	●	●
76	SPACER; ASSIST GRIP OD=13 T=4.5	8-94230-464-1	04	1	1008-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	1008-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1008-	●	●
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1008-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	1008-	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1008-	●	●

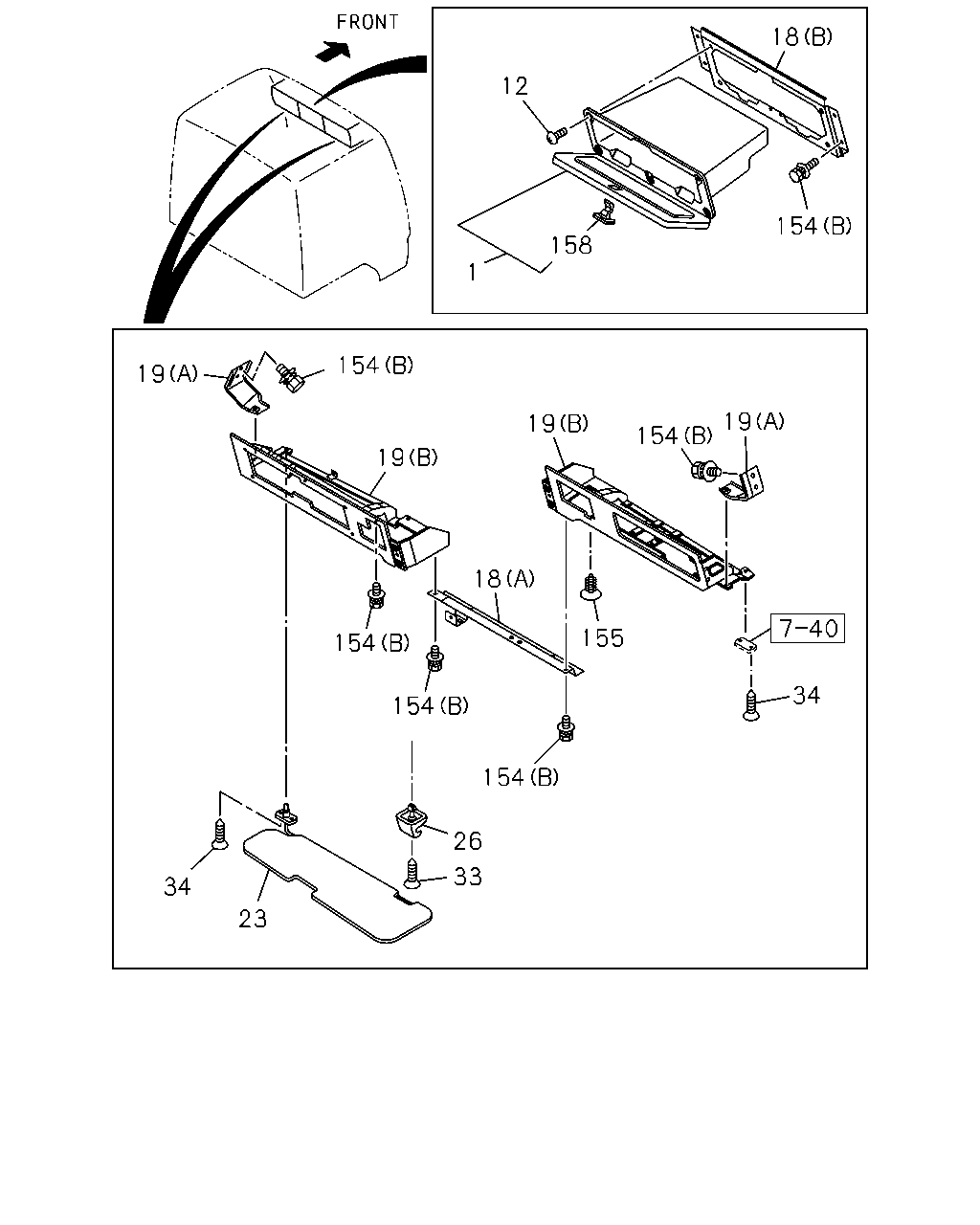

18 12 154 158 1 154 19 19 19 154 19 18 155 154 34 154 154 26 33 34 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF	1-72447-968-0	01	1	1008-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1008-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1008-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	1008-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	1008-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1008-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1008-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1008-	●	●
23	SUN VISOR	1-73138-157-1	01	1	1008-	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1008-	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1008-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1008-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1008-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1008-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1008-	●	●
155	FASTENER; HOLDER	1-09983-181-0	01	1	1008-	●	●
158	LOCK; HEADER SHELF	1-72538-312-0	01	1	1008-	●	●

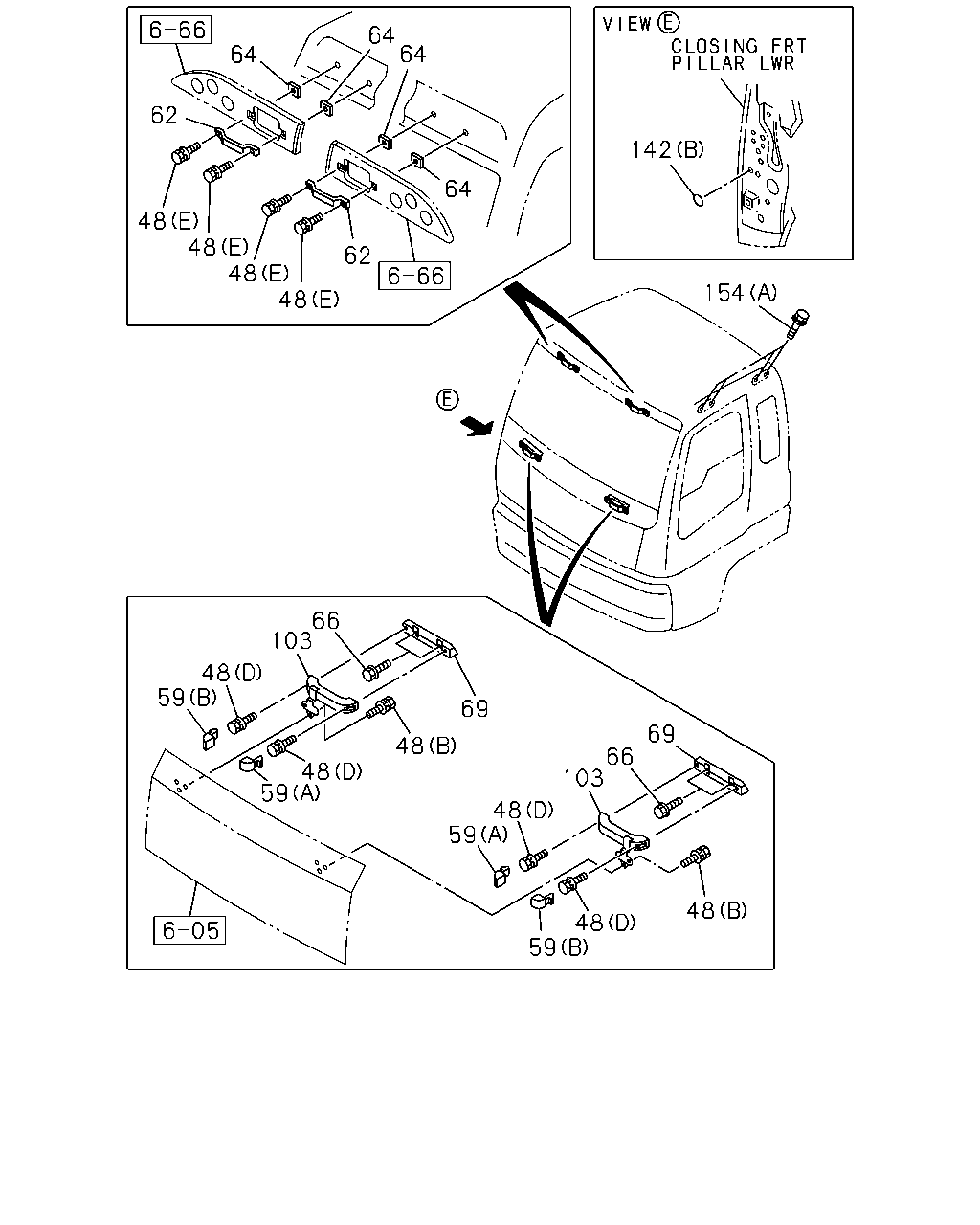

64 64 64 62 142 64 48 48 48 48 62 154 66 103 48 59 69 69 48 66 103 48 59 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1008-	●	●
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1008-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1008-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1008-	●	●
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1008-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1008-	●	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1008-	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1008-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1008-	●	●
69	BRACKET; ASSIST GRIP	1-65570-243-0	01	1	1008-	●	●
69	BRACKET; ASSIST GRIP	1-65570-242-0	01	1	1008-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1008-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1008-	●	●
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1008-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	1008-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1008-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1008-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1008-	●	●
