7-20 — MIRROR AND MIRROR STAY (#55701) — 236 parça

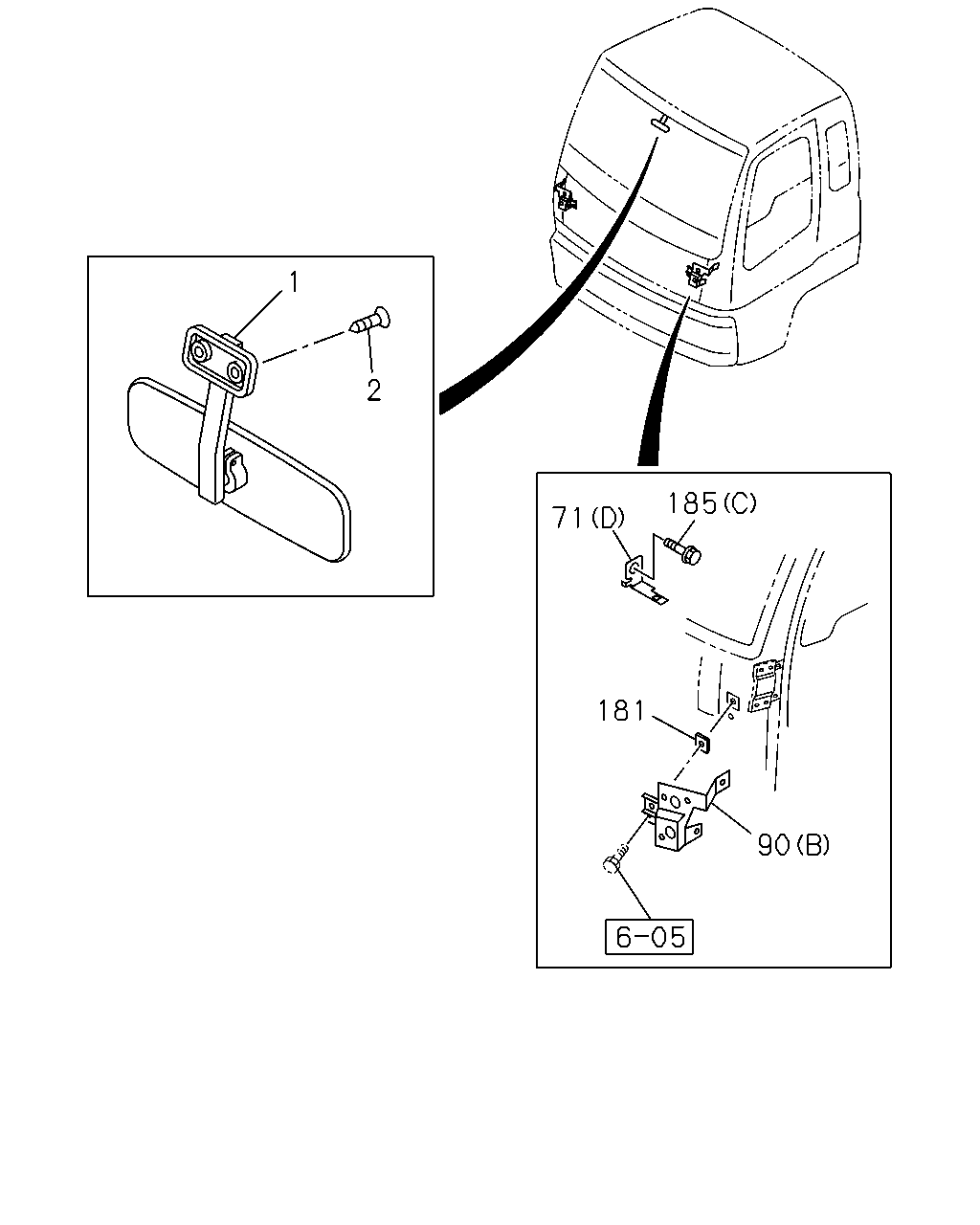

1 2 185 71 181 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM CHINA EQUIPMENT(YT2)	1-73317-561-0	01	1	1008-	●	●
1	MIRROR; ROOM EXC. CHINA EQUIPMENT(YT2)	1-73117-033-1	01	1	1008-	●	●
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-	●	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-	●	●
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-	●	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-	●	●
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-	●	●
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-	●	●
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1008-	●	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-	●	●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-	●	●
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●

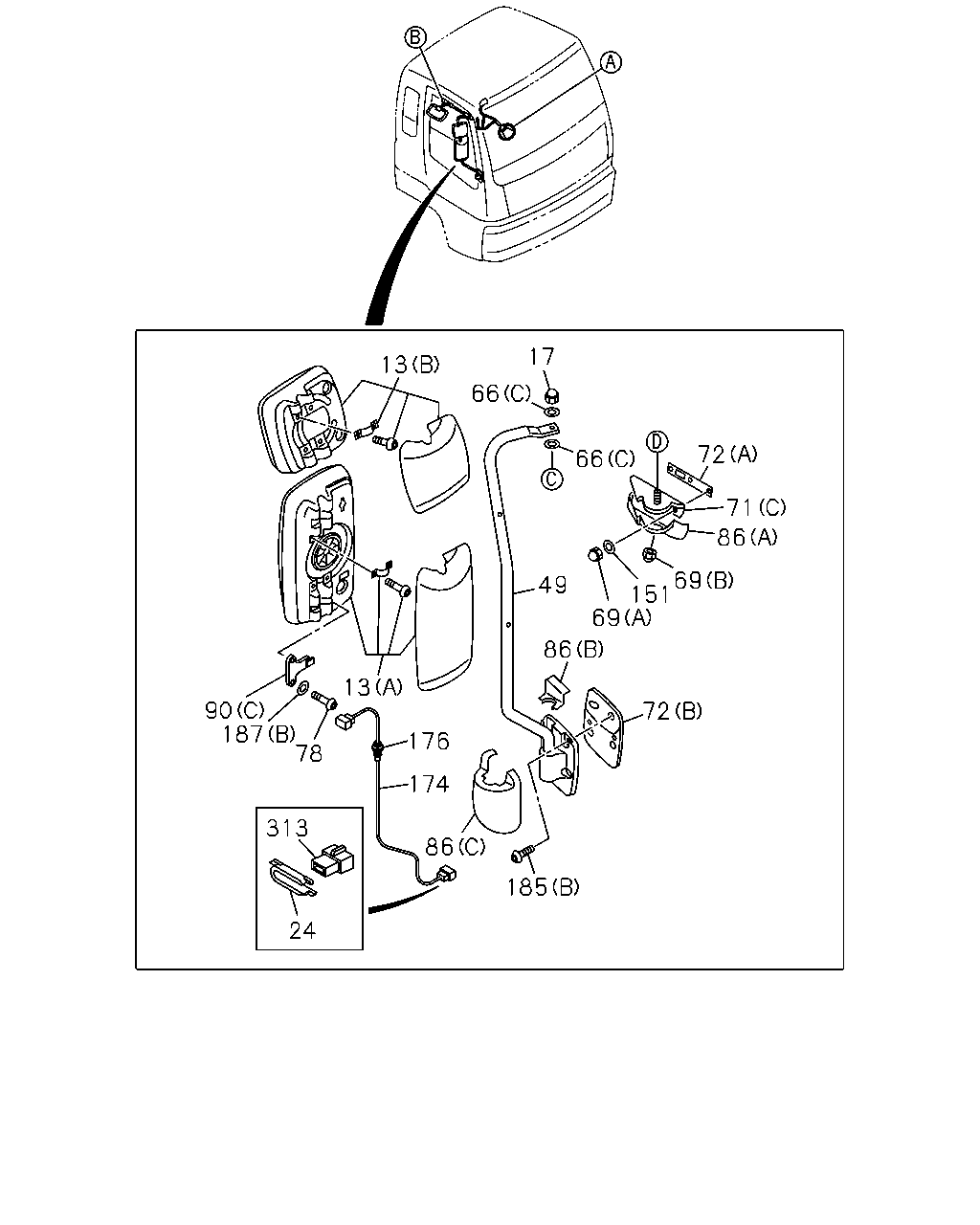

13 66 17 90 187 78 13 176 174 86 313 24 66 72 71 86 69 151 69 86 49 72 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (B)	8-98081-673-2	02	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-893-2	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-894-2	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-992-1	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-992-1	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-991-1	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-991-1	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-174-1	02	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-174-1	02	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-058-1	02	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-058-1	02	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98162-676-1	02	1	1008-	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1008-	●	●
24	HOLDER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12)	8-94447-506-0	02	1	1008-	●	●
24	HOLDER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-506-0	02	1	1008-	●	●
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-909-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-909-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-648-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-648-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-906-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-906-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-647-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-647-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-910-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-910-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-650-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-650-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-907-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-907-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-649-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-649-0	01	1	1311-	●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1008-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1008-	●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-	●	●
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-	●	●
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	08	1	1008-1109	●	●
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1110-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-	●	●
72	SHEET (A)	8-98147-891-0	02	1	1008-	●	●
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-605-0	01	1	1008-	●	●
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-605-0	01	1	1008-	●	●
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-604-0	01	1	1008-	●	●
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-604-0	01	1	1008-	●	●
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-865-0	01	1	1008-	●	●
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-865-0	01	1	1008-	●	●
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-864-0	01	1	1008-	●	●
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-864-0	01	1	1008-	●	●
78	SCREW; BRKT FIX RUSSIA EQUIPMENT(B12)	8-98317-369-0	02	1	1008-	●	●
78	SCREW; BRKT FIX MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98317-369-0	02	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1008-	●	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-	●	●
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-	●	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-	●	●
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-	●	●
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1008-1109	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1110-	●	●
174	HARNESS; MIRROR RUSSIA EQUIPMENT(B12)	8-98144-513-1	02	1	1008-	●	●
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98144-513-1	02	1	1008-	●	●
176	GROMMET; HARNESS RUSSIA EQUIPMENT(B12)	1-82699-906-0	02	1	1008-	●	●
176	GROMMET; HARNESS MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	1-82699-906-0	02	1	1008-	●	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-	●	●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-	●	●
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1008-	●	●
187	WASHER; LK,BRKT MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98317-370-0	02	1	1008-	●	●
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1008-	●	●
313	CONNECTOR; MIRROR RUSSIA EQUIPMENT(B12)	8-94447-498-0	02	1	1008-	●	●
313	CONNECTOR; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-498-0	02	1	1008-	●	●

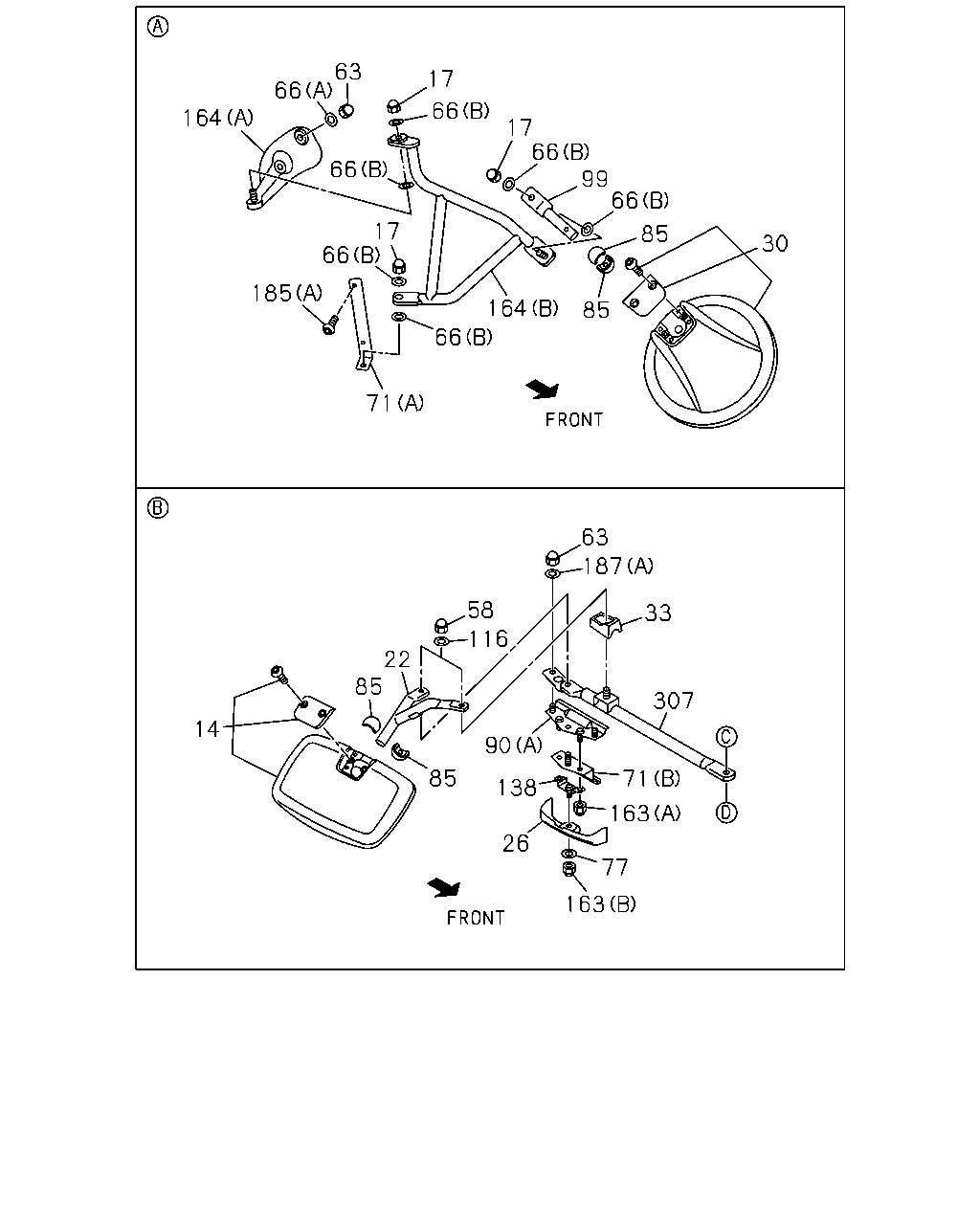

164 66 63 66 66 185 71 66 66 17 17 99 85 85 164 30 66 66 17 63 187 33 307 71 163 77 163 26 138 90 116 22 85 85 58 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	MIRROR ASM; OUTSIDE CHINA EQUIPMENT(YT2)	8-98081-674-1	01	1	1008-	●	●
14	MIRROR ASM; OUTSIDE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA)	8-98043-065-0	01	1	1008-	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1008-	●	●
22	STAY; OUTSIDE MIRROR	8-98154-821-0	01	1	1008-	●	●
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1008-	●	●
30	MIRROR; UNDER	8-98055-994-0	01	1	1008-1504	●	●
30	MIRROR; UNDER	8-98309-725-0	01	1	1505-	●	●
33	COVER; MIRROR	8-98171-925-0	01	1	1008-	●	●
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1008-	●	●
63	NUT; STAY M8	1-09984-187-0	06	1	1008-	●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1008-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1008-	●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-	●	●
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-1109	●	●
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1008-	●	●
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1008-	●	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-	●	●
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-	●	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-	●	●
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-	●	●
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-	●	●
99	STAY; MAIN UNDER MIRROR	8-98092-493-0	01	1	1008-	●	●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1008-	●	●
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1008-	●	●
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-	●	●
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	06	1	1008-1109	●	●
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1110-	●	●
164	STAY; ROOF (A)	1-71798-300-5	01	1	1008-	●	●
164	STAY; ROOF (B)	8-98138-918-1	01	1	1008-	●	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-	●	●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-	●	●
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1008-	●	●
187	WASHER; LK,BRKT MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98317-370-0	02	1	1008-	●	●
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1008-	●	●
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1008-	●	●
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1008-	●	●

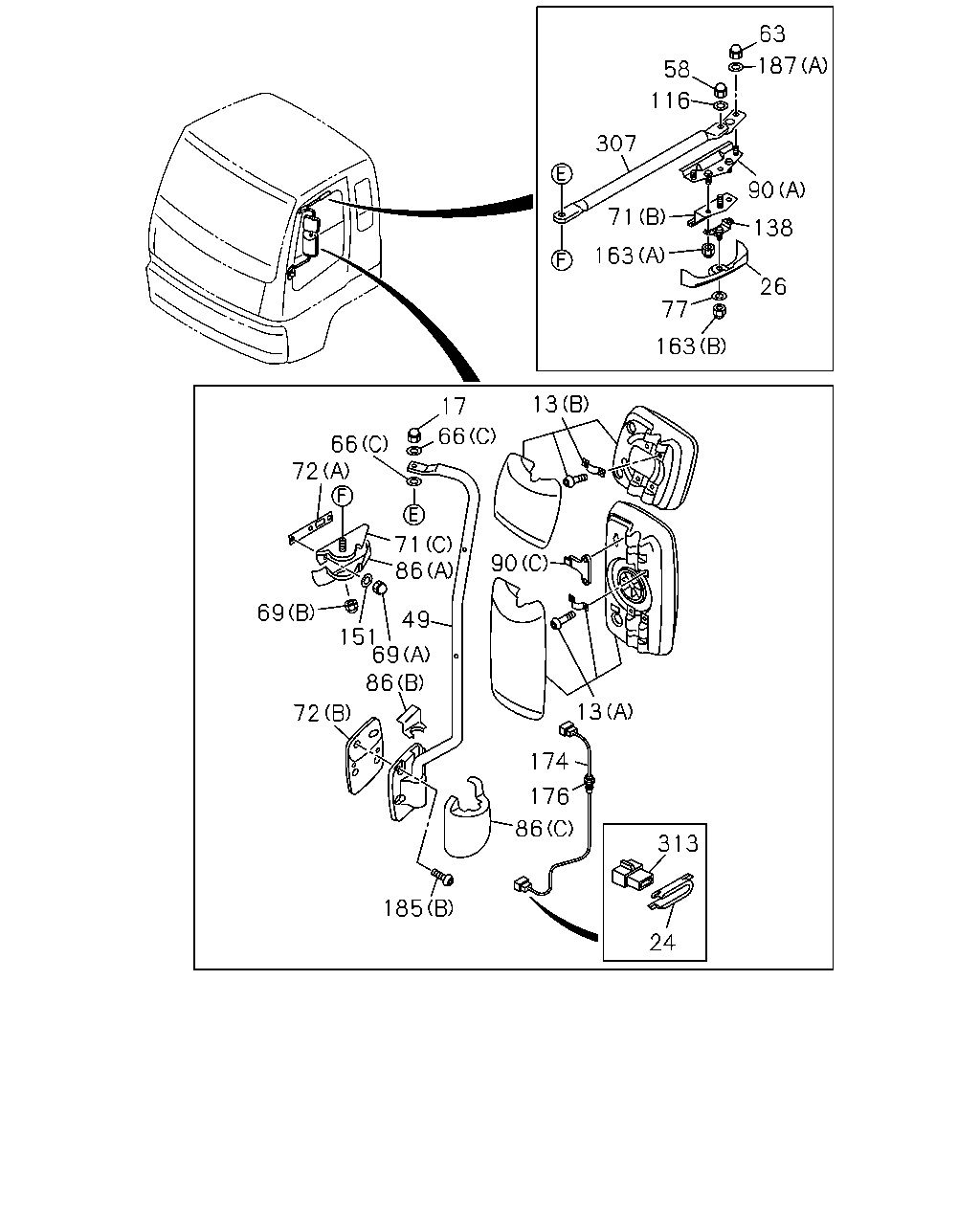

63 58 187 116 307 71 90 163 77 26 163 13 17 66 72 69 71 90 13 174 176 86 313 24 185 72 151 86 49 69 86 66 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (B)	8-98081-673-2	02	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-893-2	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-894-2	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-992-1	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-992-1	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-991-1	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-991-1	01	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-174-1	02	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-174-1	02	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-058-1	02	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-058-1	02	1	1008-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98162-676-1	02	1	1008-	●	●
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1008-	●	●
24	HOLDER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12)	8-94447-506-0	02	1	1008-	●	●
24	HOLDER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-506-0	02	1	1008-	●	●
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1008-	●	●
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-909-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-909-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-648-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-648-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-906-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-906-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-647-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-647-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-910-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-910-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-650-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-650-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-907-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-907-1	01	1	1008-1310	●	●
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-649-0	01	1	1311-	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-649-0	01	1	1311-	●	●
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1008-	●	●
63	NUT; STAY M8	1-09984-187-0	06	1	1008-	●	●
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1008-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1008-	●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-	●	●
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-	●	●
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	08	1	1008-1109	●	●
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1110-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109	●	●
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-	●	●
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-	●	●
72	SHEET (A)	8-98147-891-0	02	1	1008-	●	●
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-605-0	01	1	1008-	●	●
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-605-0	01	1	1008-	●	●
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-604-0	01	1	1008-	●	●
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-604-0	01	1	1008-	●	●
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-865-0	01	1	1008-	●	●
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-865-0	01	1	1008-	●	●
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-864-0	01	1	1008-	●	●
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-864-0	01	1	1008-	●	●
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-1109	●	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1008-	●	●
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1008-	●	●
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-	●	●
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-	●	●
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-	●	●
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-	●	●
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-	●	●
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1008-	●	●
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1008-	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1008-1109	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1110-	●	●
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-	●	●
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	06	1	1008-1109	●	●
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1110-	●	●
174	HARNESS; MIRROR RUSSIA EQUIPMENT(B12)	8-98144-513-1	02	1	1008-	●	●
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98144-513-1	02	1	1008-	●	●
176	GROMMET; HARNESS RUSSIA EQUIPMENT(B12)	1-82699-906-0	02	1	1008-	●	●
176	GROMMET; HARNESS MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	1-82699-906-0	02	1	1008-	●	●
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-	●	●
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-	●	●
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1008-	●	●
187	WASHER; LK,BRKT MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98317-370-0	02	1	1008-	●	●
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1008-	●	●
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1008-	●	●
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1008-	●	●
313	CONNECTOR; MIRROR RUSSIA EQUIPMENT(B12)	8-94447-498-0	02	1	1008-	●	●
313	CONNECTOR; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-498-0	02	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
