◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

7-10 — CAUTION PLATE AND LABEL (#55700) — 92 parça

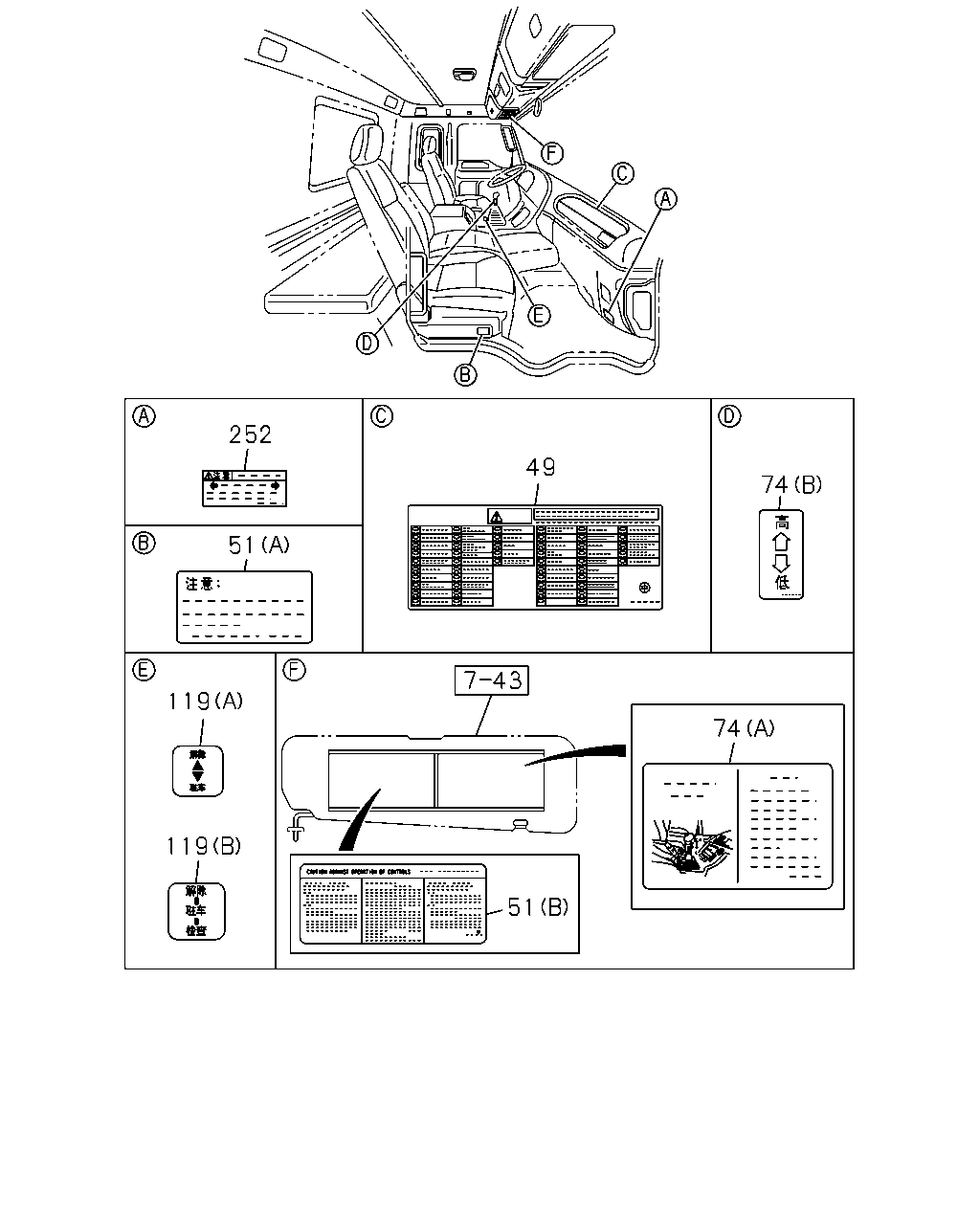

252 49 74 51 119 74 119 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PLATE; CAUTION,FUSE BOX CAUTIONS PORTUGUESE<NAT> ENGINE CONTROL COMMON RAIL(Q4R)	8-97636-217-0	01	1	1008-	●	●
49	PLATE; CAUTION,FUSE BOX ENGINE CONTROL COMMON RAIL(Q4R) CAUTIONS CHINESE<SL7>	1-85878-431-0	01	1	1008-	●	●
49	PLATE; CAUTION,FUSE BOX ENGINE CONTROL COMMON RAIL(Q4R) CAUTIONS ENGLISH<RR8>	1-85878-393-0	01	1	1008-	●	●
49	PLATE; CAUTION,FUSE BOX ENGINE CONTROL COMMON RAIL(Q4R) CAUTIONS FRENCH<WJ8>	1-85878-556-0	01	1	1008-	●	●
49	PLATE; CAUTION,FUSE BOX ENGINE CONTROL COMMON RAIL(Q4R) CAUTIONS SPANISH<YN1>	1-85878-555-0	01	1	1008-	●	●
49	PLATE; CAUTION,FUSE BOX ENGINE CONTROL-B2(Q4T) CAUTIONS CHINESE<SL7>	8-98138-791-0	01	1	1008-	●	●
49	PLATE; CAUTION,FUSE BOX ENGINE CONTROL-B2(Q4T) CAUTIONS ENGLISH<RR8>	8-97635-857-1	01	1	1008-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	8-97616-500-0	01	1	1008-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (A)	1-85878-544-0	01	1	1008-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (B)	1-85880-777-0	01	1	1008-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (B)	1-85880-786-0	01	1	1008-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	8-97633-742-0	01	1	1008-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (B)	8-98161-460-0	01	1	1008-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (A)	8-98162-838-0	01	1	1008-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (B)	1-85880-785-0	01	1	1008-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (A)	8-97613-336-0	01	1	1008-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS CHINESE<SL7> (A)	1-85881-849-0	01	1	1008-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS CHINESE<SL7> (B)	8-98120-457-0	01	1	1008-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) EXC. CAUTIONS CHINESE<SL7> (B)	8-98118-493-0	01	1	1008-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS ENGLISH<RR8> (A)	1-85881-836-0	01	1	1008-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS FRENCH<WJ8> (A)	1-85881-970-0	01	1	1008-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS PORTUGUESE<NAT> (A)	8-98164-667-0	01	1	1008-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS SPANISH<YN1> (A)	1-85881-946-0	01	1	1008-	●	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS CHINESE<SL7> (A)	1-85881-874-0	01	1	1008-	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS CHINESE<SL7> EXC. FULL TRAILER PIPING<Z25> (A)	1-85881-874-0	01	1	1008-		●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ENGLISH<RR8> (A)	1-85881-759-0	01	1	1008-	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ENGLISH<RR8> EXC. FULL TRAILER PIPING<Z25> (A)	1-85881-759-0	01	1	1008-		●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS FRENCH<WJ8> (A)	1-85881-945-0	01	1	1008-	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS FRENCH<WJ8> EXC. FULL TRAILER PIPING<Z25> (A)	1-85881-945-0	01	1	1008-		●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS PORTUGUESE<NAT> (A)	8-98161-151-0	01	1	1008-	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS PORTUGUESE<NAT> EXC. FULL TRAILER PIPING<Z25> (A)	8-98161-151-0	01	1	1008-		●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS SPANISH<YN1> (A)	1-85881-944-0	01	1	1008-	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS SPANISH<YN1> EXC. FULL TRAILER PIPING<Z25> (A)	1-85881-944-0	01	1	1008-		●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS CHINESE<SL7> FULL TRAILER PIPING<Z25> (B)	1-85881-883-0	01	1	1008-		●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ENGLISH<RR8> FULL TRAILER PIPING<Z25> (B)	1-85881-791-0	01	1	1008-		●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS FRENCH<WJ8> FULL TRAILER PIPING<Z25> (B)	1-85881-943-0	01	1	1008-		●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS PORTUGUESE<NAT> FULL TRAILER PIPING<Z25> (B)	8-98161-152-0	01	1	1008-		●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS SPANISH<YN1> FULL TRAILER PIPING<Z25> (B)	1-85881-942-0	01	1	1008-		●
252	PLATE; CAUTION,HARNESS CAUTIONS CHINESE<SL7>	1-85878-515-0	01	1	1008-	●	●
252	PLATE; CAUTION,HARNESS CAUTIONS ENGLISH<RR8>	1-85878-488-1	01	1	1008-	●	●
252	PLATE; CAUTION,HARNESS CAUTIONS FRENCH<WJ8>	1-85878-560-0	01	1	1008-	●	●
252	PLATE; CAUTION,HARNESS CAUTIONS PORTUGUESE<NAT>	8-97636-218-0	01	1	1008-	●	●
252	PLATE; CAUTION,HARNESS CAUTIONS SPANISH<YN1>	1-85878-559-0	01	1	1008-	●	●

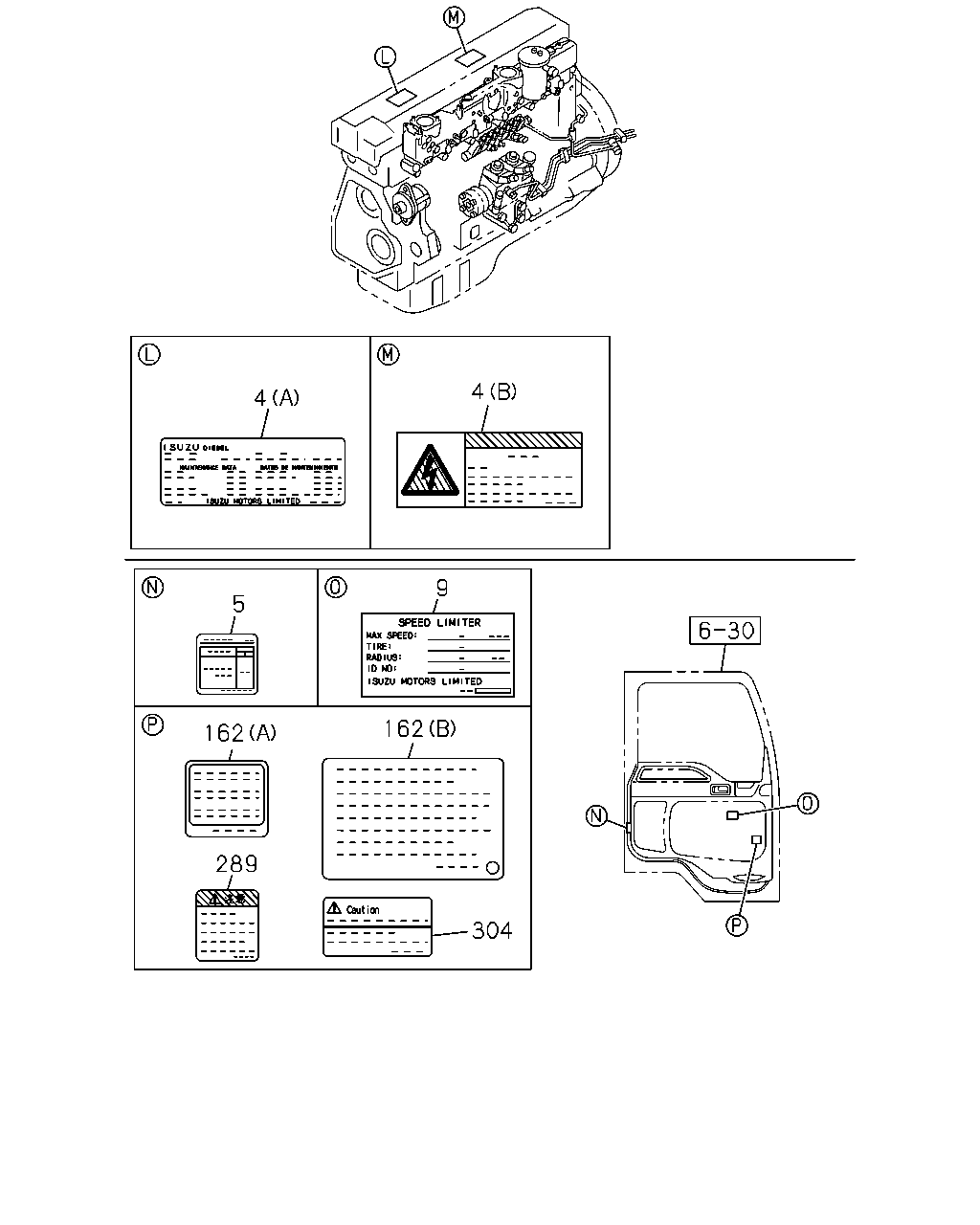

4 4 5 9 162 162 304 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	LABEL; ENG MAINTENANCE CAUTIONS CHINESE<SL7> (B)	1-85875-456-0	01	1	1008-	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS PORTUGUESE<NAT> (A)	8-98160-127-0	01	1	1008-	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS PORTUGUESE<NAT> (B)	8-98160-131-0	01	1	1008-	●	●
4	LABEL; ENG MAINTENANCE 6WF1 TC-C(1B8) CAUTIONS CHINESE<SL7> (A)	8-97612-153-1	01	1	1008-	●	●
4	LABEL; ENG MAINTENANCE 6WF1 TC-C(1B8) CAUTIONS ENGLISH<RR8>,CAUTIONS SPANISH<YN1> (A)	1-85875-462-1	01	1	1008-	●	●
4	LABEL; ENG MAINTENANCE 6WF1 TC-C(1B8) CAUTIONS ENGLISH<RR8>,CAUTIONS SPANISH<YN1> (B)	8-94391-524-0	01	1	1008-	●	●
4	LABEL; ENG MAINTENANCE 6WG1 TC-R(75L) CAUTIONS ENGLISH<RR8> (B)	8-94391-524-0	01	1	1008-	●	●
4	LABEL; ENG MAINTENANCE 6WF1 TC-C(1B8) CAUTIONS FRENCH<WJ8> (A)	8-98160-129-0	01	1	1008-	●	●
4	LABEL; ENG MAINTENANCE 6WF1 TC-C(1B8) CAUTIONS FRENCH<WJ8> (B)	8-98160-132-0	01	1	1008-	●	●
4	LABEL; ENG MAINTENANCE 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (A)	8-98138-727-1	01	1	1008-	●	●
4	LABEL; ENG MAINTENANCE 6WG1 TC-R(75L) CAUTIONS ENGLISH<RR8> (A)	1-85875-350-2	01	1	1008-	●	●
5	LABEL; TIRE AIR PRESSURE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) CHINA EQUIPMENT(YT2)	1-85881-985-0	01	1	1008-1109	●
5	LABEL; TIRE AIR PRESSURE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 295/80R22.5-153/150J RIB LUG(5N3) CHINA EQUIPMENT(YT2)	1-85881-985-0	01	1	1008-1109		●
5	LABEL; TIRE AIR PRESSURE CHINA EQUIPMENT(YT2)	8-98201-252-0	01	1	1110-	●	●
5	LABEL; TIRE AIR PRESSURE EXC. CHINA EQUIPMENT(YT2)	1-85880-814-0	01	1	1008-	●	●
5	LABEL; TIRE AIR PRESSURE F315/80R22.5-156/150L R295/80R22.5-152/148K(5M7) CHINA EQUIPMENT(YT2)	1-85881-984-0	01	1	1008-1109		●
9	PLATE; NAME,SPD RANGE TIRE315/80R22.5-156/150K RIBLUG LATIN AMERICA(5N2) COLOMBIA EQUIPMENT(CB7),GENERAL EXPORT EQUIPMENT(TAA) SPEED LIMITER 90KM(NMJ)	8-97636-842-0	01	1	1008-	●
9	PLATE; NAME,SPD RANGE TIRE 315/80R22.5-156/150L RIB EEC(5J5), TIRE315/80R22.5-156/150K RIBLUG LATIN AMERICA(5N2) COLOMBIA EQUIPMENT(CB7),GENERAL EXPORT EQUIPMENT(TAA) SPEED LIMITER 90KM(NMJ)	8-97636-842-0	01	1	1008-		●
9	PLATE; NAME,SPD RANGE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) COLOMBIA EQUIPMENT(CB7),GENERAL EXPORT EQUIPMENT(TAA) SPEED LIMITER 90KM(NMJ)	8-97636-843-0	01	1	1008-	●	●
9	PLATE; NAME,SPD RANGE TIRE 315/80R22.5-156/150K RIB LUG RUSSIA(5N1) RUSSIA EQUIPMENT(B12) SPEED LIMITER 90KM(NMJ)	8-97636-838-0	01	1	1008-	●	●
162	PLATE; CAUTION,FUEL CAUTIONS CHINESE<SL7> (A)	1-85875-457-0	01	1	1008-	●	●
162	PLATE; CAUTION,FUEL CAUTIONS ENGLISH<RR8> (B)	8-97623-712-0	01	1	1008-	●	●
162	PLATE; CAUTION,FUEL CAUTIONS FRENCH<WJ8> (B)	8-97621-140-0	01	1	1008-	●	●
162	PLATE; CAUTION,FUEL CAUTIONS PORTUGUESE<NAT> (B)	8-98083-160-0	01	1	1008-	●	●
162	PLATE; CAUTION,FUEL CAUTIONS SPANISH<YN1> (B)	8-97635-806-0	01	1	1008-	●	●
289	PLATE; CAUTION,DRIVING CAUTIONS CHINESE<SL7>	1-85883-223-1	01	1	1008-	●	●
304	PLATE; CAUTION,LOW TEMP RUSSIA EQUIPMENT(B12) CAUTIONS ENGLISH<RR8>	8-97500-678-0	01	1	1008-	●	●

156 290

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	156	PLATE; CAUTION,A/C CHINA EQUIPMENT(YT2)	1-85878-528-0	01	1	1008-	●	●
	290	PLATE; CAUTION,OIL TANK CHINA EQUIPMENT(YT2)	1-85881-876-0	01	1	1008-	●	●

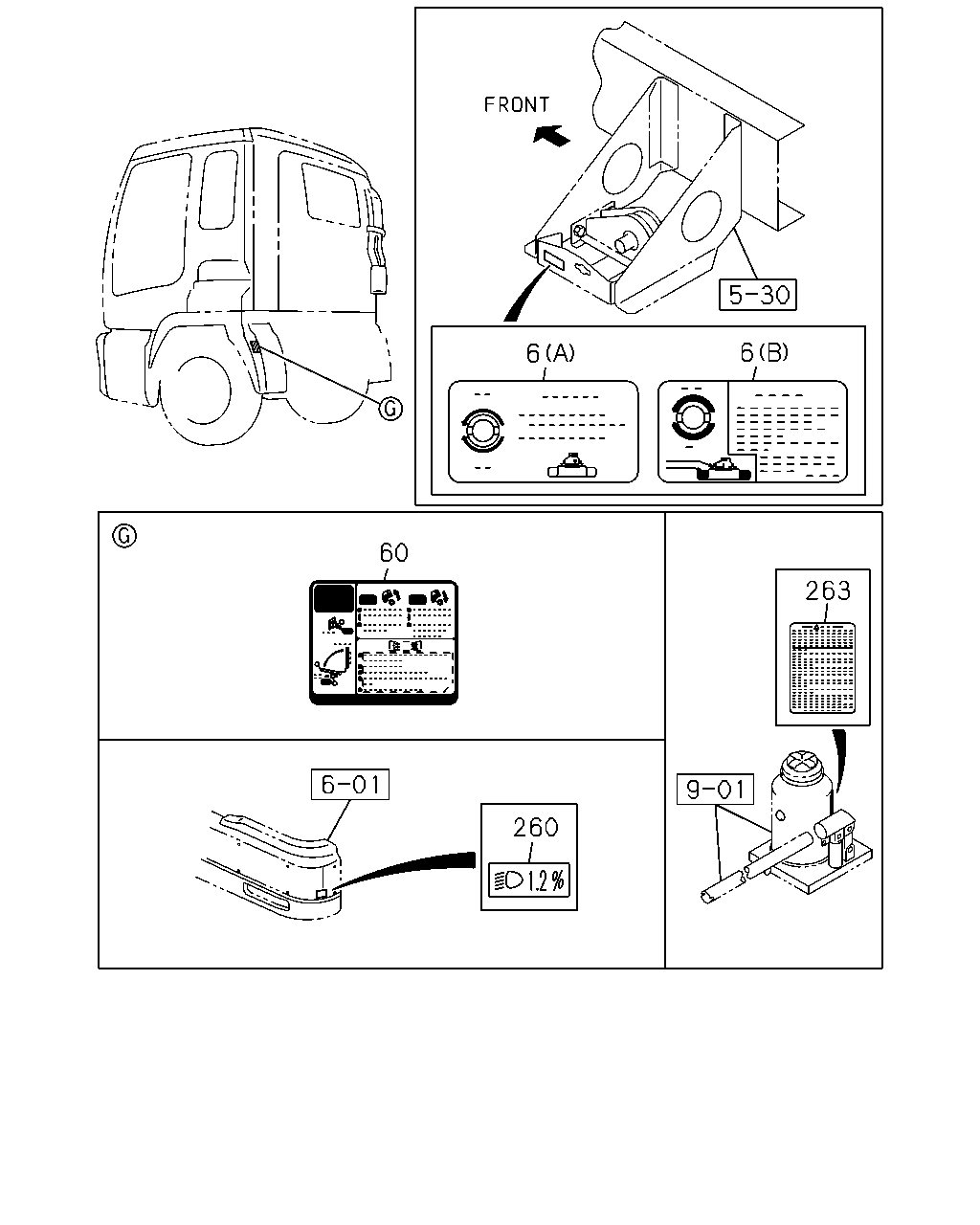

6 6 60 263 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	PLATE; CAUTION,SPARE TIRE CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53639-045-0	01	1	1008-	●
6	PLATE; CAUTION,SPARE TIRE CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53639-045-0	01	1	1008-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (B)	8-98082-438-0	01	1	1008-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (B)	8-98082-438-0	01	1	1008-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS SPANISH<YN1> (B)	8-98082-437-0	01	1	1008-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS SPANISH<YN1> (B)	8-98082-437-0	01	1	1008-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> (B)	8-98082-440-0	01	1	1008-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> (B)	8-98082-440-0	01	1	1008-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> (B)	8-98082-439-0	01	1	1008-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> (B)	8-98082-439-0	01	1	1008-		●
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT>	1-85883-182-0	01	1	1008-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8>	1-85883-176-0	01	1	1008-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7>	1-85883-175-0	01	1	1008-	●	●
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85883-174-0	01	1	1008-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1>	1-85883-177-0	01	1	1008-	●	●
260	PLATE; CAUTION,HEAD LAMP LEVELING	1-85878-416-1	01	1	1008-	●	●
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85881-878-0	01	1	1008-	●	●

181 181 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
144	PLATE; CAUTION,CLU MJX16P M/T(Y3Z)	1-85878-345-0	01	1	1008-	●	●
181	PLATE; CAUTION,AIR CLEANER (A)	1-85886-796-1	01	1	1008-	●	●
181	PLATE; CAUTION,AIR CLEANER (B)	1-85886-813-1	01	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
