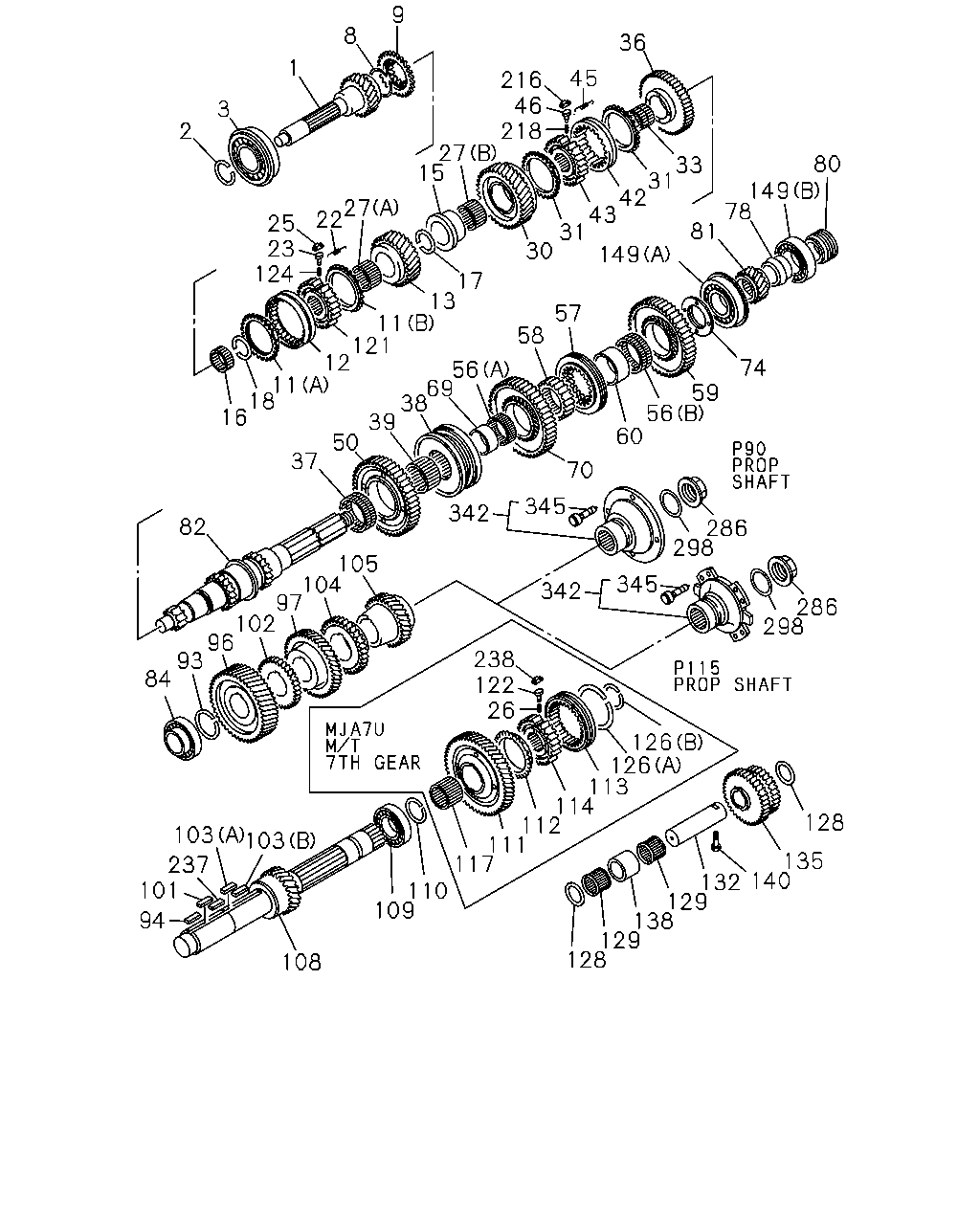

2-26A — MANUAL TRANSMISSION GEAR (#5570) — 115 parça

9 8 36 1 45 216 46 218 27 15 3 2 80 149 78 33 31 42 43 31 30 27 22 25 23 124 81 149 17 13 11 121 12 57 58 74 56 69 38 39 50 11 18 16 59 56 60 37 70 345 342 82 286 298 105 104 97 102 96 93 84 342 345 286 298 238 122 26 126 126 113 114 112 111 117 110 109 128 103 103 135 140 237 101 132 129 138 129 128 94 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9603-	●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9603-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9603-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9603-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9603-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9603-	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9603-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9603-	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9603-	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9603-	●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-7	01	1	9603-	●	●
11	RING; BLOCK,5TH & 6TH (B)	1-33265-426-0	01	1	9603-9908	●	●
11	RING; BLOCK,5TH & 6TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	9603-	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9603-	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9603-		●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	9603-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9603-	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	9603-	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9603-	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9603-	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9603-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9603-	●	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	9603-		●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9603-9711	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	9712-	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9603-	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9603-	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9603-9705	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	9706-	●	●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-376-3	02	1	9603-9608	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-429-0	02	1	9609-9908	●	●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-545-0	02	1	9909-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9603-9711	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	9712-	●	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9603-	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9603-9711	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	9712-	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	9603-	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	9603-	●	●
42	SLEEVE	1-33262-133-2	01	1	9603-0010	●	●
42	SLEEVE	1-33262-222-0	01	1	0011-	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-178-2	01	1	9603-9608	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-241-0	01	1	9609-	●	●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	9603-	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9603-	●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9603-	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9603-9711	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9603-9711	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	9712-	●	●
57	SLEEVE; REV	1-33262-112-1	01	1	9603-	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	9603-	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9603-	●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9603-	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9603-	●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9603-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9603-	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9603-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9603-		●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	9603-	●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	9603-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9603-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9603-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9603-9901	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9902-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9603-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9603-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9603-	●	●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9603-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9603-		●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9603-	●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9603-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9603-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9603-	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9603-	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9603-	●	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9603-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9603-	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9603-	●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9603-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9603-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9603-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9603-	●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	9603-		●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	9603-		●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	9603-		●
114	HUB; CLU,7TH	1-33261-177-2	01	1	9603-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	9603-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	9603-		●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9603-	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9603-		●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9603-	●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9603-		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9603-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9603-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9603-	●	●
132	SHAFT; REV	1-33351-016-2	01	1	9603-	●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9603-	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9603-	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9603-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9603-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9603-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9603-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9603-		●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	9603-	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	9603-	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9603-	●	●
238	INSERT	1-33263-025-2	03	1	9603-		●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9603-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9603-	●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X>	1-37243-203-0	01	1	9603-	●	●
342	FLANGE; OUTPUT P90 PROP SHAFT<C5T>	1-37243-171-4	01	1	9603-		●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	9603-	●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-086-0	04	1	9603-		●
