◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#55699) — 30 parça

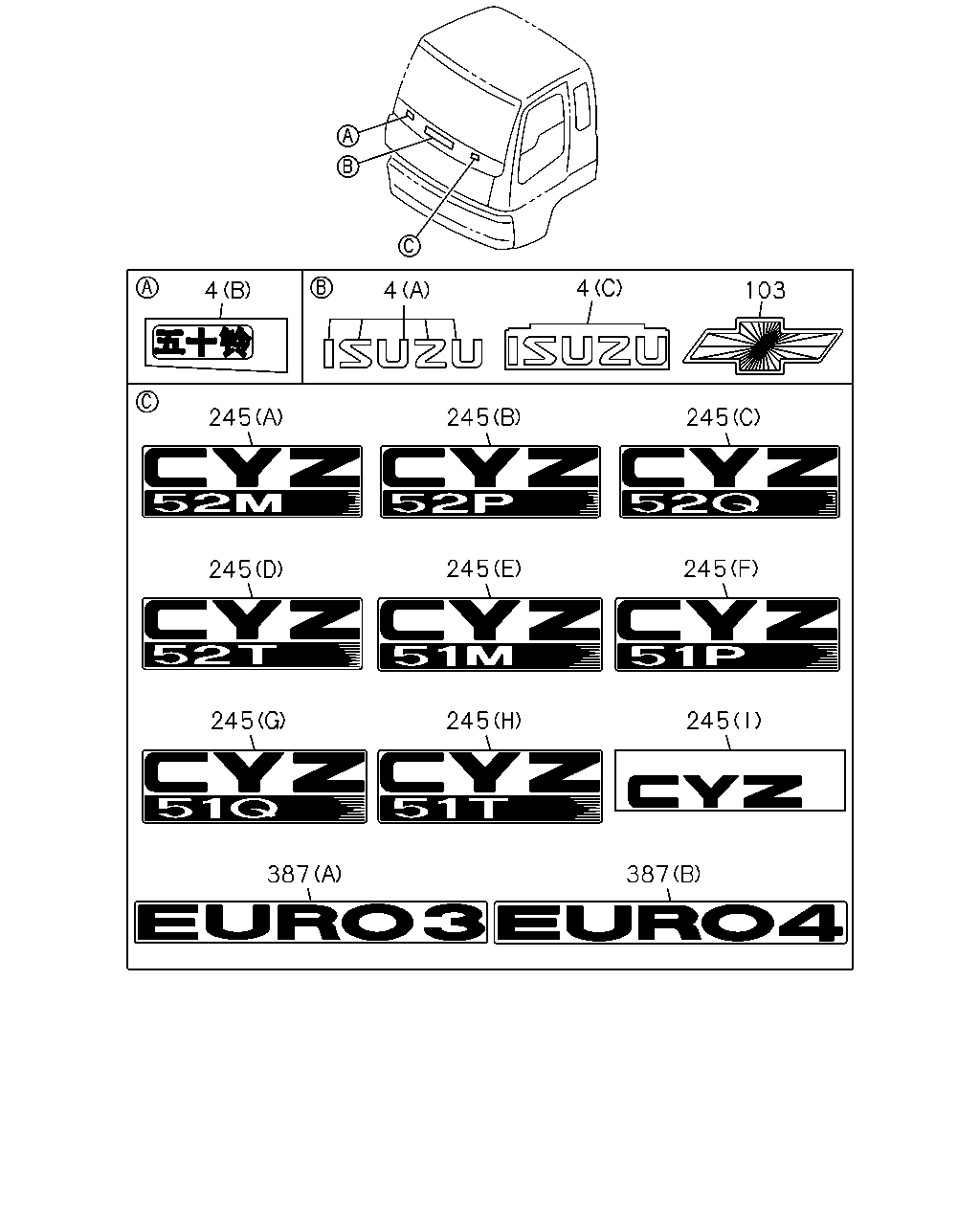

çizim 167278
4 4 103 4 245 245 245 245 245 245 245 245 245 387 387
BalonParca AdiParca NoAdetTipApplied Date A B
4 EMBLEM; RAD GRILLE
CENTER LETTER MARK "ISUZU" GOLD<JCC> CHINA EQUIPMENT(YT2) (A) 		1-76210-692-0 01 1 1008- ● ●
4 EMBLEM; RAD GRILLE
CENTER LETTER MARK "ISUZU" GOLD<JCC> EXC. CHINA EQUIPMENT(YT2) (C) 		1-76210-669-3 01 1 1008-1108 ● ●
4 EMBLEM; RAD GRILLE
CENTER LETTER MARK "ISUZU" GOLD<JCC> EXC. CHEV BRAND PACKAGE<PS2>,CHINA EQUIPMENT(YT2) (C) 		1-76210-669-3 01 1 1109- ● ●
4 EMBLEM; RAD GRILLE
EXC. CENTER LETTER MARK "ISUZU" GOLD<JCC>,CHINA EQUIPMENT(YT2) (C) 		1-76210-668-3 01 1 1008-1108 ● ●
4 EMBLEM; RAD GRILLE
EXC. CENTER LETTER MARK "ISUZU" GOLD<JCC>,CHEV BRAND PACKAGE<PS2>,CHINA EQUIPMENT(YT2) (C) 		1-76210-668-3 01 1 1109- ● ●
4 EMBLEM; RAD GRILLE
CHINA EQUIPMENT(YT2) (B) 		8-97857-852-0 01 1 1008- ● ●
4 EMBLEM; RAD GRILLE
CHINA EQUIPMENT(YT2) EXC. CENTER LETTER MARK "ISUZU" GOLD<JCC> (A) 		1-76210-691-0 01 1 1008- ● ●
103 EMBLEM; "CHEVROLET"
CHEV BRAND PACKAGE<PS2> 		8-97865-065-1 01 1 1008-1501 ● ●
103 EMBLEM; "CHEVROLET"
CHEV BRAND PACKAGE<PS2> 		8-98299-547-0 01 1 1502- ● ●
245 DECAL; MODEL
EXC. CHINA EQUIPMENT(YT2) (I) 		1-76217-189-0 01 1 1103- ● ●
245 DECAL; MODEL
6WF1 TC-C(1B8) CHINA EQUIPMENT(YT2) (E) 		8-98138-852-0 01 1 1008-1101 ●
245 DECAL; MODEL
6WF1 TC-C(1B8) BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) (E) 		8-98138-852-0 01 1 1102- ●
245 DECAL; MODEL
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) (A) 		8-98145-155-0 01 1 1008-1101 ●
245 DECAL; MODEL
6WG1 TC-R(75L) BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) (A) 		8-98145-155-0 01 1 1102- ●
245 DECAL; MODEL
6WF1 TC-C(1B8) WHEEL BASE 5500MM(55W) CHINA EQUIPMENT(YT2) (F) 		8-98160-215-0 01 1 1008-1101 ●
245 DECAL; MODEL
6WF1 TC-C(1B8) WHEEL BASE 5500MM(55W) BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) (F) 		8-98160-215-0 01 1 1102- ●
245 DECAL; MODEL
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W) CHINA EQUIPMENT(YT2) (G) 		1-76217-185-0 01 1 1008-1101 ●
245 DECAL; MODEL
6WF1 TC-C(1B8) WHEEL BASE 5900MM(59W) BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) (G) 		1-76217-185-0 01 1 1102- ●
245 DECAL; MODEL
6WF1 TC-C(1B8) WHEEL BASE 6600MM(66W) CHINA EQUIPMENT(YT2) (H) 		1-76217-186-0 01 1 1008-1101 ●
245 DECAL; MODEL
6WF1 TC-C(1B8) WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) (H) 		1-76217-186-0 01 1 1102- ●
245 DECAL; MODEL
6WG1 TC-R(75L) WHEEL BASE 5500MM(55W) CHINA EQUIPMENT(YT2) (B) 		8-98144-751-0 01 1 1008-1101 ●
245 DECAL; MODEL
6WG1 TC-R(75L) WHEEL BASE 5500MM(55W) BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) (B) 		8-98144-751-0 01 1 1102- ●
245 DECAL; MODEL
6WG1 TC-R(75L) WHEEL BASE 5900MM(59W) CHINA EQUIPMENT(YT2) (C) 		8-98138-853-0 01 1 1008-1101 ●
245 DECAL; MODEL
6WG1 TC-R(75L) WHEEL BASE 5900MM(59W) BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) (C) 		8-98138-853-0 01 1 1102- ●
245 DECAL; MODEL
6WG1 TC-R(75L) WHEEL BASE 6600MM(66W) CHINA EQUIPMENT(YT2) (D) 		8-98138-854-0 01 1 1008-1101 ●
245 DECAL; MODEL
6WG1 TC-R(75L) WHEEL BASE 6600MM(66W) BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) (D) 		8-98138-854-0 01 1 1102- ●
387 DECAL; "EURO"
EURO3 SPECIFICATION<NJX> EXC. CHINA EQUIPMENT(YT2) (A) 		1-76217-183-0 01 1 1008- ● ●
387 DECAL; "EURO"
6WF1 TC-C(1B8) CHINA EQUIPMENT(YT2) (A) 		1-76217-183-0 01 1 1008- ● ●
387 DECAL; "EURO"
EURO4 SPECIFICATION<KBT> EXC. CHINA EQUIPMENT(YT2) (B) 		8-98138-865-0 01 1 1008- ● ●
387 DECAL; "EURO"
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) (B) 		8-98138-865-0 01 1 1008- ● ●
