◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#55687) — 147 parça

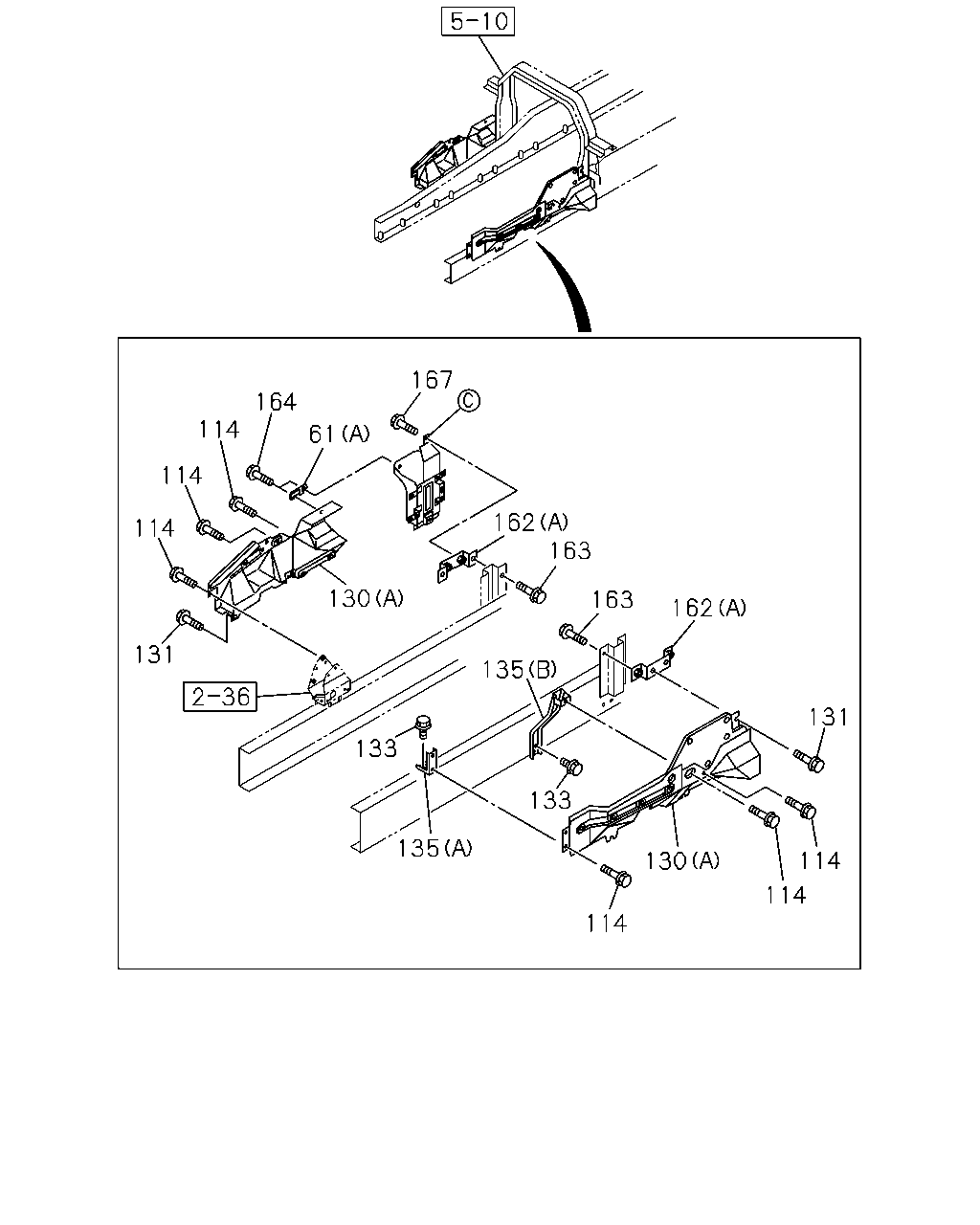

çizim 167252
167 164 114 61 114 162 163 114 130 163 162 131 135 131 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date A B
61 BRACKET; COVER
EURO4 SPECIFICATION<KBT> (C) 		1-53441-610-1 02 1 1008- ● ●
61 BRACKET; COVER
EURO4 SPECIFICATION<KBT> (B) 		1-53441-611-1 01 1 1008- ● ●
61 BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		8-98039-501-1 01 1 1008- ● ●
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 1008- ● ●
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008- ● ●
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1008- ● ●
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 1008- ● ●
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 1008- ● ●
135 BRACKET; SIDE PANEL
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		1-53441-598-1 01 1 1008- ● ●
135 BRACKET; SIDE PANEL
ENGINE CONTROL-B2(Q4T) (B) 		1-53441-508-1 01 1 1008- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 1008- ● ●
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53441-521-2 01 1 1008- ● ●
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C) 		1-53441-522-0 01 1 1008- ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008- ● ●
164 BOLT; FLEX COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 02 1 1008- ● ●
167 BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 05 1 1008- ● ●
çizim 167269
130 251 74 251 130 73 251 251 122 168 167 122 167 162 160 122 162 160 122
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1008- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1008- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1008- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1008- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1008- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
122 BOLT
EURO4 SPECIFICATION<KBT> (C) M8X35 FLANGE 		0-28650-835-0 04 1 1008- ● ●
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE 		0-28650-820-0 03 1 1008- ● ●
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008- ● ●
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-79931-408-4 01 1 1008-1207 ● ●
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-79931-411-2 01 1 1208- ● ●
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-412-1 01 1 1008- ● ●
162 BRACKET
(A) 		1-53441-520-0 02 1 1008- ● ●
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53441-521-2 01 1 1008- ● ●
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C) 		1-53441-522-0 01 1 1008- ● ●
167 BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 05 1 1008- ● ●
168 NUT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1008- ● ●
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1008- ● ●
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1008- ● ●

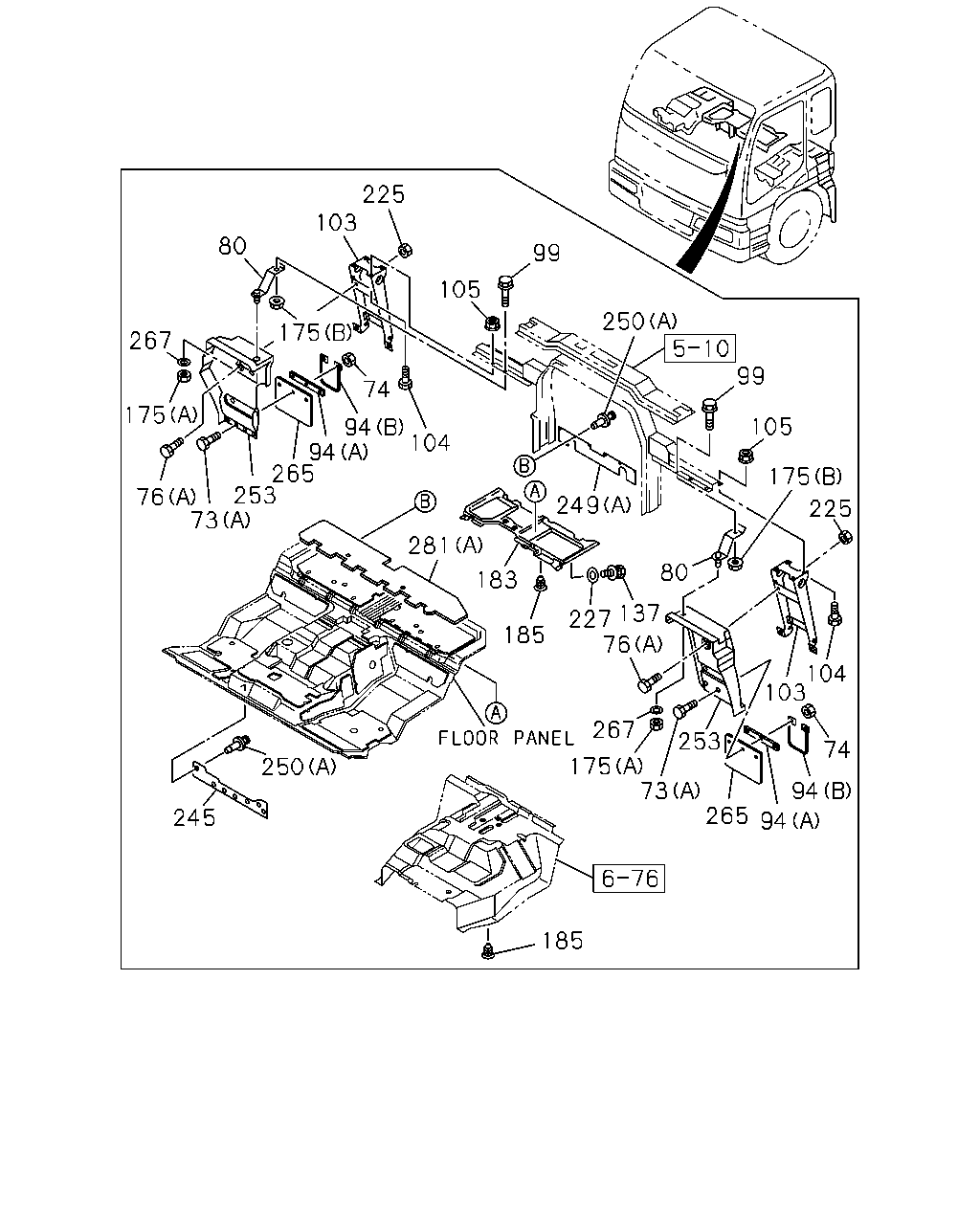

çizim 167290
225 103 80 99 105 175 250 99 267 74 175 105 94 104 94 265 253 73 175 76 249 225 281 183 80 137 227 76 185 104 103 267 253 74 175 73 250 265 94 245 94 185
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1008- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1008- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1008- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1008- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1008- ● ●
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1008- ● ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1008- ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1008- ● ●
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1008- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1008- ● ●
94 RETAINER; FLAP RUBBER
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-524-0 01 1 1008- ●
94 RETAINER; FLAP RUBBER
EXC. SILENCER LAYOUT REAR VAR1<JAZ>,SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-524-0 01 1 1008- ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1008- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1008- ● ●
94 RETAINER; FLAP RUBBER
SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-194-0 01 1 1008- ● ●
94 RETAINER; FLAP RUBBER
SILENCER LAYOUT REAR VAR1<JAZ> (B) 		1-79931-194-0 01 1 1008- ●
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1008- ● ●
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 02 1 1008-1502 ● ●
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 02 1 1503- ● ●
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1008- ● ●
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1008- ● ●
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1008- ● ●
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1008- ● ●
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 1008- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 21 1 1008- ● ●
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1008- ● ●
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1008- ● ●
245 RUBBER; SHUTTER,RAD
6WF1 TC-C(1B8) 		1-79937-949-1 01 1 1008-1112 ● ●
245 RUBBER; SHUTTER,RAD
6WF1 TC-C(1B8) 		1-79937-949-1 01 1 1201- ● ●
245 RUBBER; SHUTTER,RAD
CONCRETE PUMP<RA5> EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2) 		1-79937-949-1 01 1 1201- ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1008- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1008- ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1008- ● ●
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1008- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1008- ● ●
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1008- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1008-1112 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1201- ● ●
250 FASTENER; SHUTTER
CONCRETE PUMP<RA5> EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2) (A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1201- ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1008- ● ●
253 GUARD; MUD 8-98134-766-1 01 1 1008- ● ●
253 GUARD; MUD
SILENCER SINGLE VERTICAL<N28> 		8-98134-760-0 01 1 1008- ● ●
253 GUARD; MUD
EXC. SILENCER SINGLE VERTICAL<N28> 		8-98134-759-0 01 1 1008- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 1008- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 1008- ● ●
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1008- ● ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1008- ● ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 1008- ● ●

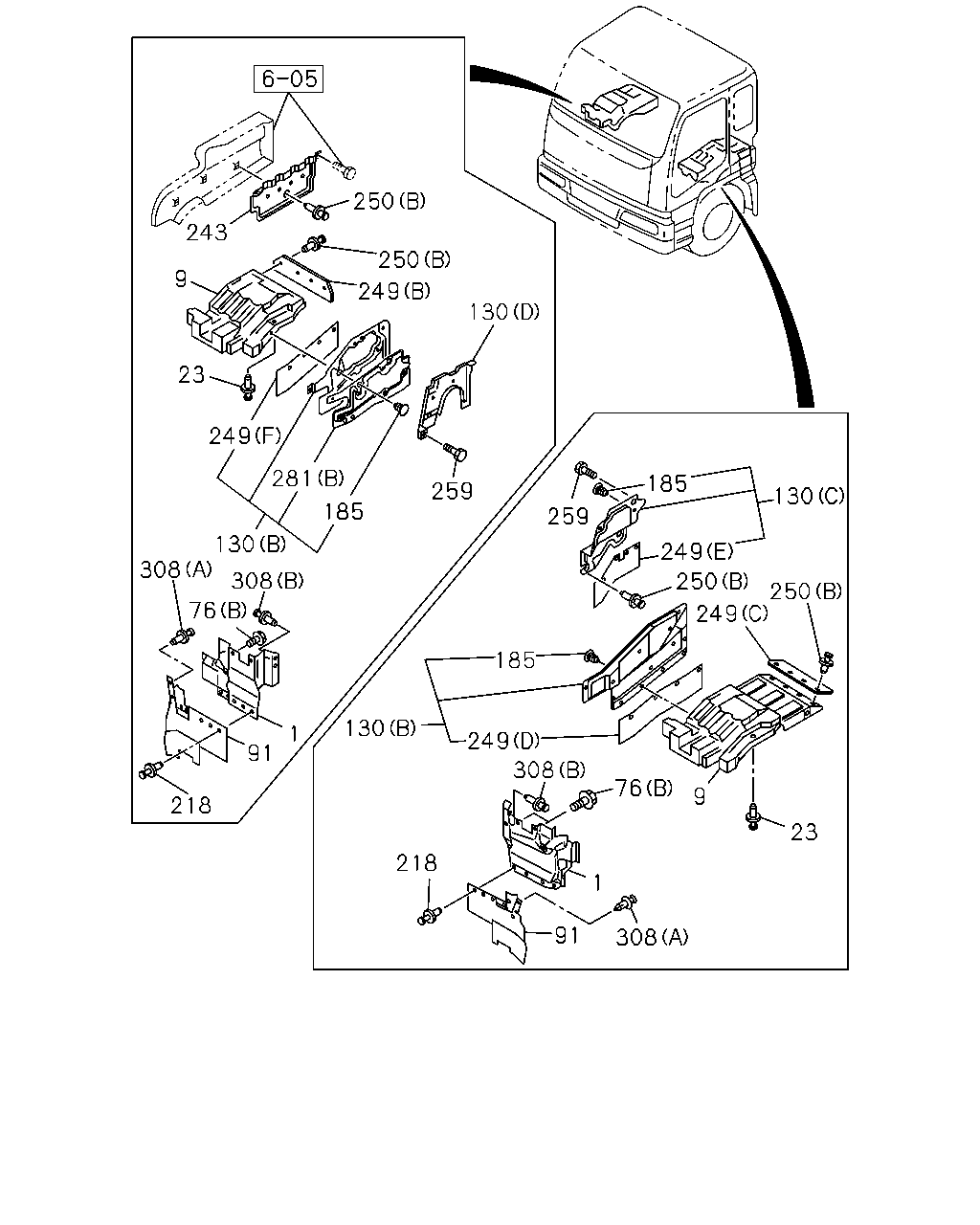

çizim 167292
243 250 250 9 249 130 23 249 281 185 259 130 185 259 130 249 308 308 250 250 249 76 185 130 1 249 91 308 76 9 218 23 218 1 91 308
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1008- ● ●
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1008- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1008- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1008- ● ●
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1008- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1008- ● ●
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1008- ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1008- ● ●
91 COVER; MUD,FRT 8-98134-826-2 01 1 1008- ● ●
91 COVER; MUD,FRT 8-98134-825-2 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008- ● ●
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008- ● ●
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 21 1 1008- ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1008- ● ●
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1008- ● ●
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1008- ● ●
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1008- ● ●
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1008- ● ●
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1008- ● ●
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1008- ● ●
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1008- ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1008-1112 ● ●
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1201- ● ●
250 FASTENER; SHUTTER
CONCRETE PUMP<RA5> EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2) (A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1201- ●
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1008- ● ●
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1008- ● ●
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1008- ● ●
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 1008- ● ●
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1008- ● ●
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1008- ● ●

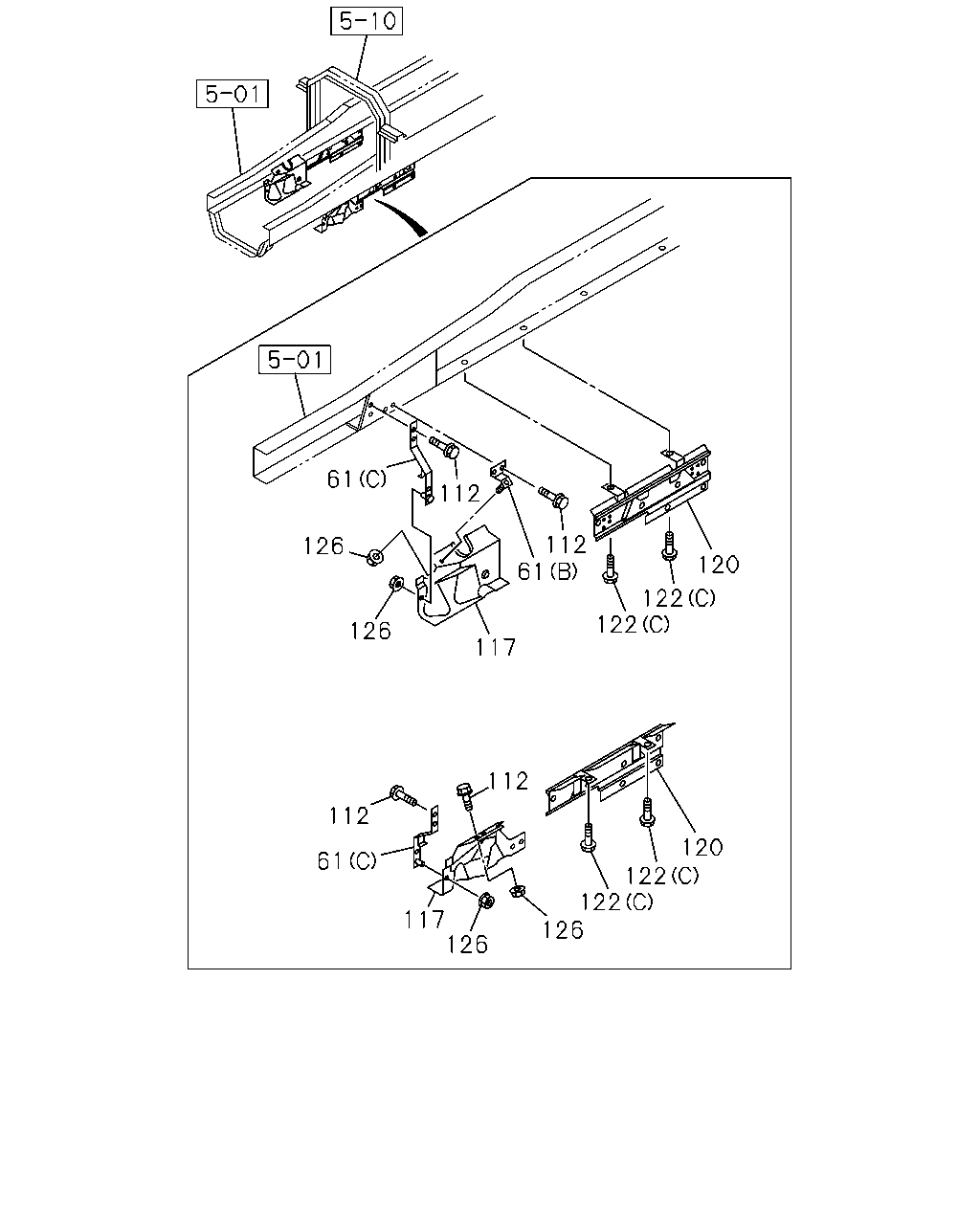

çizim 167302
61 112 112 61 126 120 122 122 126 117 112 112 120 122 122 126 61 117 126
BalonParca AdiParca NoAdetTipApplied Date A B
61 BRACKET; COVER
EURO4 SPECIFICATION<KBT> (C) 		1-53441-610-1 02 1 1008- ● ●
61 BRACKET; COVER
EURO4 SPECIFICATION<KBT> (B) 		1-53441-611-1 01 1 1008- ● ●
61 BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		8-98039-501-1 01 1 1008- ● ●
112 BOLT; BRKT
EURO4 SPECIFICATION<KBT> M8X25 FLANGE 		0-28650-825-0 06 1 1008- ● ●
117 PANEL; SIDE,B UNDER
EURO4 SPECIFICATION<KBT> 		1-53194-508-2 01 1 1008- ● ●
117 PANEL; SIDE,B UNDER
EURO4 SPECIFICATION<KBT> 		1-53194-510-2 01 1 1008- ● ●
120 PANEL; UNDER
EURO4 SPECIFICATION<KBT> 		1-53194-557-1 01 1 1008- ● ●
120 PANEL; UNDER
EURO4 SPECIFICATION<KBT> 		1-53194-263-2 01 1 1008- ● ●
122 BOLT
EURO4 SPECIFICATION<KBT> (C) M8X35 FLANGE 		0-28650-835-0 04 1 1008- ● ●
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE 		0-28650-820-0 03 1 1008- ● ●
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1008- ● ●
126 NUT; PANEL
EURO4 SPECIFICATION<KBT> M8 FLANGE 		1-09464-018-1 04 1 1008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
