◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#55686) — 13 parça

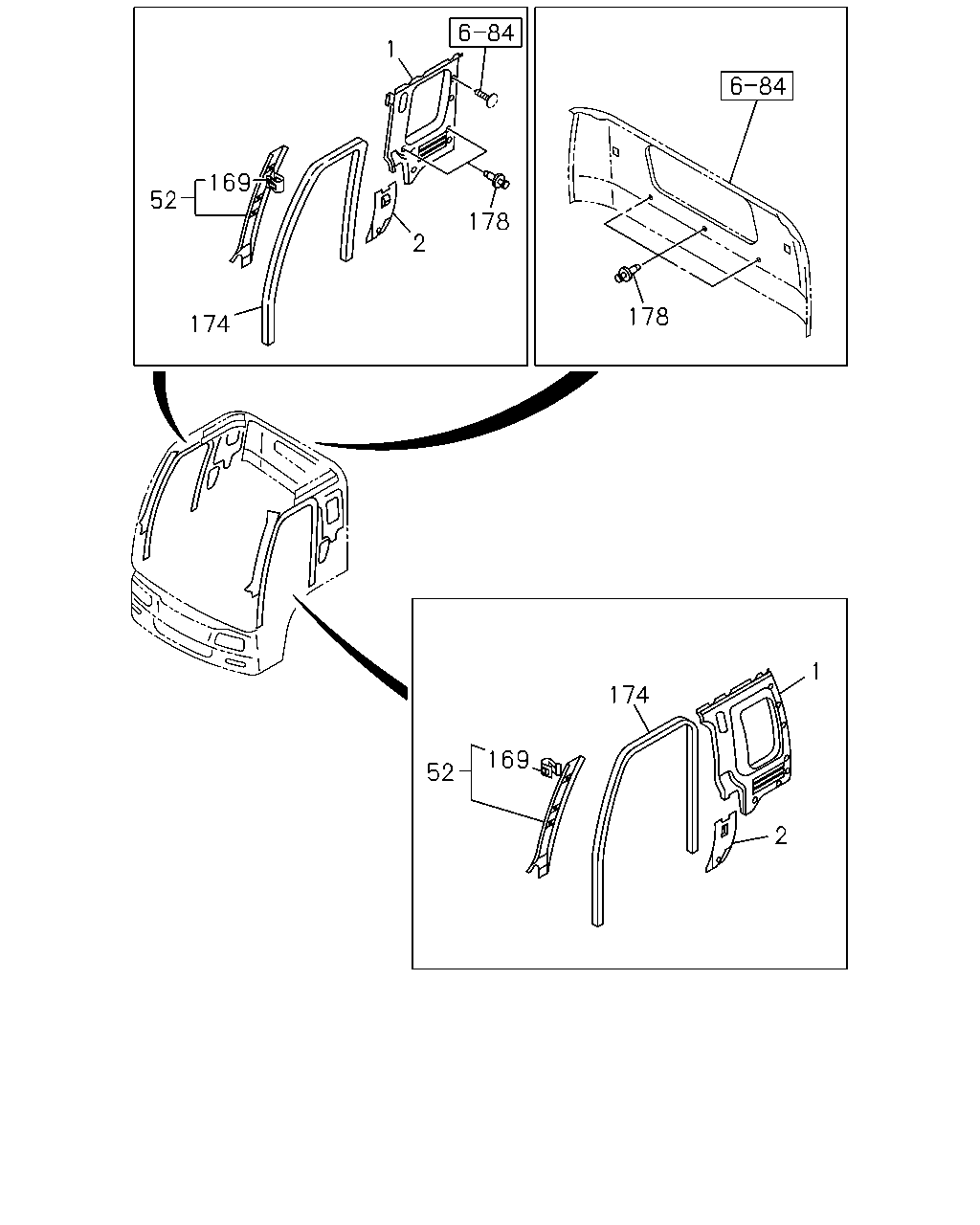

çizim 167261
1 169 52 178 2 178 174 1 174 169 52 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRIM; ROOM,QUARTER WINDOW UPR
CHINA EQUIPMENT(YT2) 		1-73347-927-0 01 1 1008- ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
CHINA EQUIPMENT(YT2) 		1-73347-926-0 01 1 1008- ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. CHINA EQUIPMENT(YT2) 		1-73347-902-3 01 1 1008- ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. CHINA EQUIPMENT(YT2) 		1-73347-901-4 01 1 1008- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
CHINA EQUIPMENT(YT2) 		1-73346-044-0 01 1 1008- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
CHINA EQUIPMENT(YT2) 		1-73346-043-0 01 1 1008- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. CHINA EQUIPMENT(YT2) 		1-73346-023-1 01 1 1008- ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. CHINA EQUIPMENT(YT2) 		1-73346-022-1 01 1 1008- ● ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 1008- ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 1008- ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 1008- ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 1008- ● ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 07 1 1008- ● ●
