◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11272 - CYZ LHD EURO2/3/4 WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#55682) — 84 parça

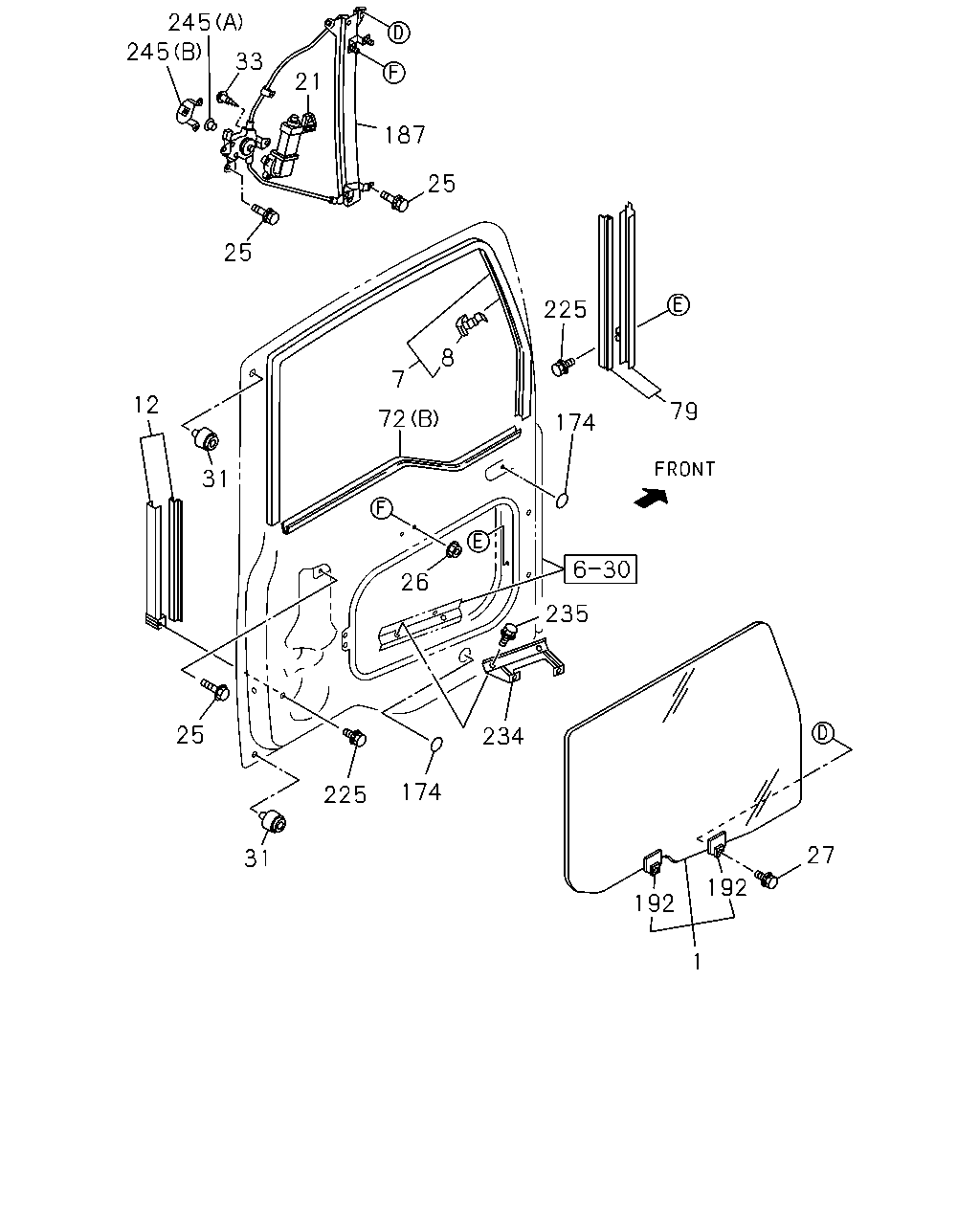

çizim 167247
245 245 33 21 187 25 25 225 8 7 12 79 72 174 31 26 235 25 234 174 225 27 31 192 192 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98160-983-0 01 1 1008-1212 ● ●
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98208-685-0 01 1 1301- ● ●
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98160-982-0 01 1 1008-1212 ● ●
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98208-684-0 01 1 1301- ● ●
1 GLASS; FRT DOOR
EXC. WINDOW SIDE UV CUT<NNU> 		1-76148-095-2 01 1 1008- ● ●
1 GLASS; FRT DOOR
EXC. WINDOW SIDE UV CUT<NNU> 		1-76167-177-2 01 1 1008- ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 1008- ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 1008- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 1008- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 1008- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 1008- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 1008- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 1008- ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 10 1 1008- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 1008- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 1008- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 1008- ● ●
33 SCREW; REG MOTOR 8-98099-646-0 06 1 1204- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 1008-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 1008- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 1008-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 1008- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 1008- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 1008- ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 1008- ● ●
187 REGULATOR ASM; DOOR 1-74418-179-3 01 1 1008- ● ●
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 1008- ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 1008- ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 1008- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 1008- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 1008- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1008- ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74417-074-0 02 1 1008- ● ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74418-181-0 01 1 1008- ● ●
245 DAMPER; WINDOW REGULATOR
(C) 		1-74418-180-0 01 1 1008- ● ●

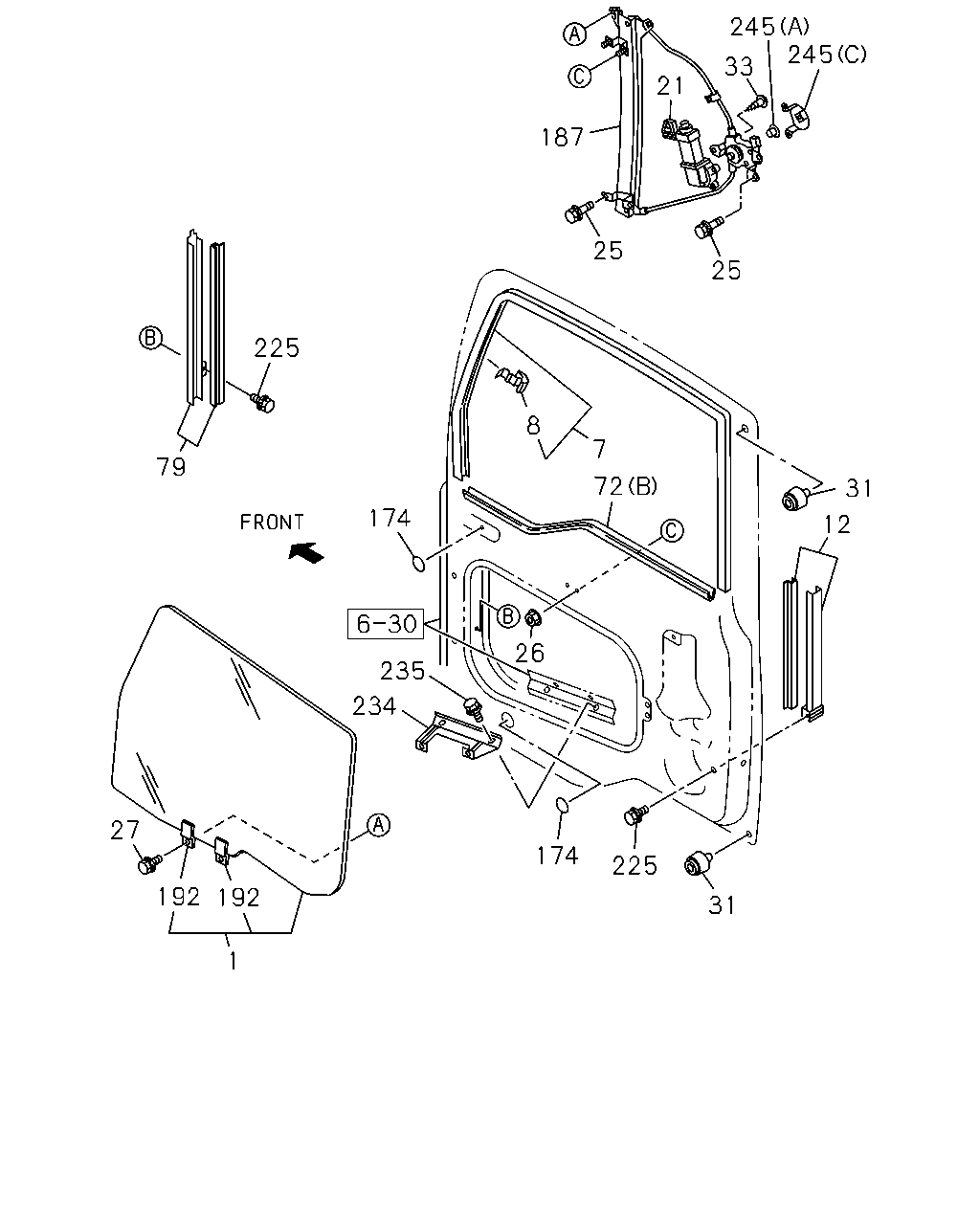

çizim 167251
245 245 33 21 187 25 25 225 8 7 79 72 31 174 12 26 235 234 27 174 225 192 12 31 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98160-983-0 01 1 1008-1212 ● ●
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98208-685-0 01 1 1301- ● ●
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98160-982-0 01 1 1008-1212 ● ●
1 GLASS; FRT DOOR
WINDOW SIDE UV CUT<NNU> 		8-98208-684-0 01 1 1301- ● ●
1 GLASS; FRT DOOR
EXC. WINDOW SIDE UV CUT<NNU> 		1-76148-095-2 01 1 1008- ● ●
1 GLASS; FRT DOOR
EXC. WINDOW SIDE UV CUT<NNU> 		1-76167-177-2 01 1 1008- ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 1008- ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 1008- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 1008- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 1008- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 1008- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 1008- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 1008- ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 10 1 1008- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 1008- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 1008- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 1008- ● ●
33 SCREW; REG MOTOR 8-98099-646-0 06 1 1204- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 1008-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 1008- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 1008-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 1008- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 1008- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 1008- ● ●
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 1008- ● ●
187 REGULATOR ASM; DOOR 1-74418-179-3 01 1 1008- ● ●
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 1008- ● ●
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 1008- ● ●
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 1008- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 1008- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 1008- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1008- ● ●
245 DAMPER; WINDOW REGULATOR
(A) 		1-74417-074-0 02 1 1008- ● ●
245 DAMPER; WINDOW REGULATOR
(B) 		1-74418-181-0 01 1 1008- ● ●
245 DAMPER; WINDOW REGULATOR
(C) 		1-74418-180-0 01 1 1008- ● ●
çizim 167276
72 132 129 132 129 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 1008-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 1008- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 1008-1207 ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 1008- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 1008- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 1008- ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 1008- ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 1008- ● ●
